Victron "In Vehicle" Off Grid Charging Bundle With 50A DC to DC & 30A AC to DC Charger

Product Description

Victron "In Vehicle" Off Grid Charging Bundle With 30A DC to DC & 30A AC to DC Charger, 5 Year Warranty. The Victron "in vehicle" off grid charging bundle with 30A DC to DC and 30A AC to DC Charger is the ultimate battery charging and monitoring solution for your 4 x 4, Caravan, RV or Camper Trailer. It brings together Victron's state-of-the-art innovations to offer you a complete answer for effective energy control, you can manage your power supply effectively while guaranteeing efficient charging, monitoring, and safeguarding of your batteries:

Bundle Includes:

• Victron Mains Cord AU/NZ For Smart IP43 2m - ORI121217050
• Victron Temperature Sensor for BMV-702/712 - PSC123051095
• Victron Battery Monitor BMV-712 Smart - ADA010100300
• Victron Smart Battery Protect 12/24V-65A - SBS050150200
• Victron Orion XS 12/12-50A DC-DC battery charger - SCC075015060R
• Victron Phoenix Smart Charger 12/30(1+1) 120-240V - BAM030712000R
• Victron Smart Battery Sense Long Range (up to 10m) - ASS000100000
• Victron SmartSolar MPPT 75/15 Charge Controller - BPR065022000

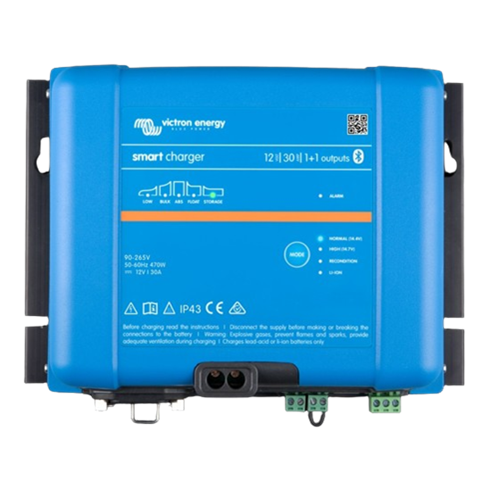

Victron Phoenix Smart Charger 12/30(1+1) 120-240V

With boat owners in mind this adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the charger 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features – see the datasheet below.

Bluetooth Smart built-in. The wireless solution to set-up, monitor, control, update and synchronise Smart IP43 Chargers.

Smart IP43 Charger (1+1): two outputs to charge 2 battery banks. The second output, limited to approximately 4 A and with a slightly lower output voltage, is intended to top up a starter battery.

Smart IP43 Charger (3): three full current outputs to charge 3 battery banks. Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger

Automatic voltage compensation. The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.

Adaptive 6-stage charge algorithm. Bulk– absorption – recondition – float – storage – refresh. The Smart IP43 Charger features our well-known “adaptive” battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.

The right amount of charge: variable absorption time. When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.

Less maintenance and aging when the battery is not in use: the Storage Mode. The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Also charges Li-ion (LiFePO₄) batteries. Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.

Fully programmable charge algorithm. The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button

Remote on-off. The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See manual for details.

Programmable relay. Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events

Synchronised charging. Pairing two or more Smart IP43 Chargers in a VE.Smart Network, enables synchronised charging. This improves the charge efficiency and battery life

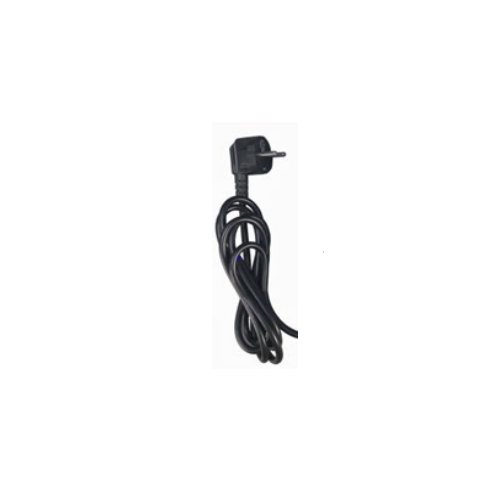

MAINS CORD AU/NZ FOR SMART IP43 2M

A single spare or replacement Mains Cord to suit the Smart IP43 chargers, this is 2m long

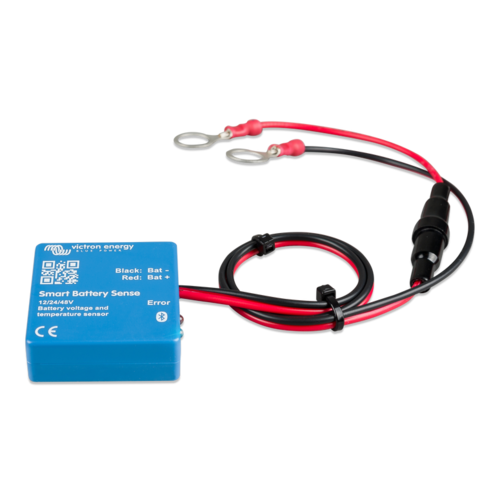

Victron Smart Battery Sense Long Range (up to 10m)

Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron MPPT Solar Chargers.

With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life.
Improves battery charging

By measuring the voltage at the battery bank terminals, errors arising from voltage-loss due to cable resistance are avoided - guaranteeing the correct charge-voltage.

For lead batteries, battery temperature data is used to adjust the charge-voltages: cold batteries require an increased charge-voltage, whereas hot batteries require a decreased charge-voltage. For lithium batteries temperature data is used to disable charging when they are too cold: charging lithium batteries near or below freezing causes permanent damage to the cells.
Look no wires

The connection between Smart Battery Sense and one or more Solar Charger(s) is wireless: It uses VE. Smart Network - a wireless technology based on Bluetooth Smart.

Information transmitted can be used simultaneously by one, two, or more Solar Chargers connected to the same 12V, 24V,  and 48V battery bank. The Smart Network is set up using the VictronConnect app.
Tidy, simple - smart

Installation is simple, quick, and tidy. Just connect the unit's two eyelets to your battery terminals and attach the Smart Battery Sense unit directly onto the battery-body using its self-adhesive strip.

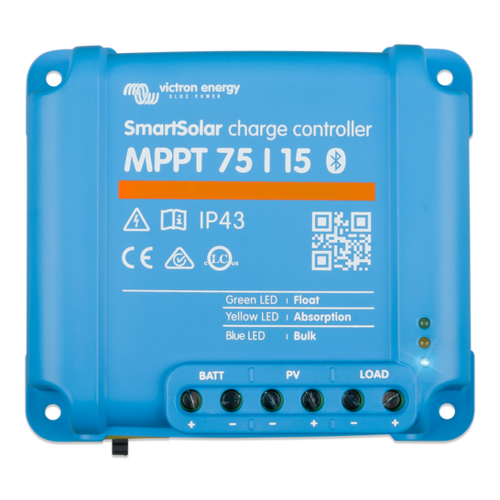

Victron SmartSolar MPPT 75/15 Charge Controller

Solar charge controller. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking. By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control. Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Load output. The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

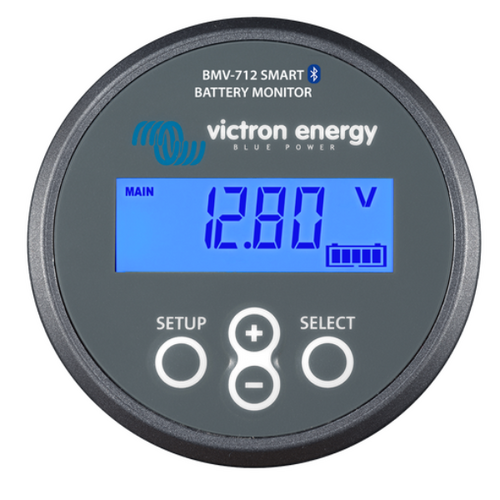

Victron Battery Monitor BMV-712 Smart

With Bluetooth built-in, the BMV Smart battery monitor is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

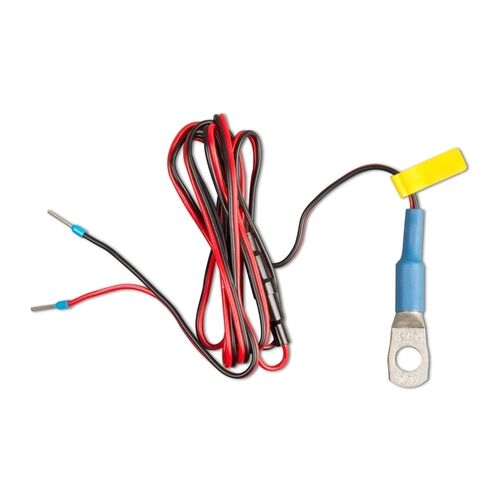

Victron Temperature Sensor for BMV-702/712

This sensor will only work with the BMV-702 and BMV-712 battery monitors.

*Note: The Installation instructions will be found in the BMV Manual. When using the temperature sensor - the second battery voltage and midpoint voltage monitoring are not availabl

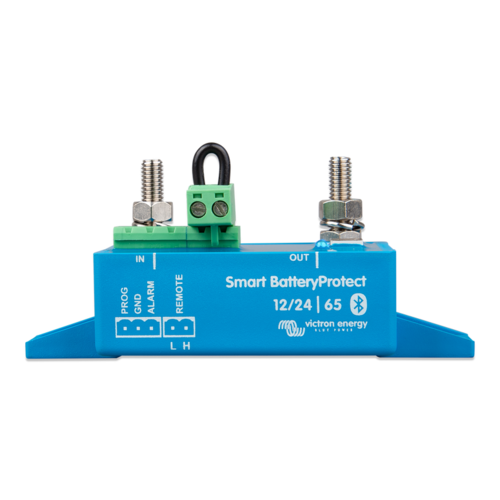

Victron Smart Battery Protect 12/24V-65A

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).

If required, Bluetooth can be disabled.

The Smart BatteryProtect is not designed for reverse currents from charging sources.
