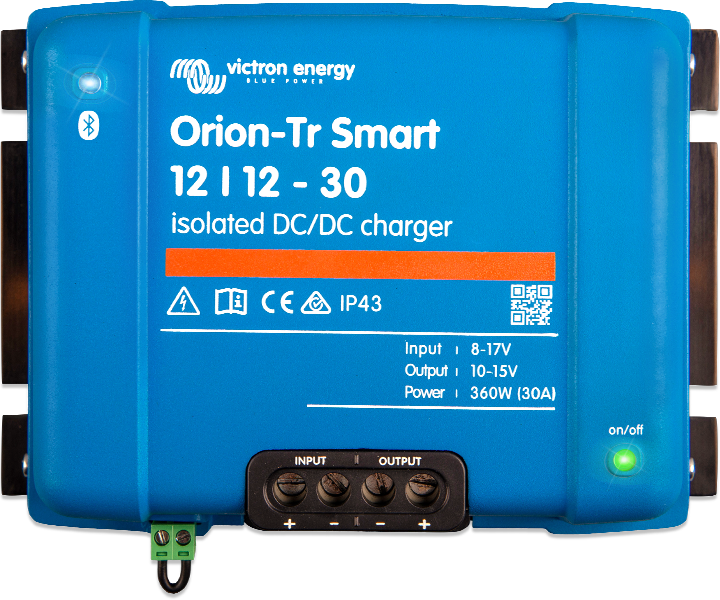

Victron Orion-Tr Smart 12/12-30A (360W) DC-DC charger
SKU: ORI121236120 Learn More»Product Description
Victron Orion-Tr Smart 12/12-30A (360W) DC-DC charger, 5 Year Warranty.
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Isolated DC to DC Chargers Vs Non-Isolated DC to DC Chargers:
An isolated DC to DC charger has one negative connection for each battery and there is no internal connection between the negatives. They are required for systems that need to be isolated which could be for a number of reasons including;
- Limiting corrosion (Typically marine applications).
- Preventing noise on one battery system from effecting the other battery system.
For systems that do not require isolation - either unit can be used, but the non-isolated requires one less wire to be installed.
In automotive systems, the negative of both batteries is typically connected to the chassis of the vehicle. This is a non-isolated system, therefore either unit will be suitable.
DC to DC Charger without solar regulator:
The advantage of separating the DC-DC charger from solar regulator
- The DC to DC charger can remain cheaper
- Solar can be charging into the battery system simultaneously with the on-board vehicle charging
- You can purchase the correct solar regulator to match your solar panels, which will provide the best efficiency for solar charging
Specifications
SKU ORI121236120
Brand Victron
GTIN 8719076047698
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 30
Under Voltage Alarm 14V
Input Voltage 20-35V
Dimensions 130 x 186 x 70 mm (L x W x H)
Standby Current Less than 1 mA
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
Charger Voltage 12V
Net Weight (kg) 1.8
Output System Voltage 12V
Humidity Max. 95% non-condensing
Videos
Victron Battery Charger Review: Orion-Tr Smart 12/12-30A (360W) DC-DC charger
Product Q&A
-
I noticed that the Victron DC to DC chargers do not have a solar regulator?Although many competitors include a built solar regulator in their chargers, Victron have chosen to keep this separate. The advantage of this separation is:
- The DC to DC charger can remain cheaper
- Solar can be charging into the battery system simultaneously with the on-board vehicle charging
- You can purchase the correct solar regulator to match your solar panels, which will provide the best efficiency for solar charging
-
What is the difference between isolated and non-isolated Victron DC to DC chargers?An isolated DC-DC charger has one negative connection for each battery and there is no internal connection between the negatives. They are required for systems that need to be isolated which could be for a number of reasons including;
- Limiting corrosion (Typically marine applications).
- Preventing noise on one battery system from effecting the other battery system.
For systems that do not require isolation, either unit can be used, however the non-isolated unit is cheaper and requires one less wire to be installed.In automotive systems, the negative of both batteries is typically connected to the chassis of the vehicle. This is a non-isolated system, therefore either unit will be suitable.Caravan, RV and 4X4 customers tend to purchase to Non-Isolated Victron DC to DC chargers with the most popular being the 30A 12/12 DC to DC charger. -

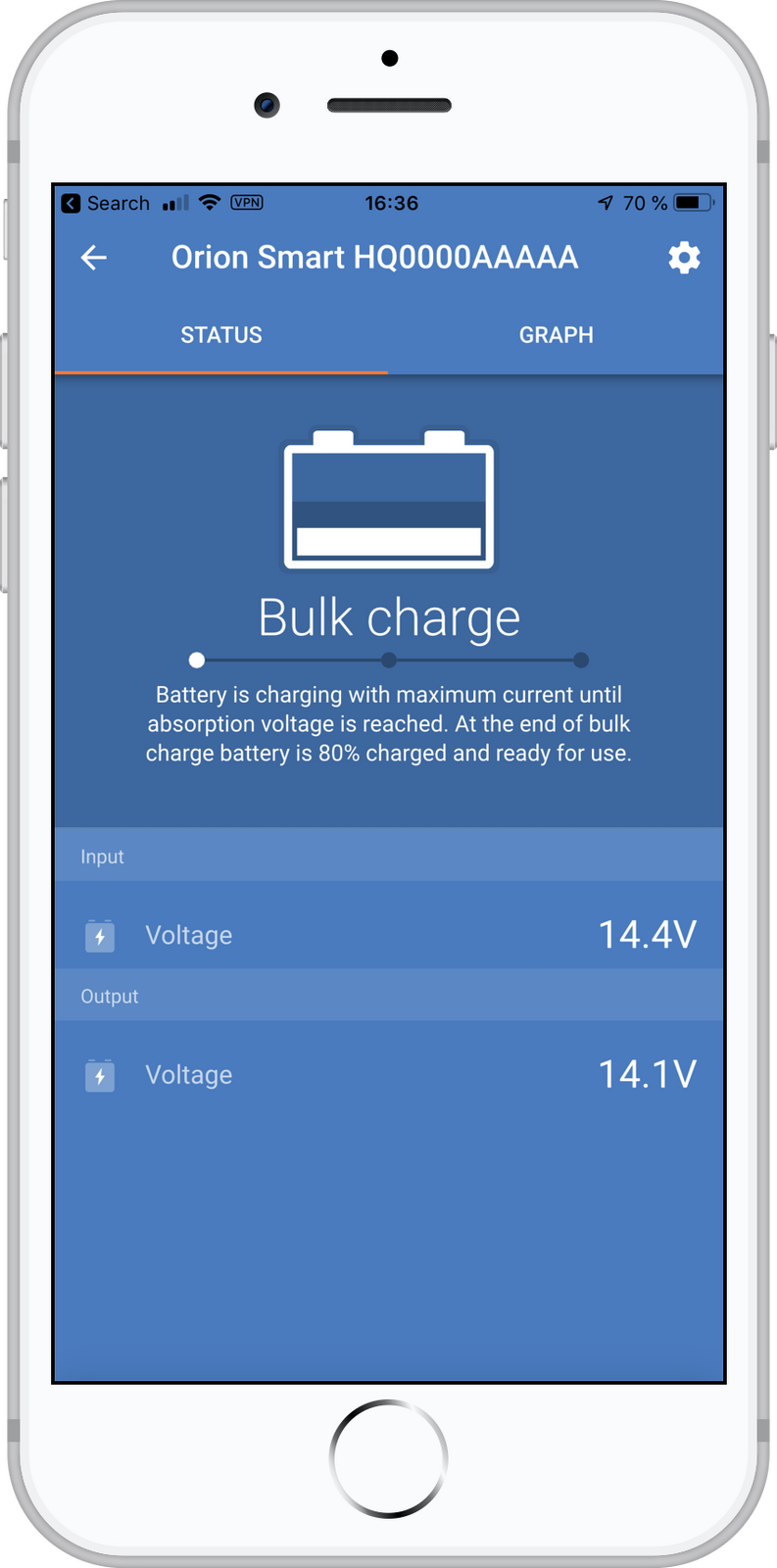

What is meant by the term "Smart" DC to DC Charger?The "Smart" means that you can connect your Bluetooth device (Smartphone) to the Victron Charger via the Victron Connect APP. This allows monitoring and setting changes easily and it's a unique feature to Victron energy systems.The VictronConnect App is available in App Store, Google Play, Mac app and Download for Windows.
-
Does all the requiring wiring come with the 30A isolated dcdc charger?
Hi There,
When ordering this DC DC charger, you will receive the charger only.
All additonal cabling can be purchased locally to suit your installation.
