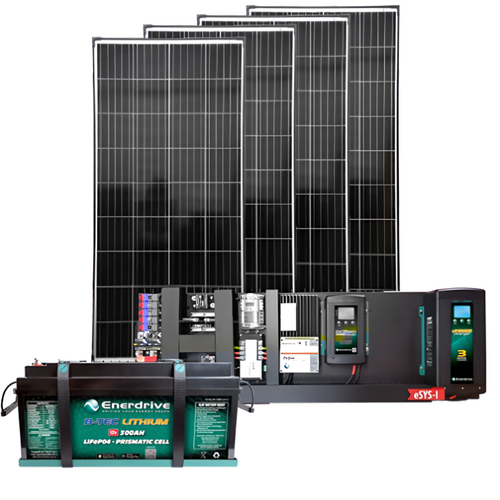

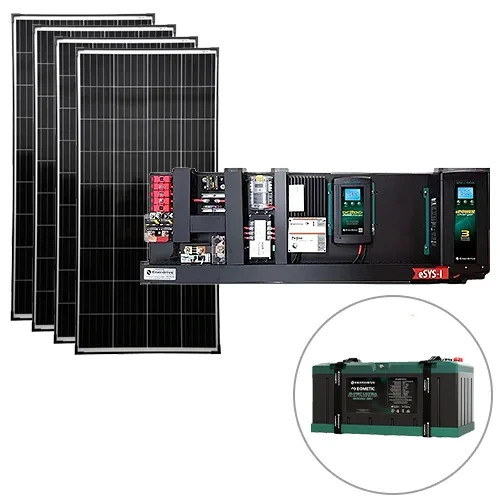

Enerdrive ADU Kit, ESYSTEM-I Board, 1 X 300Ah BTEC & 4 X 190W Black Solar Panels

K-ADU-300

$7,699

Save $1,297 (14%) off RRP of $8,996

Take an EXTRA $100 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Learn More»
This product is built to order. Build time 4 weeks. Express Shipping Price Match Guarantee Customer Reviews

Product Description

Enerdrive ADU Kit, 5 Year Warranty.

Options:

  • ESYSTEM-I Board, 1 x 300Ah BTEC Lithium Battery and 4 x 190W Black Solar Panels
  • ESYSTEM-I Board, 2 x 300Ah BTEC Lithium Battery, 1 x Battery Parallel Cable Kit and 4 x 190W Black Solar Panels
  • ESYSTEM-I Board, 3 x 300Ah BTEC Lithium Battery, 2 x Battery Parallel Cable Kit and 4 x 190W Black Solar Panels

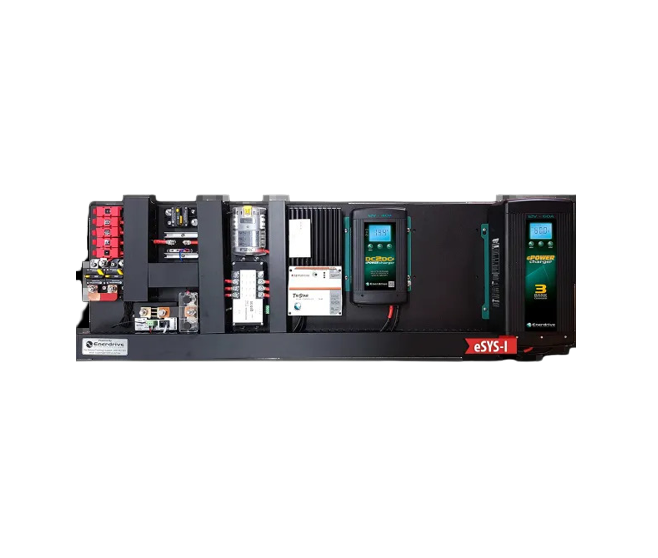

Enerdrive eSYSTEM-I 60A AC and DC DIY Installation Kit with Morningstar TriStar 45Amp Solar Controller & Simarine Battery Monitor.

Pack Included:

  • Enerdrive ePOWER 60amp / 12v Smart Charger - Three Output - EN31260
  • Enerdrive DC2DC Battery Charger - 12V 40A - EN3DC40
  • Morningstar TriStar 45 Amp Solar Controller - SR-TS-45-ED
  • Simarine by Enerdrive Battery Shunt 300A 2 x Volt 1 Resist - SI-SC301
  • Blue Sea ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover - BS-5026B
  • Enerdrive ePOWER 12/24V 40A IP66 Smart Battery Guard - EN-LBC1224-40
  • Fuse holder
  • Circuit Breakers
Compare all the DIY Installation Kit models below:


PROPERTIES

ESYS-C

ESYS-D

ESYS-E

ESYS-F

ESYS-G

ESYS-H

ESYS-I

ESYS-J

ESYS-K

ESYS-L

ESYS-M

ESYS-O

ePOWER AC 40Amp 230v Charger









ePOWER AC 60Amp 230v Charger



















ePOWER DC2DC 40+ Charger (Vehicle/Solar)

Morningstar Tristar PWM-45A Solar Controller













Enerdrive Epower MPPT 40A Solar Controller























✓✓

ePRO Plus 500A Battery Monitor with Remote Display













Simarine Pico LCD WIFI Monitoring Screen













Simarine SC303 300A Main Battery Shunt













Simarine SCQ25T Individual Load/Charge Module

















Simarine SCQ50 Individual Load/Charge Module





















Inverter Breaker 200A (Pre Wired Inverter Supply

















#

Battery Restart Switch (Lithium Batteries)











24hr Critical Load Distribution Fuse Block









Main Load Distribution Fuse Block

















ePOWER 2000W AC Transfer Inverter





















Dimensions

1185W x 380H x 130Dmm

600W x 490H x 100Dmm

600W x 490H x 100Dmm

1185W x 380H x 130Dmm

790W x 380H x 100Dmm

1195W x 380H x 111Dmm

1195W x 380H x 111Dmm

920W x 380H x 111Dmm

490W x 600 H x 111D mm

490W x 600 H x 111D mm

600W x 350H x 111D mm

600H x 520W x 111Dmm


PRO TIP: Common accessories to go with this board are; one or two AGM Board Cable Kits. Thickness, length & quantity will depend on installation type. Please check products cable description for details.

NOTE: This model was previously known as K-AGM-Board-I, now called eSYS-I.

Product Drawing

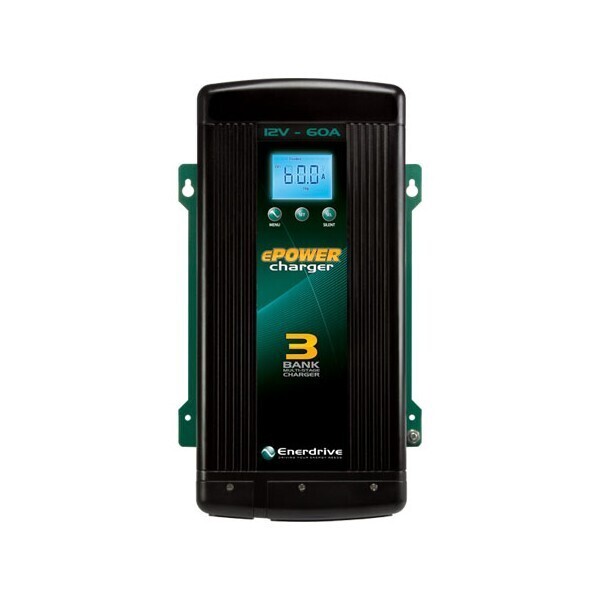

Enerdrive ePOWER 60amp / 12v Smart Charger - Three Output

The Enerdrive ePOWER 60A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

60A Battery Charger Features:

  • Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
  • Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
  • Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
  • Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
  • Smart Charging: The ePOWER 60A battery charger will regulate its output based on the loads connected to your battery banks.
  • Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
  • LED Display: Easy to use “set and select” menu along with scrolling charger status.
  • Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
  • Temperature Sensor: Battery temperature sensor included with 3 meter cable.
  • 5 Year Warranty from an Australian company renowned for customer support.
PRO TIP: Common accessories to go with this Enerdrive 60A AC to DC charger are the 60Amp70Amp & 80Amp breakers. These are available in the Accessory List above to add as optional extras.

Enerdrive Product Brochure

Enerdrive Product Manual

Enerdrive Operating Guide

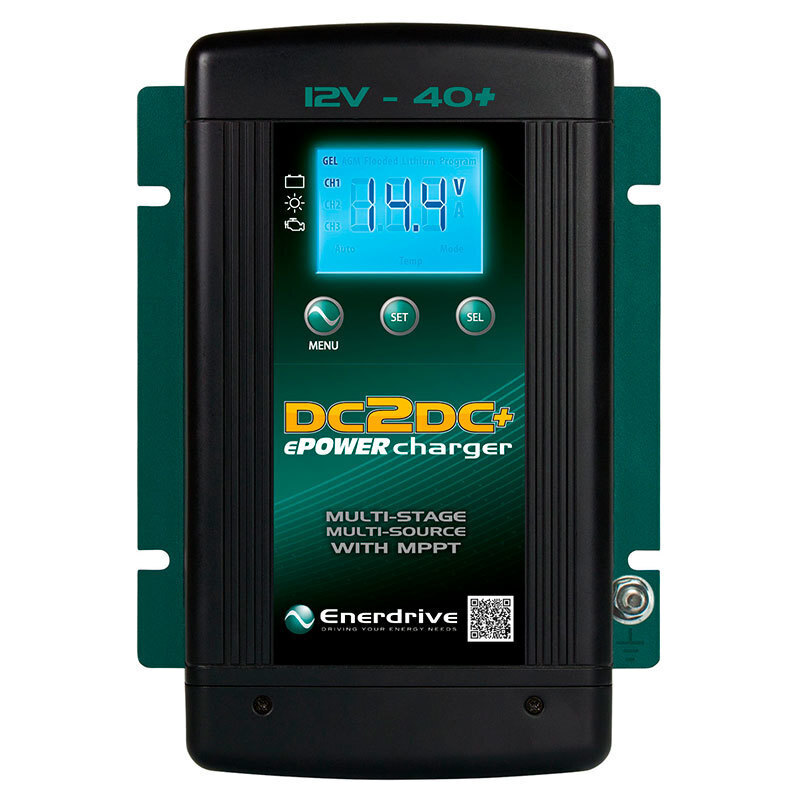

Enerdrive DC2DC Battery Charger - 12V 40A

Enerdrive ePOWER 12V 40A DC to DC Battery Charger designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

12V 40A DC2DC Battery Charger Features

  • Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
  • DC M6 screw terminals that will allow for large battery cable connection between all sources
  • A dedicated Maximum Power Point (MPPT) solar regulator
  • The same battery algorithms as included in Enerdrives AC mains ePOWER battery charger including a specific lithium charging profile
  • 40A output up to 40+°C with thermo controlled fan cooling
  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
  • Temperature sensor included in charger for more accurate battery charging

PRO TIP: Common accessories to go with this DC to DC charger are the 60Amp & 70Amp breakers, also the 3 pre-wired & fused charging cables. These are available in the Accessory List above to add as optional extras, please see the product manual & drawings for the connection.

Click here for this DC to DC Charger with a full wiring kit, including resettable circuit breakers!

Enerdrive Product Brochure

Enerdrive Product Manual

For In Vehicle & Marine Wiring Diagram, click below:

Wiring Diagram

For Towed Vehicle Wiring Diagram, click below:

Wiring Diagram

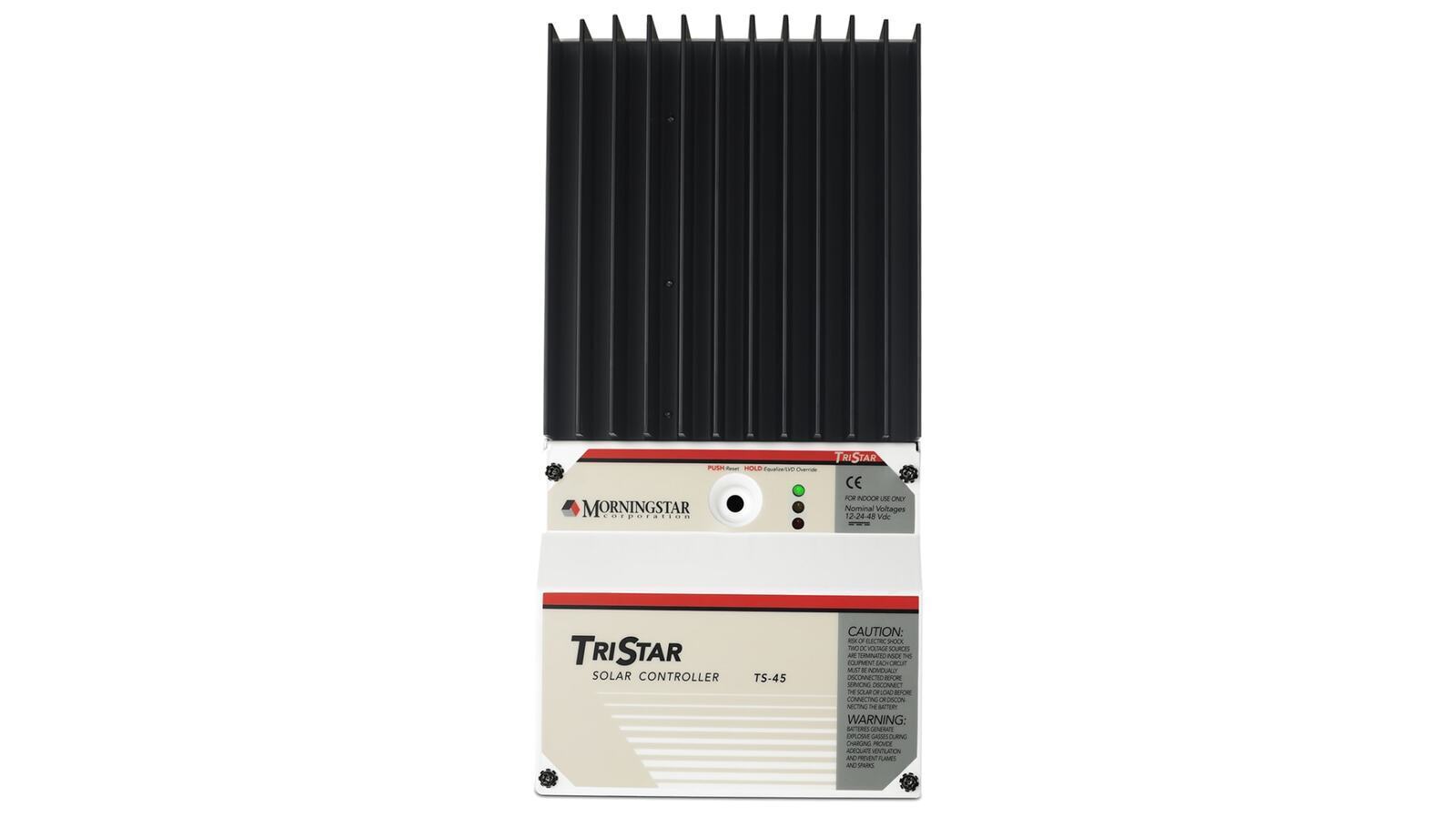

Morningstar TriStar 45 Amp Solar Controller

The Morningstar TriStar is a three-function controller that provides reliable solar battery charging, load control or diversion regulation.

  • Highest Reliability – Large heat sink and conservative design enables operating at full ratings to 45°C.
  • More Information – Optional meter displays extensive system and controller information, automatic self-test and reset. Displays in 5 languages.
  • Communications Capability – RS-232 connects to a personal computer for custom settings, data logging and remote monitoring and control.
  • Fully Adjustable – DIP switch provides user with choice of 7 digital presets. Additional custom settings via RS-232.
  • Extensive Electronic Protections – Fully protected against reverse polarity, short circuit, over current, high temperature and over voltage.

 Product Manual



Simarine by Enerdrive Quad Shunt 4 x 25A & 4 x Tank Module

The SCQ25T is a highly verstaile and innovative combination of shunt, tank interface and voltage module.  Its higly innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input on 12V and 24V systems. Additionally, equipped with four resistance inputs for resistance-type tank level or temperature sensors and three voltage inputs for voltage-type tanks sensors and battery voltages allows wide connection possibilities.

That is very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power. The current channels can be combined for higher amperage, meaning the continuous currents on the combined channels up to 50A (70A peak) on 12V and 24V volts. SCQ25T’s innovative protected architecture allows wiring in either negative (low) or positive (high) side.

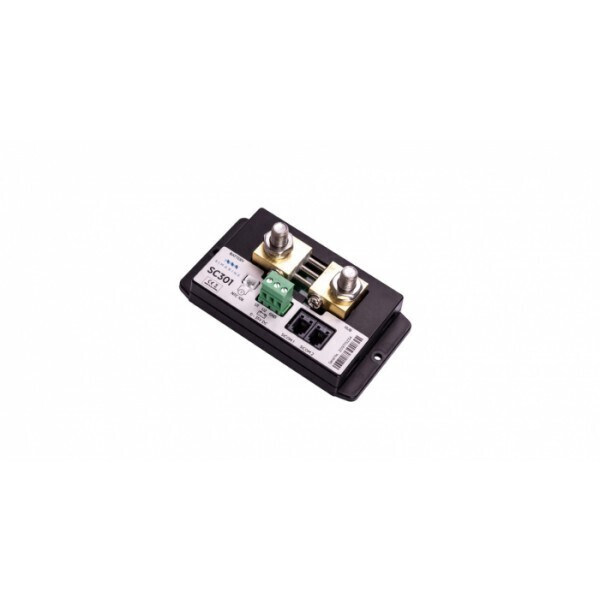

Simarine by Enerdrive Battery Shunt 300A 2 x Volt 1 Resist

  • Battery Shunt to suit Simarine Pico Monitors
  • 2 x Volt 1x Resistance

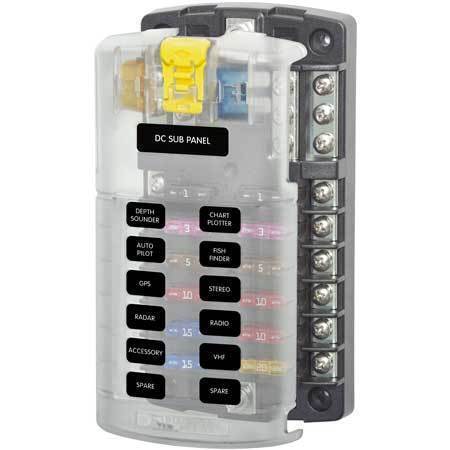

Blue Sea ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover

Consolidates branch circuits and in-line fuses:

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately

Product Manual

Installation Guide

Product Drawing

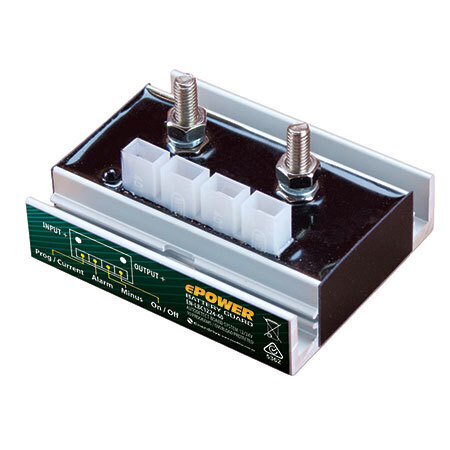

Enerdrive ePOWER 12/24V 40A IP66 Smart Battery Guard

The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode).

Microprocessor Controlled:

The ePOWER LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage paramaters.

Features:

  • Overvoltage Protection
  • Ignition proof (no relay, no spark)
  • Delayed alarm output
  • Delayed load disconnect

Applications:

  • Recreational vehicles
  • Service vehicles
  • Maritime applications

Installation Guide

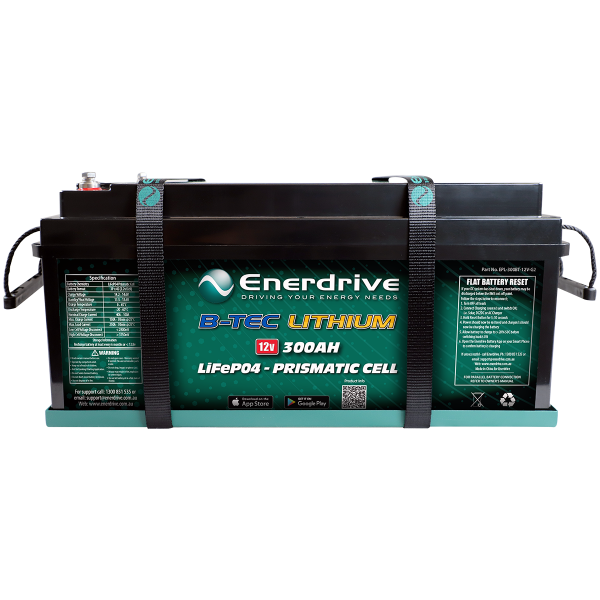

Enerdrive ePOWER B-TEC 300Ah Lithium Battery

Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Key Features:

  • New design BMS
  • Max discharge current 250A (15mins) - 200A continuous
  • Max charge current 190A (30mins)
  • Can be connected in parallel (up to 4 batteries)
  • Built in flat battery reset button
  • Includes mounting tray and 2 straps
  • Communication ports (RS485) for future integration
  • 5 year warranty & lifetime tech support

Smart Phone Monitoring System

The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

  • Battery Capacity
  • Battery Voltage
  • Battery Current (Amps)
  • Battery State of Charge (SOC)
  • Battery State of Health (SOH)
  • Battery Status
  • Individual Cell Voltage
  • Battery Temperature
  • Battery Cycles
  • Battery Alarms
  • Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings

Lithium v AGM Capacities:

  • 100Ah Lithium = 160Ah AGM
  • 125Ah Lithium = 200Ah AGM
  • 200Ah Lithium G2 = 320Ah AGM
  • 300Ah Lithium G2 = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The New Generation 2 B-TEC

So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.

Dimension Original Generation 2

Length 519mm 521mm
Width 273mm 280mm
Height 222mm 253mm

Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.

The New Enerdrive Generation 2 (G2) B-TEC 300Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.

With over 8 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note: The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Product Brochure

Product Manual

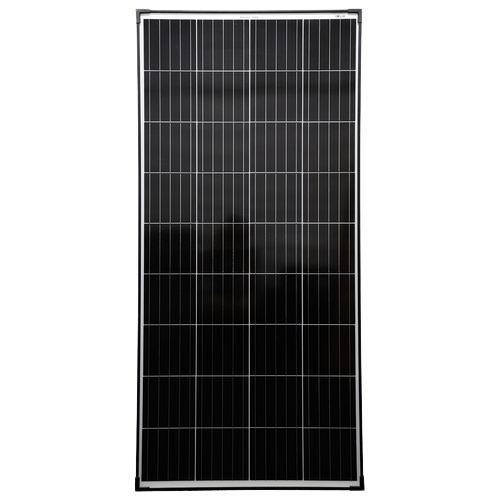

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black.

Enerdrive solar panels are typically around 20+vdc open circuit.

  • Suited to 12v installations (or 24v by series connections of panels)
  • A fly lead cable is provided for easy connection of the 10 & 20w panels
  • The larger panels have MC4 compatible solar cable connectors included

Enerdrive Product Card

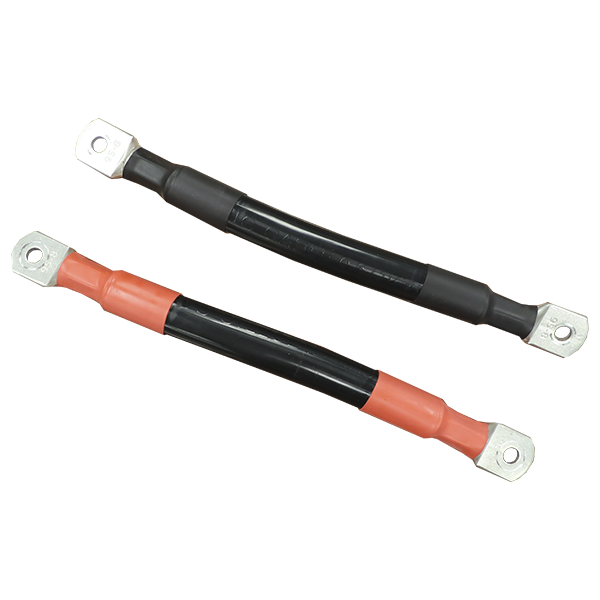

Enerdrive 95mm2 x 200mm Battery Parallel Cable Kit, Positive & Negative, to suit 300Ah Batteries

Enerdrive Parallel cable kit to connect 2 x 300Ah batteries together.

Specifications

SKU K-ADU

Brand Enerdrive

Warranty Period: 5 Years

Product Category Power Systems

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Wattage (W) 190

Dimensions 1195mm x 380mm (Installtaton Kit) | 519 x 273 x 222 mm (L x W x H) (Battery) | 1500 x 680 x 35mm (Solar Panel)

Weight 16.5kg (Installtaton Kit) | 38.5kg (Battery) | 12kg (Solar Panel)

Amps 45 (Solar Controller)
