Enerdrive 4WD Canopy Adventurer System with ePRO Plus Battery Monitor, Driver Side Installation
SKU: K-ADVENTURER Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive 4WD Canopy Adventurer System with 40A DC2DC, 40A AC Charger & 2000W Inverter (AC Transfer), With Lithium Battery Add On Option, 5 Year Warranty.

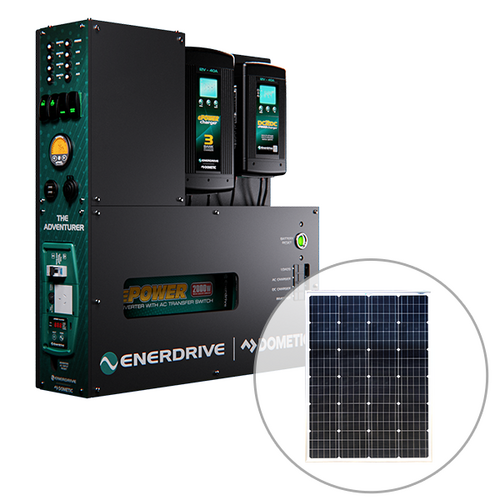

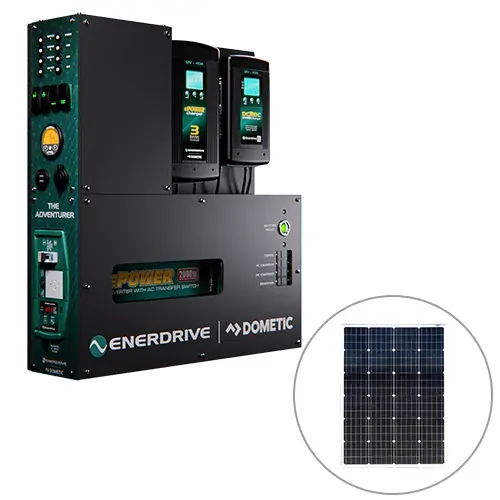

Currently FREE with the Enerdrive 4WD Canopy Adventurer System is a Enerdrive 150W Squat Fixed Solar Panel (RRP $290)!
Enerdrive have created three compact power solutions to operate all of the electrical equipment that is located in 4WD canopies, including a simple fridge or lights setup to a full on power station. There are three models in this range: The Explorer, The Traveller and The Adventurer, all of which can be paired with any brand or model of battery including Wet Sealed, AGM, Gel and Lithium!

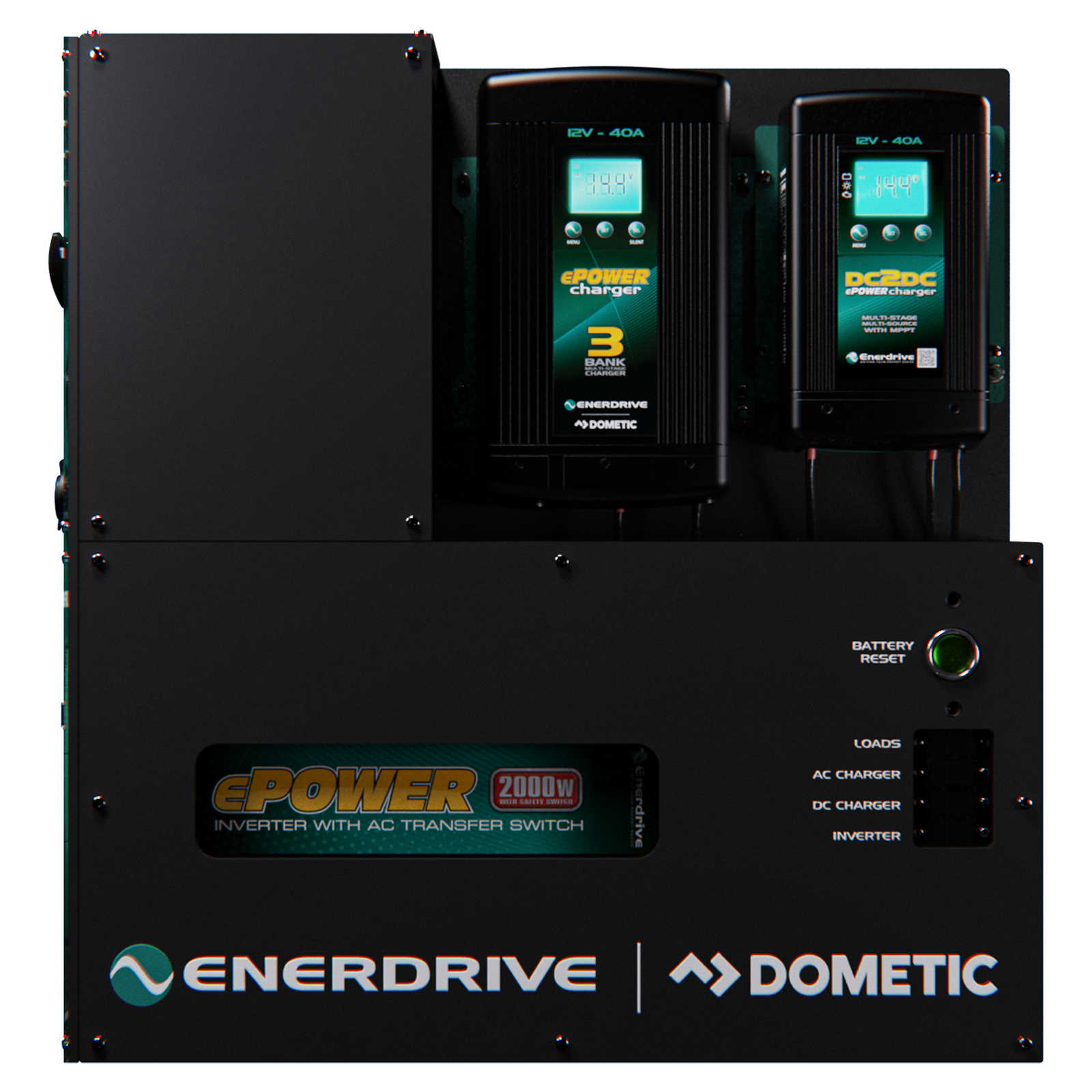

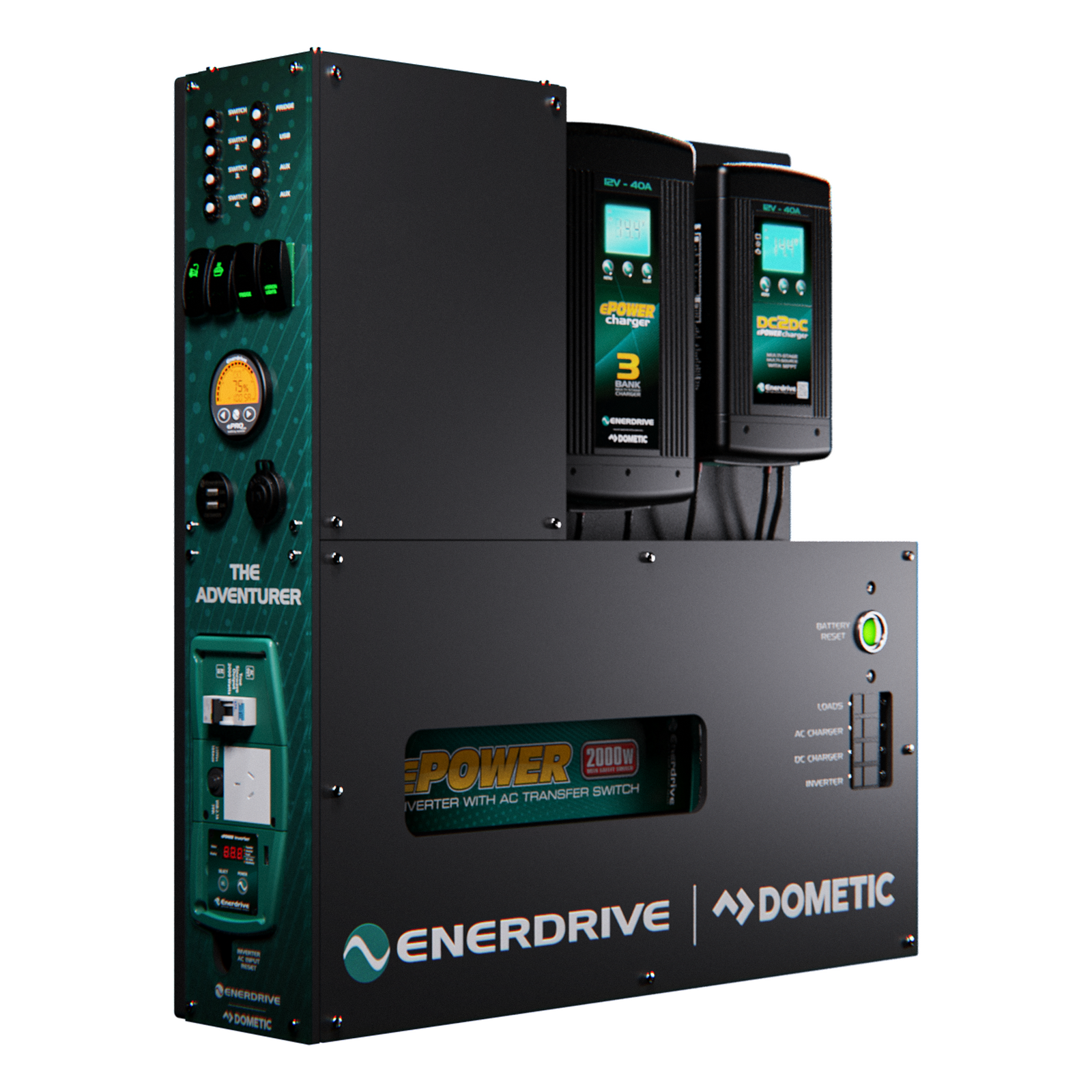

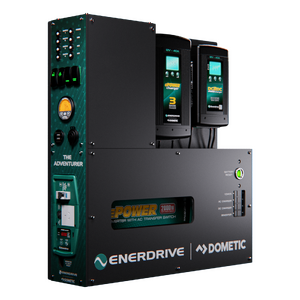

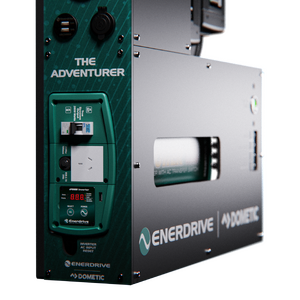

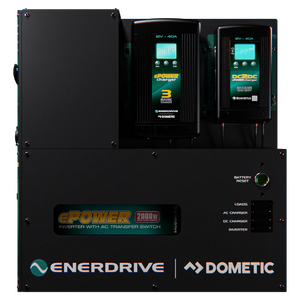

This system is designed for the end user requiring a higher level of power requirements along with AC charging ability. The Adventurer consists of the following items

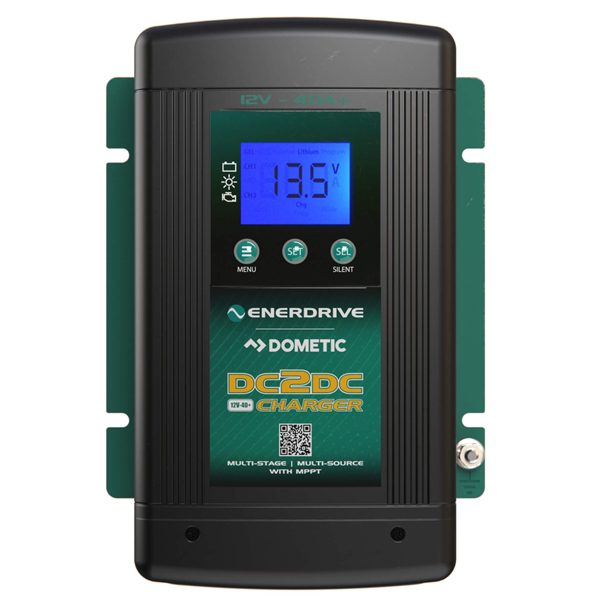

- Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger

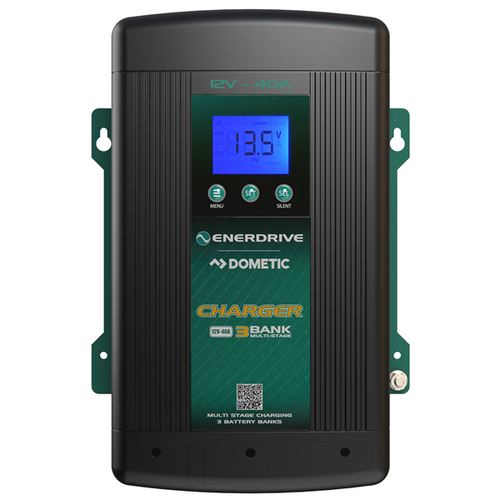

- Enerdrive ePOWER 40A AC charger

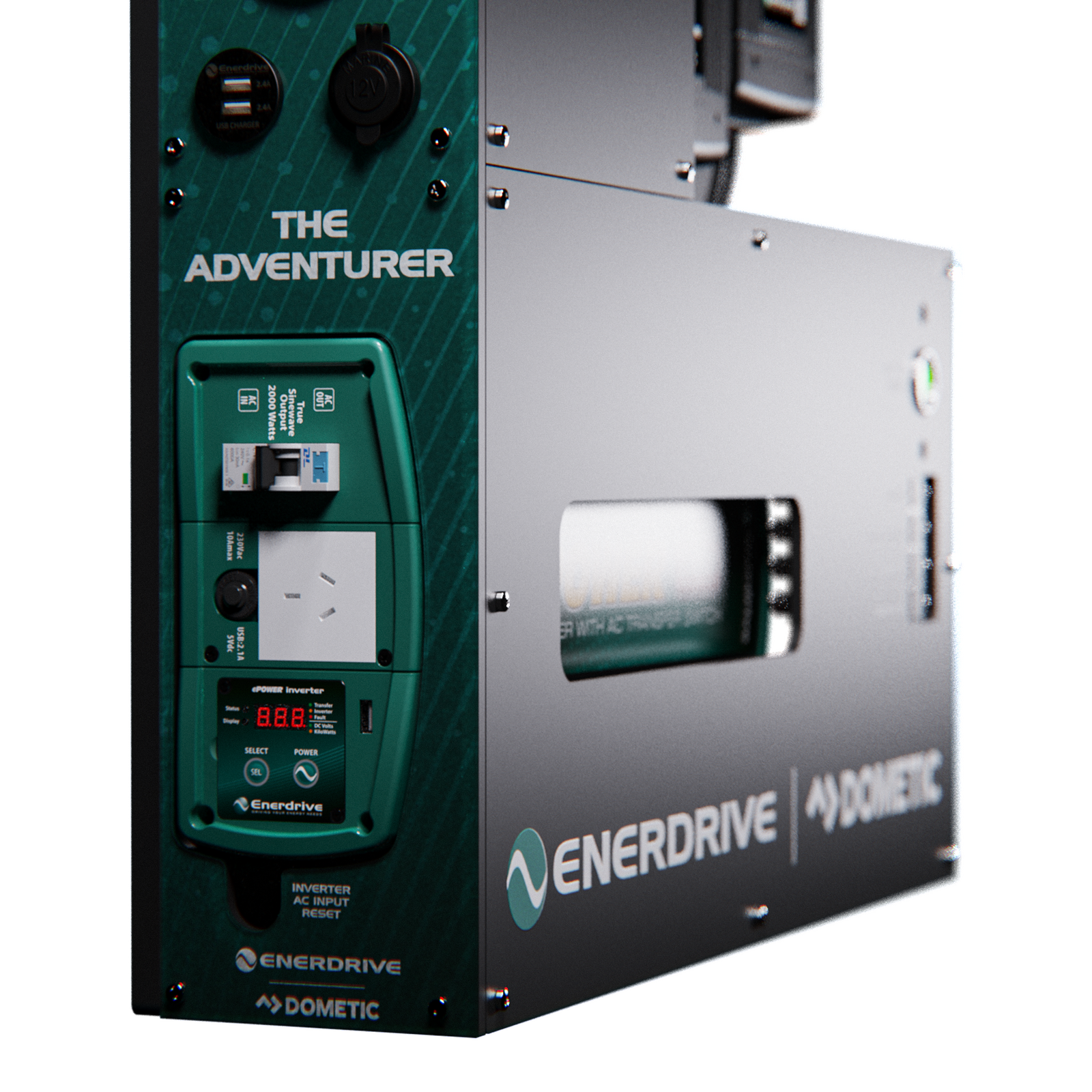

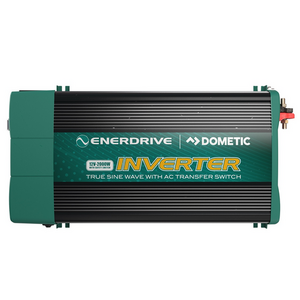

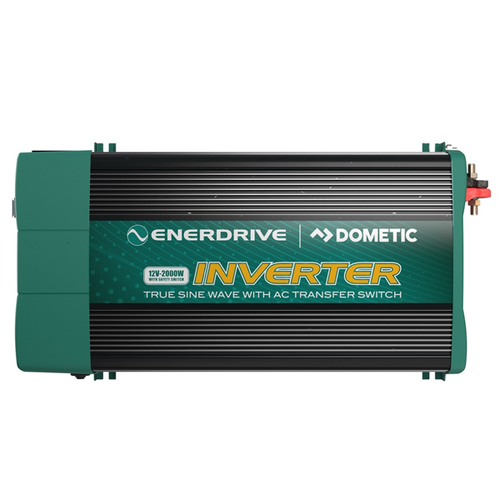

- Enerdrive ePOWER 2000W AC Transfer Inverter

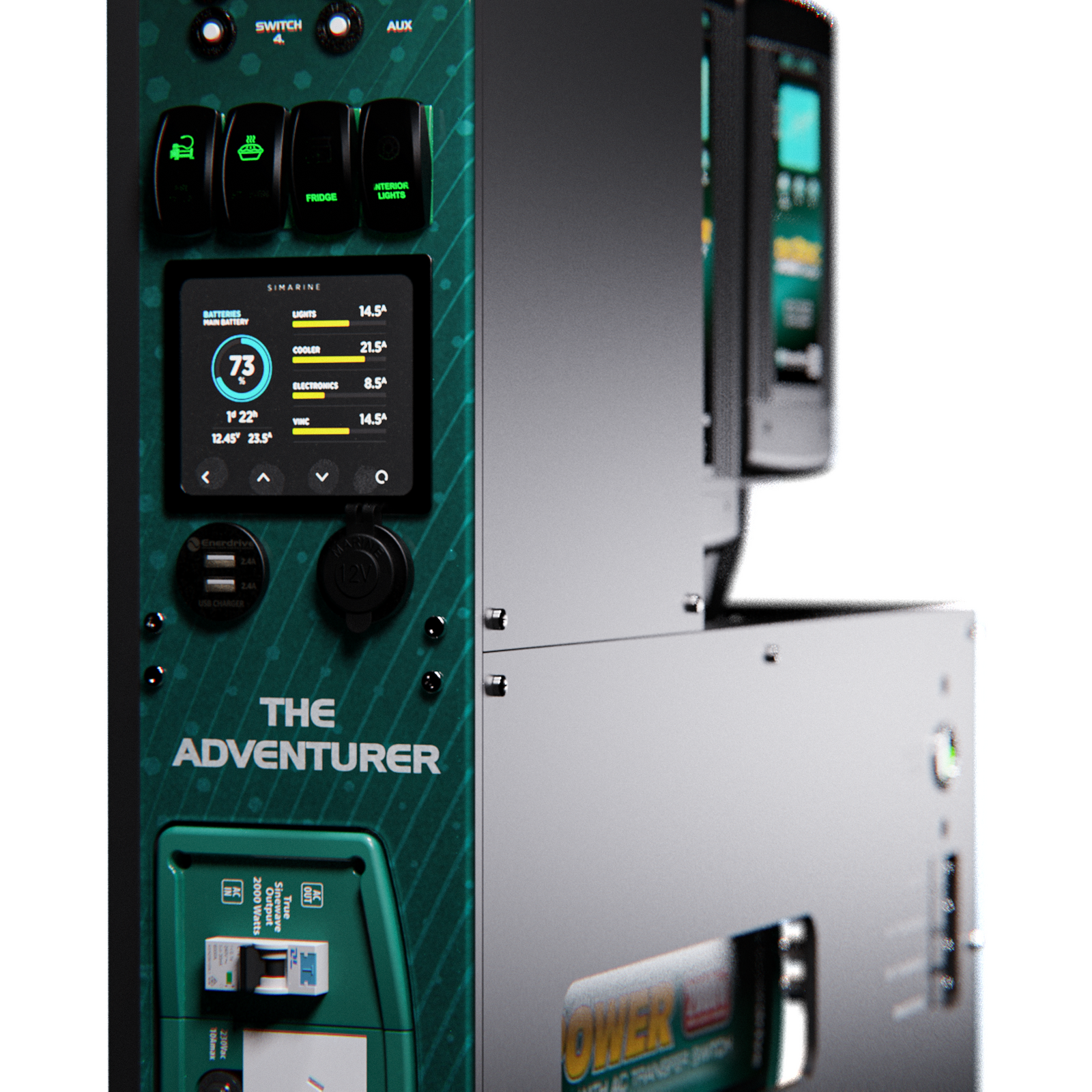

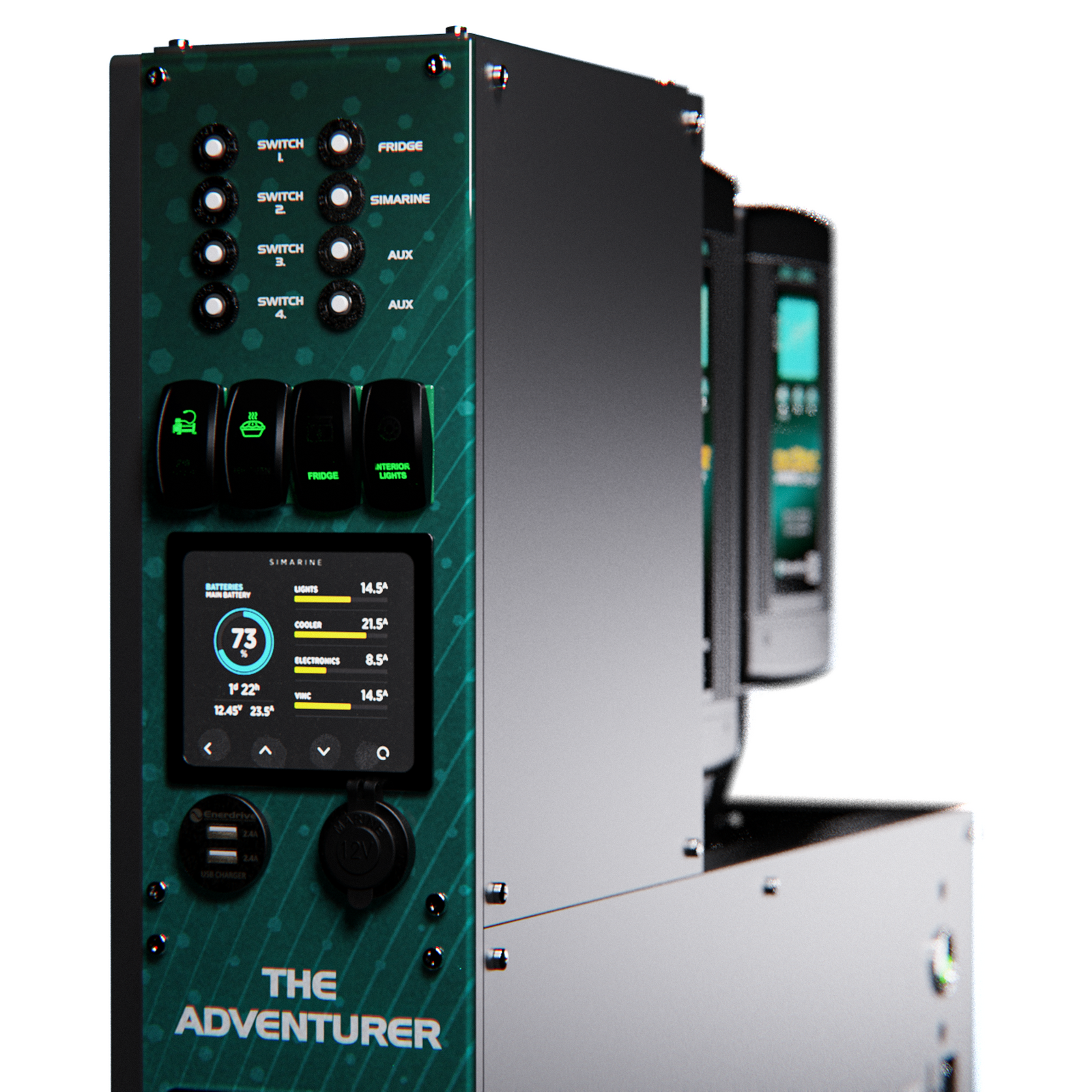

- 1 x Battery Monitor (customer has the choice between a ePRO Plus battery monitor, Simarine battery monitor or Simarine Battery Monitor & Quad Shunt Module)
- 1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse
- 4x Pre-wired Circuit Breakers for main power equipment

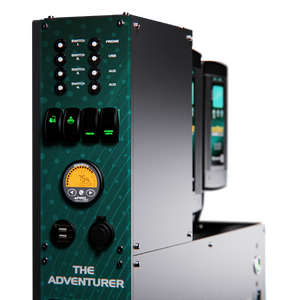

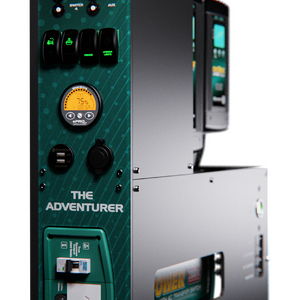

- 4 x Contura switches for Lights & Auxiliary loads
- 4 x additional Circuits Breakers for Air/Water Pumps and more
- Main System & Inverter Hi-Amp Circuit Breakers
- 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard. You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.
- Customers can choose between two colours for the front switch panel of the system. Green or Black. Please specify this special instruction at time of your order.
- Battery Reset button for kick starting your flat battery from the DC2DC Charger
- Optional Water/Fuel Tank module also available. (K-ADVENTURER-02 & 03)
- Explorer and Traveller System - 1m positive and negative cable (35mm2) with 100A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
- Adventurer System - 1m positive and negative cable (70mm2) with 250A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
Please also note, a 200Ah, 200Ah Slimline or 300Ah lithium battery can also be added to this bundle for an additional cost.
|
Items Included |
The Adventurer |
|
ePOWER DC2DC 40+ Charger (Vehicle/Solar) |
* |
|
ePOWER 40A AC Charger |
* |
|
ePOWER 2000W AC Transfer Inverter |
* |
|

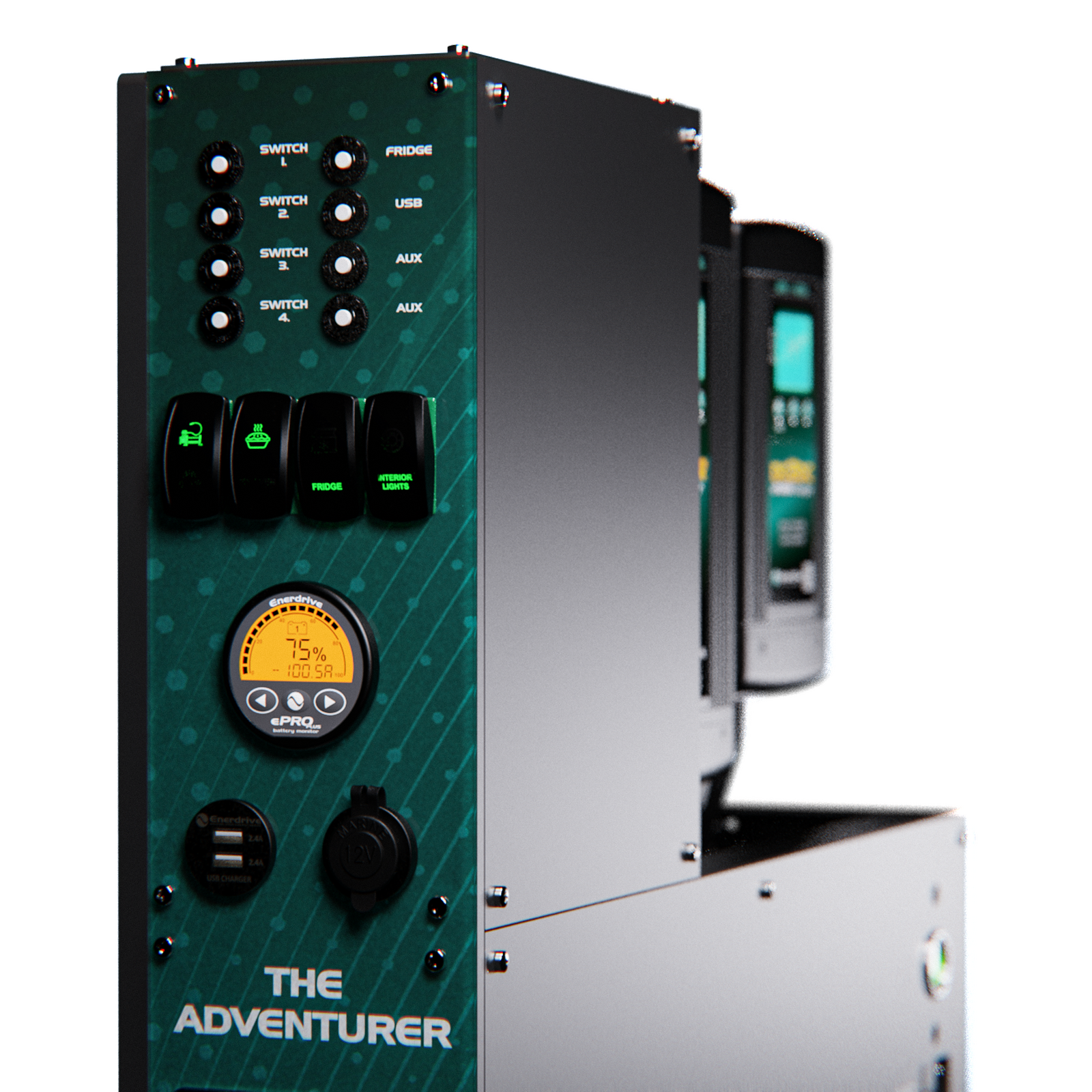

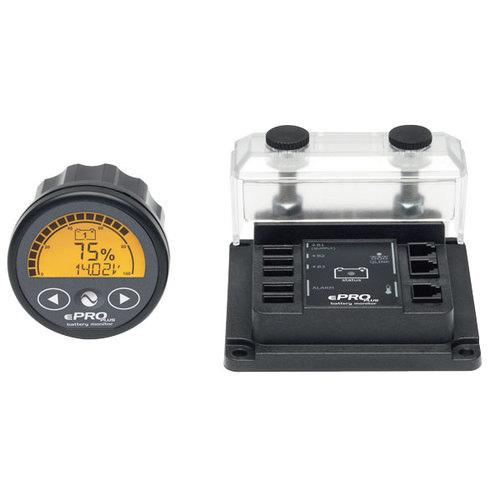

ePRO Plus Battery Monitor |
K-ADVENTURER-01 |
|
Simarine LCD Battery WIFI Monitoring System |
K-ADVENTURER-02 K-ADVENTURER-03 |
|
1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse |
* |
|
4x Pre-Wired Circuit Breakers for Main Power Equipment |
* |
|
4 x Additional Circuit Breakers |
* |
|
4 x Contura Switches |
* |
|
Twin USB 2.4A Hi Amp Sockets |
* |
|
Cig Socket to Replace One or Both USB Sockets. (Please Request at Time of Order) |
Optional |
|
Battery Reset Button |
* |
|
Main System & Inverter Circuit Breakers |
* |
|
Individual Load/Charge Module for Simarine. (#SI-SCQ50) |
K-ADVENTURER-03 |
|
Water/Fuel Tank Module for Simarine. (#SI-ST107) |
K-ADVENTURER-02 (Optional) |
|
Dimensions |
630L x 155W x 665Hmm |
|
Weight |
18kg |
(*) Indicates Standard Fitment
Specifications
SKU K-ADVENTURER
Brand Enerdrive
GTIN 9342616029640
Warranty Period: 5 Years
Product Category Power Systems
Nominal Voltage 12.8V (200Ah & 300Ah Battery)
Nominal Capacity 200Ah or 300Ah (Batteries)
Wattage (W) 2000
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (200Ah & 300Ah Battery)
Battery Charge Temperature 0 ̴ 45°C (200Ah & 300Ah Battery)
Normal Charge Voltage CV/CC* 14.40 Ì´ 14.60V (200Ah & 300Ah Battery)
Standby (Float) Voltage 13.50 Ì´ 13.80V (200Ah & 300Ah Battery)
Maximum Charge Current 190A @ 25°C for 30mins (200Ah & 300Ah Battery)
Recommended Charge Current for Maximum Life ≤ 40A (200Ah Battery) | ≤120A (300Ah Battery)
Battery Discharge Temperature -20 ̴ 60°C (200Ah & 300Ah Battery)
Battery Output Voltage Range 11.00 Ì´ 14.60V (200Ah & 300Ah Battery)
Maximum Discharge Current 250A @ 25°C ± 5°C for 15mins (200Ah & 300Ah Battery)
Pulse Discharge Current 450A for 1.0s (200Ah & 300Ah Battery)
Discharge Cut-off Voltage ≤11.20V (200Ah & 300Ah Battery)
Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC & AC Battery Charger) (AC Battery Charger)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
Under Voltage Alarm 11.0 / 12.1 VDC (Inverter)
Under Voltage Alarm Recovery 11.3 / 12.3 VDC (Inverter)
Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)
AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)
Power Factor Correction Yes (AC Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)
Over Charge Yes, unit shutdown (AC Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)
DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
DC Output Ground Single Heavy Duty Common Ground Stud (AC Battery Charger)
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations (AC Battery Charger)
Net Weight (kg) 18
Charging Control Three Stages (DC Battery Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setti
DC Output Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
Dimensions 630 x 155 x 665mm (Adventurer System Overall) | 242 x 172 x 74mm (DC Battery Charger) | 295 x 206 x 90mm (AC Battery Charger) | 230 x 435 x 115mm (Inv
Humidity 5-95%, relative humidity non-condensing (AC Battery Charger) | 5-90% noncondensing (Inverter)
Operating temperature range 0°C to 40°C (Inverter)
Input Voltage 12.5 VDC (Inverter)
Operating Range (temp) -20° to 60° C (AC Battery Charger)
AC Input Voltage 90 to 265 VAC (AC Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
Output System Voltage 12V
Float 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
Standby Current < 2 mA (AC Battery Charger)
Over Voltage Shutdown 15.5 VDC (Inverter)
Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
Efficiency 95% (DC Battery Charger)
AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)
Power consumption (DC 12V) 700W (Full Load) (AC Battery Charger)
Cooling Forced air ventilation (thermo controlled fan) (AC Battery Charger)
Charger Efficiency > 82% (AC Battery Charger)
Storage Range (temp) -40° to 70° C (AC Battery Charger) | -20°C to 60°C (Inverter)
Voltage 12V (200Ah & 300Ah Battery)
USB Socket Output 5V, 750 mA (Inverter)
Under Voltage Shutdown 10.5 / 11.8 VDC (Inverter)
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC (Inverter)
Videos
Is the Adventurer 12 volt power system worth it?
Enerdrive | Dometic 4WD Canopy Power Systems
How much power does cooking on induction use?
Enerdrive Canopy System Review: The Adventurer!
Guide to Choosing an Enerdrive Power System
Enerdrive eTIPS - How to Reprogram a Simarine Display
Enerdrive ePOWER 12V 40A DC to DC Battery Charger Product Review
Caravan Battery Charger Review, Enerdrive EN3DC40+ DC to DC Battery Charger
Enerdrive Discusses Why Battery Cable Size Matters!
Introducing The Enerdrive Battery Charger Range
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Product Q&A
-
Can the Enerdrive Adventurer Canopy System be purchased with a black fascia?
Yes, it does come with an option to purchase with a black fascia instead of the standard green. Should you wish to purchase the Adventurer with a black fascia please call us to place your order.
-
How are the systems pre-wired?
The systems are pre-wired by Enerdrive wherever possible, so installation is simple. The only cabling required at installation is for load outputs, battery connection, and vehicle/solar/tank inputs.
-

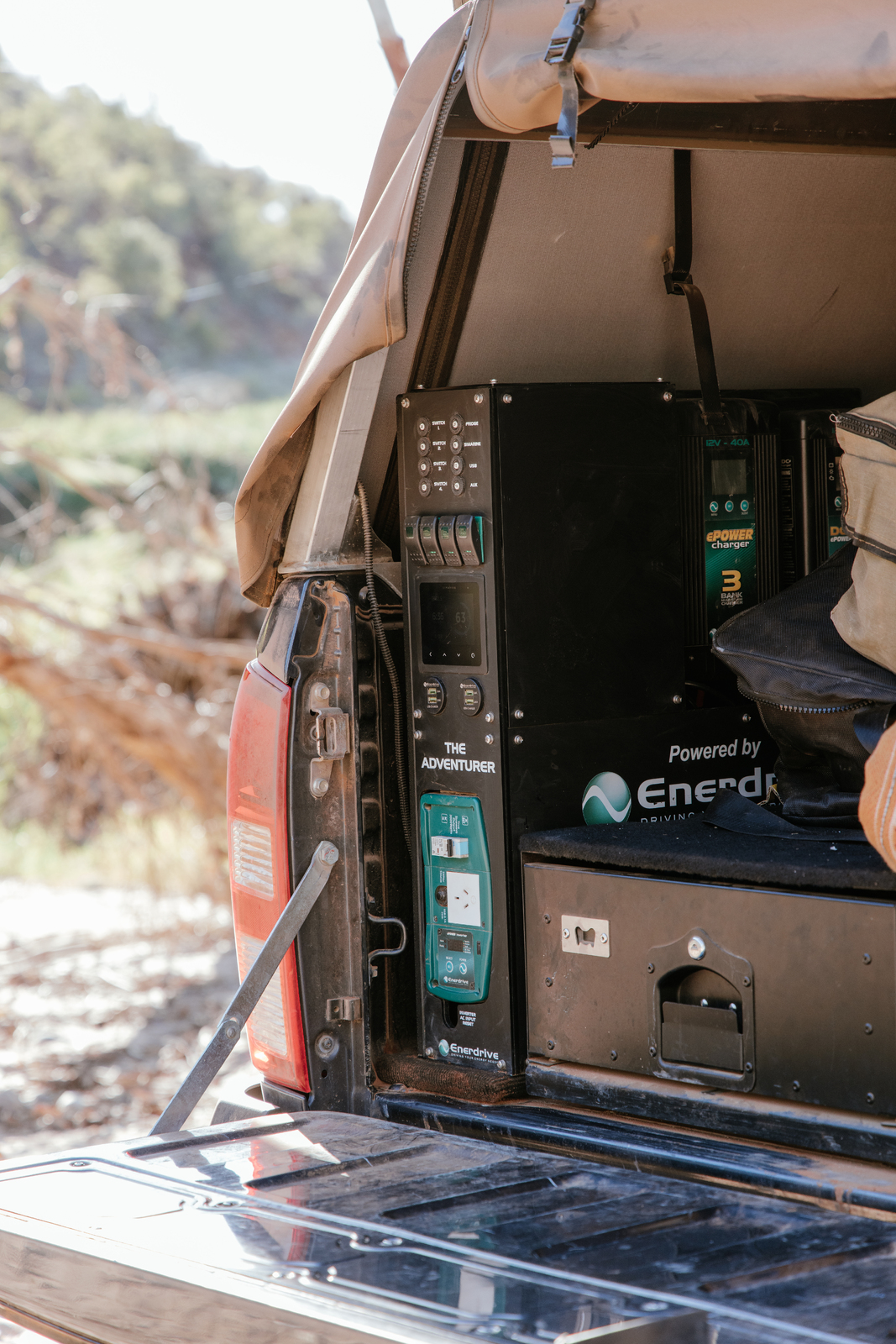

Where can I install the Enerdrive power systems in my 4WD canopy?

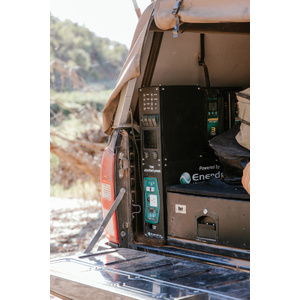

The power systems are designed to mount on either the front or rear bulkheads of your vehicles canopy, depending on your preference.
-
What are the different models available in Enerdrive's power solutions range?
Enerdrive offers three models in their compact power solutions range: The Explorer, The Traveller, and The Adventurer. Each model can power various electrical setups, from a simple fridge and lights to a full-on power station.
-
What are the different versions of The Adventurer system?
The Adventurer system comes in three versions:
K-ADVENTURER-01: Includes the ePRO+ Battery Monitor
K-ADVENTURER-02: Includes Simarine Battery Monitoring
K-ADVENTURER-03: Includes Simarine Monitoring and Individual Load Monitoring
-
Can I install the system on either side of the vehicle canopy?
Yes, the system is designed for either left (passenger side) or right (driver side) installation, depending on your vehicle setup and preference.
-
What types of batteries can be used with the Adventurer system?
The Adventurer system is compatible with a wide range of batteries, including Wet Sealed, AGM, Gel, and Lithium batteries.
Customer Reviews
My Enerdrive Adventurer with the Simarine battery Review by anonymousIve just completed the installation of Enerdrives Adventurer system with the Simarine battery monitor into my Boss Aluminium canopy. It took me a little time to decide which system to go with but the size and simplicity of the Enerdrive Adventurer played a big part. Positioned up against the cab side of my canopy on the passenger side it fits in perfectly. I opted for a matt black finish to the face and it looks fantastic. The simplicity of connecting it to the battery and solar is a breeze with the heavy duty cables. The isolation switches mean I can cut the power to work on the system safely at any time in the future - a big tick from me. Connecting in your interior and exterior lights , fridge or travel buddy is a breeze as the switches are already there on there own protected circuits. Plug in the on board battery charger and top up your battery. A power board off the inverter for the appliances and its good to go. Make sure to fully charge up your battery first then go into the Simarine settings , under battery and set it as fully charged and your set. On the canopy is 290W of solar to keep my 200Ah Lithium topped up. Running an Induction cooktop , Microwave ( Camec 700W, 20L RV Microwave also from My Generator ) and an 85ltr upright fridge. My Enerdrives service is 5 Star with a quick response time to sort out any questions. Build time was just over 2 weeks and the delivery super fast. Five Stars all round....... Jay - Melbourne Vic(Posted on 29 June 2023)
