Product Description

Currently FREE with the Enerdrive 4WD Canopy Explorer System with 40A DC2DC Charger is a Enerdrive 16mm Cable Kit (Inc 70A Fuse) Start Battery to DC to DC Charger (Vehicle Mounted), 5 Metres (RRP $215)!

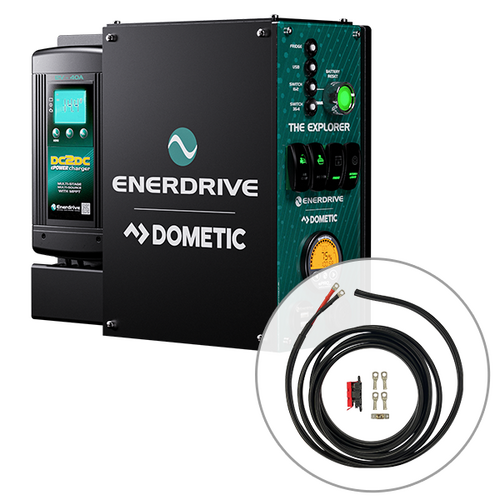

Enerdrive 4WD Canopy Explorer System with 40A DC2DC Charger, With Lithium Battery Add On Option, 5 Year Warranty. Enerdrive have created three compact power solutions to operate all of the electrical equipment that is located in 4WD canopies, including a simple fridge or lights setup to a full on power station. There are three models in this range: The Explorer, The Traveller and The Adventurer, all of which can be paired with any brand or model of battery including Wet Sealed, AGM, Gel and Lithium!

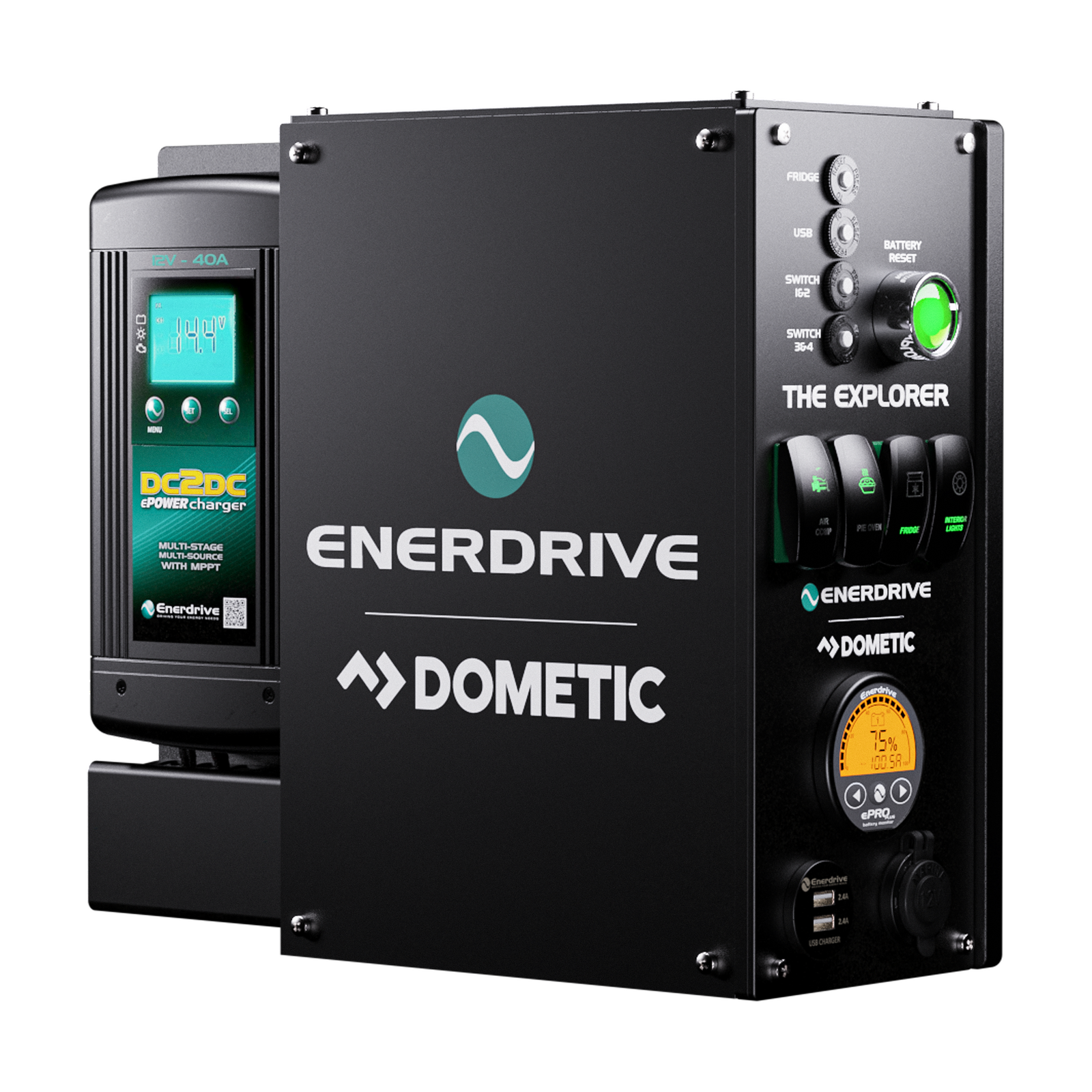

The Explorer system is designed for the end user only requiring a minimum power option in a neat package. The Explorer consists of the following items

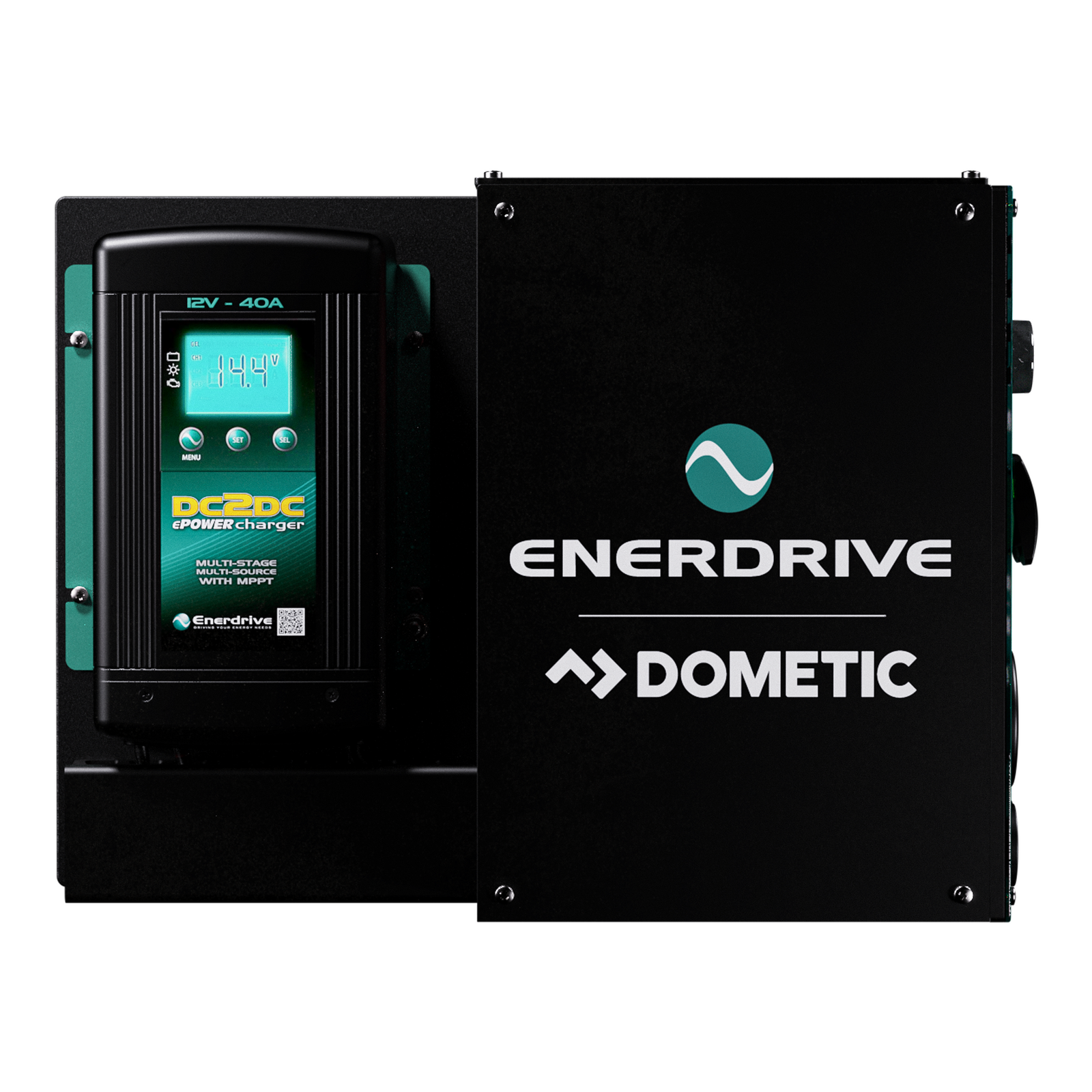

  • Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger
  • 1 x Battery Monitor (customer has the choice between a ePRO Plus battery monitor, Simarine battery monitor or Simarine Battery Monitor & Quad Shunt Module)
  • 4 x Contura switches for Lights & Auxiliary loads
  • Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse
  • 1 x Fridge 50A Anderson Plug connection

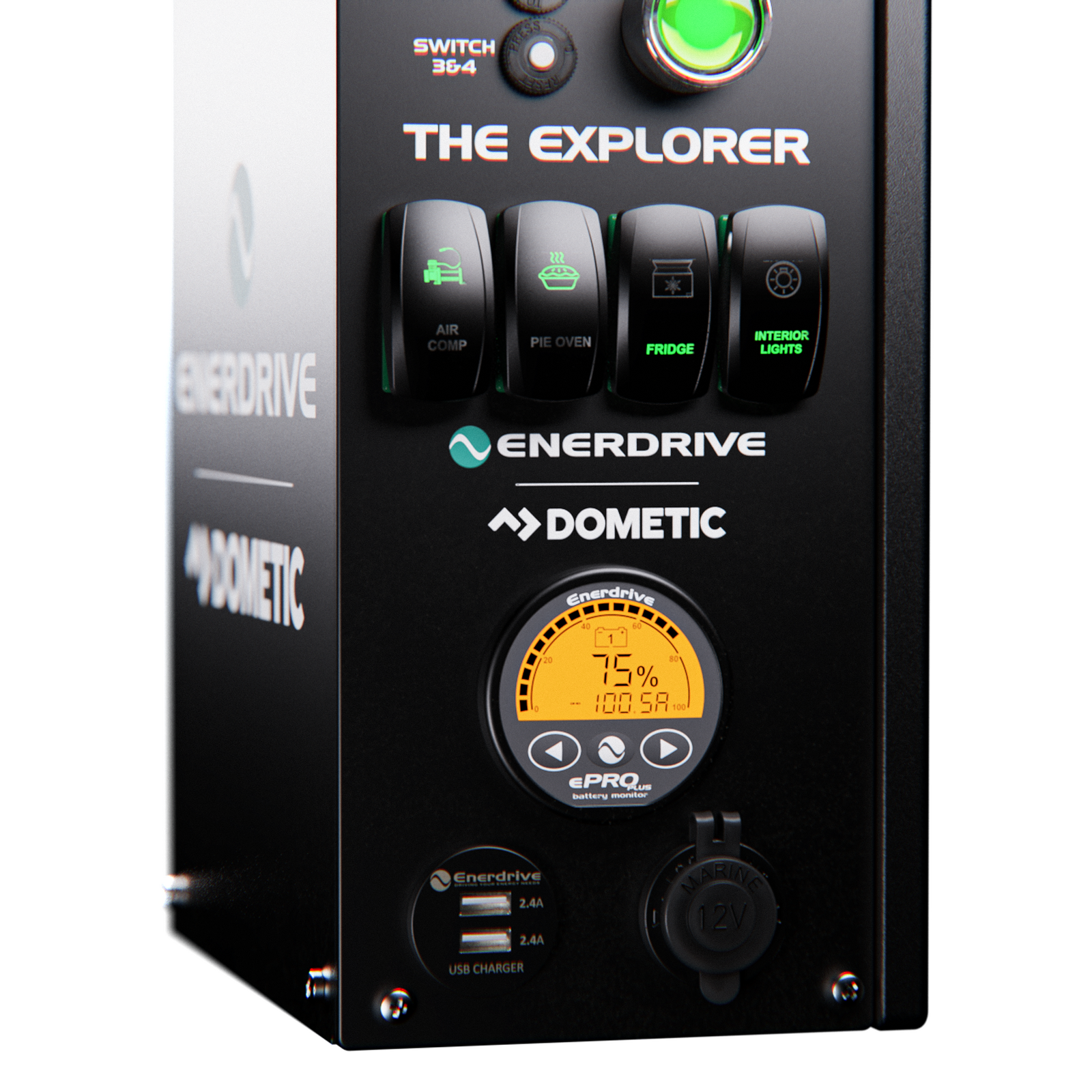

  • 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard.
  • You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.

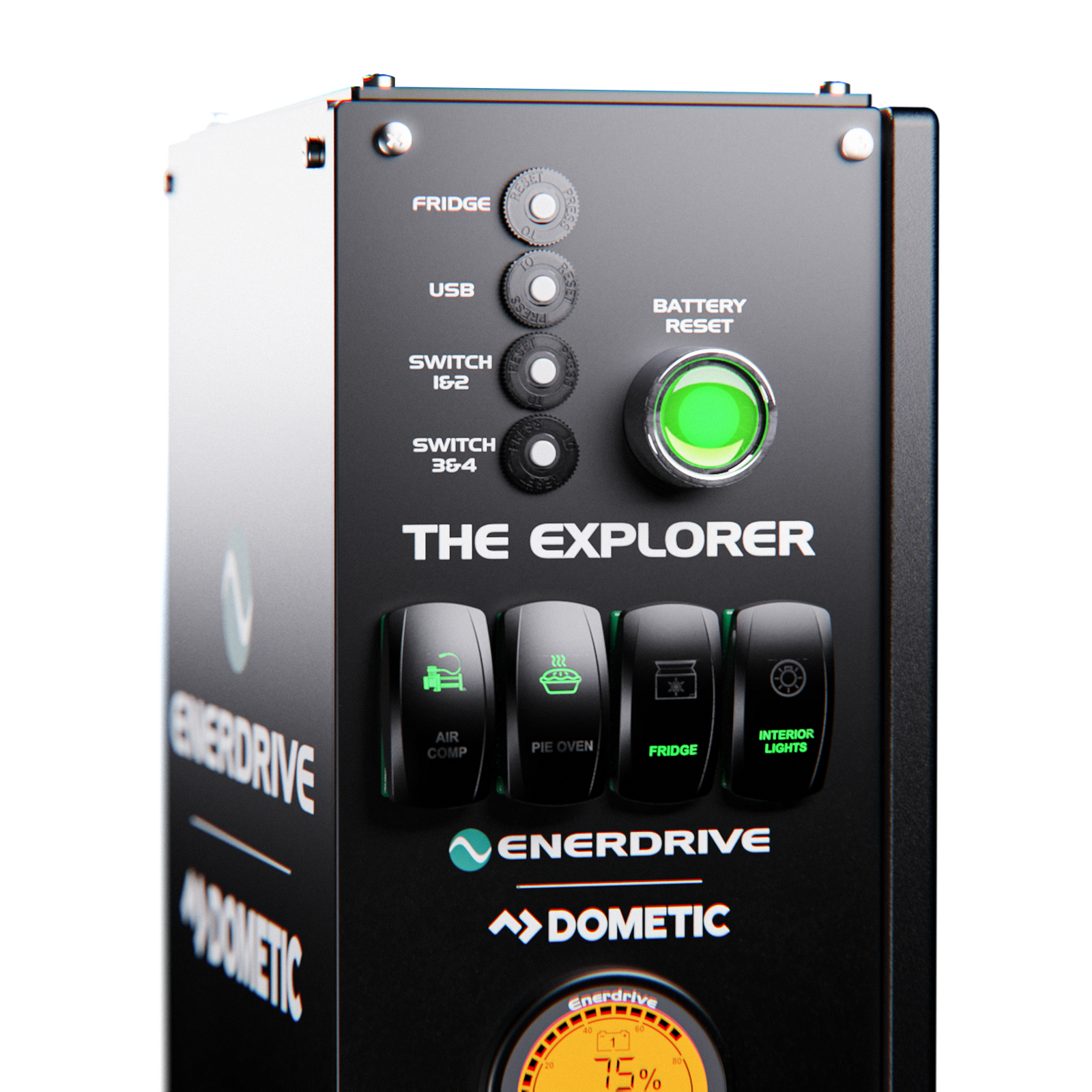

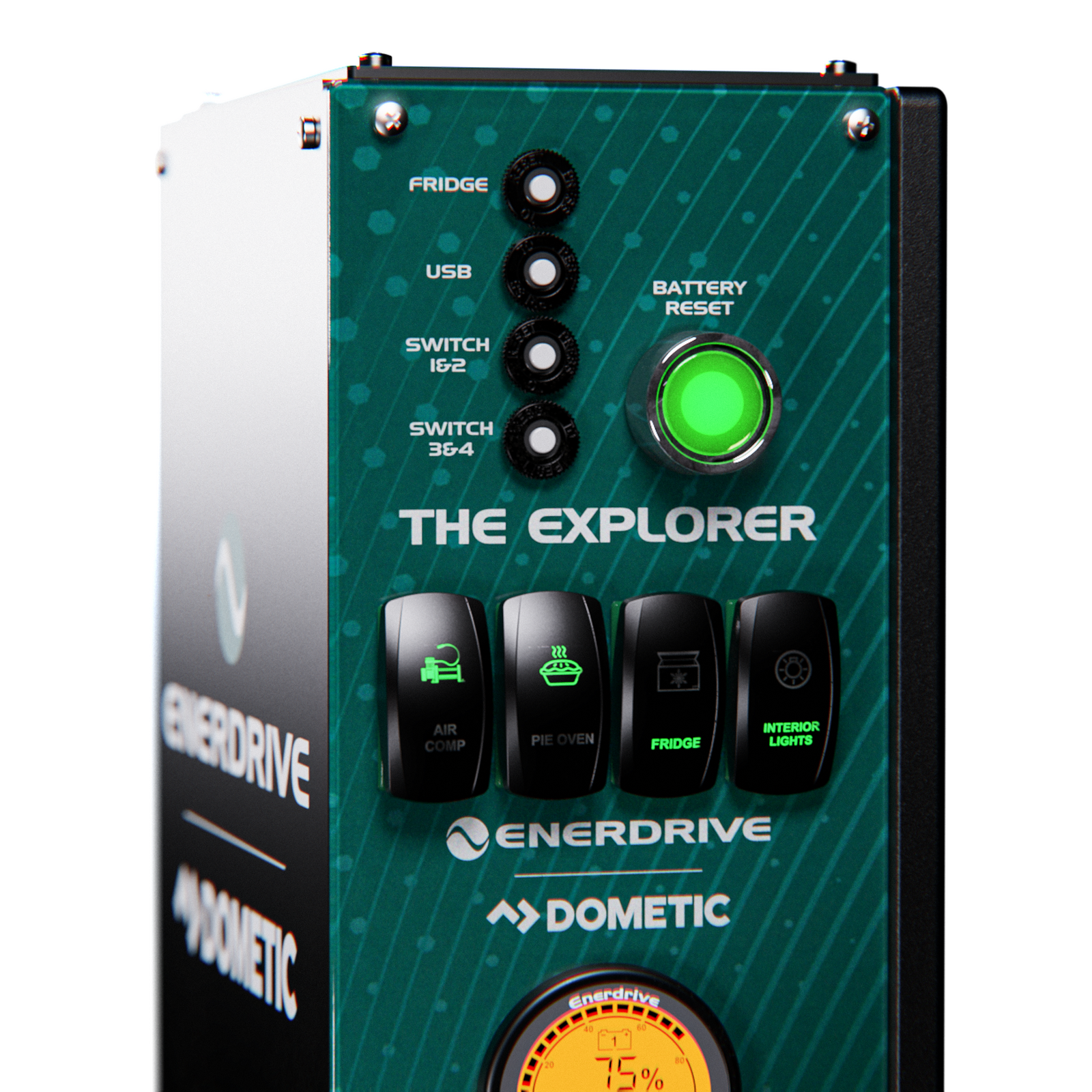

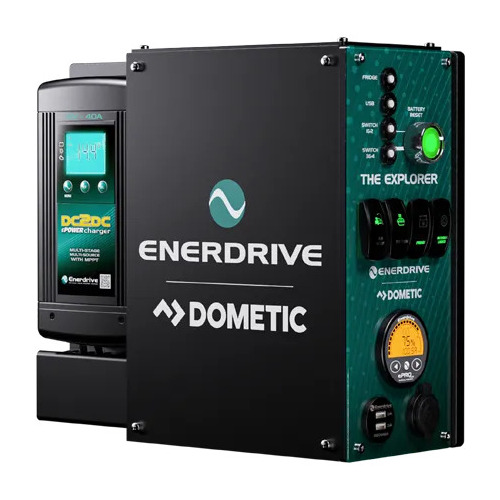

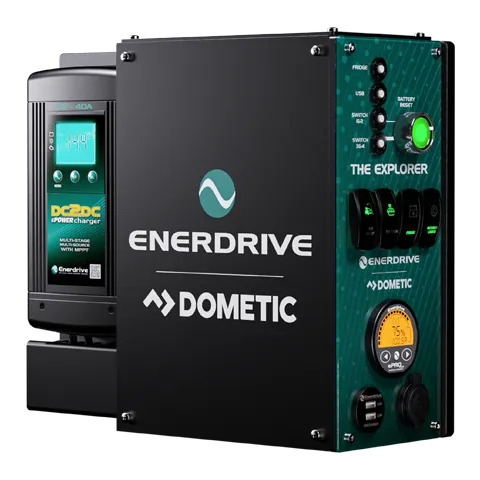

  • Customers can choose between two colours for the front switch panel of the system. Green or Black. Please specify this special instruction at time of your order.
  • Battery Reset button for kick starting your flat battery from the DC2DC Charger
Please note, each system either comes standard with an ePRO Plus battery monitor (as shown in images) and customers have the choice to upgrade to a Simarine battery monitor or Simarine Battery Monitor & Quad Shunt Module for an additional cost (you can make this selection above before adding product to cart).

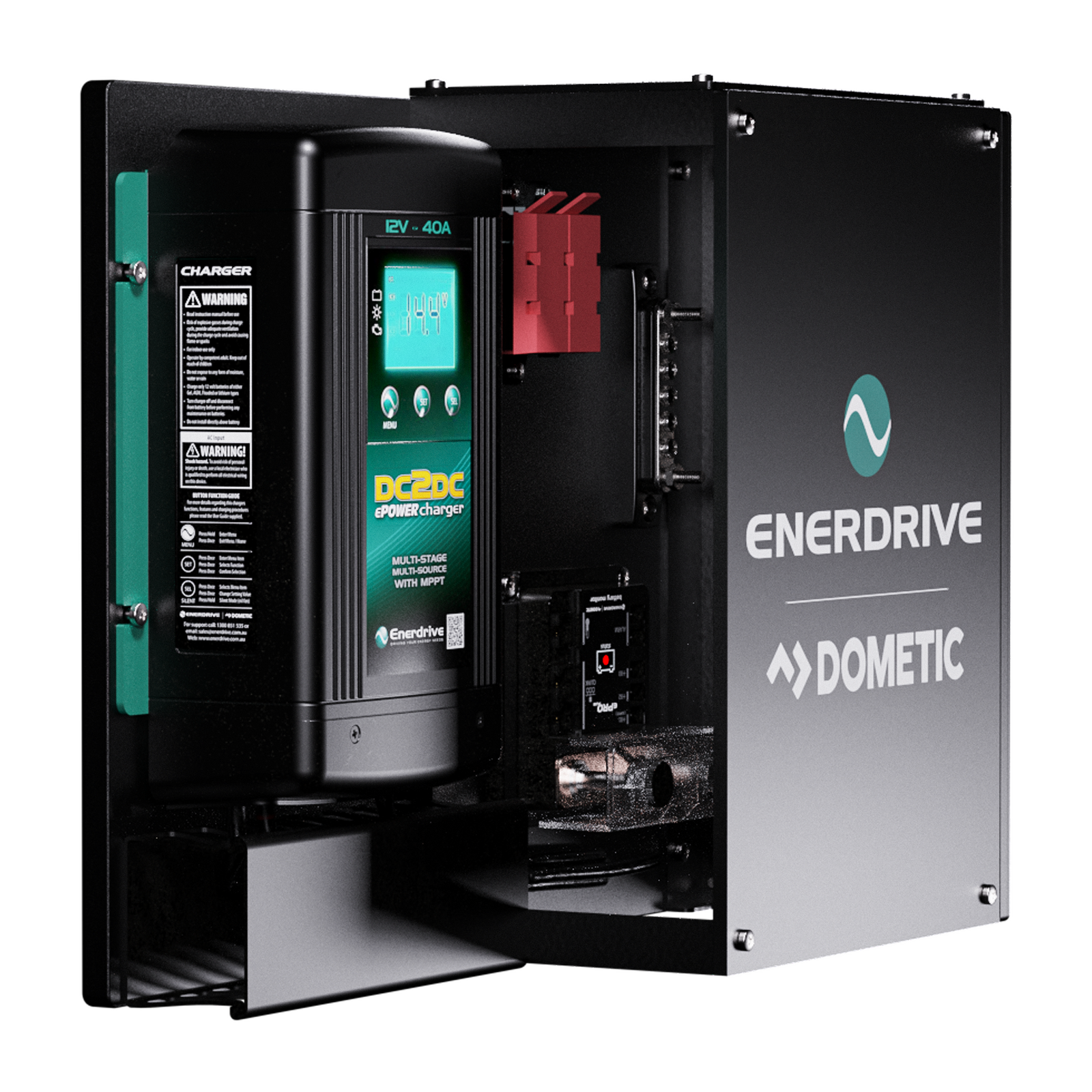

All systems are pre-wired by Enerdrive where possible so the only cabling required at installation time is load outputs, battery connection, & vehicle/solar/tank inputs

All systems are built into a unique compact box arrangement and designed to mount on either the front or rear bulkheads of the vehicles canopy. The systems are available in either passenger side, drivers side or roofmount installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.

Enerdrive are proud to bring to market this innovative design that can be installed by the canopy manufacturer or end user in a neat one piece installation.

The Enerdrive power systems now come with a Battery Cable with in line fuse for easy connection to your battery. This cable will be hardwired to the system as part of production.

Power system included Battery Cable Specifications

  • Explorer and Traveller System - 1m positive and negative cable (35mm2) with 100A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
  • Adventurer System - 1m positive and negative cable (70mm2) with 250A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.

Please also note, a 100Ah, 2 x 100Ah, 125Ah, 200Ah, 200Ah Slimline or 300Ah lithium battery can also be added to this bundle for an additional cost.

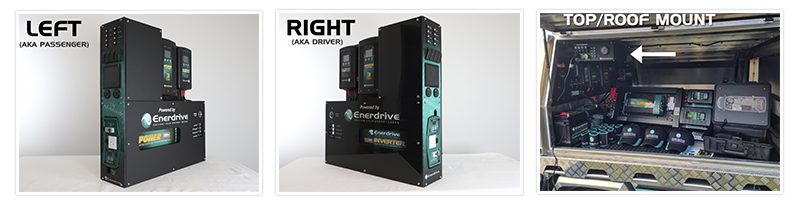

Installation option: Passenger side, Driver Side or Roof Mount (NOTE: These are demonstration models ONLY)

Items Included The Explorer
ePOWER DC2DC 40+ Charger (Vehicle/Solar) *

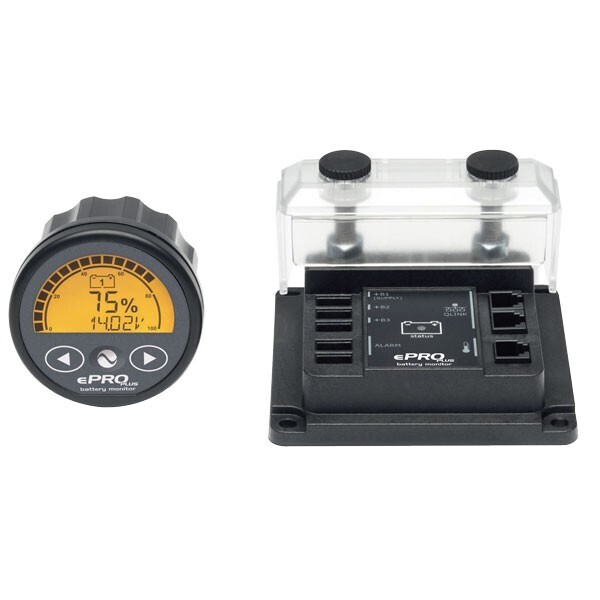

ePRO Plus Battery Monitor K-EXPLORER-01
Simarine LCD Battery WIFI Monitoring System K-EXPLORER-02
K-EXPLORER-03
4x Pre-Wired Circuit Breakers for Main Power Equipment *
4 x Contura Switches *
Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse *
Pre-wired Fridge 50A Anderson Plug connection *
Twin USB 2.4A Hi Amp Sockets *
Cig Socket to Replace One or Both USB Sockets. (Please Request at Time of Order) Optional
Battery Reset Button *
Individual Load/Charge Module for Simarine. (#SI-SCQ50) K-EXPLORER-03
Water/Fuel Tank Module for Simarine. (#SI-ST107) K-EXPLORER-02 (Optional)
K-EXPLORER-03 (Optional)
Dimensions 440L x 155W x 330Hmm
Weight 7kg

(*) Indicates Standard Fitment

Wiring Diagram

Specifications

SKU K-EXPLORER

Brand Enerdrive

Warranty Period: 5 Years

Product Category Power Systems

Nominal Voltage 12.8V (125Ah & 200Ah & 300Ah Battery)

Nominal Capacity 125Ah or 200Ah or 300Ah (Batteries)

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (125Ah & 200Ah & 300Ah Battery)

Battery Charge Temperature 0 ̴ 45°C (125Ah & 200Ah & 300Ah Battery)

Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V (125Ah & 200Ah & 300Ah Battery)

Standby (Float) Voltage 13.50 ̴ 13.80V (125Ah & 200Ah & 300Ah Battery )

Maximum Charge Current 60A @ 25°C for 30mins (125Ah Battery) | 150A @ 25°C for 30mins (200Ah Battery) | 190A @ 25°C for 30mins (300Ah Battery)

Recommended Charge Current for Maximum Life ≤ 40A (125Ah & 200Ah Battery) | 80 ~ 120A(300Ah Battery)

Battery Discharge Temperature -20 ̴ 60°C (125Ah & 200Ah & 300Ah Battery)

Battery Output Voltage Range 11.00 ̴ 14.60V (125Ah & 200Ah & 300Ah Battery)

Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (125Ah Battery) | 200A @ 25°C ± 5°C for 30mins (200Ah Battery) | 250A @ 25˚C ±5˚C for 15 mins(300Ah Battery)

Pulse Discharge Current 450A for 1.0s (125Ah & 200Ah & 300Ah Battery)

Discharge Cut-off Voltage ≤11.20V (125Ah & 200Ah & 300Ah Battery)

Float 13.0V - 13.8V (DC Battery Charger)

Dimensions 440 x 155 x 330mm (Explorer System Overall) | 242 x 172 x 74mm (DC Battery Charger) | 318 x 165 x 215 mm (125Ah Battery) | 505 x 172.5 x 265 mm (200Ah

Voltage 12V (125Ah & 200Ah & 300Ah Battery)

Equalize 15.5V (DC Battery Charger)

Efficiency 95% (DC Battery Charger)

Output System Voltage 12V

NOTE You must specify if you want a lithium battery with the system or not. Please also note, weight below is just for the canopy system,

Net Weight (kg) 7

Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)

Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger)

Charging Control Three Stages (DC Battery Charger)

DC Output Single (DC Battery Charger)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC Battery Charger)
