Victron 100Ah 4x4 Off-Grid Bundle

Product Description

Victron 100Ah 4x4 Off-Grid Bundle, 3 Year Warranty. Experience unparalleled efficiency, control, and unlock the true potential of your energy system like never before. Elevate your energy storage and management capabilities with our cutting-edge high-performance bundle. Revolutionise the way you harness and optimise energy with these exceptional components:

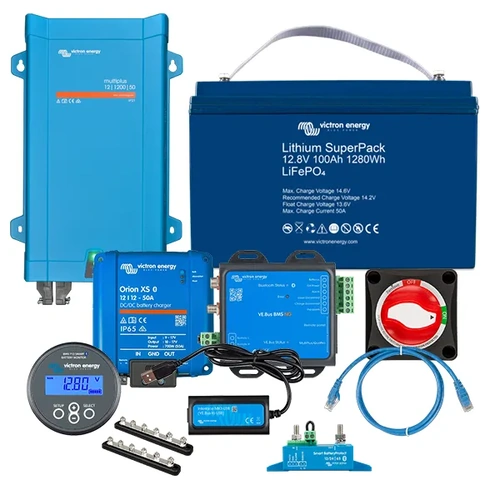

Bundle Includes:

• Victron MultiPlus Inverter Charger 12/1200/50-16 - PMP122120000
• Victron 12V/100Ah NG Lithium Battery - BAT512110620
• Victron Orion XS 12/12-50A DC-DC battery charger - ORI121217050
• Victron VE.Bus BMS NG - BMS300200300
• Victron Smart Battery Protect 12/24V-65A - BPR065022000
• Victron Battery Monitor BMV-712 Smart - BAM030712000R
• Victron Battery Switch On/Off 275A - VBS127010010
• Victron Busbar 150A 6Pole & Cover - VBB115060020
• Victron RJ45 UTP Cable 0.9 m - ASS030064920
• Victron Interface MK3-USB - VE.Bus to USB - ASS030140000

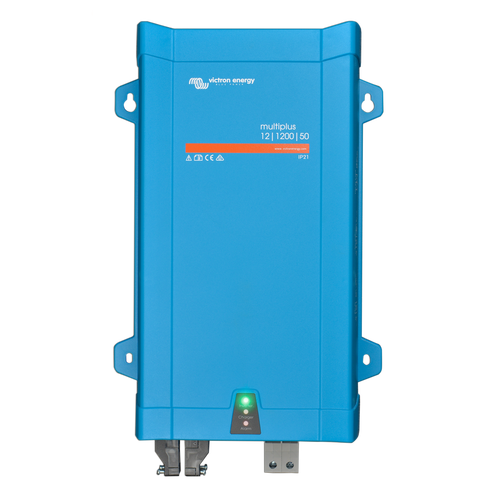

Victron MultiPlus Inverter Charger 12/1200/50-16

The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Uninterrupted AC power (UPS function): In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control: When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more.

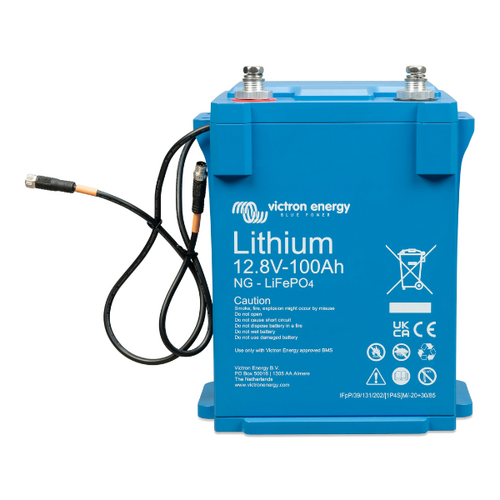

Victron 12V/100Ah NG Lithium Battery

Building upon the success of our Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

Tailored for those seeking advanced and reliable energy storage, the Lithium NG series marks a pivotal advancement in our product lineup, ready to meet the demands of tomorrow.

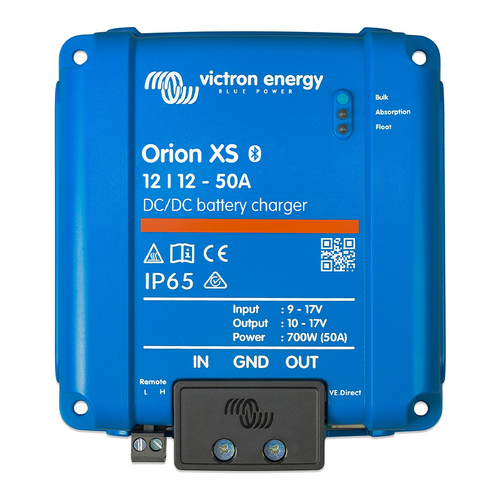

Victron Orion XS 12/12-50A DC-DC battery charger

The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.

This device not only ensures top-tier performance but also guarantees the safety of your system.

Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminium circuit board technology means less heat, without the need for fans.

As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.

Features:

• Fully configurable
• Efficient cooling
• Engine running detection
• Works with VictronConnect
• Intelligent charge algorithms
• Remote monitoring optional

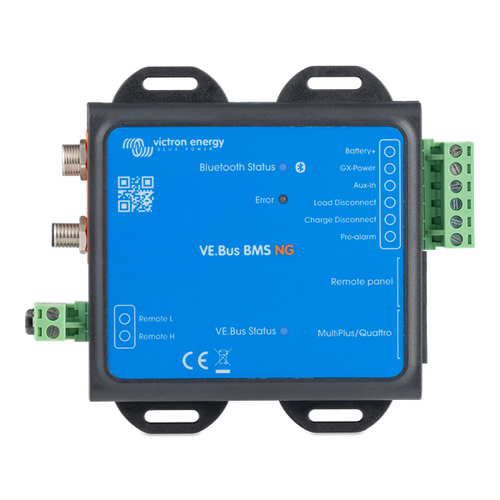

Victron VE.Bus BMS NG

The VE.Bus BMS NG is an all-in-one Battery Management System (BMS) for Victron Lithium NG batteries (not compatible with Lithium Battery Smart batteries), designed for systems with Victron inverters or inverter/chargers using VE.Bus communication. It monitors and protects the batteries against over voltage and under voltage of any individual cell, and also over temperature or under temperature conditions.

With built-in Bluetooth, it connects directly to all lithium NG batteries in the system for central monitoring via VictronConnect. It also receives current and state of charge data directly from the batteries, so there’s no need for a separate SmartShunt.

The lithium NG batteries can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems. A maximum of 50 batteries can be used in 12V or 24V banks, and 25 batteries in 48V banks, enabling up to 192 kWh (12V), 384 kWh (24V), and 128 kWh (48V) of storage. Multiple Lynx Smart BMS units can be paralleled to expand capacity and ensure redundancy.

Features:

• Bluetooth Smart: The VE.Bus BMS NG includes Bluetooth Smart for wireless configuration, monitoring, and firmware updates via the VictronConnect App. Instant Readout shows key data such as SoC, battery temperature, warnings, and alarms directly in the device list, without needing to connect.
• Load disconnect output: Controls the remote on/off input of a BatteryProtect, inverter, DC-DC converter, or other loads with remote on/off functionality to prevent deep discharge.
• Charge disconnect output: Controls the remote on/off port of chargers such as the Smart IP43 Charger, a Cyrix-Li-Charge relay, a Cyrix-Li-ct Battery Combiner, or a BatteryProtect, to prevent overvoltage.
• Pre-alarm output: Provides early warning for low battery voltage before disconnecting loads. Can drive a relay, LED, or buzzer.
• Remote on/off control: Allows external control of both load and charge disconnect outputs.
• LED indicators: Includes a blue LED for Bluetooth status and a red LED for warnings and errors.

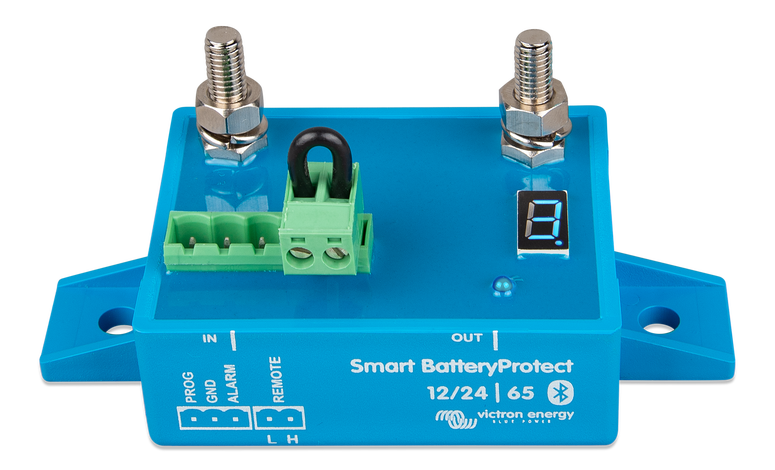

Victron Smart Battery Protect 12/24V-65A

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).

If required, Bluetooth can be disabled.

The Smart BatteryProtect is not designed for reverse currents from charging sources.

Victron Battery Monitor BMV-712 Smart

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

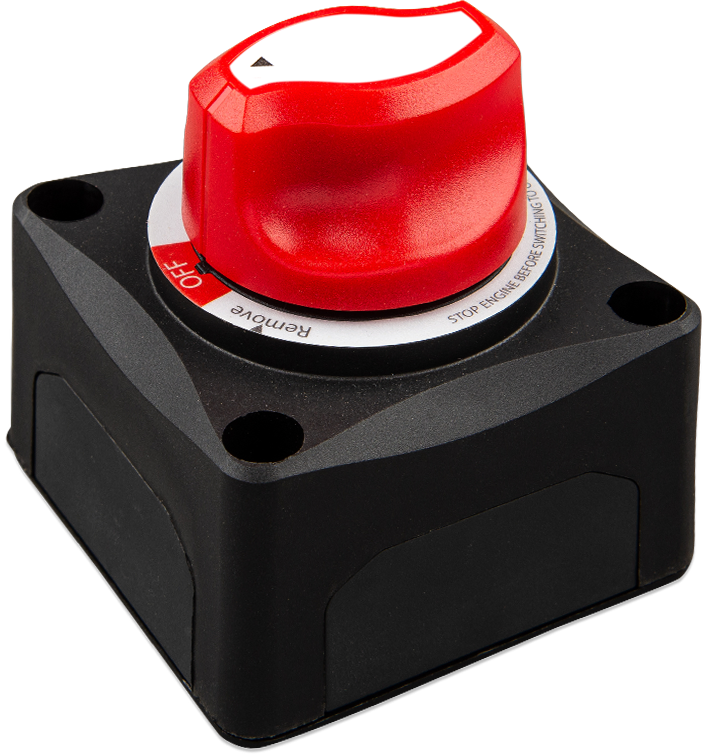

Victron Battery Switch On/Off 275A

The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.

The Battery Switch can be either surface or panel mounted, providing flexibility during install.

The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

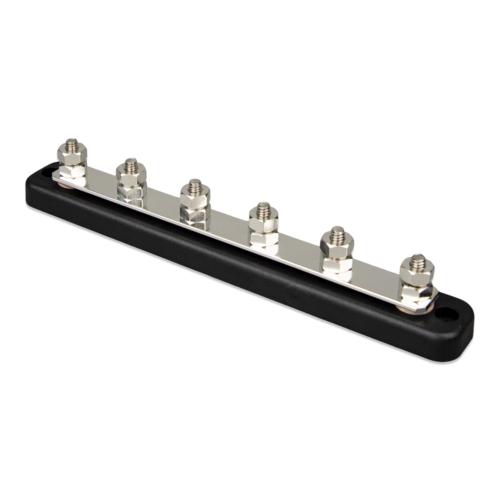

Victron Busbar 150A 6Pole & Cover

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

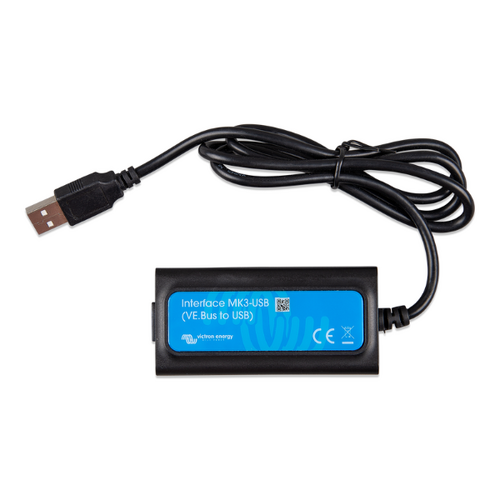

Victron Interface MK3-USB - VE.Bus to USB

The MK3-USB allows the products to connect to a computer for configuration and firmware updates.

Features:

• Configuration updates
• Firmware updates

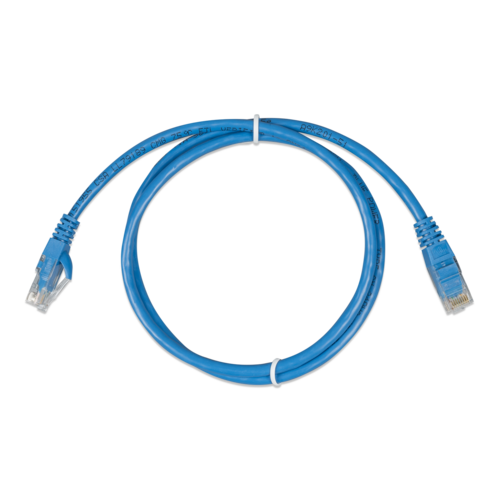

Victron RJ45 UTP Cable

A cable to connect Digital Multi Control, Phoenix Inverter Control, Interface MK3-USB, VE.Bus connections between multiple VE.Bus devices and to make VE.Bus and VE.Can connections to a GX device.
