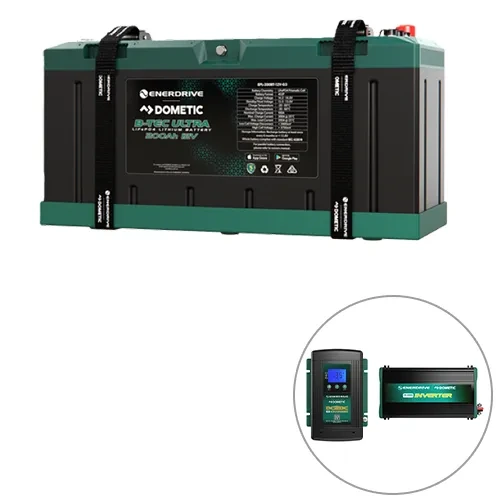

Enerdrive 200Ah Off-Grid 4x4 Bundle with 2000W Inverter

MYG-200-4X4-KIT-S

$3,459

Save $994 (22%) off RRP of $4,453

Take an EXTRA $70 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Accessories

$412

$134

$189

$199

$255

Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Enerdrive 200Ah Off-Grid 4x4 Bundle, 5 Year Warranty. The Enerdrive 200Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.

The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.

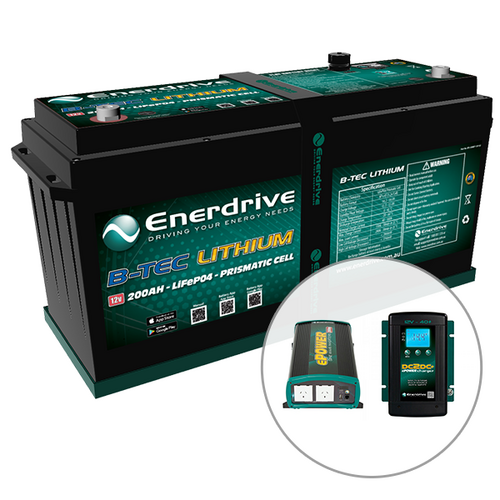

Bundle Includes:

Optional Inverter:

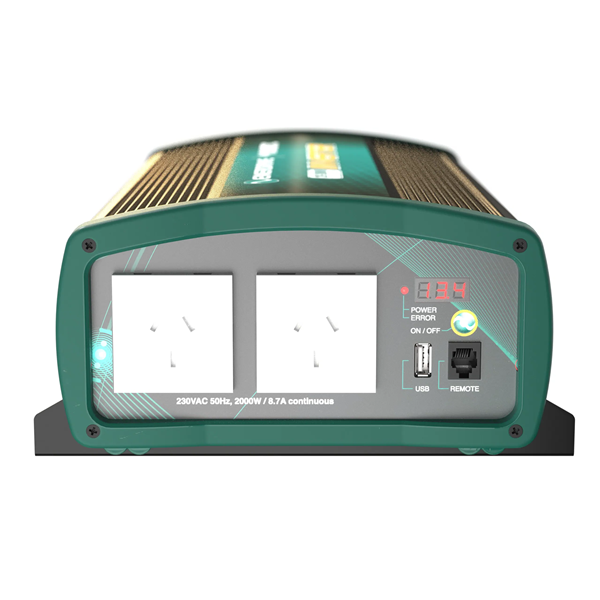

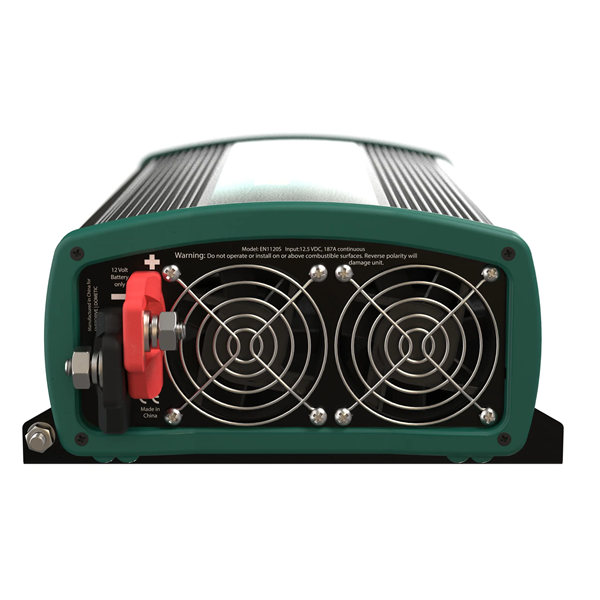

  • EN1120S - Enerdrive 2000W Pure Sine Wave Inverter
  • EN1120S-X - Enerdrive 2000W Pure Sine Wave Inverter with RCD & AC Transfer Switch

Here's how these components work together:

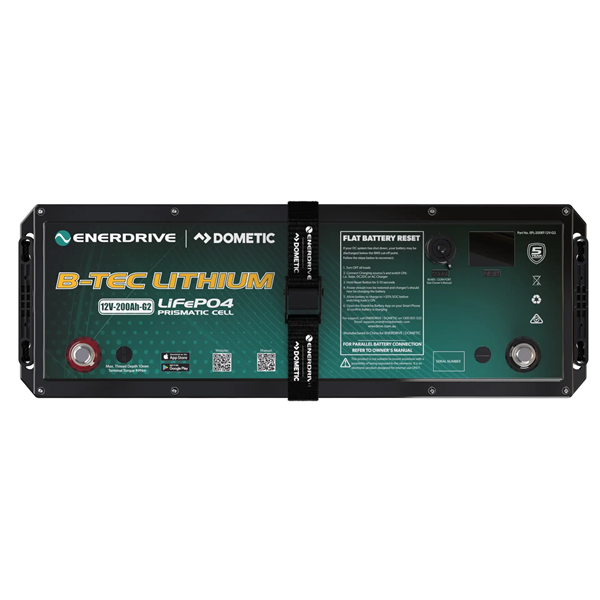

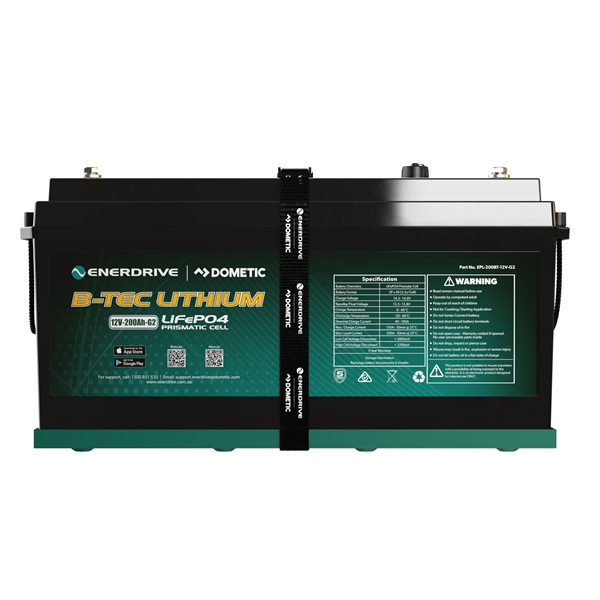

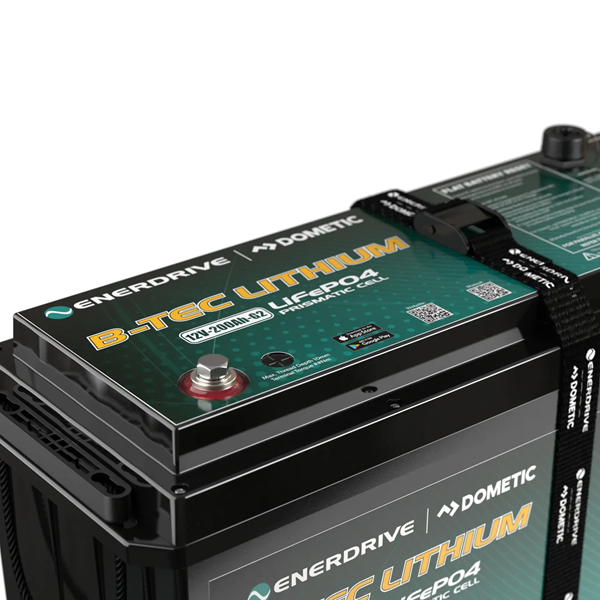

  • B-TEC 200Ah Lithium Battery: This serves as the cornerstone of your energy storage system, with a 200 ampere-hour capacity. It is the source of electrical energy for powering your appliances and devices, regardless of whether your application is an RV, boat, or another off-grid setup.

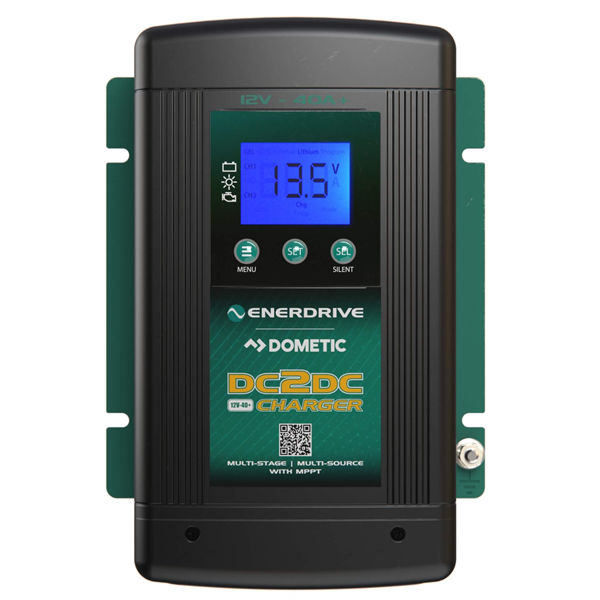

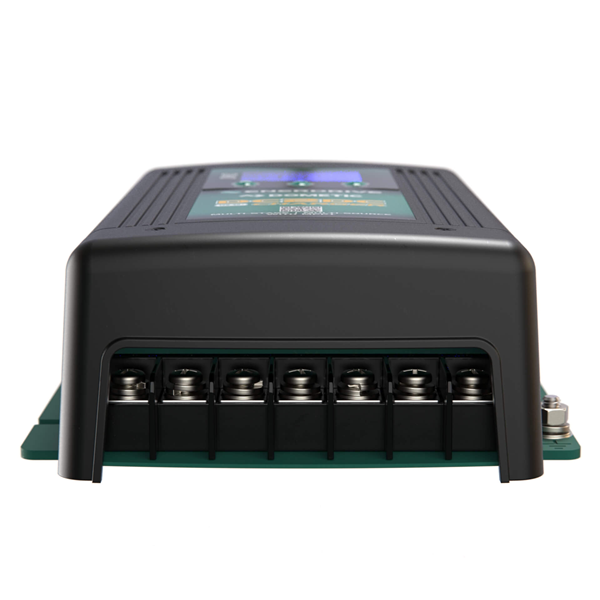

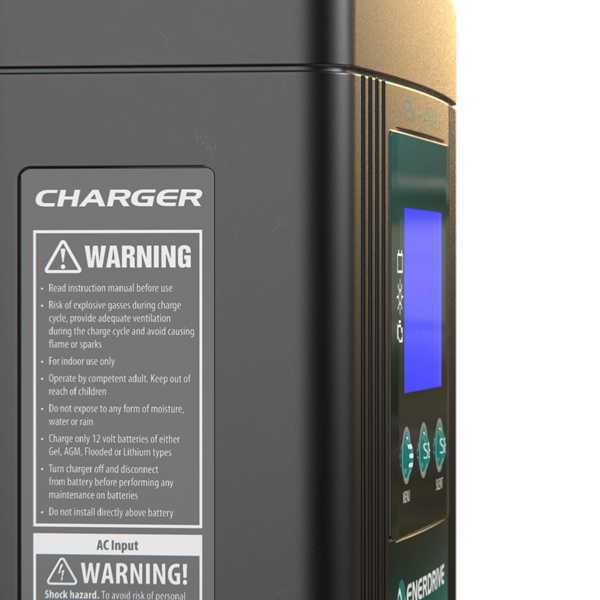

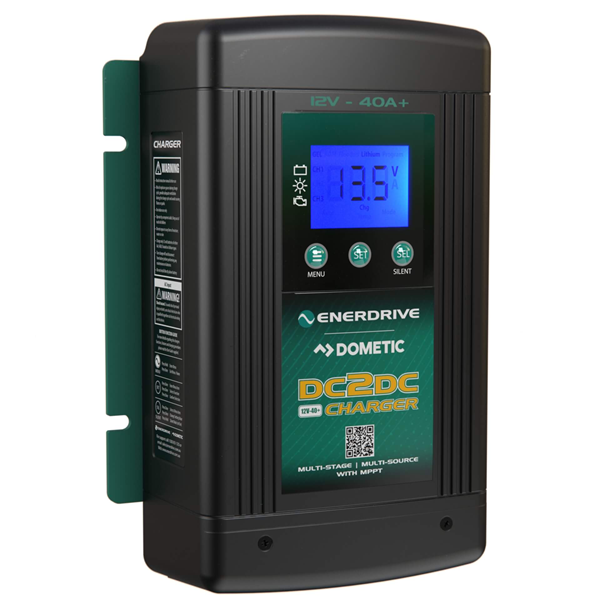

  • 40A DC2DC Charger: The DC-to-DC charger plays a pivotal role in your setup. It diligently regulates and transforms incoming DC power from various sources, such as your vehicle's alternator or solar panels, ensuring it's efficiently channeled to recharge the battery. With a capability of delivering a maximum charging current of 40 amps when sourcing power from DC sources, it guarantees the optimal charging performance.

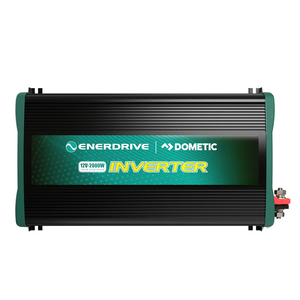

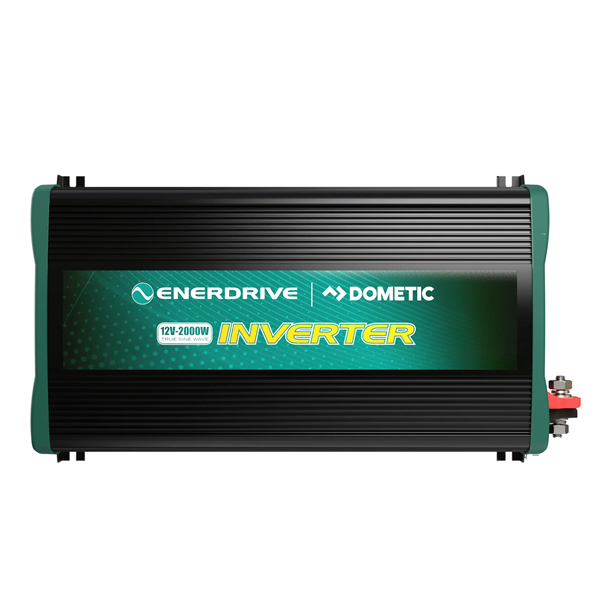

  • Inverter: In addition to managing your battery and charging components, the Enerdrive 2000W pure sine wave inverter plays a vital role in your setup. It ensures that the power delivered to your appliances and devices is of the highest quality. The pure sine wave output guarantees clean, stable power, making it suitable for sensitive electronics, ensuring they operate without interference or damage. This inverter enables you to use standard AC-powered devices with confidence, enhancing the versatility of your energy system.

It's important to consult the manufacturer's recommendations and user manuals for each component to ensure proper installation and operation in your specific application.

Bundles MYG-200-4X4-KIT-S MYG-200-4X4-KIT-X
EPL-200BT-12V-G2 * *
EN3DC40+ * *
EN1120S *
EN1120S-X   *

Battery Information:

Enerdrive Product Manual

DC Charger Information:

Enerdrive Product Manual

Inverter Information:

Standard Inverter Model:

Enerdrive Product Manual

X Inverter Model:

Enerdrive Product Manual

Specifications

SKU MYG-200-4X4-KIT

Brand Enerdrive

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (ah) 200

Battery Length (mm) 505

Battery Width (mm) 172.5

Battery Height (mm) 265

Battery Weight (kg) 25

Nominal Voltage 12.8V

Nominal Capacity 200Ah

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0 ̴ 45°C

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V

Maximum Charge Current 150A @ 25°C for 30mins

Recommended Charge Current for Maximum Life 40~100A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 11.00 ̴ 14.60V

Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤11.20V

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Discharge Over Current 220A for 30s – 450A for 1s

Battery Manual Reset Button Yes

Protection Reset Time Approx 10s Auto Release

Over Current Release Method Disconnect Load

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH


Videos

Enerdrive B-TEC Lithium Batteries - Part 1 - Application



Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications



Enerdrive B-TEC Lithium Batteries - Part 3 - Installation



Enerdrive B-TEC Lithium Batteries - Part 4 - Settings



Enerdrive B-TEC Lithium Batteries - Part 5 - Operation



Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding



The Best Caravan Battery?



What Will My Camping Battery Run?



The Latest Caravan Battery by Enerdrive: The B-TEC 200Ah 12V Generation 2 Battery



Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel



How To: Resetting A Flat Enerdrive BTEC or eLITE Battery



EN3DC40+ Enerdrive Battery Charger Run Through



Product Features: The Enerdrive 200Ah Lithium Battery



Enerdrive 2000W Inverter with AC Transfer Switch Product Features
