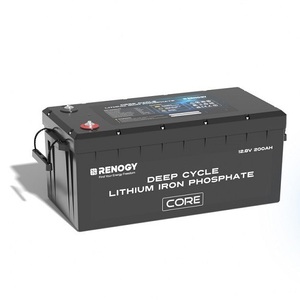

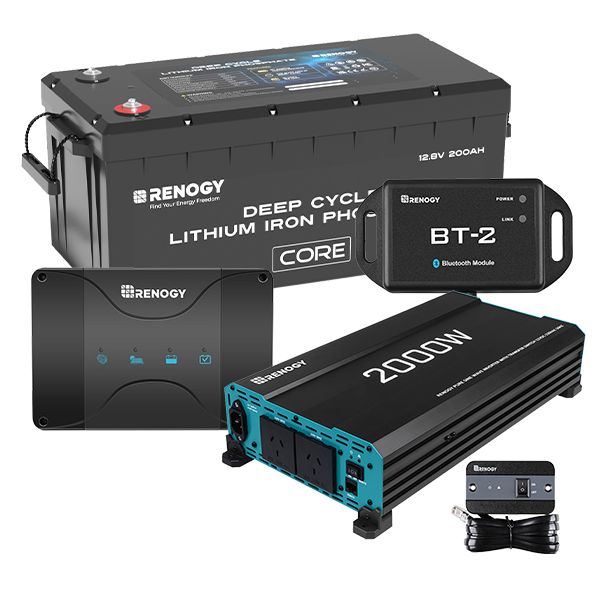

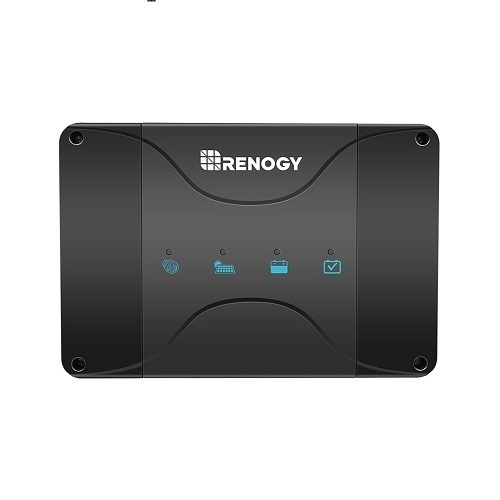

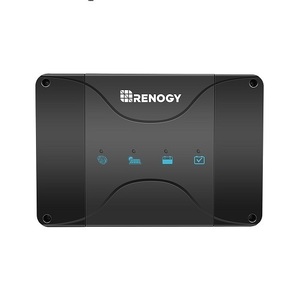

Renogy 200Ah Lithium Battery, 50A DC-DC Charger & 2000W Inverter

Renogy 200W 12V Monocrystalline Fixed Solar Panel, 5 Year Warranty. This Renogy 200 Watt Solar Panel features an extended lifespan for outdoor use and high resistance against the wind (2400Pa) and snow (5400Pa). Each panel can provide 1000 Wh per day(depending on sun availability), compatible with on and off-grid systems. Reliable performance and durable construction bring possibilities of wild adventures. This panel can be a great start or addition to any Renogy off-grid system!

Since 2010, Renogy has gained rich experience in designing and manufacturing the most efficient and robust solar panels and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going Renogy. This will be your most economical long-term investment yet.

Features:

• Reliable Power Output: Renogy's 200W monocrystalline solar panel can provide 800-1000 Watt-hours (Wh) of electricity per day (depending on sun availability). Guaranteed positive output tolerance (0-3%).

• High Efficiency: Built-in bypass diodes minimize power drop caused by shade. Ensure performance in low-light environments.

• Rugged Structure:Corrosion-resistant aluminum frame, advanced encapsulation material, pre-installed corner protectors.

• Back up your adventures with enhanced stiffness.

• Easy Installation: Pre-drilled holes on the back frame allow for fast mounting and securing. Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.

• Weatherproof: IP65 junction box provides complete protection against dust and low-pressure water jets. Withstand high winds (2400Pa) and snow loads (5400Pa)

Specifications:

• Max Power at STC: 200W
• Open Circuit Voltage: 23V
• Short Circuit Current: 11.05A
• Opitmum Operating Voltage: 19.2 V
• Optimum Operating Current: 10.42A
• Module Efficiency:19.2%
• Cell Efficiency: 22%
• Maximum System Voltage: 600 VDC UL
• Cell Type: 166
• Connectors: MC4 Solar Connectors
• Fire Rating：Class C
• Number of Cells: 68((2+2)*17)
• Operating Temperature： -40°F to 194°F
• Rated Current: 35A
• Maximum Voltage:1000V
• Temperature Range:﹣40℃ ～ +90℃
• IP Rating: IP68
• Dimensions: 1491 x 699 x 35mm
• Weight: 12kg

Renogy 500A Battery Monitor with Shunt, 1 Year Warranty. The Renogy 12V Battery Monitor is an excellent addition to any solar system and will eliminate the guesswork from battery usage. This 12V Battery Monitor is able to monitor the amperage flowing out of the battery bank and will give an accurate state of charge reading on the LCD screen. Improve the overall performance and longevity of your battery bank today!

Features:

• High-precision current detection.
• High and Low Voltage Programmable Alarm - Backlight and voltage value will flash simultaneously.
• Data Storage - Designed to automatically store the last testing data when the system shuts off.
• Displays multiple electronic parameters (Voltage, Current, Consumed Power, and Battery Capacity).
• Universal Battery Monitor- Voltage range 10V-120V and up to 500A.
• Compatible with various types of batteries: Lead Acid(AGM), Lithium Iron Phosphate, Lithium-ion, and Nickel-metal hybrid.
• Accurate Battery SOC%.
• Large backlit LCD Display
• Transparent shunt holder makes it easier to mount the shunt.
• 20ft Shielded cable allows you to monitor the battery status from a distance.

Specifications:

• Working Voltage: 10-120V
• Working Dissipation: 10-15mA
• Standby Dissipation: 1-2mA
• Voltage Accuracy: ±1%
• Current Accuracy: ±1%
• Capacity Accuracy: ±1%
• Backlight on current (50A): 30-60mA
• Backlight on current (>50A): 100mA
• Preset capacity value: .0.1-9999.0 AH
• Temperature range: 0-35 °C
• Shielded Wire Length: 20 ft/6 m
• B+ Wire Length: 3 ft/1 m
• Weight: 0.75 g
• Dimensions: 100 x 61 x 17 mm

Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series, 1 Year Warranty. The RMS-DCDC is a high precision meter designed for DC-DC MPPT Series onboard battery chargers. Engineered for an aesthetically clean and professional look once mounted, this meter can be flush-mounted and features a backlit LCD. Utilize the 4-key input to navigate through the LCD for system information, configure charging parameters, as well as identify any error codes. The RMS-DCDC is the perfect companion, offering operator feedback on your 2-battery system and keeping you up to date with important system information.

Features:

Dual Battery Monitoring

• Stay informed about your house and auxiliary battery's charging status and easily monitor the solar system's overall health.

Adjustable Parameters

• Program your charger settings, volts, and amps directly through the monitoring screen.

Plug and Play

• Simply connect an RJ45 directly to your DC-DC and let the screen take care of the rest.

 Accurate Readings

• Precise tracking and monitoring ensure the latest real-time solar and alternator charging information.

Specifications:

• Supply Voltage: 5VDC
• Communication Port: RJ45 (RS485 Protocol)
• Supply Current: 30mA
• Display: Backlit LCD
• Power Consumption: <1W
• User Interface: 4 Front Menu Buttons
• Operating Temperature Range: -20°C~45°C
• Mounting System: Wall Mount
• Voltage Accuracy: ±0.1V
• Dimension: 70 x 110 x 31.8 mm
• Current Accuracy: ±0.1A
• Weight: 62 g
• Wire Length: 5m

Renogy Temperature Sensor for DC to DC Battery Chargers, 1 Year Warranty. The RTSDCC comes in handy for reading incoming temperature values from the house battery bank while adjusting the charging voltage of your DC to DC On-Board Battery Charger. Featuring a temperature operation range from -4°F ~ 176°F / -20℃ ~ +80℃, the sensor will be important in the overall lifespan and performance of your house battery bank by applying higher charging voltage to counter the increased resistance due to low temperature. Simply connect the RTSDCC to the charger and place the sensor on top or on the side of the house battery bank and the charger will take care of the rest with temperature compensation. Enhance your battery charging system with a Renogy Temperature Sensor today!

Features:

• Accurate temperature measurement
• Cable length: 118 inches
• Temperature range: -20℃ ~ +80℃
• This temperature sensor is compatible with Renogy 12V 20A/40A/60A DC to DC on-board Battery Charger

Renogy ONE Core, 2 Year Warranty.

Features:

• Cloud-based energy monitoring worldwide.
• 24/7 energy analysis on multiple devices.
• Built-in RV leveling sensor for stability and comfort.
• Connect smart accessories for home automation.

Energy efficiency at your fingertips
Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.

Need leveling for more comfort?
ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.

Built-in 6-axis leveling sensor
Highly accurate and responsive detection of changes in orientation and rotational movement.

Real-time RV leveling status
Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.

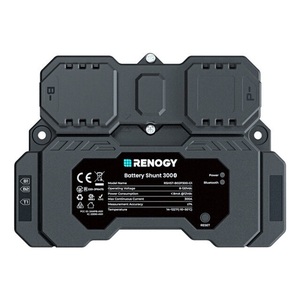

Renogy Battery Shunt 300, 1 Year Warranty.

Features:

• Remote monitoring and control via Renogy ONE/DC Home App.
• Compatible with various batteries：Lead Acid, LFP, Li-ion, and Ni-MH.
• Displays State of Charge, temperature, and starter battery voltage.
• Records historical data and issues alerts via DC Home app.
• Not compatible with ONE M1 currently. Actual package may vary.

Renogy 2 x 200W 12V Monocrystalline Fixed Solar Panel, 5 Year Warranty. This Renogy 200 Watt Solar Panel features an extended lifespan for outdoor use and high resistance against the wind (2400Pa) and snow (5400Pa). Each panel can provide 1000 Wh per day(depending on sun availability), compatible with on and off-grid systems. Reliable performance and durable construction bring possibilities of wild adventures. This panel can be a great start or addition to any Renogy off-grid system!

Since 2010, Renogy has gained rich experience in designing and manufacturing the most efficient and robust solar panels and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going Renogy. This will be your most economical long-term investment yet.

Features:

• Reliable Power Output: Renogy's 200W monocrystalline solar panel can provide 800-1000 Watt-hours (Wh) of electricity per day (depending on sun availability). Guaranteed positive output tolerance (0-3%).

• High Efficiency: Built-in bypass diodes minimize power drop caused by shade. Ensure performance in low-light environments.

• Rugged Structure:Corrosion-resistant aluminum frame, advanced encapsulation material, pre-installed corner protectors.

• Back up your adventures with enhanced stiffness.

• Easy Installation: Pre-drilled holes on the back frame allow for fast mounting and securing. Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.

• Weatherproof: IP65 junction box provides complete protection against dust and low-pressure water jets. Withstand high winds (2400Pa) and snow loads (5400Pa)
