Save $1,224 (22%) off RRP of $5,563
Product Description
Enerdrive Ultimate Off-Grid 4x4 Bundle, 5 Year Warranty. The Enerdrive 200Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.
The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.

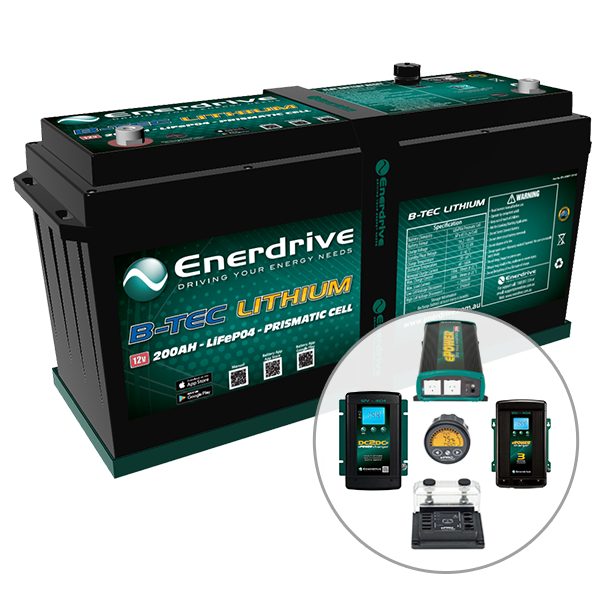

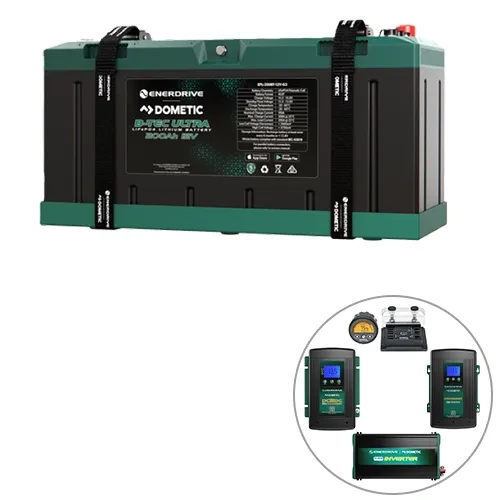

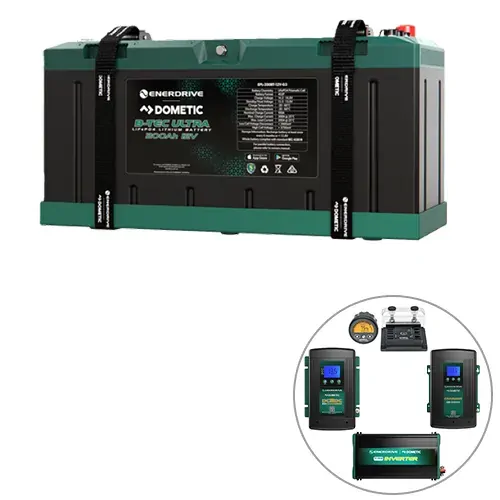

Included in bundle:

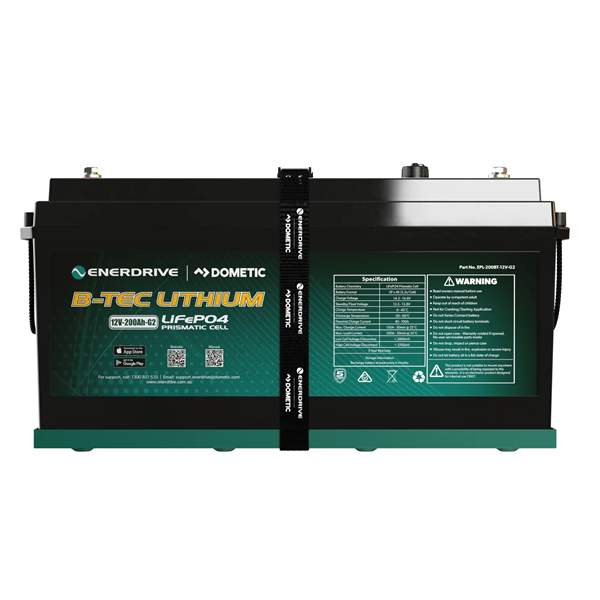

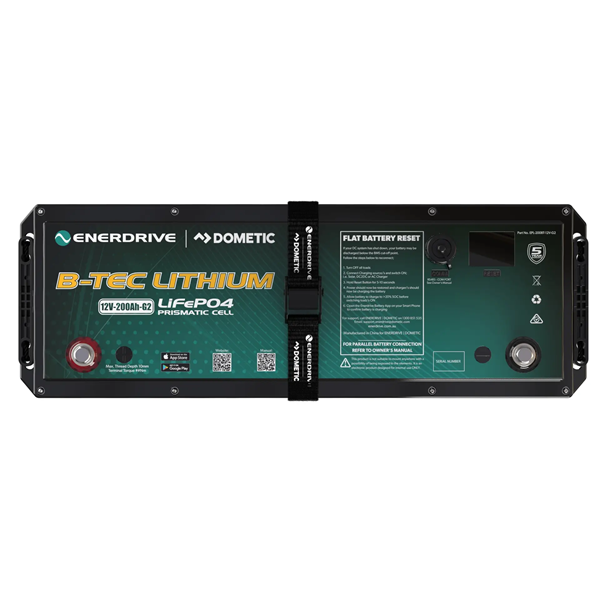

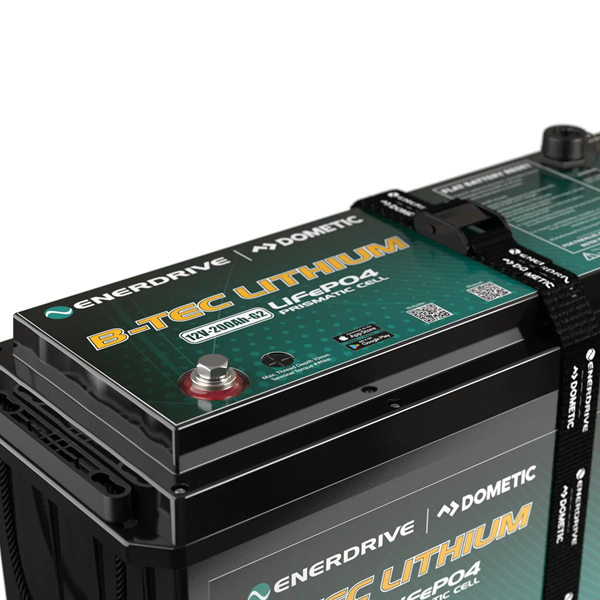

- Enerdrive B-TEC 200Ah Lithium Battery - EPL-200BT-12V-G2

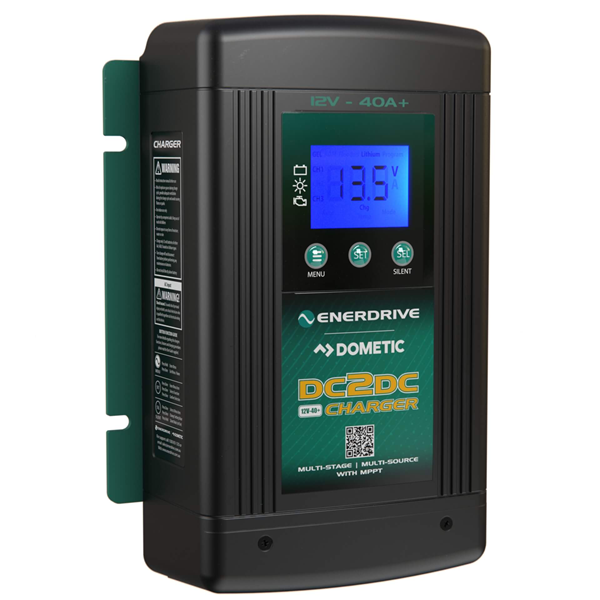

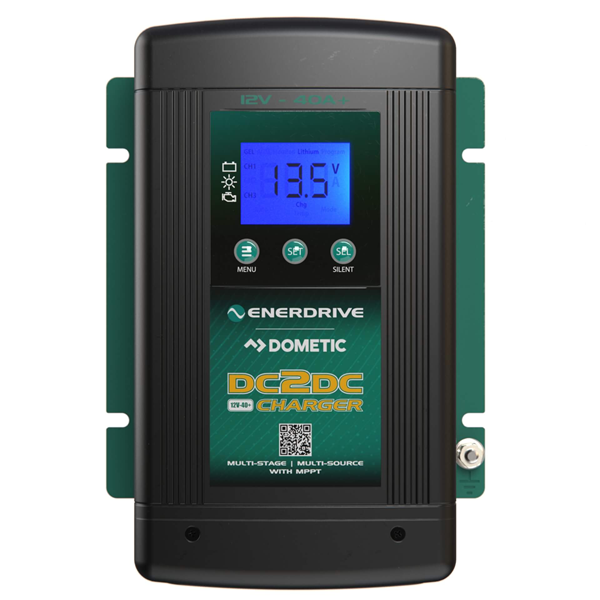

- Enerdrive 40A DC to DC Battery Charger - EN3DC40+

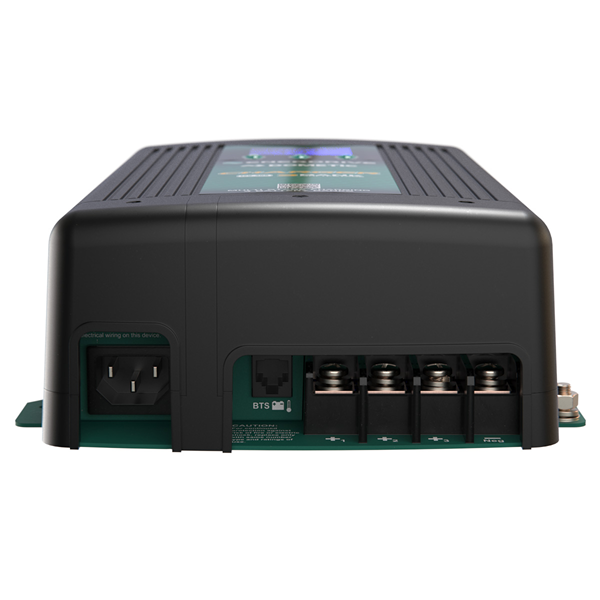

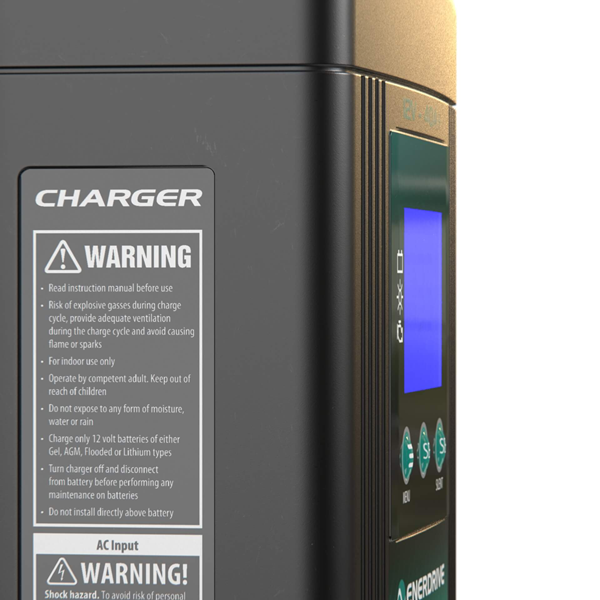

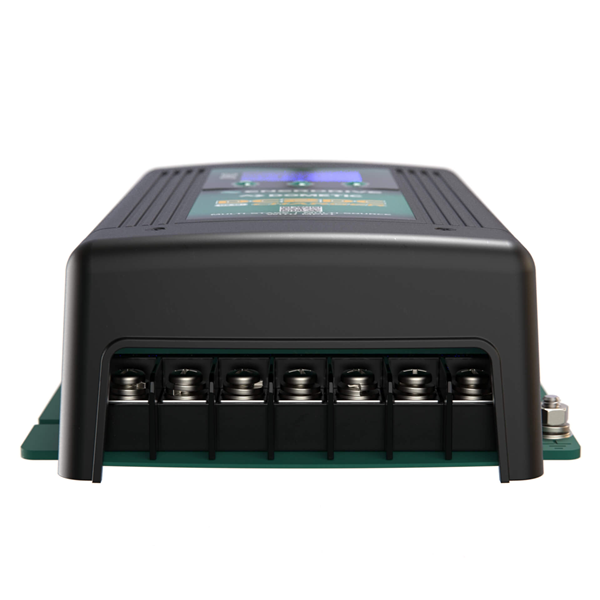

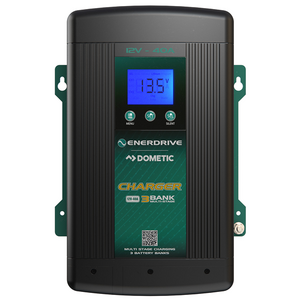

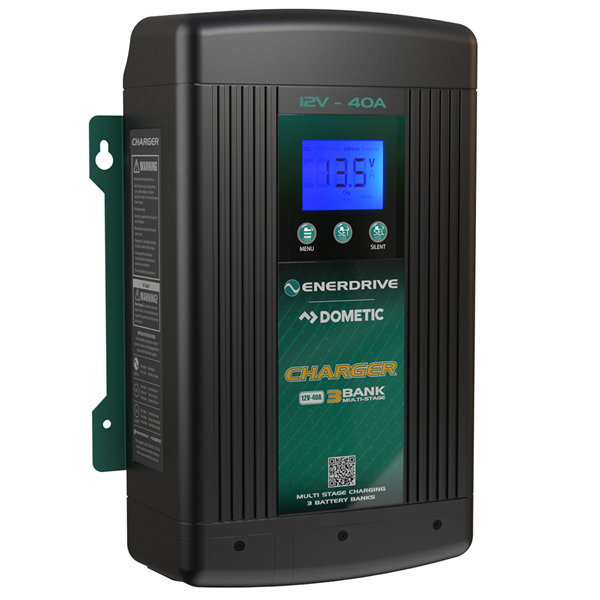

- Enerdrive 40A AC Battery Charger - EN31240

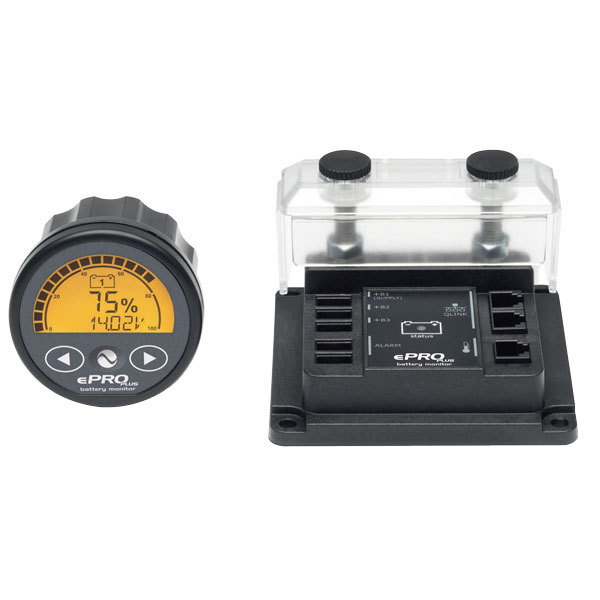

- Enerdrive ePRO PLUS Battery Monitor - EN55050
Optional Inverter:

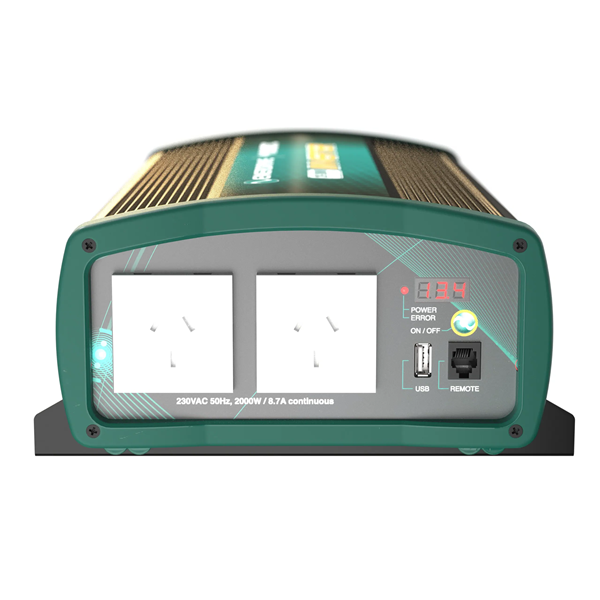

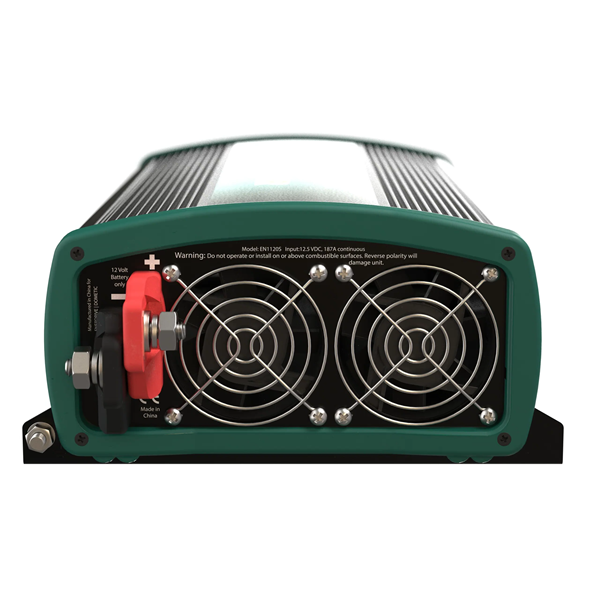

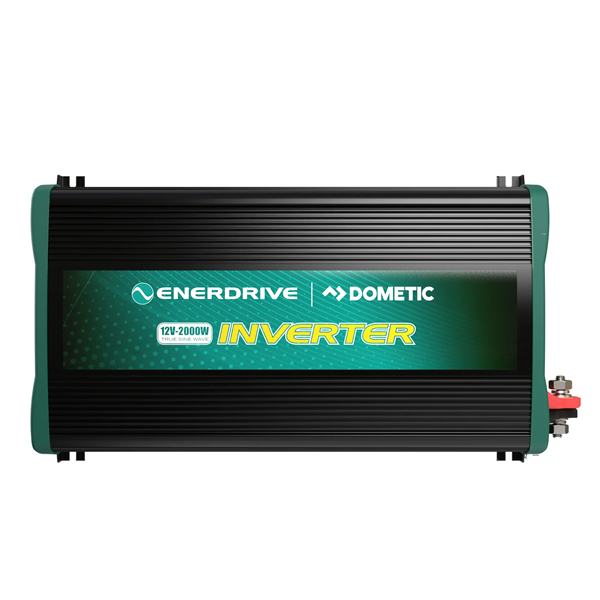

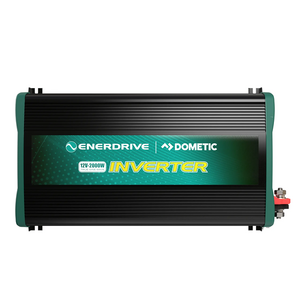

- Enerdrive 2000W Pure Sine Wave Inverter - EN1120S -This unit is on backorder and will ship separately mid-December.
- Enerdrive 2000W Pure Sine Wave Inverter with RCD & AC Transfer Switch - EN1120S-X - This unit is on backorder and will ship separately in early December.
Here's how these components work together:
- The 40A DC2DC charger takes charge of replenishing the lithium battery during travel or when solar panels are accessible, ensuring an efficient battery charging process.
- The AC charger comes into play when you're linked to an AC power source, such as a campsite with electrical hookups or a marina with shore power. It provides a convenient method for recharging the battery when AC power becomes available.
The combination of both DC and AC charging options offers versatility in recharging your battery, catering to various scenarios. The DC charger is apt for charging on the move, while the AC charger proves valuable when you're stationary and connected to the grid.
This setup offers flexibility in recharging your battery, considering both your mobility and access to AC power sources. It's important to consult the manufacturer's recommendations and user manuals for each component to ensure proper installation and operation in your specific application.
Bundles | MYG-ULTIMATE-4X4-KIT-S | MYG-ULTIMATE-4X4-KIT-X |
EPL-200BT-12V-G2 | * | * |
EN3DC40+ | * | * |
EN31240 | * | * |
EN55050 | * | * |
EN1120S | * | |
EN1120S-X | * |
Battery Information:
DC Charger Information:
AC Charger Information:
Battery Monitor Information:
Inverter Information:
Specifications
SKU MYG-ULTIMATE-4X4-KIT
Brand Enerdrive
Product Category Batteries
Warranty Period: 5 Years
Model EPL-200BT-12V-G2 (Battery) | EN3DC40+ (DC Battery Charger) | EN31240 (AC Battery Charger) | EN55050 (Battery Monitor) | EN1120S (Normal Inverter)
Battery Voltage 12V
Amp Hours (ah) 200
Wattage (W) 2000W (Normal & RCD Inverter)
Battery Weight (kg) 25
Discharge Cut-off Voltage ≤ 11.20V (Battery)
AC Input Frequency Range 47 – 63 Hz (AC to DC Battery Charger)
Maximum Charge Current 150A @ 25°C for 30mins (Battery)
Total Charge Current Max 150A @ 25°C for 30mins (Battery)
Nominal Voltage 12.8V (Battery)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC to DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC to DC Battery Charger
Charger Mode Output Voltage 13.8V - 15.5V (DC to DC Battery Charger) | 14.2 – 15.5 V (AC to DC Battery Charger)

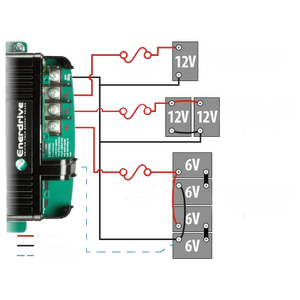

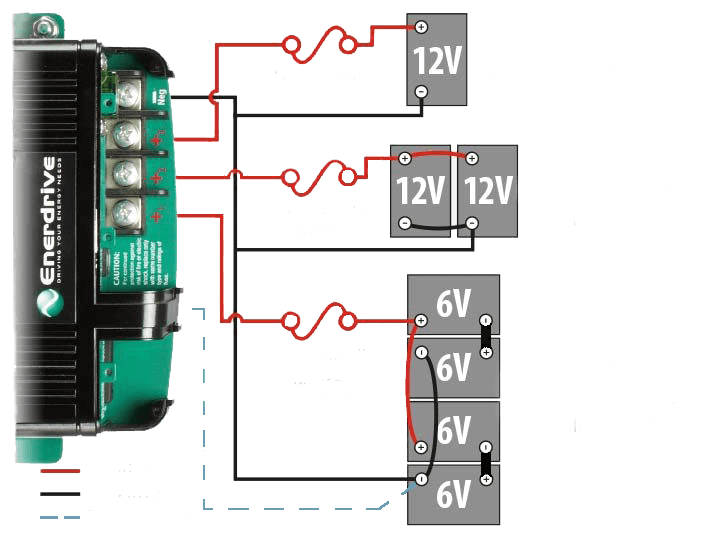

DC Output Single (DC to DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC to DC Battery Charger)
Under Voltage Shutdown 10.5 / 11.8 VDC (Normal & RCD Inverter)
Under Voltage Alarm 11.0 / 12.1 VDC (Normal & RCD Inverter)
Charger Efficiency 95% (DC to DC Battery Charger) | > 82% (AC to DC Battery Charger)
Power consumption (DC 12V) 700W (Full Load) (AC to DC Battery Charger)
Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)
Output Voltage and Frequency 230 Vac / 50 Hz (RCD Inverter)
DC Output Ground Single Heavy Duty Common Ground Stud (AC to DC Battery Charger)
Standby Current < 2 mA (AC to DC Battery Charger)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC to DC Battery Charger)
AC Input Voltage 90 to 265 VAC (AC to DC Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC to DC Battery Charger)
Pulse Discharge Current 450A for 1.0s (Battery)
Over Temperature Protection Yes, unit de-rated and shutdown (AC to DC Battery Charger)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Battery Discharge Temperature -20 ̴ 60°C (Battery)
Operating Range (temp) -20° to 60° C (AC to DC Battery Charger) | 0°C to 40°C (Normal & RCD Inverter)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC to DC Battery Charger & AC to DC Battery Charger)
Humidity 5-95%, relative humidity non-condensing (AC to DC Battery Charger) | 5-90% noncondensing (Normal & RCD Inverter)
Over Voltage Shutdown 15.5 VDC (Normal & RCD Inverter)
USB Socket Output 5V, 750 mA (Normal & RCD Inverter)
Storage Range (temp) -40° to 70° C (AC to DC Battery Charger)
Net Weight (kg) 36
AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC to DC Battery Charger)
Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)
Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC to DC Battery Charger)
DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC to DC Battery Charger)
Float 13.50 - 13.80V (Battery) | 13.0V - 13.8V DC to DC Battery Charger) | 13.4 – 13.8 V (AC to DC Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC to DC Battery Charger)
Power Factor Correction Yes (AC to DC Battery Charger)
Recommended Charge Current for Maximum Life ≤ 60A (Battery)
Under Voltage Alarm Recovery 11.3 / 12.3 VDC (Normal & RCD Inverter)
Nominal Capacity 200Ah (Battery)
Battery Charge Temperature 0 ̴ 45°C (Battery)
Input Voltage 12.5 VDC (Normal & RCD Inverter)
Equalize 15.5V (DC to DC Battery Charger) | 16.0 V (AC to DC Battery Charger)
Dimensions Battery: 505 x 172.5 x 265 mm | DC to DC Charger: 242 x 172 x 74 mm | AC Charger: 295 x 206 x 90 mm | Inverter: 416 x 230 x 110 mm (L x W x H)
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC (Normal & RCD Inverter)
Operating Altitude Up to 3000 meters above sea level (Normal & RCD Inverter)
AC Output 2000W, 8.7A (Normal & RCD Inverter)
Cooling Forced air ventilation (thermo controlled fan) (AC to DC Battery Charger)
Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins (Battery)
Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V (Battery)
Charging Control Three Stages (DC to DC Battery Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program
AC Input Connection IEC with Supplied 1.2M Power Lead (AC to DC Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (AC to DC Battery Charger)
Over Charge Yes, unit shutdown (AC to DC Battery Charger)
