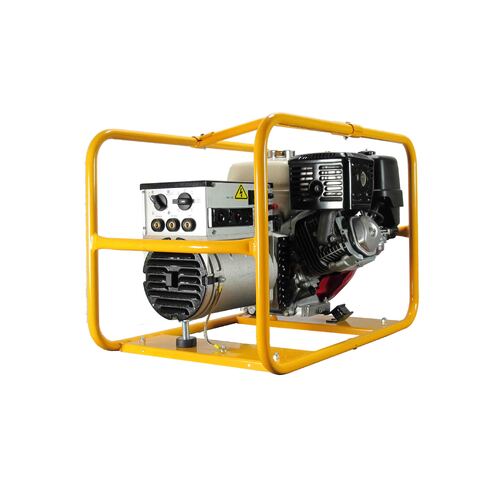

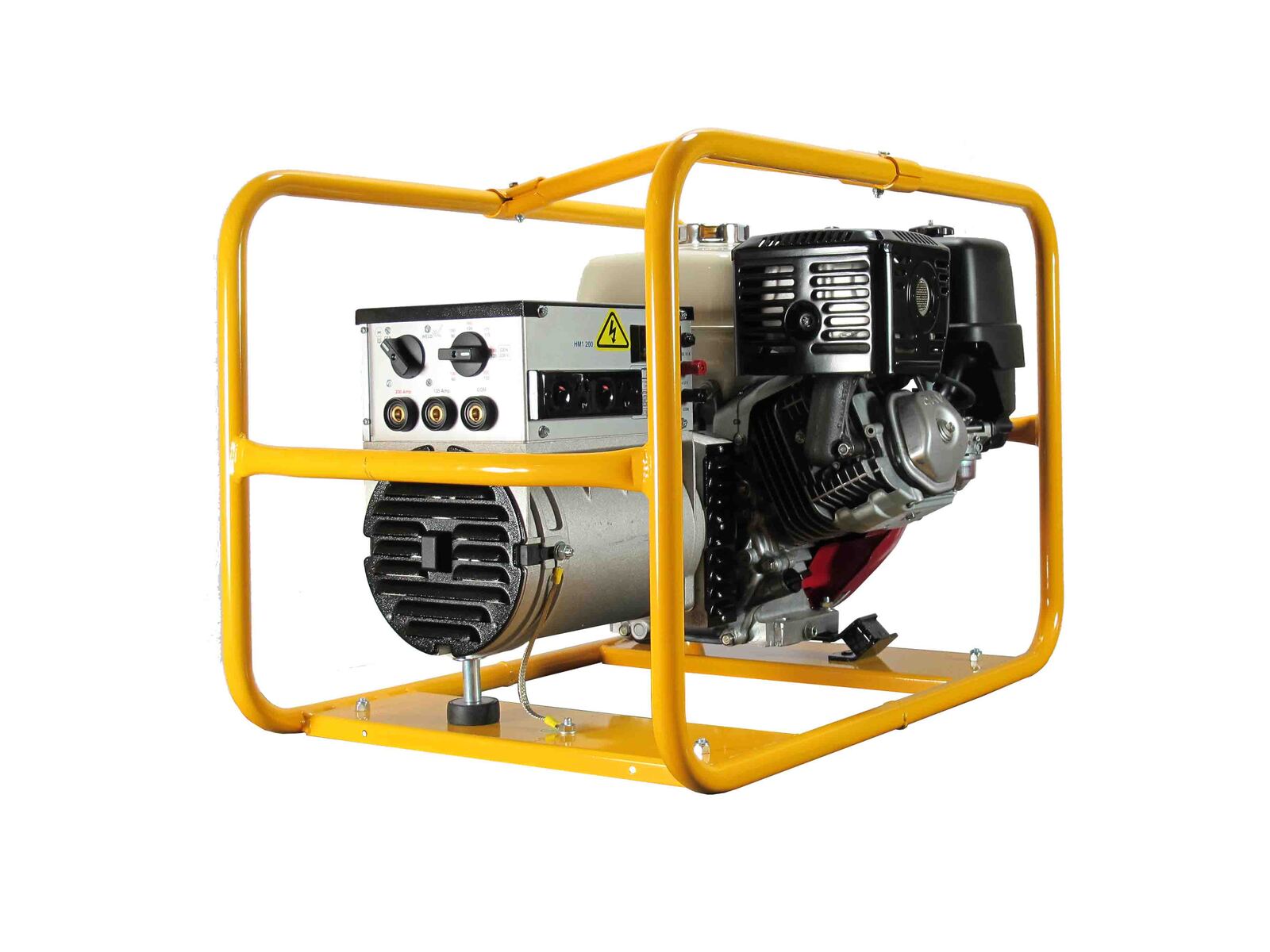

Powerlite 7kVA Yanmar Diesel Welder Generator Elec Start

SKU: PWYDE175AC Learn More»
In StockBuilt to Order Build time approx 3-5 days.

EXTRA $100 OFF! Add to cart to get an instant discount


Accessories List:







Click '+' to show more accessories
Learn More»


Powerlite 7kVA Yanmar Diesel Electric Start, AC Welder Generator, 175Amp, 2 year warranty. This generator provides superb arc striking performance plus 35 Amp (at 100% duty) up to 175 Amp (at 35% duty) welding current. Ideally used for welding and electric tools, provided that the total power consumption at any one time is less than 5,600W.

Complete with a two-year warranty backed by a national service network, this generator gets the job done.

Warranty: Alternator 12 months. Engine: 24 months against faulty parts and workmanship.

Powerlite 7kVA Yanmar Diesel Welder Generator Product Brochure

Show More



Brand Powerlite

Product Category Portable Generators

kVA 7

Continuous Output (kW) 5.6

Continuous Output (Watts) 5600

Phase Single

Fuel Diesel

Fuel Tank Capacity 5.5L

Starting Method Electric & Recoil

Fuel Consumption 1.6 l/h

Outlets 2 x 15A

Cont. Working Time 3.4hr

Engine L100 Yanmar

NOTE Product specifications provided by Manufacturer. This is a portable air-cooled diesel generator designed for short term/standby applications - for pri

Alternator Type Mecc Alte

Frame Roll

Engine Warranty 1 year warranty

Frequency 50Hz

Product Dimensions (mm) LxWxH 760x500x600mm

Net Weight (kg) 108

Max Welding Output Amps 175 AC

NOTE: see full product specifications & further product info in the section on this page.

Q & A

  • In terms of warranty, where can I find details of service agents for Powerlite Generators?

    Powerlite use premium grade components in all their generators. Starting with the engine, all of the engine manufacturers have national service agent and spare parts networks. The links below will help you with details of their respective service agents:

    For their petrol range, Powerlite mostly use Honda engines from Honda Australia. The Honda service agent network is listed HERE.

    Some petrol models have Briggs & Stratton / Vanguard engines, with their service agents listed HERE.

    For their diesel range, they use both Yanmar Engines and Hatz Engines.

    For specific generator/alternator warranty, servicing and spare parts inquiries for Powerlite Generators, you can find information HERE.

  • Can I use this generator to charge my power tool batteries?

    Hi there,

    Charging battery packs is fine from a conventional generator, we'd recommend having a steady load on the generator and don't connect appliances that will cause the load to jump around during charging.
