Exotronic 200W 24V Portable Folding Solar Panel with Victron SmartSolar MPPT 75/15 Charge Controller

Product Description

Exotronic 200W 24V Portable Folding Solar Panel with Victron SmartSolar MPPT 75/15 Charge Controller, 5 Year Warranty

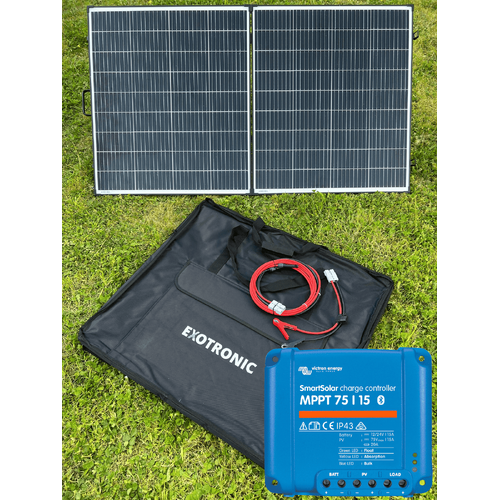

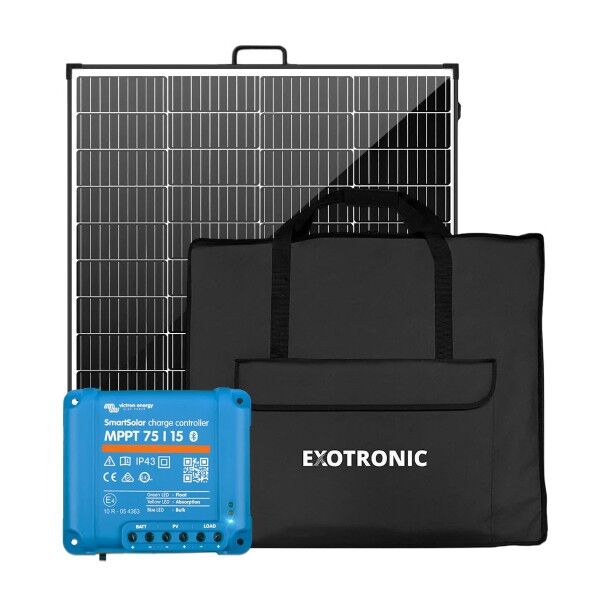

Pack Includes:

• Exotronic 200W 24V Portable Folding Solar Panel
• Victron SmartSolar MPPT 75/15 Charge Controller

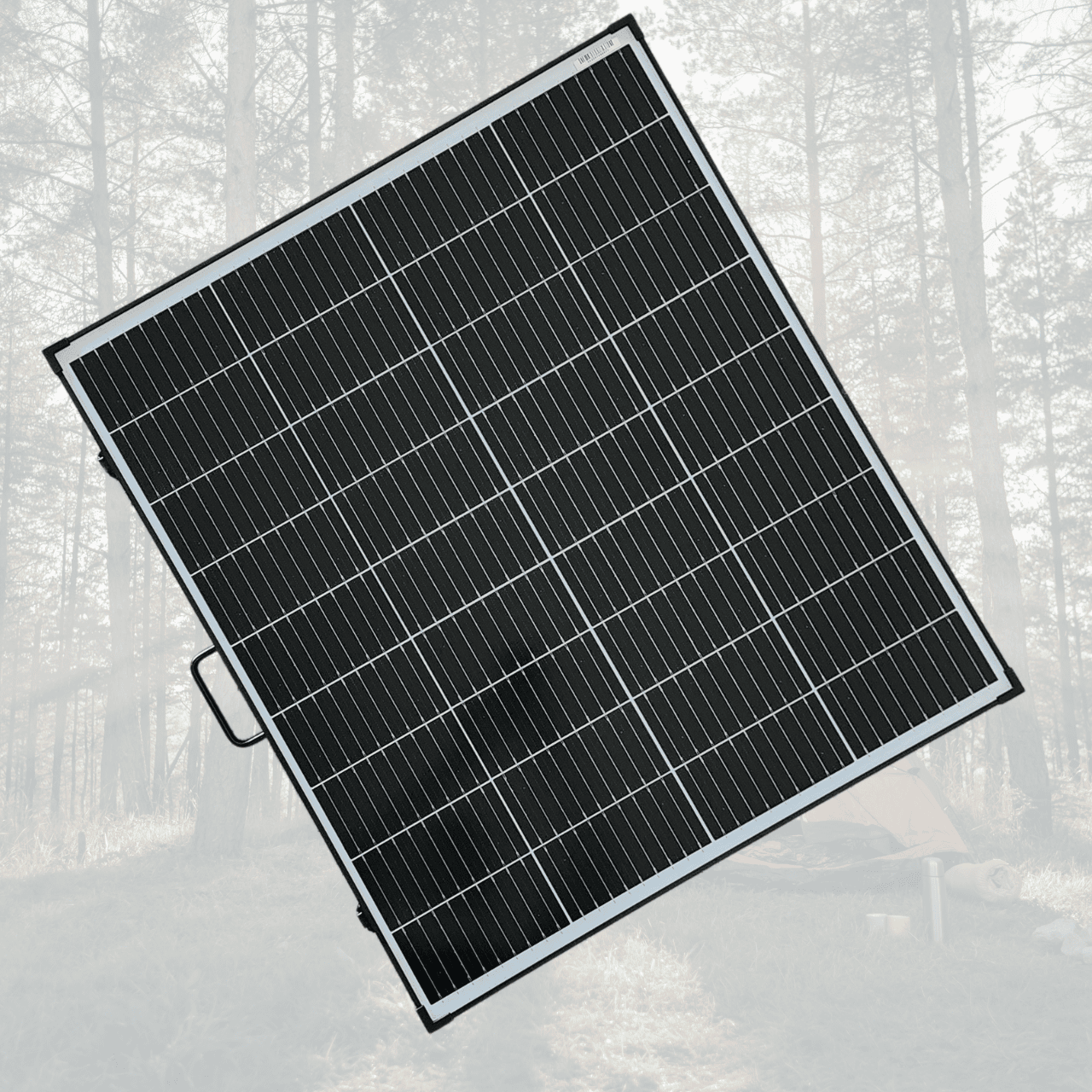

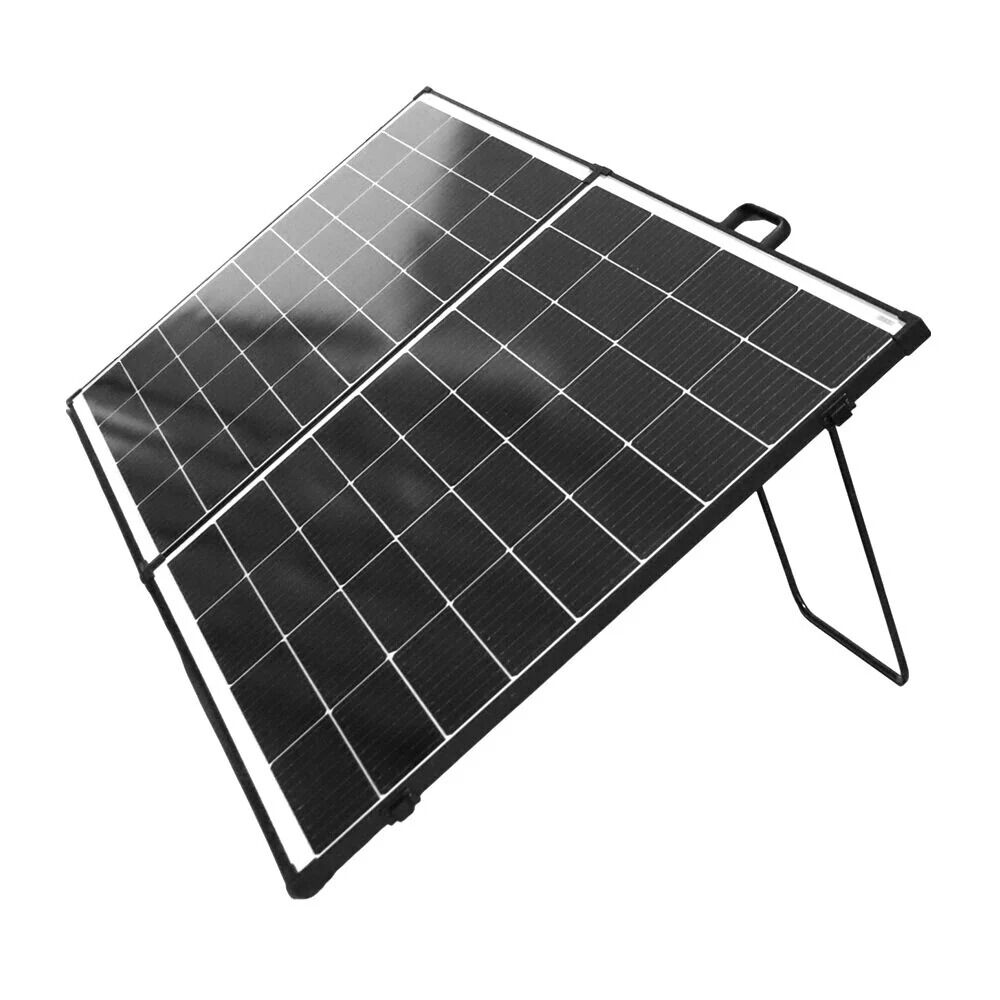

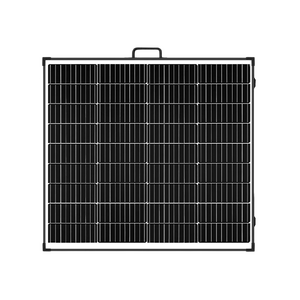

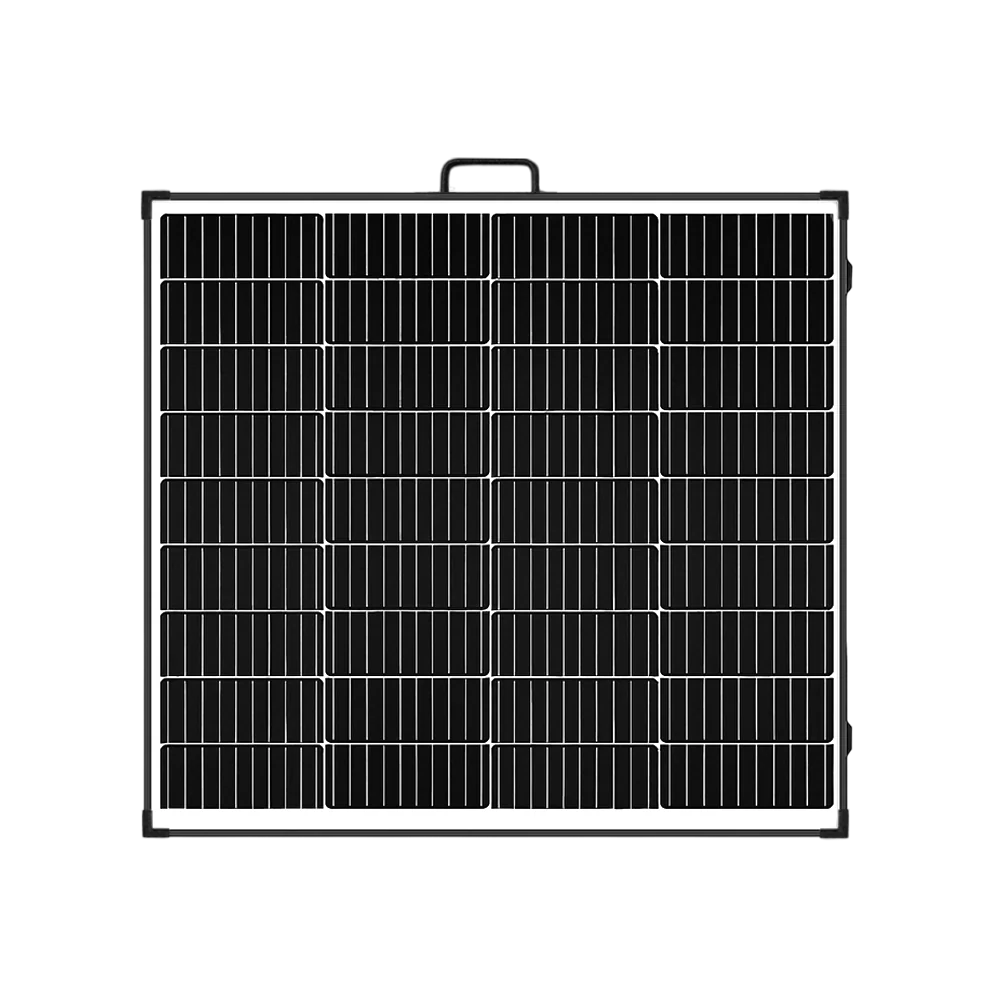

Exotronic 200W 24V Portable Folding Solar Panel

High-Efficiency Portable Solar Power for Off-Grid and Mobile Applications

The Exotronic 24V 200W Portable Folding Solar Panel Kit delivers a complete, high-performance charging solution for caravans, RVs, campers, and marine environments. Combining two 100W monocrystalline modules with a Victron SmartSolar MPPT 75/15 charge controller, this kit maximises energy harvest in variable conditions, ensuring your batteries stay charged wherever you travel.

Built around Trina half-cut 23% PERC monocrystalline solar cells with a 9-wire busbar design, the panel achieves excellent efficiency and reliability. The half-cut cell configuration reduces resistive losses and improves performance in partial shading, while the PERC technology enhances low-light response, making it ideal for overcast days or shaded campsites.

Advanced Cell Technology for Consistent Output

The panel’s passivated emitter rear contact (PERC) cells capture more light by reflecting unabsorbed photons back into the cell, boosting energy conversion compared to standard monocrystalline designs. Combined with a 9-wire busbar layout, current is distributed evenly across the cell surface, minimising hot spots and power loss. This results in a module efficiency of 19.3% and a positive power tolerance, providing dependable output in real-world conditions.

Portable Design with Quick Setup

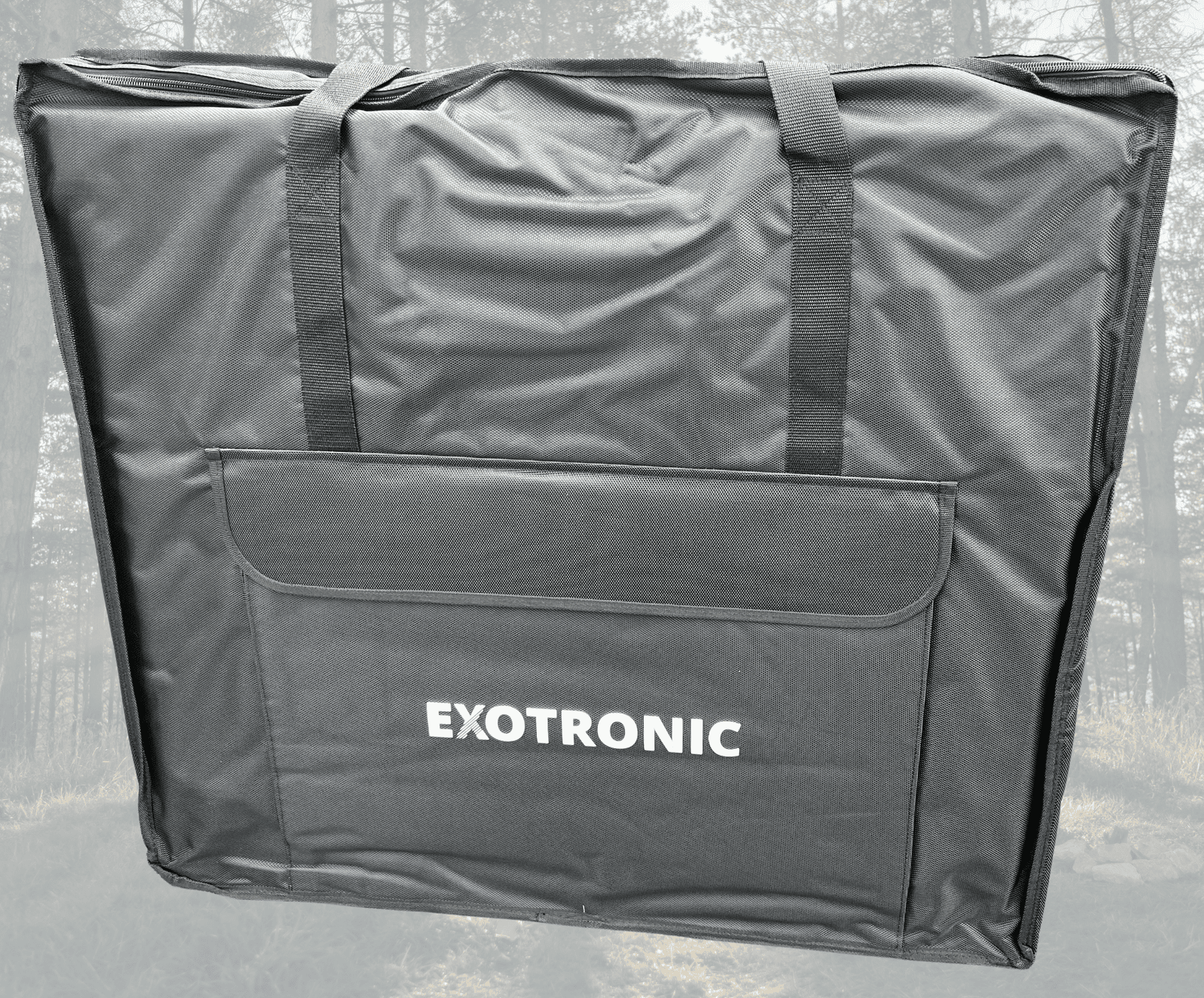

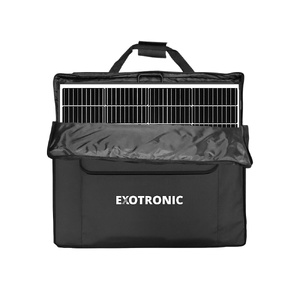

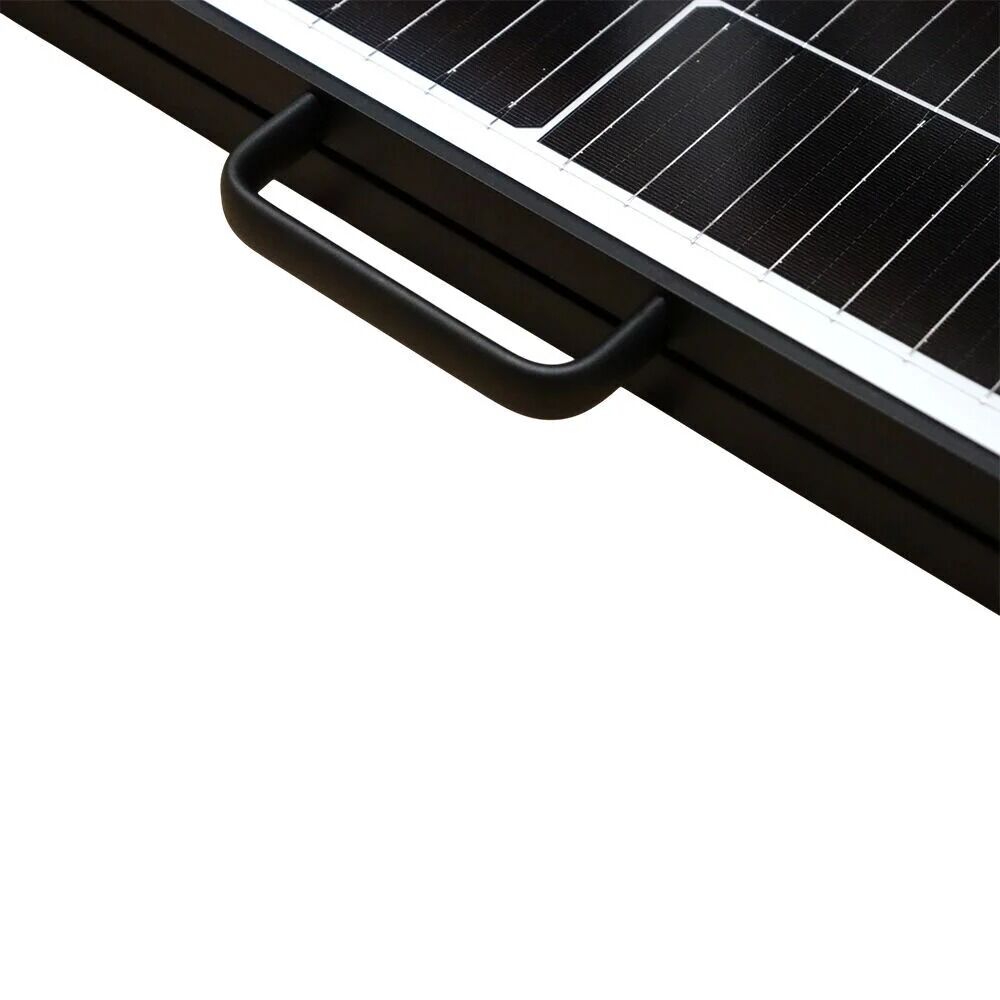

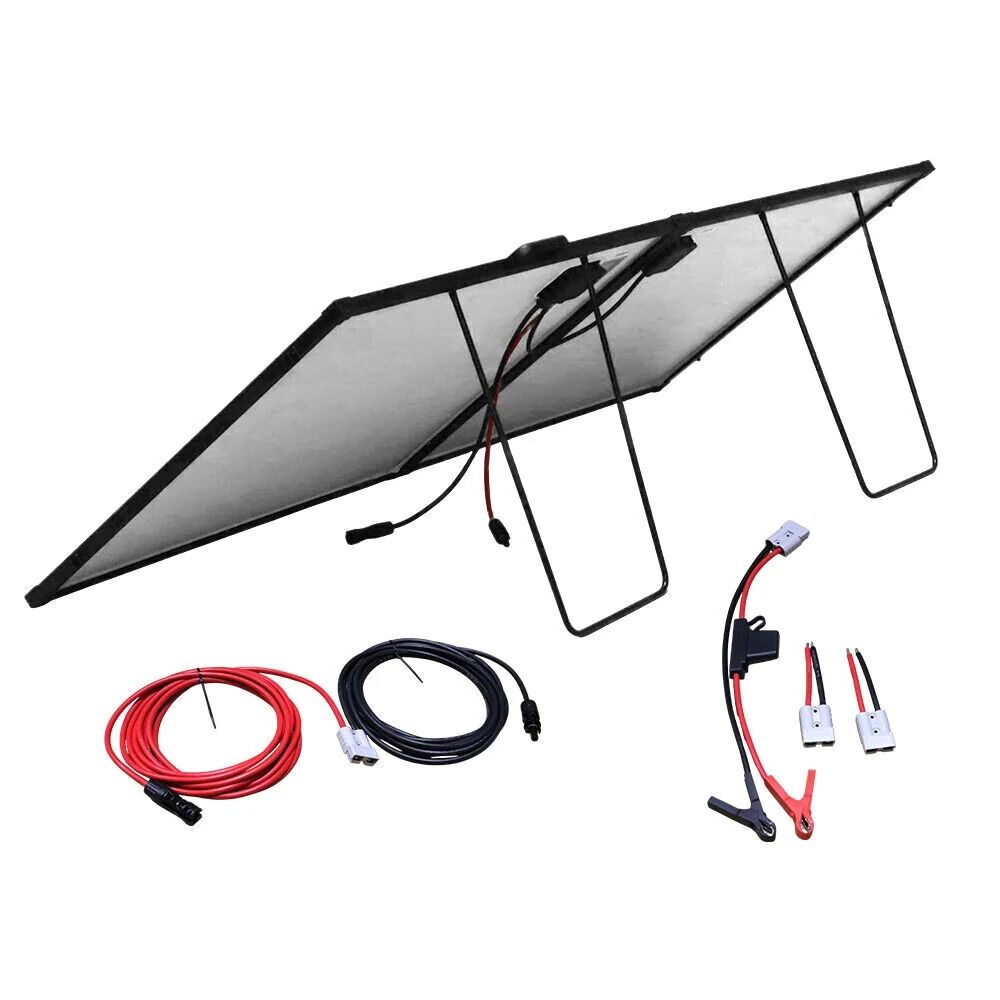

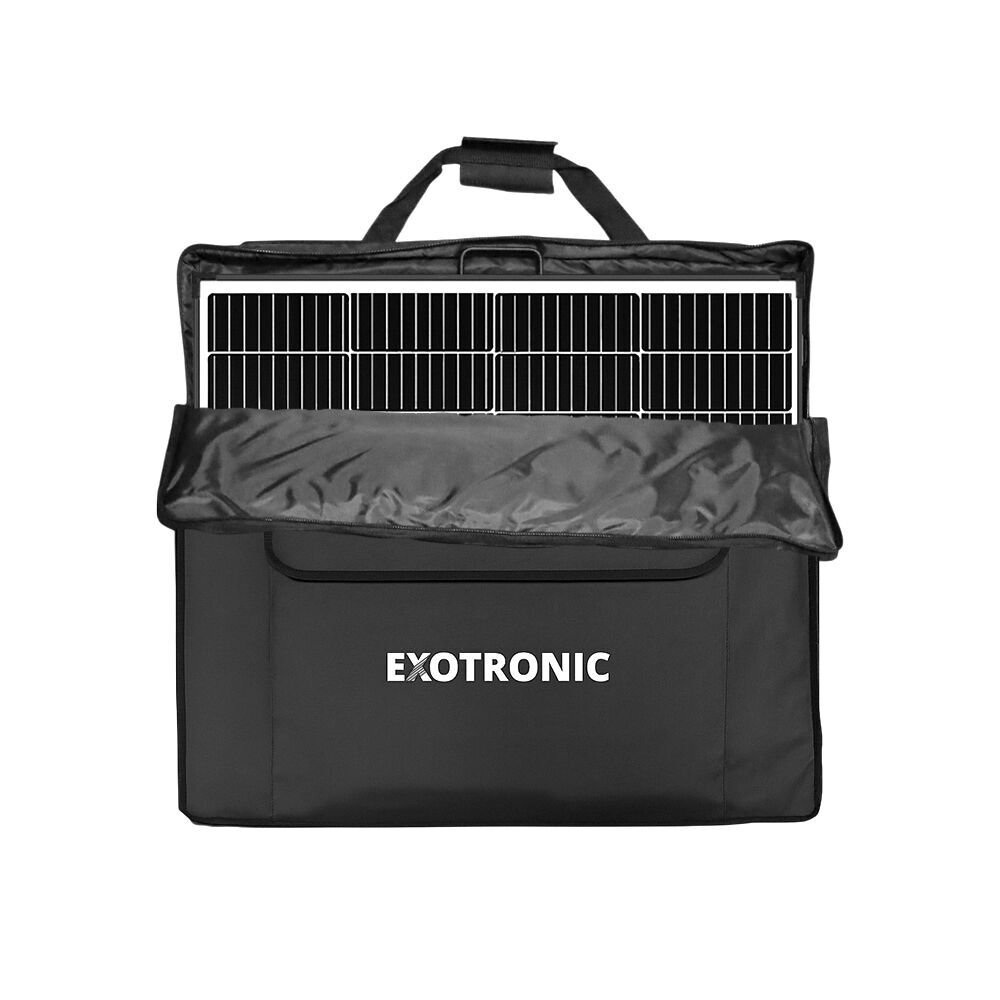

Weighing only 11.2 kg, the folding briefcase design allows effortless transport and storage. Integrated fold-away legs enable optimal tilt angle adjustment for maximum solar exposure, while corner bumpers protect the panel during handling. The included padded canvas carry bag features a handle and accessory pocket, keeping the panel and cables secure and scratch-free when not in use.

Comprehensive Cable Kit for Versatile Connectivity

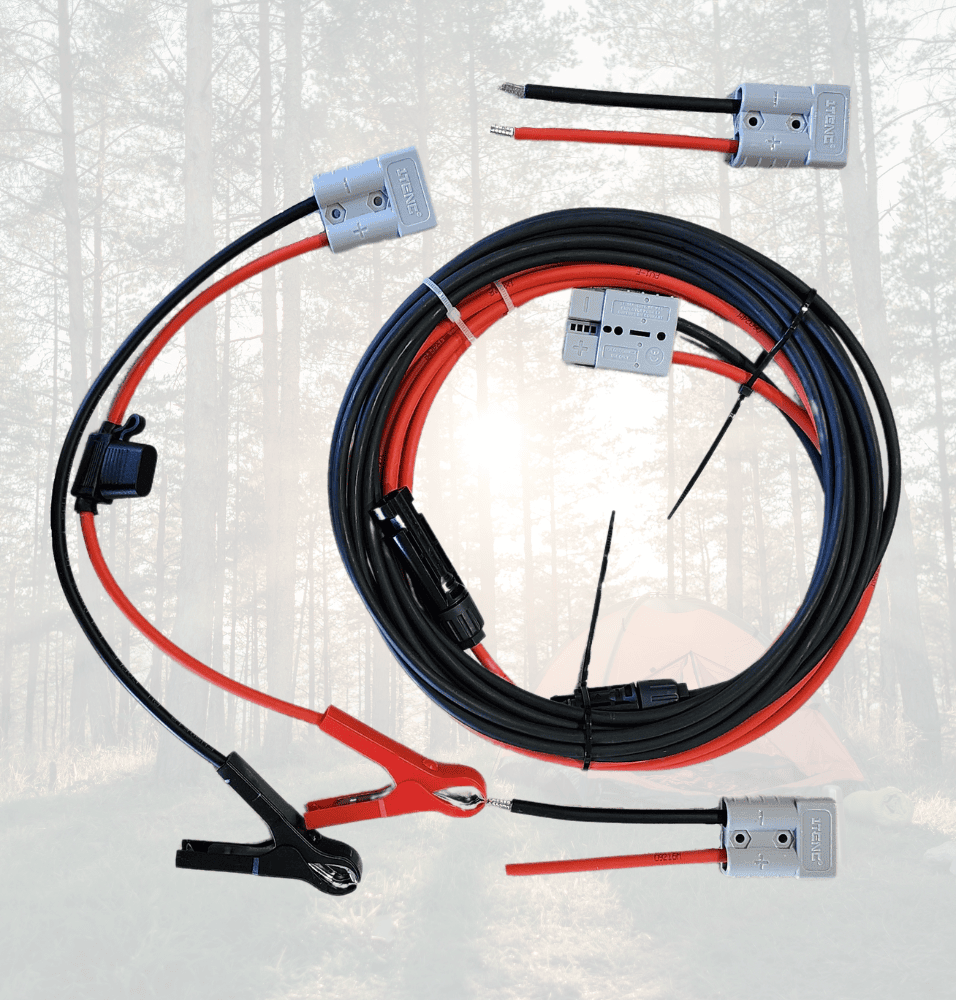

The kit includes a premium cable set to suit various setups:

• 5 m 4 mm² PV1-F tinned copper marine cable with MC4 to 50 A grey Anderson connector, providing a durable, corrosion-resistant link between the panel and charge controller or DC-DC charger solar input.
• Two 50 A grey Anderson tails for easy connection to existing MPPT or PWM solar controllers.
• Alligator clips to 50 A grey Anderson with 30 A fuse, useful for jump-starting a lithium battery BMS or charging a starter battery when needed.

Note: Always use a solar charge controller between the panel and battery to prevent overcharging.

Specifications:

• Model: Exo-FP-200-24V
• Power (W): 200
• No. of Cells: 2x 36 (4x9)
• Dimensions (mm) Folded: 775 x 675 x 40mm
• Dimensions (mm) Unfolded: 775 x 1350 x 19mm
• Weight (kg): 11.2
• Vmp (V): 39.6
• Imp (A): 5.06
• Voc (V): 48.2
• Isc (A): 5.25
• Module Efficiency (%): 19.3
• NMOT: 41C +/-3C
• Temperature Coefficient of Pmax:-0.37%/C
• Temperature Coefficient of Voc: -0.29%/C
• Temperature Coefficient of Voc: 0.05%/C
• Operating Temperature: -40 - +85C
• Maximum System Voltage: 1000VDC
• Maximum Fuse Rated Current: 15A
• Front: 3.2mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy
• Junction Box: IP65/IP67
• Connectors: MC4 Compatible

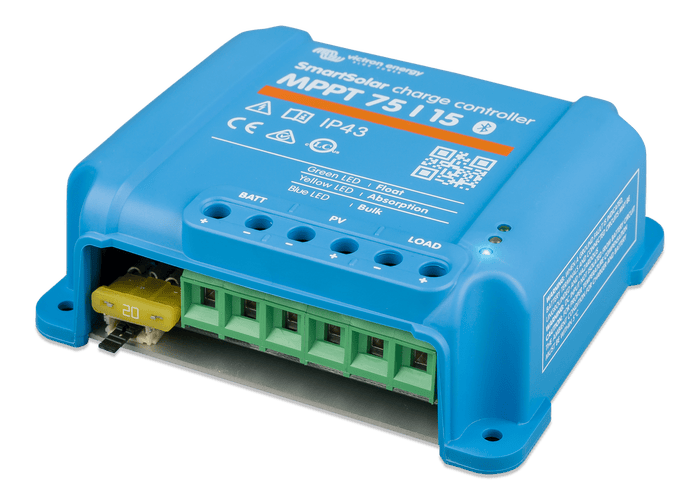

Victron SmartSolar MPPT 75/15 Charge Controller

The included Victron SmartSolar MPPT 75/15 charge controller employs ultra-fast Maximum Power Point Tracking to optimise energy harvest, particularly in fluctuating light conditions. It can improve yield by up to 30% compared to PWM controllers and up to 10% over slower MPPT units.

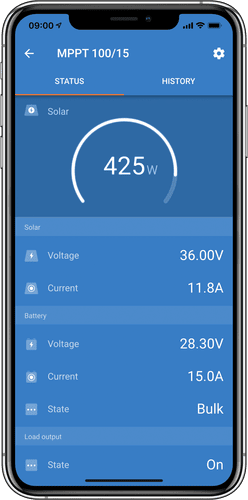

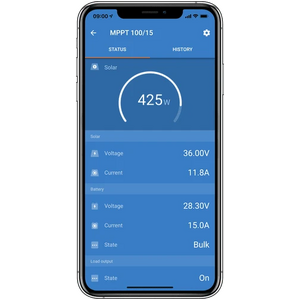

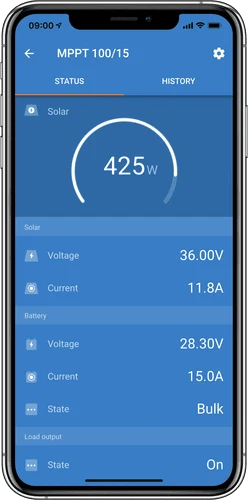

Built-in Bluetooth Smart allows wireless monitoring and configuration via the VictronConnect app, giving you real-time insight into solar yield and battery status. The controller also features a programmable load output with intelligent battery management to prevent deep discharge, extending battery life. An internal temperature sensor automatically compensates charge voltages, ensuring safe and efficient charging across varying climates.

Durable Construction for Australian Conditions

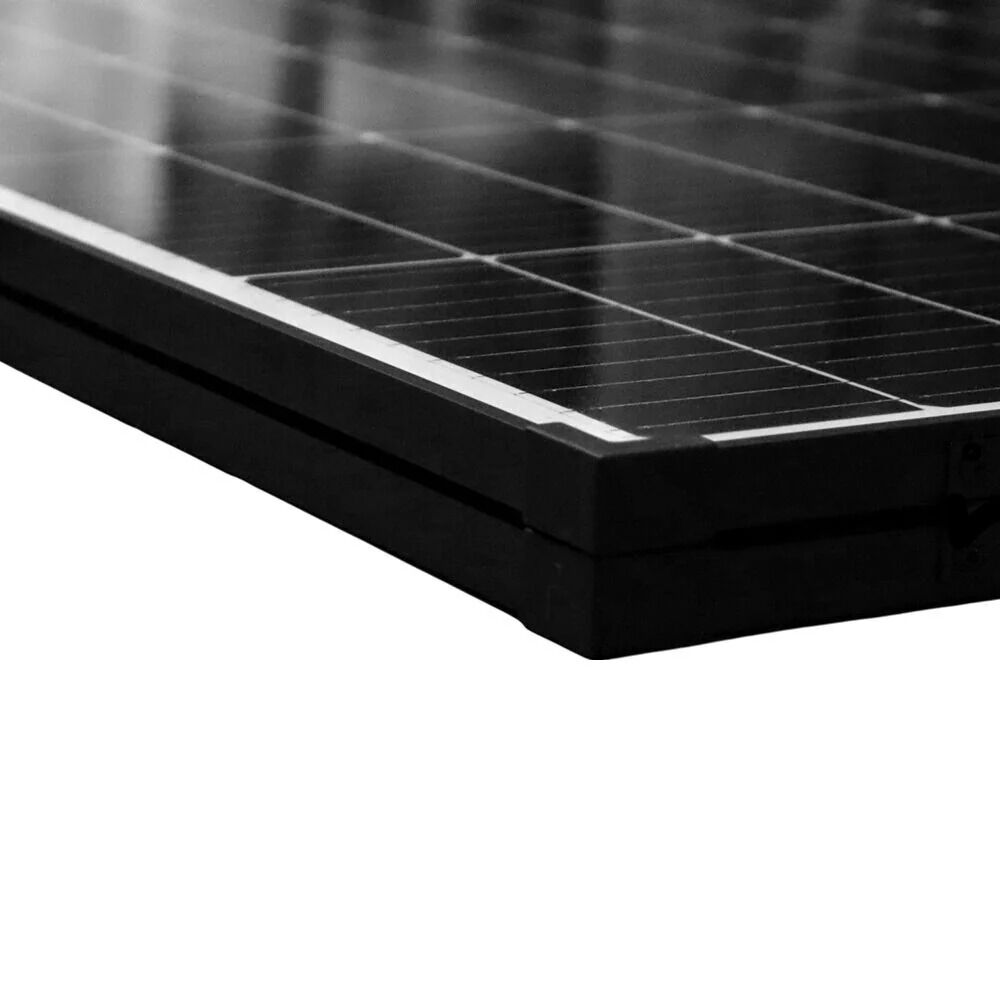

Engineered for reliability, the panel features a robust black anodised aluminium alloy frame and 3.2 mm tempered glass front, providing impact resistance and structural integrity. The IP65/IP67 rated junction box protects electrical connections from dust and moisture, making it suitable for coastal and marine environments. With an operating temperature range of -40 °C to +85 °C and a maximum system voltage of 1000 V DC, this kit is built to perform in demanding off-grid scenarios.

Ideal Applications

This portable solar kit is perfectly suited for:

• Charging 24 V battery banks in caravans, motorhomes, and boats
• Supplementing existing DC-DC charger solar inputs
• Off-grid camping and remote power needs
• Emergency backup charging for lithium or lead-acid batteries

Specifications:

• Battery voltage (auto-select) - 12/24V
• Rated charge current - 15A
• Nominal PV power, 12V 1a,b) - 220W
• Nominal PV power, 24V 1a,b)  -440W
• Max. PV short circuit current 2) - 15A
• Automatic load disconnect - Yes
• Max. PV open circuit voltage - 75V
• Peak efficiency - 98%
• Self-consumption - 12V: 25 mA 24V: 15 mA
• Charge voltage 'absorption' - 14,4V / 28,8V (adjustable)
• Charge voltage 'float' 13,8V / 27,6V (adjustable)
• Charge algorithm - multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current - 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection - Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0.5 kg
• Dimensions (d x w x h) - 40 x 113 x 100 mm
