Exotronic 200W 12V Portable Folding Solar Panel with Victron SmartSolar MPPT 75/15 Charge Controller

Product Description

Exotronic 200W 12V Portable Folding Solar Panel with Victron SmartSolar MPPT 75/15 Charge Controller, 5 Year Warranty

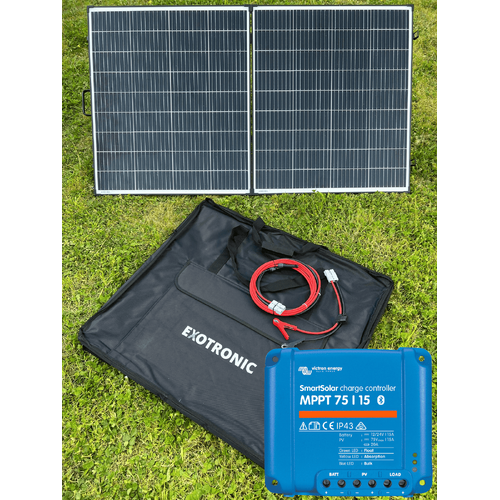

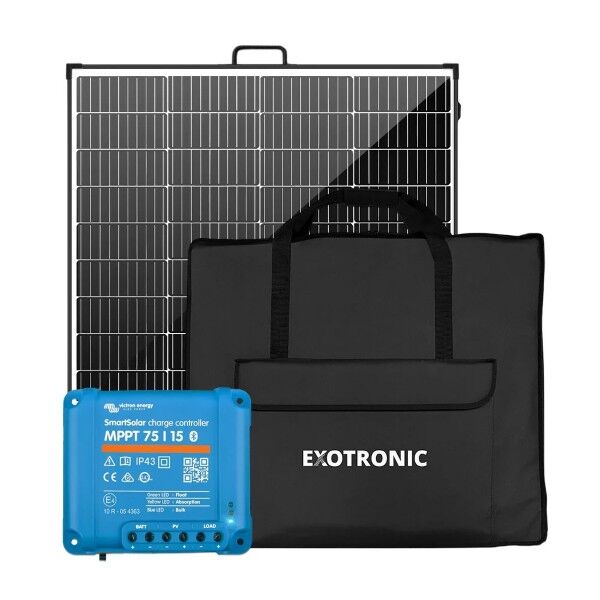

Pack Includes:

• Exotronic 200W Portable Folding Solar Panel
• Victron SmartSolar MPPT 75/15 Charge Controller

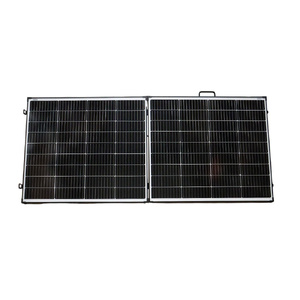

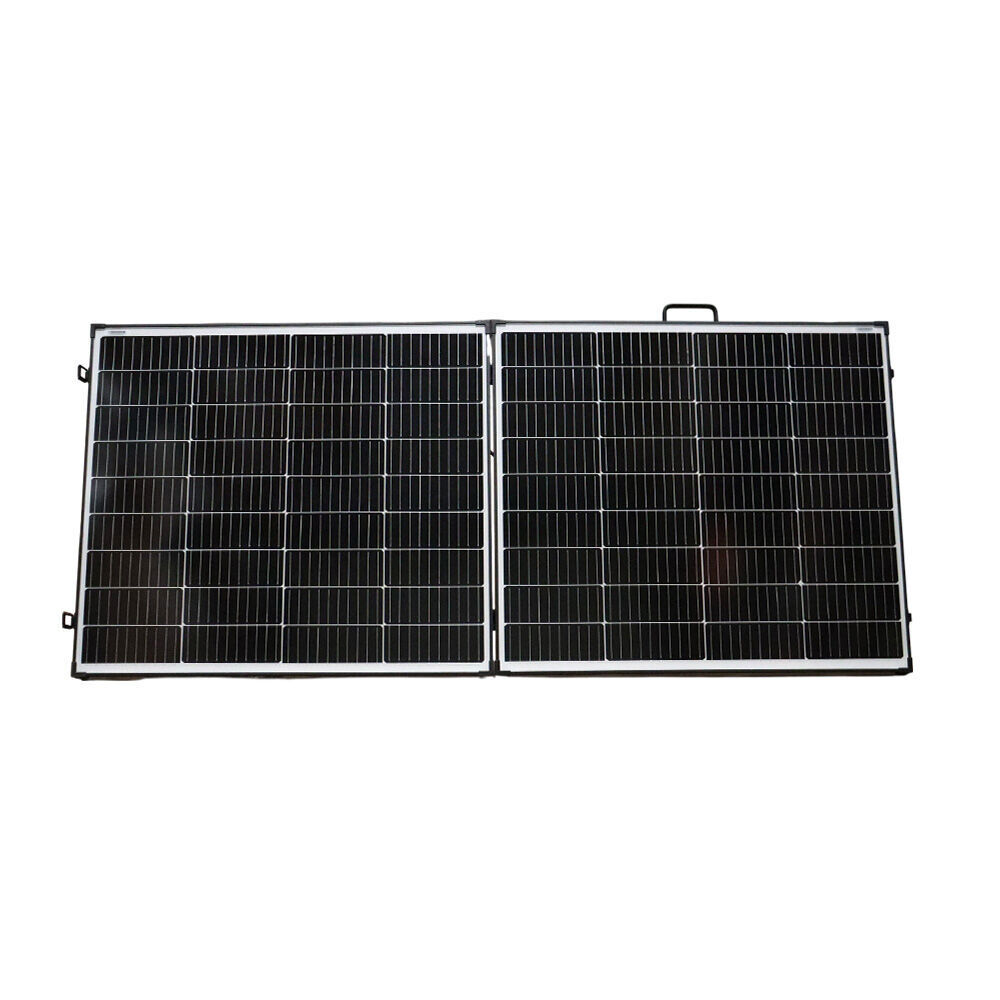

Exotronic 200W Portable Folding Solar Panel

The Exotronic 200W Portable Folding Solar Panel Kit delivers a complete, ready-to-deploy charging solution for 12V battery systems in caravans, RVs, campers, and marine applications. Combining a lightweight 200W briefcase-style panel with a Victron SmartSolar MPPT 75/15 charge controller, this kit maximises energy harvest in variable conditions while protecting your battery investment.

At the core of the panel are Trina half-cut 23% PERC monocrystalline solar cells with a 9-wire busbar design. This configuration reduces resistive losses, improves low-light response, and minimises hot spots, ensuring consistent output even when partial shading occurs. Each 100W module operates independently, so if one side is shaded, the other continues producing power.

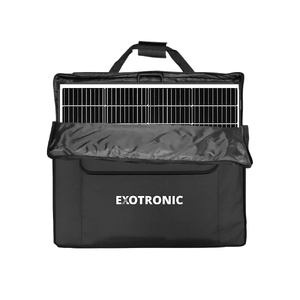

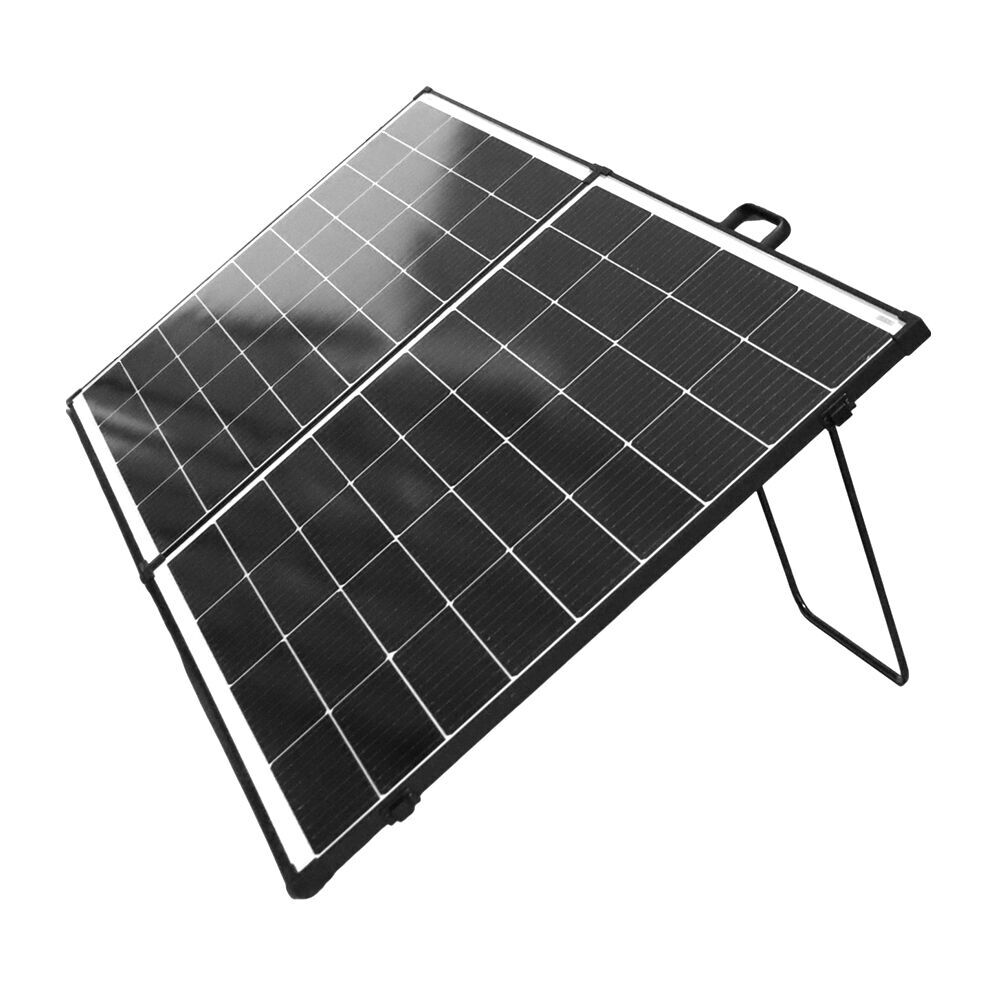

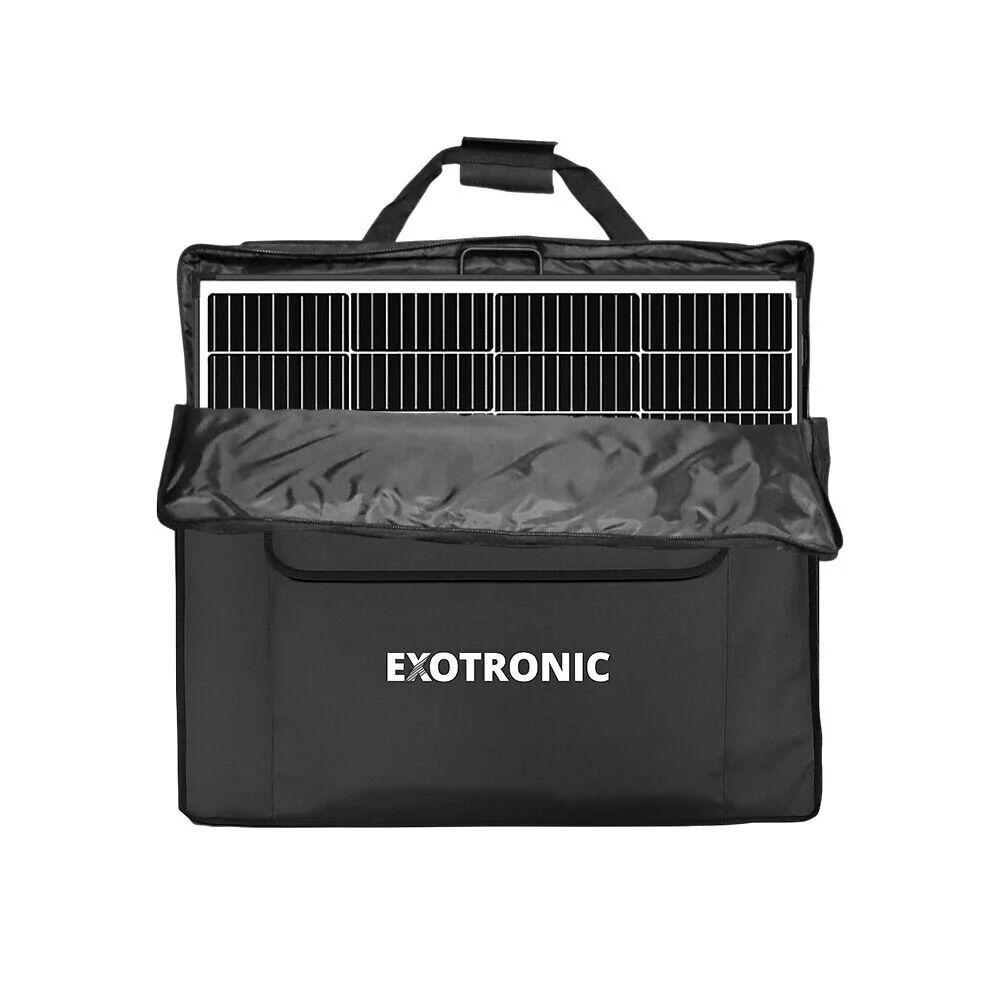

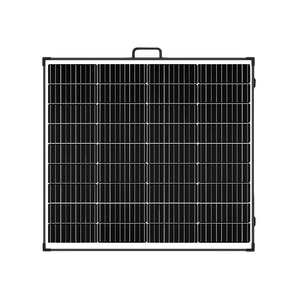

Weighing only 11.2 kg and folding to 770 x 675 x 38 mm, the panel is easy to transport and store. Integrated corner bumpers and fold-away aluminium legs allow quick setup at an optimal angle, while the included padded canvas bag with carry handle and accessory pocket protects the panel during transit.

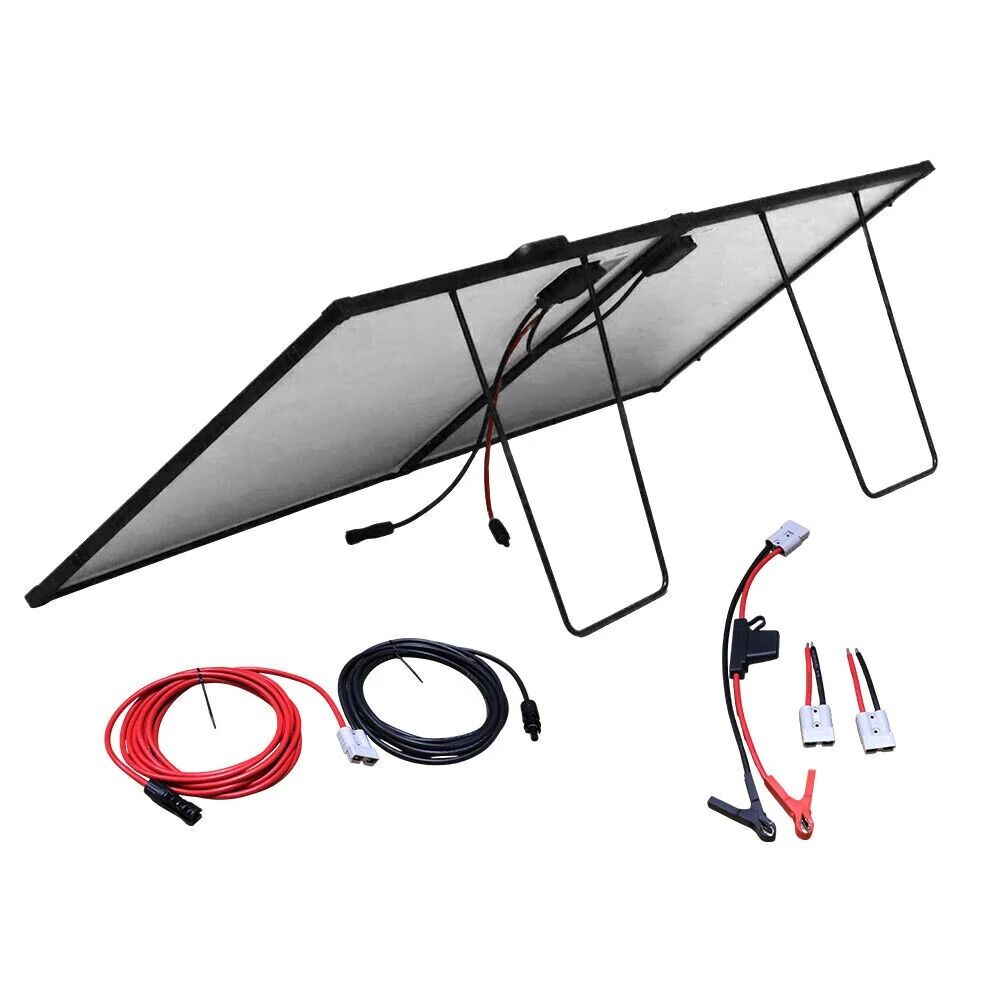

Premium Cable Set for Flexible Connectivity

The kit includes a versatile cable set to suit various setups:

• 5 m 4 mm² PV1-F tinned copper cable with MC4 to 50 A grey Anderson connector, ideal for connecting the panel to a solar charge controller or DC-DC charger solar input. Note: Do not connect the panel directly to a battery without a controller.
• Two 50 A grey Anderson tails for easy integration with existing MPPT or PWM controllers.
• Alligator clips to 50 A Anderson with 30 A fuse, useful for jump-starting a lithium battery BMS or charging a starter battery when needed.

Specifications:

• Power: 200 W
• No. of Cells: 2 × 36 (4 × 9)
• Dimensions (Folded): 770 × 675 × 38 mm (excluding handle)
• Dimensions (Unfolded): 770 × 1350 × 19 mm (excluding handle)
• Weight: 11.2 kg
• Maximum Power Voltage (Vmp): 19.8 V
• Maximum Power Current (Imp): 10.12 A
• Open-Circuit Voltage (Voc): 24.1 V
• Short-Circuit Current (Isc): 10.5 A
• Module Efficiency: 19.3%
• NMOT: 41°C ±3°C
• Temperature Coefficient of Pmax: -0.37%/°C
• Temperature Coefficient of Voc: -0.29%/°C
• Temperature Coefficient of Voc: 0.05%/°C
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1000 V DC
• Maximum Fuse Rated Current: 15 A
• Front: 3.2 mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy
• Junction Box: IP65/IP67
• Connectors: MC4 Compatible

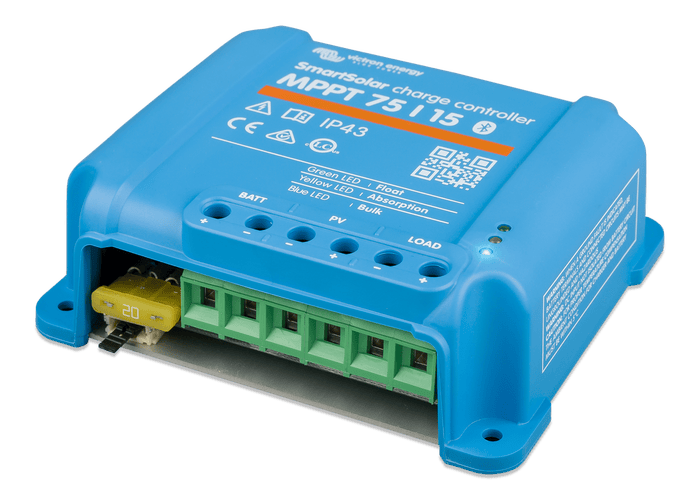

Victron SmartSolar MPPT 75/15 Charge Controller

The included Victron SmartSolar MPPT 75/15 charge controller uses ultra-fast Maximum Power Point Tracking to improve energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT units, particularly under rapidly changing light conditions. Built-in Bluetooth allows wireless monitoring, configuration, and firmware updates via the VictronConnect app, giving you real-time insight into solar yield and battery status.

Features:

• Bluetooth Smart built-in for wireless setup and monitoring.
• VE.Direct port for wired data connection to GX devices or a PC.
• Programmable load output with low-voltage disconnect to prevent battery over-discharge.
• Battery Life algorithm intelligently manages load disconnect to promote a full recharge cycle weekly, extending lead-acid battery lifespan.
• Internal temperature sensor automatically compensates charge voltages for ambient temperature.

For optimal performance and safety, position the controller near the battery in a covered area to minimise heat transfer.

Durable Construction for Australian Conditions

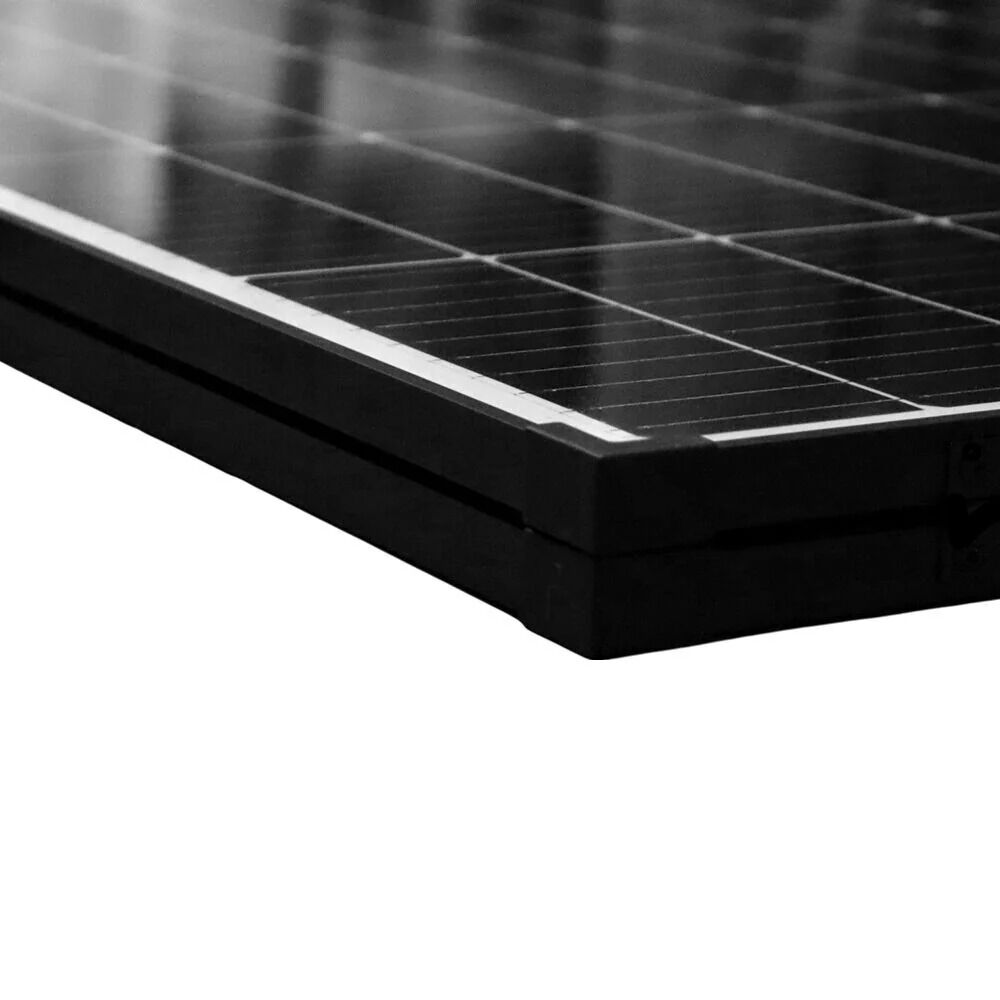

The panel features a robust black anodised aluminium alloy frame and 3.2 mm tempered glass front, providing impact resistance and long-term durability. The IP65/IP67 junction box ensures reliable electrical connections in dusty or wet environments. With an operating temperature range of -40 °C to +85 °C and a maximum system voltage of 1000 VDC, this panel is built to perform in demanding off-grid scenarios.

Why Choose This Kit?

• Independent dual-module design maintains output when one side is shaded.
• 23% efficient PERC cells with 9-busbar layout for superior low-light performance and reduced hot spots.
• Lightweight 11.2 kg foldable design with integrated legs and protective carry bag.
• Victron SmartSolar MPPT 75/15 with Bluetooth for advanced charge control and monitoring.
• Comprehensive cable set for immediate connection to most 12V systems.

Specifications:

• Battery voltage (auto-select) - 12/24V
• Rated charge current - 15A
• Nominal PV power, 12V 1a,b) - 220W
• Nominal PV power, 24V 1a,b)  -440W
• Max. PV short circuit current 2) - 15A
• Automatic load disconnect - Yes
• Max. PV open circuit voltage - 75V
• Peak efficiency - 98%
• Self-consumption - 12V: 25 mA 24V: 15 mA
• Charge voltage 'absorption' - 14,4V / 28,8V (adjustable)
• Charge voltage 'float' 13,8V / 27,6V (adjustable)
• Charge algorithm - multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current - 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection - Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0.5 kg
• Dimensions (d x w x h) - 40 x 113 x 100 mm
