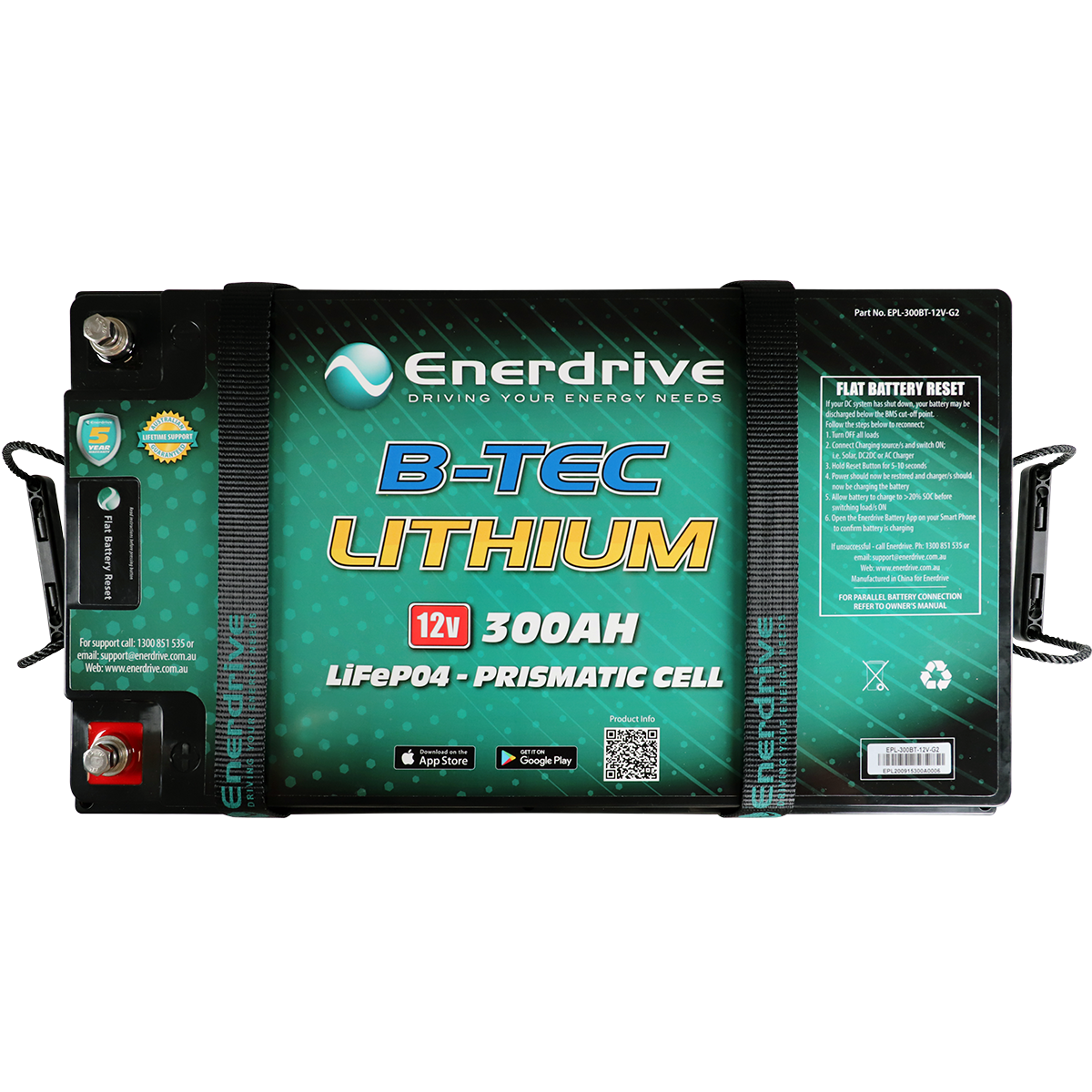

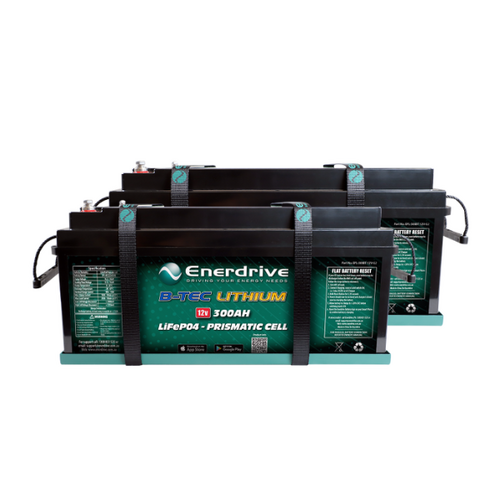

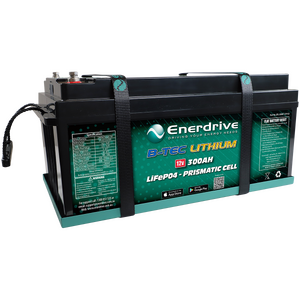

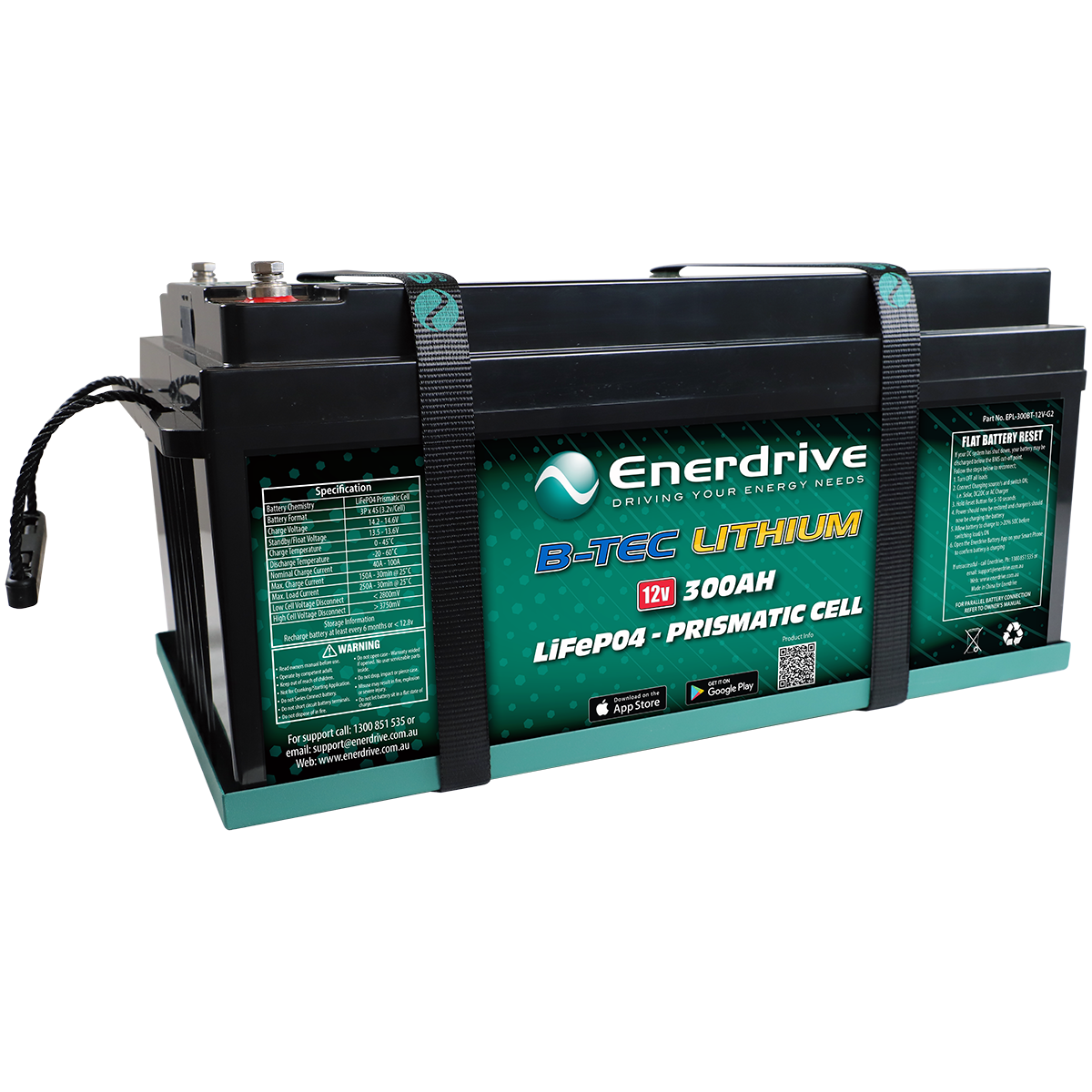

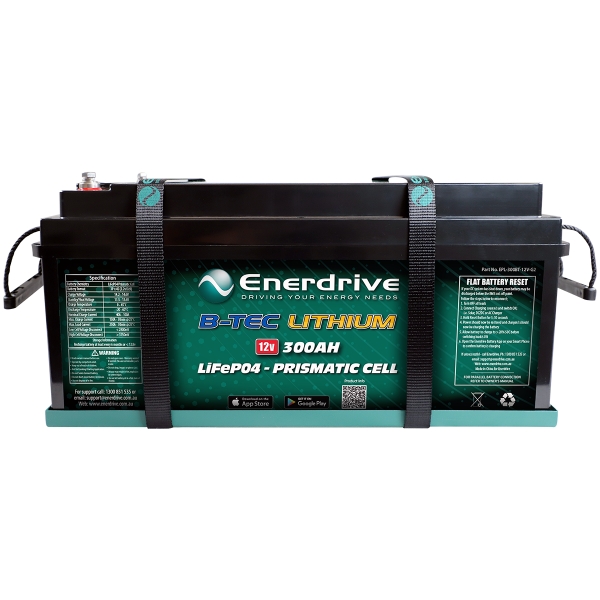

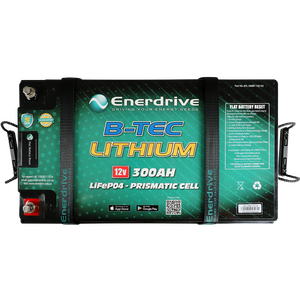

Enerdrive B-TEC 2 x 300Ah Lithium Bundle & 1 x Parallel Cable Kit

Specifications

SKU K-600-2

Brand Enerdrive

GTIN 9342616029329

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (ah) 600

Battery Length (mm) 521

Battery Width (mm) 280

Battery Height (mm) 238

Battery Weight (kg) 38.2

Model EPL-300BT-12V

Nominal Voltage 12.8V

Nominal Capacity 300Ah

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0 ̴ 45°C

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V

Maximum Charge Current 190A @ 25°C for 30mins

Recommended Charge Current for Maximum Life 60~120A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 11.00 ̴ 14.60V

Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤ 11.20V

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Discharge Over Current 280A for 25s – 400A for 3.5s

Battery Manual Reset Button Yes

Protection Reset Time Approx 10s Auto Release

Over Current Release Method Disconnect Load

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH

Videos

Pro Series to B-TEC - The Next Step for Enerdrive

Enerdrive B-TEC Lithium Batteries - Part 1 - Application

Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications

Enerdrive B-TEC Lithium Batteries - Part 3 - Installation

Enerdrive B-TEC Lithium Batteries - Part 4 - Settings

Enerdrive B-TEC Lithium Batteries - Part 5 - Operation

Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding

How To: Resetting A Flat Enerdrive BTEC or eLITE Battery

Connecting Your Enerdrive Lithium Battery to a Simarine Monitor

Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries

Customer Reviews

Product Q&A

• When putting Battery in its holding place, can i turn it on its side to slide it and then stand it upright

  Hi There,

  The Enerdrive Lithium Batteries are required to be stood upright. Enerdrive do not recommend placing them on their side at all, sorry.
