Ampfibian MAX 15A Power Adapter

SKU: 500-04501 Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

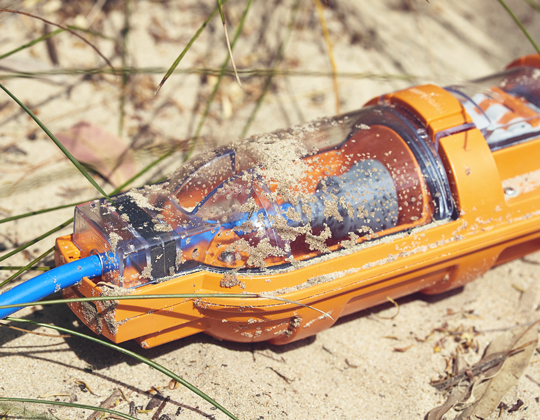

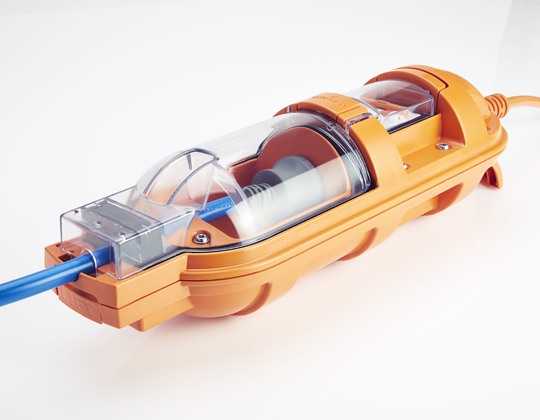

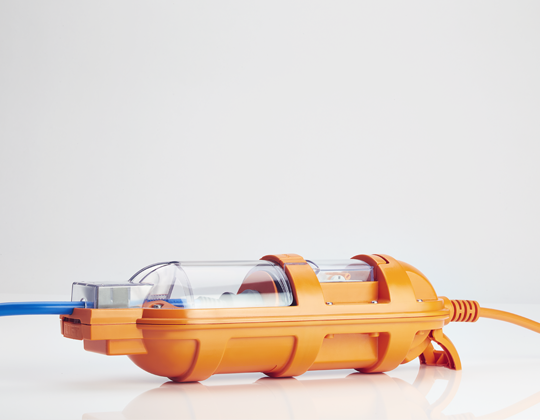

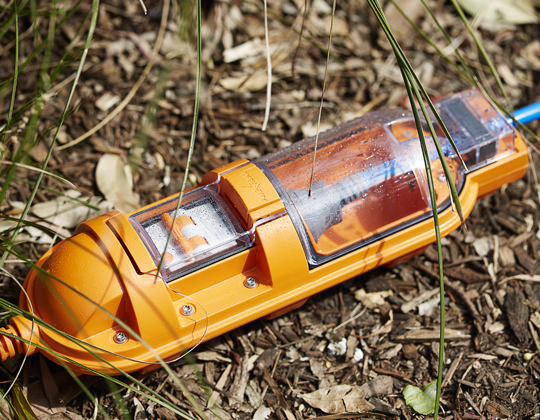

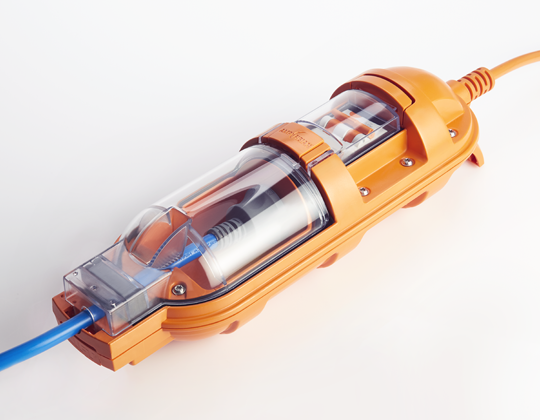

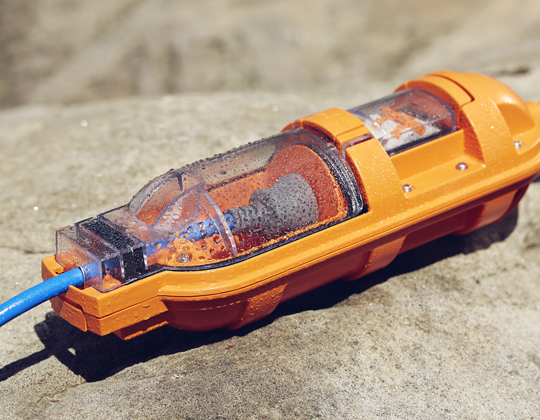

Ampfibian MAX 15A Power Adapter, 2 Year Warranty. The Ampfibian adapter is designed to allow your caravan or RV 15 amp appliance to plug into your normal 10 amp household power point outlet. It does this by providing overload protection to your household wiring and also features an (RCD) earth leakage safety switch. This is a safe and legal way to operate your 15 amp appliances on a 10 amp circuit.

Specifications:

Suitable for leads up to 12mm diameter

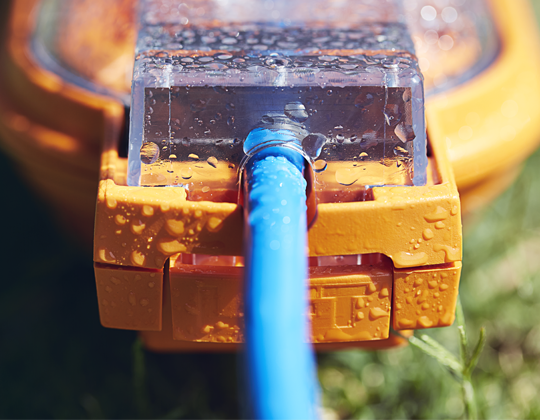

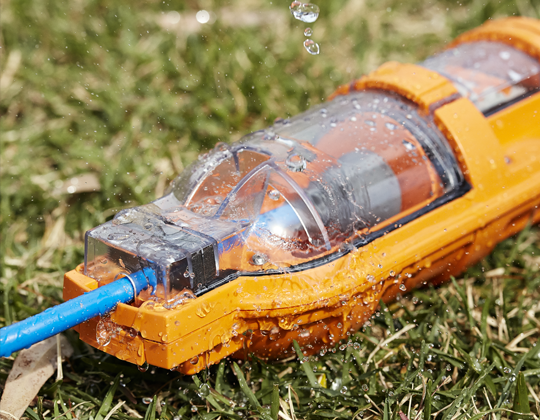

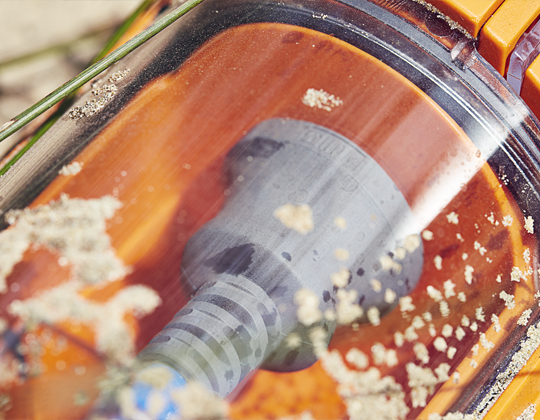

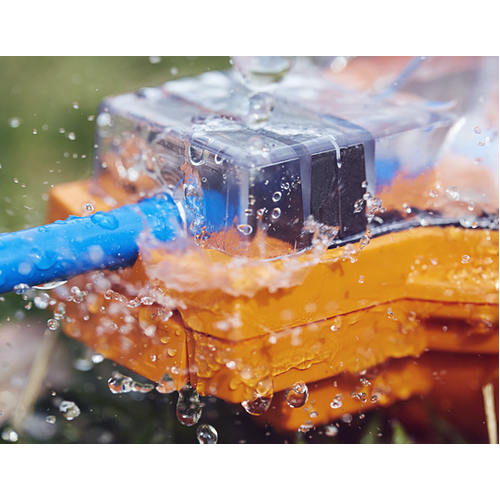

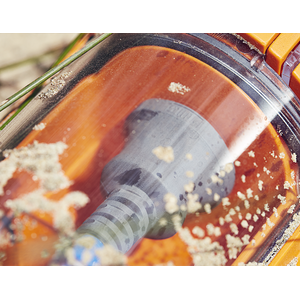

Weatherproof to IP55
(H) - Class rated
Impact rated to IK08 (commercial duty)
Safely connect to 10 amp domestic outlets
Designed and made in Australia

Please note that the Ampfibian 15A to 10A power adaptor will not convert 15A to 10A. You may be limited with the functionality of your connected device if intending to use it to its full capacity. Please contact us if you have any questions.

Go to: Product Details

Go to: Videos

Specifications

SKU 500-04501

Brand Ampfibian

GTIN 9344824000008

Warranty Period: 1 Year

Product Category Power Adaptors

Voltage 220-240VAC 50-60Hz

Dimensions 350 x 90 x 108mm

Net Weight (kg) 1.2

Go to: Specifications

Go to: Q & A

Videos

The MAX - Work Power Adaptor

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

What is an RCD?

A Residual Current Device is an extremely fast acting switch that cuts the power when it detects a difference in the power going into the circuit against the power coming back out. If a difference is detected then the RCD trips almost instantly as the power must have found a way to go somewhere else other then back to the supply.
Whats the difference between an ampfibian mini, rv plus and a max?

MINI - an indoor, undercover adaptor for the D.I.Y home handyman and workshop. (Popular with welders.

RV-PLUS - exclusively designed and made for travellers to connect their caravan/RV/camper-trailers to normal 10A outlets. It is completely weatherproof and meets all applicable Australian Standards.

MAX - the extra-tough, weatherproof adaptor for trades and construction. It has a H-Class (heavy-duty) rating making it suitable for commercial use.

All of the above come with an overload protection breaker plus RCD and adapt devices from 15A to 10A.
Do the ampfibians meet electrical standards?

Yes, all Ampfibians comply to Australian Standards!

The Ampfibian RV-02MAX and the Industrial Range are approved under AS/NZS 3190:2011 “Approval and test specification – Residual current devices (current-operated earth-leakage devices)” which includes portable RCDs, and their use complies with AS/NZS 3001:2008/Amdt 1:2012 “Electrical Installations – Portable structures and vehicles including their site supplies” which covers caravans, campers and motor homes. The MAX is also approved for member use by the “Campervan & Motorhome Club of Australia Ltd” (CMCA).

The Ampfibian MINI is approved under AS/NZS 3190:2011, but its use does not comply with the recommendations of AS/NZS3001:2008, making the MAX the safest, most compliant and flexible option for outdoor RV and caravan use.

There is a lot of mis-information about how various Australian Standards apply to caravans/RVs, extension lead lengths and capacities, portable RCDs, weatherproofing, impact resistance. After years of close consultation with standards experts and approval authorities, we can categorically state that the RV02-MAX is the safest, most compliant way to connect your 15A RV/caravan to a 10A power supply in Australia in any situation.

The MAX and the Industrial Range carry a H-Class rating, allowing them to be used commercially on work sites in construction, mining and other industries.
