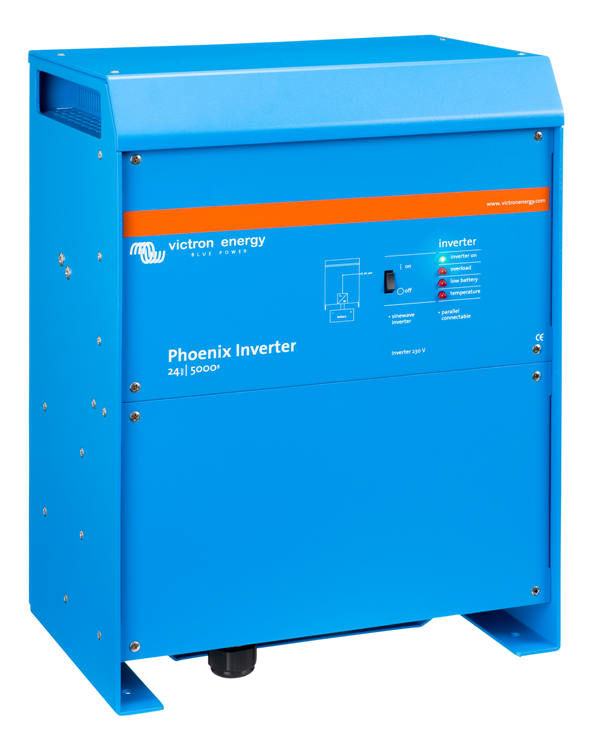

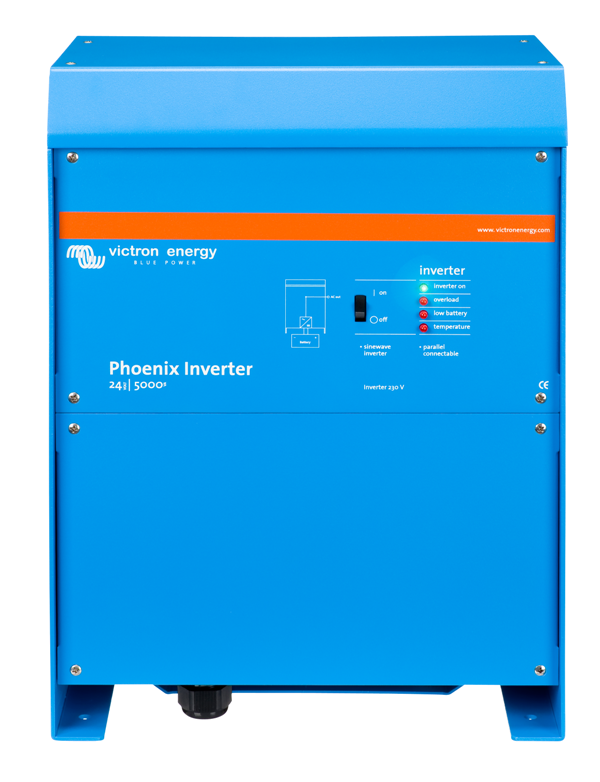

Victron Phoenix Inverter 24V / 5000VA

$2,688

Save $883 (25%) off RRP of $3,571

Take an EXTRA $70 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Accessories

$165

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Phoenix Inverter 24V / 5000VA, 5 Year Warranty.. Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering:

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability:

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

SinusMax - Superior engineering:

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Extra start-up power:

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Virtually unlimited power thanks to parallel 3-phase and split phase operation capability:

Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/3000 units, for example, will provide 15 kW / 18 kVA output power. Operation in 3 phase or split phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch:

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer interface:

All models have a RS-485 port. All you need to connect to your PC is Victron's MK3-USB VE.Bus to USB interface. Together with Victron's VEConfigure software, which can be downloaded free of charge from Victron's website, all parameters of the inverters can be customised. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerised monitoring and control systems.

New applications of high power inverters:

The possibilities of paralleled high power inverters are truly amazing.

Victron Phoenix Inverter 24/5000_Brochure

Victron Phoenix Inverter 24/5000 Product Manual

Specifications

SKU PIN245020000

Brand Victron

GTIN 8719076023760

Warranty Period: 5 Years

Product Category Power Inverters

Model PIN245020000

Wattage (W) 4000

Net Weight (kg) 30

DC Input Voltage 9.5 – 17V 19 – 33V 38 – 66V

Battery-connection 2+2 M8 bolts

Dimensions 444mmx328mmx240mm

AC Connection Screw terminals

Output Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1)

Humidity Max 95%

Peak power 10000W


Product Q&A

Ask Us a Question

Warranty

For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
