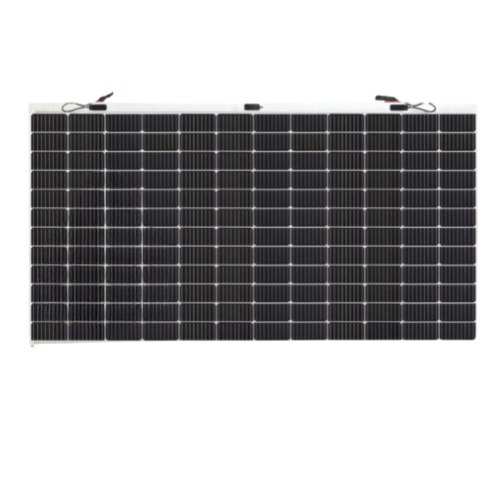

Sunman eArc 430W Flexible Solar Panel

SKU: eASMF430-12X12UW Learn More»
$669
$699
In Stock1-2 Days Dispatch

EXTRA $20 OFF! Add to cart to get an instant discount
SALE ENDS:

CALCULATE SHIPPING:

Accessories List:

$17

$9

$59

$15

$10

$4

$5

Click '+' to show more accessories
Learn More»

Description

Sunman eArc 430W Flexible Solar Panel, 10 Year Warranty. These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.

Made with a Patent Pending composite material similar to those used in airplane windows. These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass. Click the Features tab for more information.

Mounting Options:

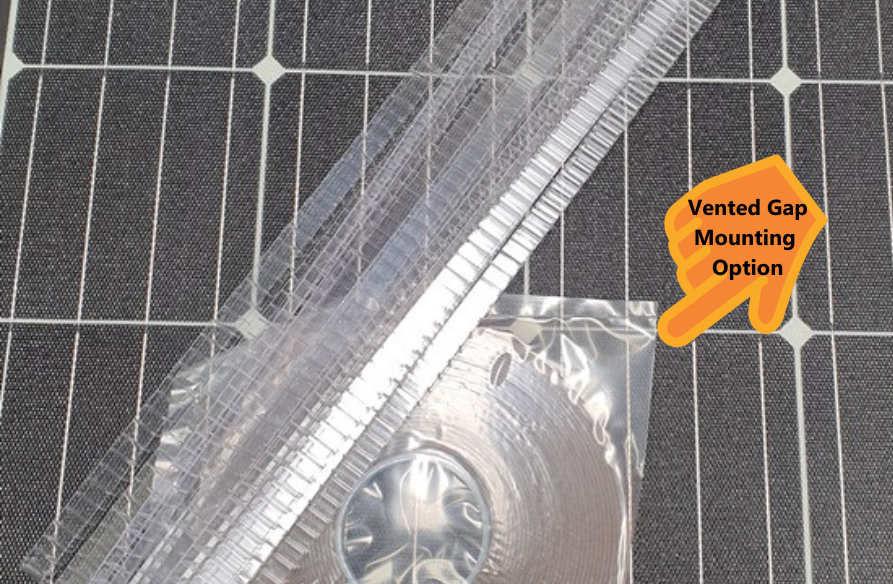

  • The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
    • Two rolls of very high bond double sided adhesive tape
    • Polycarbonate strips
  • Installation via very high bond double sided adhesive tape provides a low profile secure bond. This includes:
  • A structural silicone (Fix8) can be used to adhere the panel to a surface.
Features:

eArc are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.
  • Tougher, lighter, thinner and more durable -  eArche thin lightweight solar panels have a tough top layer

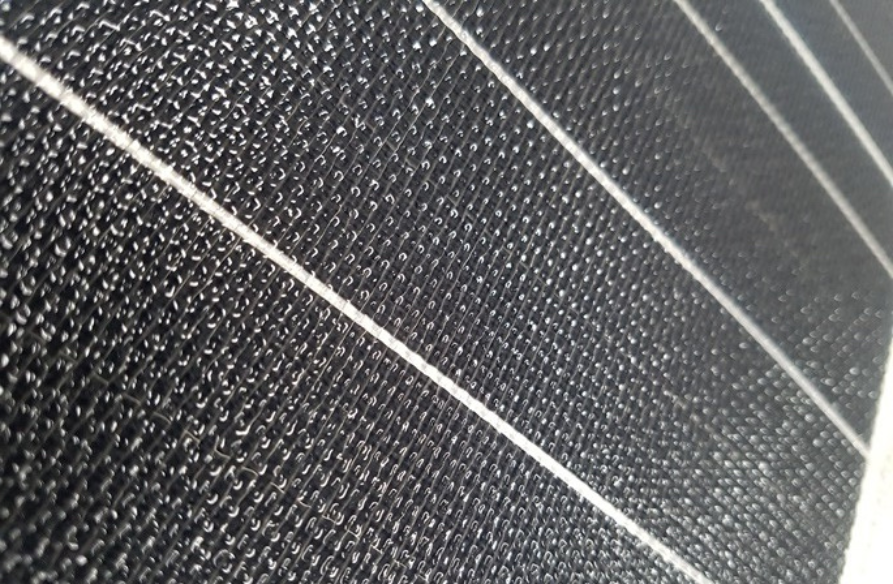

  • Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
    • This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
  • Light - 100W frameless is 1.8kg
  • Thin - 2mm
  • Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
  • Strong - rated 2400 pascals for wind and 2400 pascals for load
  • Durable - 10 year product warranty for building and 5 years for mobile application
    • 25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
  • Output - Efficient monocrystalline cells, 25 year performance guarantee
  • The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation

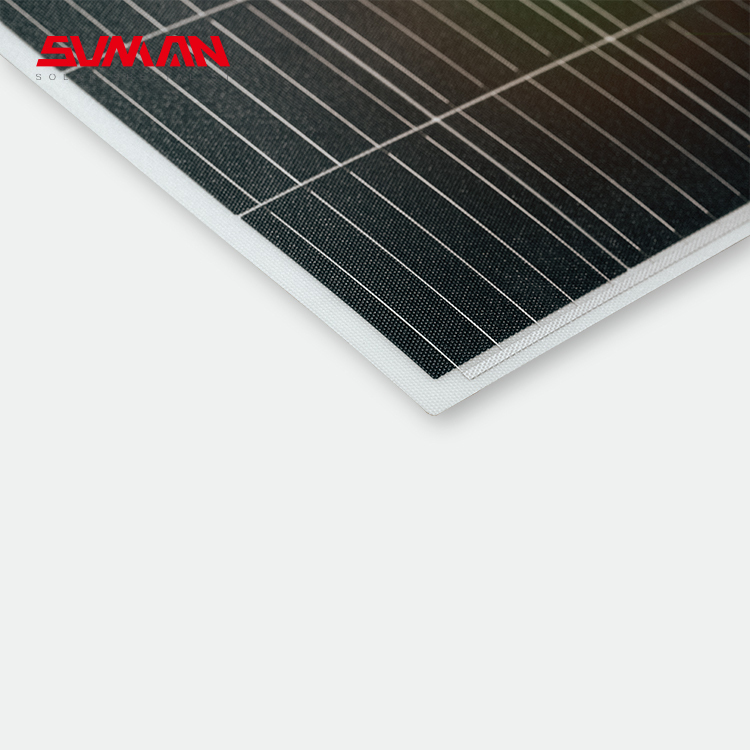

NOTE: Although the panel has a thin frame around the edge, the panel is flexible and requires supports at least every 156mm (every cell gap)

Mounting Instructions
Show More

Specifications

SKU eASMF430-12X12UW

Brand Sunman

Product Category Portable Solar Panels

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 430

Junction Box IP 68 rated

Max System Voltage (VDC) 1000 V DC (IEC)

Max Power Current Im(A) 10.24 Imp

Short Circuit Current Isc(A) 10.74

Connector MC4 Compatible

Backsheet Colour White

Operating temperature range -40 ℃ to 85 ℃

Max Power Voltage Vm(V) 40.2 Vmp

Output Cables Photovoltaic technology cable 4.0 mm 2 , (+)150 / (-)450 mm

Open Circuit Voltage Voc(V) 49.8

Weight (kg) 7.3

Dimensions 2054mm x 1080mm x 2mm


NOTE: see full product specifications & further product info in the section on this page.

Q & A


  • What size cable will I need to connect my 200W solar panel to the Victron SmartSolar MPPT 100/20 - 12/24/48V Charge Controller?

    You can use 6mm² cable

  • What size cable will I need to connect my 200W solar panel to the Victron SmartSolar MPPT 100/20 - 12/24/48V Charge Controller?

    You can use 6mm² cable
