Save $3,569 (33%) off RRP of $10,898
Product Description
Enerdrive 300Ah Caravan 3000W Inverter Charger Bundle, 5 Year Warranty. The Enerdrive 300Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.
The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available. The inverter allows you to convert DC power from your B-TEC battery into clean, stable AC power, suitable for sensitive electronics. Solar Panels provide a sustainable energy source to charge the battery bank and a battery monitor keeps you informed about its state, offering real-time data on voltage, current, state of charge, and more

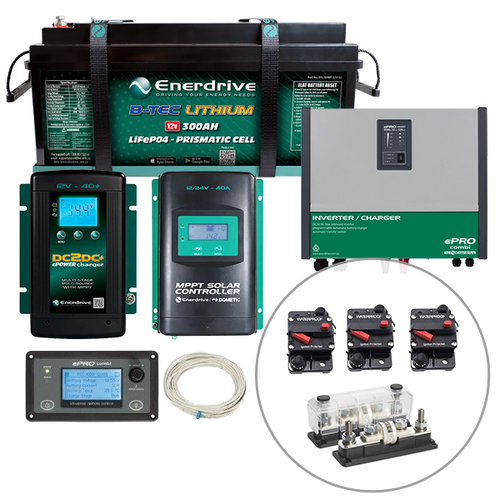

Bundle Includes:

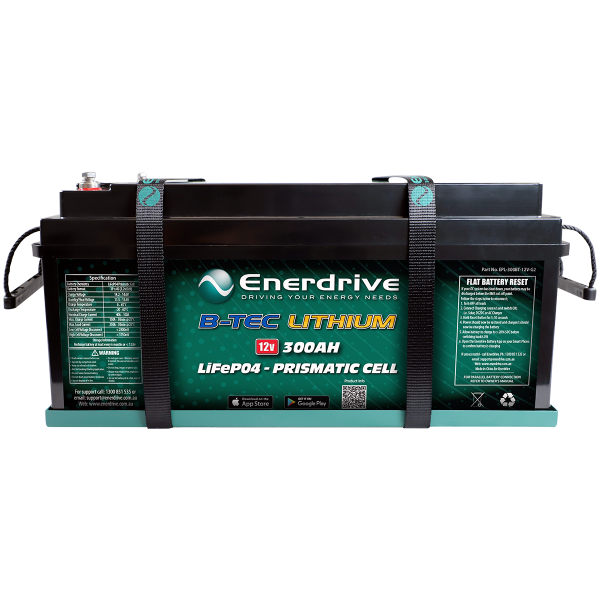

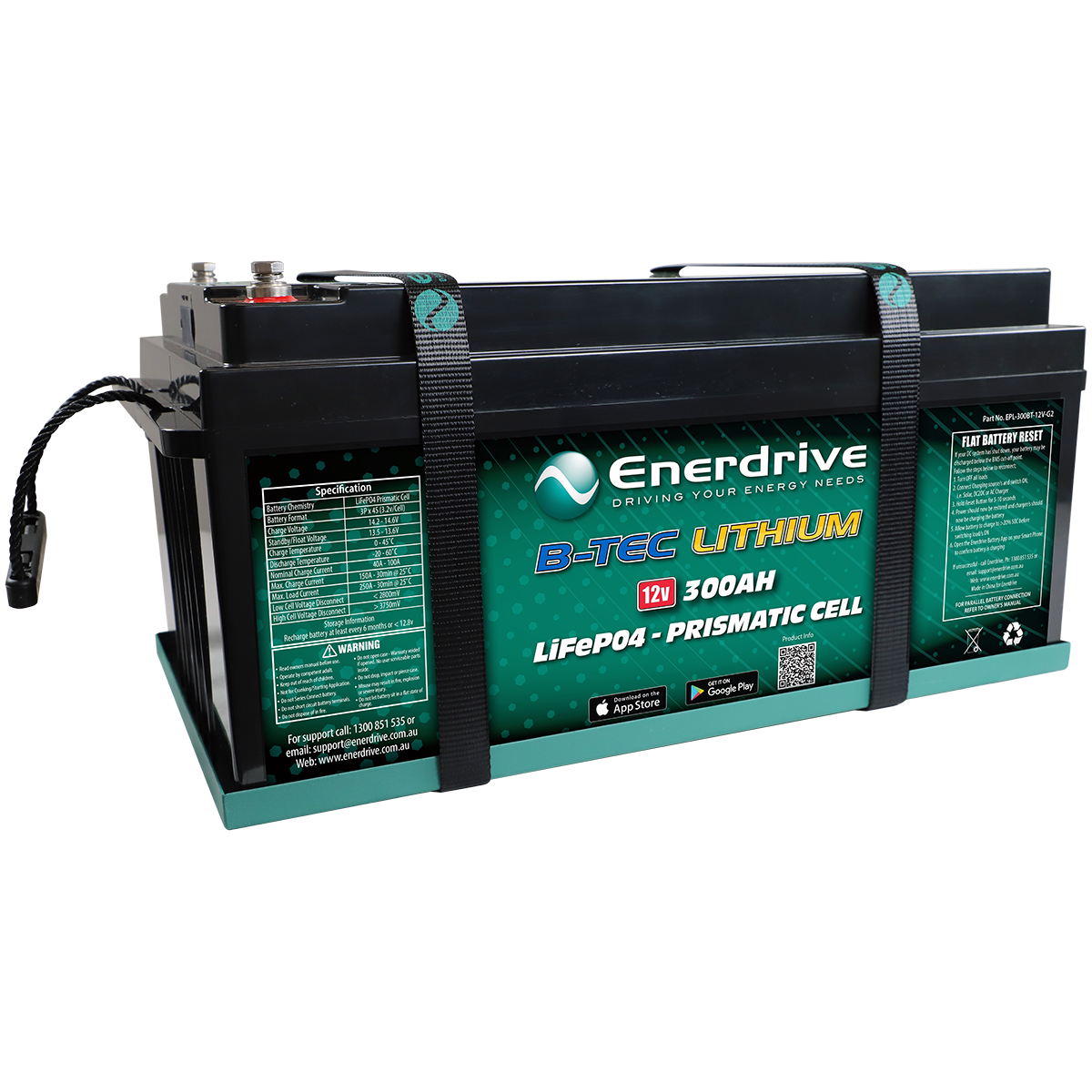

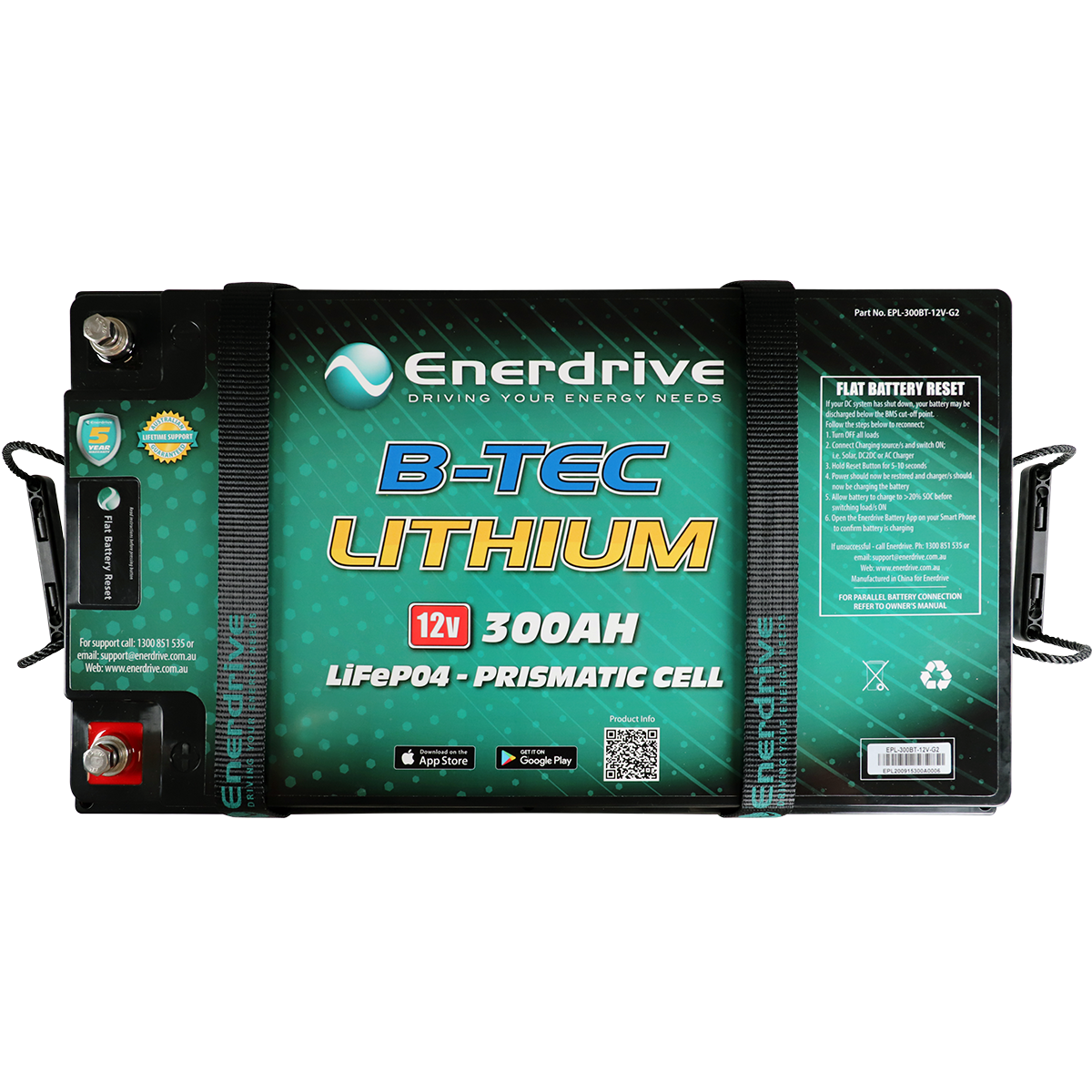

- EPL-300BT-12V-G2 - Enerdrive B-TEC 300Ah Lithium Battery

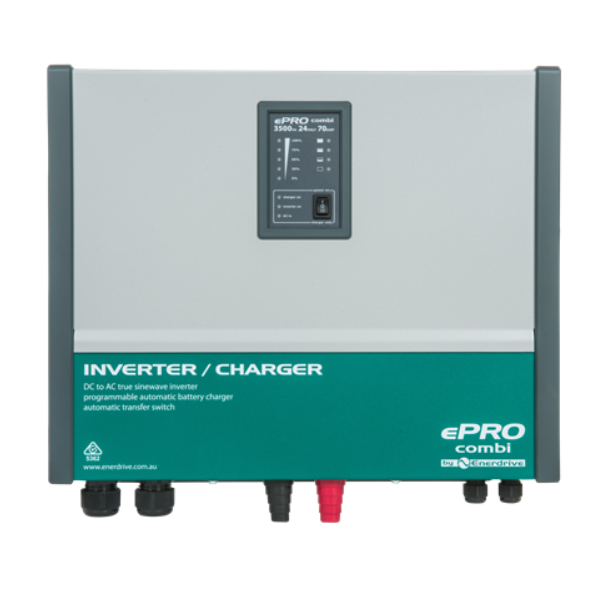

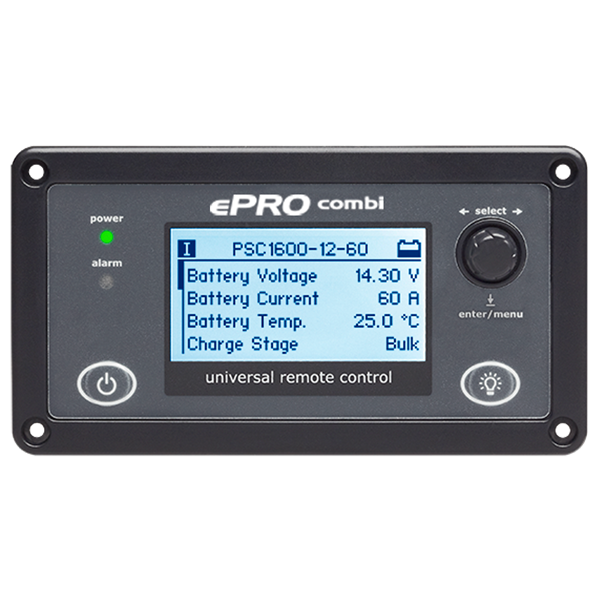

- EPC-3000-12 - Enerdrive ePRO 3000W Inverter Charger with Cable Kit & Remote Control Panel

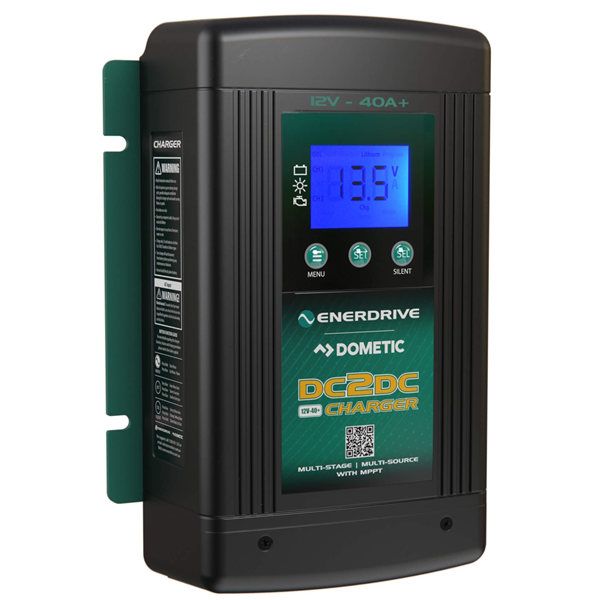

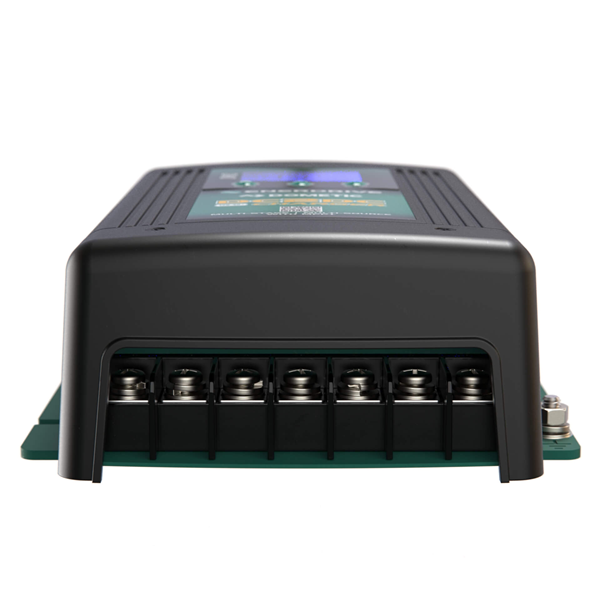

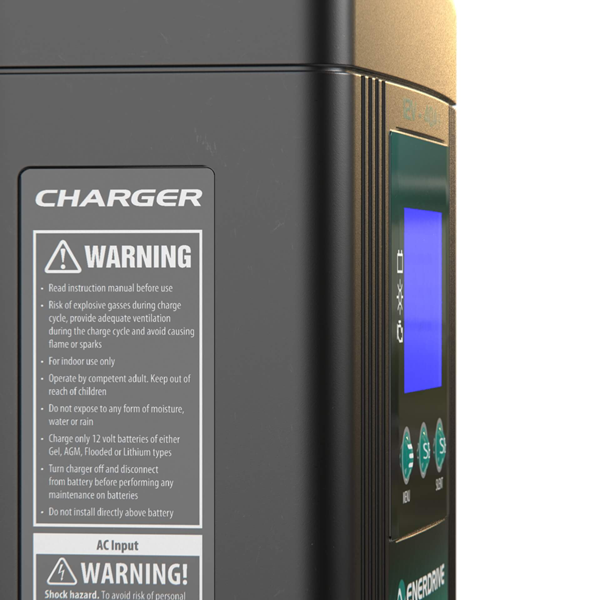

- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger

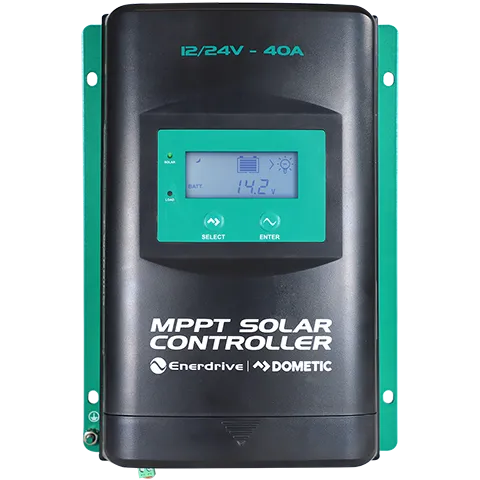

- EN43540 - Enerdrive MPPT 12/24V 40A Solar Controller with Display

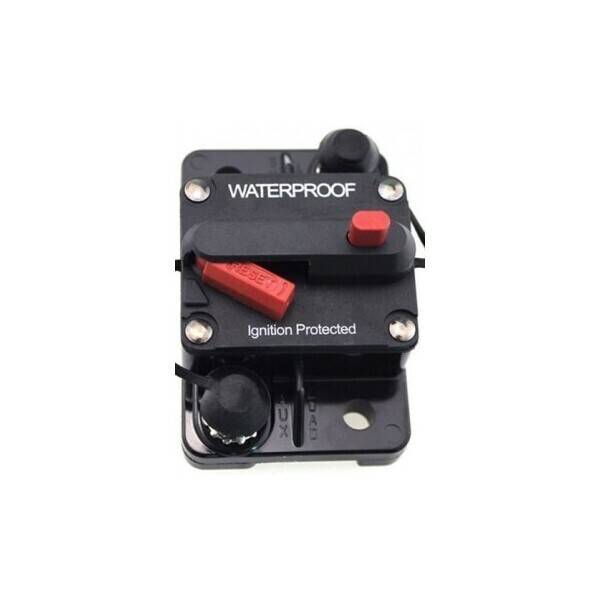

- 1 x EN-RCB50, 1 x EN-RCB60 & 1 x EN-RCB70 - Enerdrive Surface Mount Resettable Breaker
- EN55050 - Enerdrive ePRO PLUS Battery Monitor
- SI-PICO-3 - Simarine Pico Display Panel, Black with 300A Shunt & Quad Shunt Module
Optional Solar Panels:
- 2 x SP-EN190W-B - Enerdrive 190W Black Monocrystalline Fixed Solar Panel
- 4 x SP-EN190W-B - Enerdrive 190W Black Monocrystalline Fixed Solar Panel
Heres how these components interact in your energy setup:
- B-TEC 300Ah Lithium Battery: The cornerstone of your energy storage system, boasting a 300-ampere-hour capacity. It serves as the primary source of electrical energy for various applications, such as RVs, boats, or other off-grid setups.
- 40A DC2DC Charger: This charger plays a pivotal role in regulating and transforming incoming DC power from diverse sources, such as a vehicle alternator or solar panels. It efficiently channels power to recharge the battery, ensuring optimal performance with a maximum 40-amp charging current from DC sources.
- Battery Monitor: A critical component providing real-time data on battery metrics such as voltage, current, state of charge, etc. It facilitates monitoring battery health for informed decisions about energy usage and recharging strategy.
- 190W Mono Crystalline Fixed Solar Panels: these panels provide a reliable and sustainable energy source for recharging the B-TEC 300Ah Lithium Battery. With a combined capacity of 380/760 watts, they enhance overall energy efficiency, reducing reliance on conventional power sources.
This setup offers flexibility in recharging the battery, accommodating both mobility and access to AC power sources. For proper installation and operation, consult the manufacturer's recommendations and user manuals for each component in your specific application.
| Bundles | EPL-300BT-12V-G2 | EPC-3000-12 | EN3DC40+ | EN43540 | EN55050 | SI-PICO-3 | SP-EN190W-B |
| MYG-SYS-10 | * | * | * | * | |||
| MYG-SYS-11 | * | * | * | * | 2 | ||
| MYG-SYS-12 | * | * | * | * | 4 | ||
| MYG-SYS-13 | * | * | * | * | * | ||
| MYG-SYS-14 | * | * | * | * | * | 2 | |
| MYG-SYS-15 | * | * | * | * | * | 4 | |
| MYG-SYS-16 | * | * | * | * | * | ||
| MYG-SYS-17 | * | * | * | * | * | 2 | |
| MYG-SYS-18 | * | * | * | * | * | 4 |
Battery Manual:
Inverter / Charger Information:
DC Charger Information:
Solar Controller Information:
Specifications
SKU MYG-SYS-10-18
Brand Enerdrive
Warranty Period: 5 Years
Product Category Batteries
Battery Voltage 12V
Amp Hours (ah) 300
Battery Length (mm) 521
Battery Width (mm) 280
Battery Height (mm) 238
Battery Weight (kg) 38.2
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
DC Charger Output Current Rating (Amps) 40
Nominal Voltage 12.8V
Nominal Capacity 300
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Wattage (W) 3000
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 190A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 60~120A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Discharge Over Current 280A for 25s – 400A for 3.5s
Battery Manual Reset Button Yes
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
