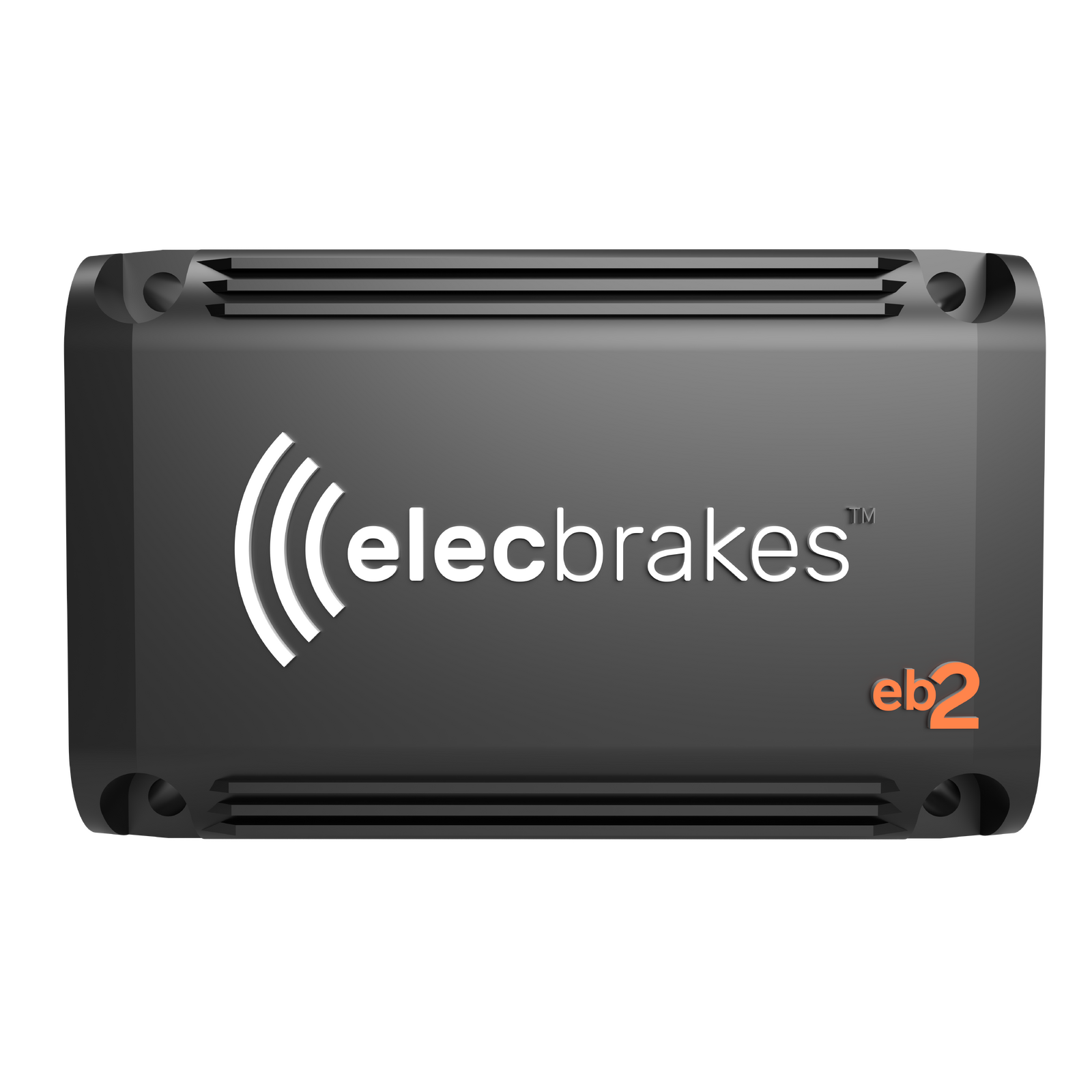

Elecbrakes2 Electric Brake Controller, 2 Year Warranty. Elecbrakes is the electric brake controller revolutionising towing in Australia and New Zealand. Delivering unparalleled performance, safety and flexibility, this trailer-mounted solution is compatible with any tow vehicle.
Suitable for caravans, trailers, horse floats and boat trailers, our 10-minute Plug and Play setup eliminates the need to modify your tow vehicle. Complete with custom presets and a smooth proportional brake response, it's time for a seamless towing experience.

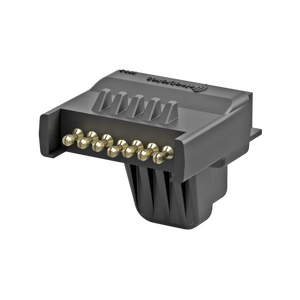

"Plug + Play" Adaptors For Easy Install. We have a range of adaptor choices to suit your trailer and tow vehicle so you can simply "plug + play" with an easy 10 minute installation.
Waterproof & Shockproof. Made in Australia and designed to withstand everything our rugged country can throw at it. Elecbrakes brake controllers are built to last.
Multiple Braking Programs. Once you've found the perfect settings for a certain load or for particular conditions, you can save that as it's own preset and then quickly switch to those settings in future at the press of a button.

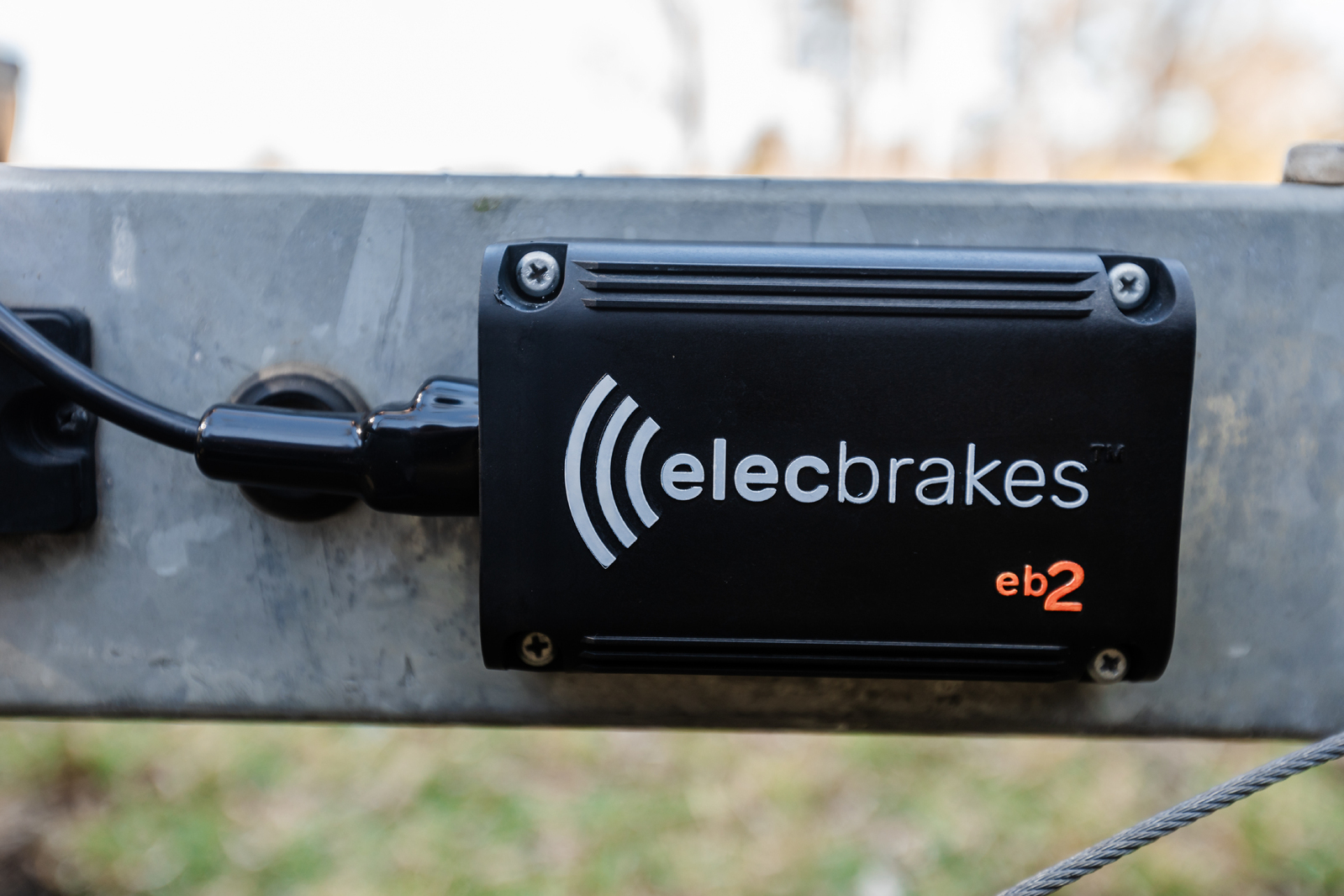

Trailer Mounted For Ultimate Flexibility. Because the device is mounted to your trailer and not wired into the dashboard of your tow vehicle, you can use multiple tow vehicles with no need for any vehicle modifications.
Adjusting its response 1,000 times per second, our proportional brake controller automatically adapts to your driving for a jolt-free journey. You’ll enjoy a smoother ride with less wear and tear on your trailer brakes.

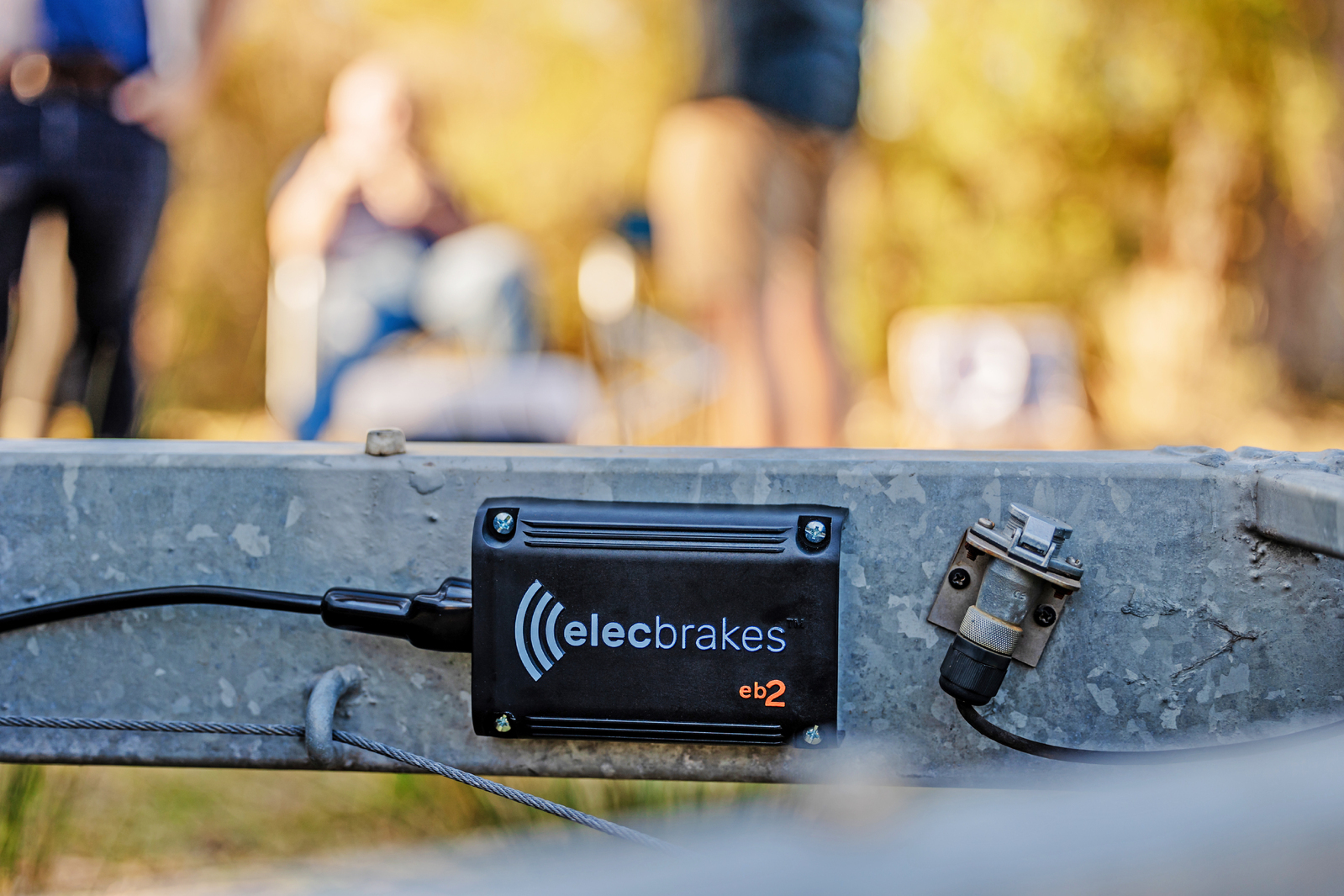

Trailer-mounted for use with multiple tow vehicles, you won’t need to cut into the dashboard or make any other modifications. You can mount it to more than just caravans too. Boat trailers, horse floats, trade trailers, hire trailers, farm trailers.
Plug + Play Installation

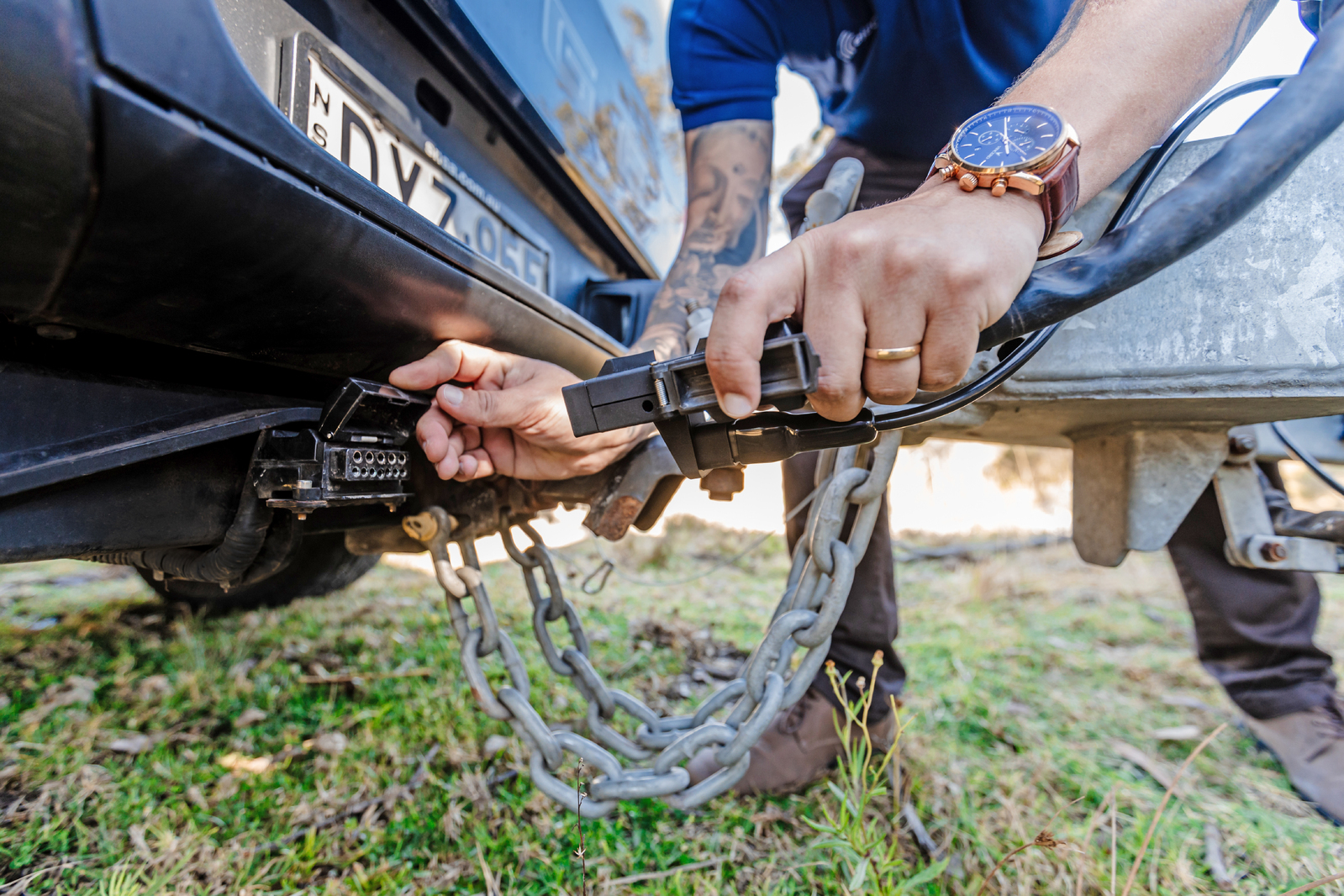

With no electrical expertise needed, Elecbrakes is fast and easy to install within 10 minutes. Mount the wireless controller to your trailer draw bar with screws. Then just plug the adaptor into your trailer cable and vehicle socket. Now you’re ready to hit the road.
- 10 Minute Install. Simple "Plug + Play" installation, no wiring knowledge required.
- Connects To Existing Circuits. The device can be powered entirely from existing trailer circuits.

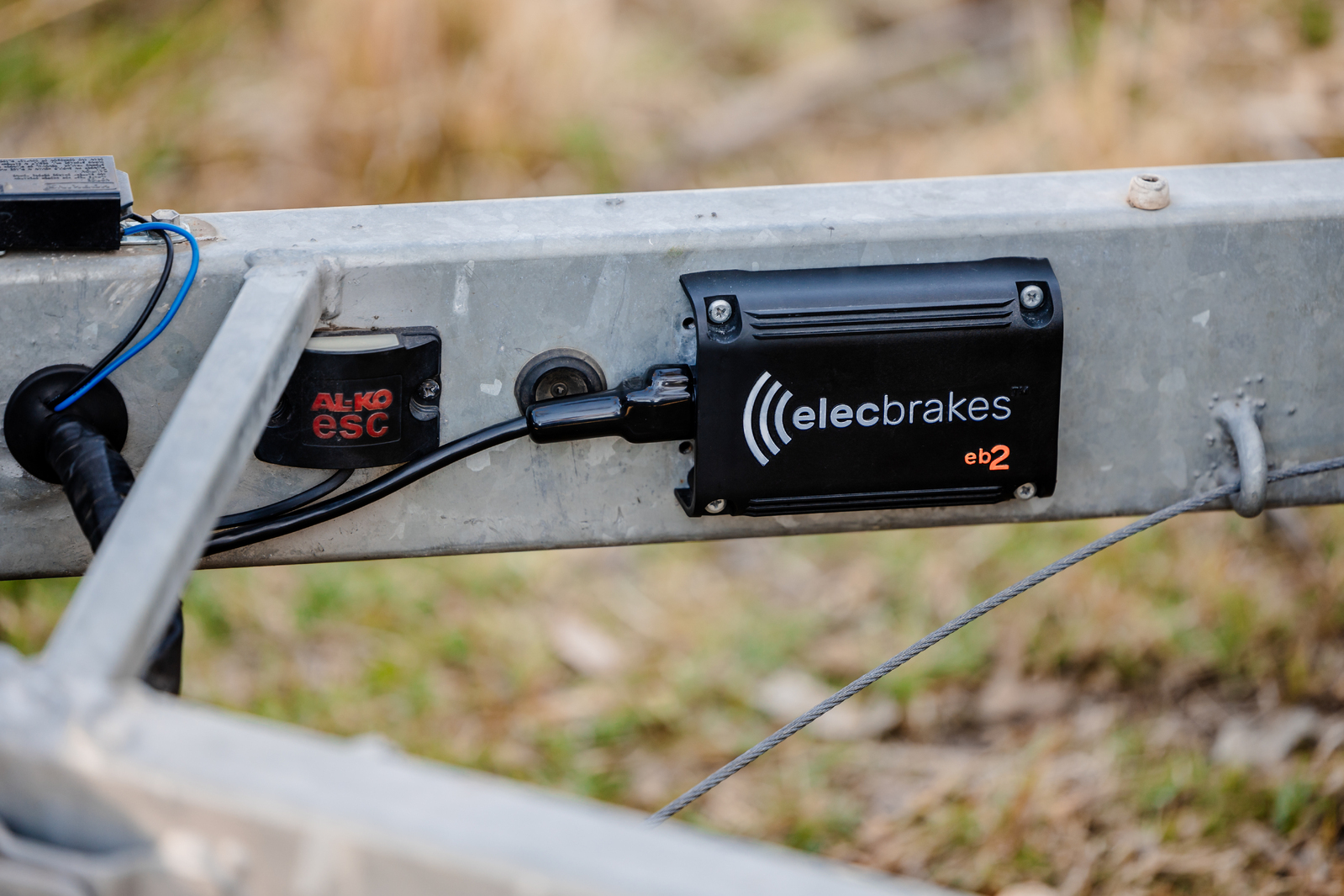

- Trailer-mounted. Mounted to the trailer not the tow vehicle, for ultimate flexibility.
- No Extra Installation Costs. DIY installation means no need to pay for an auto electrician.
4 Step Install Guide:

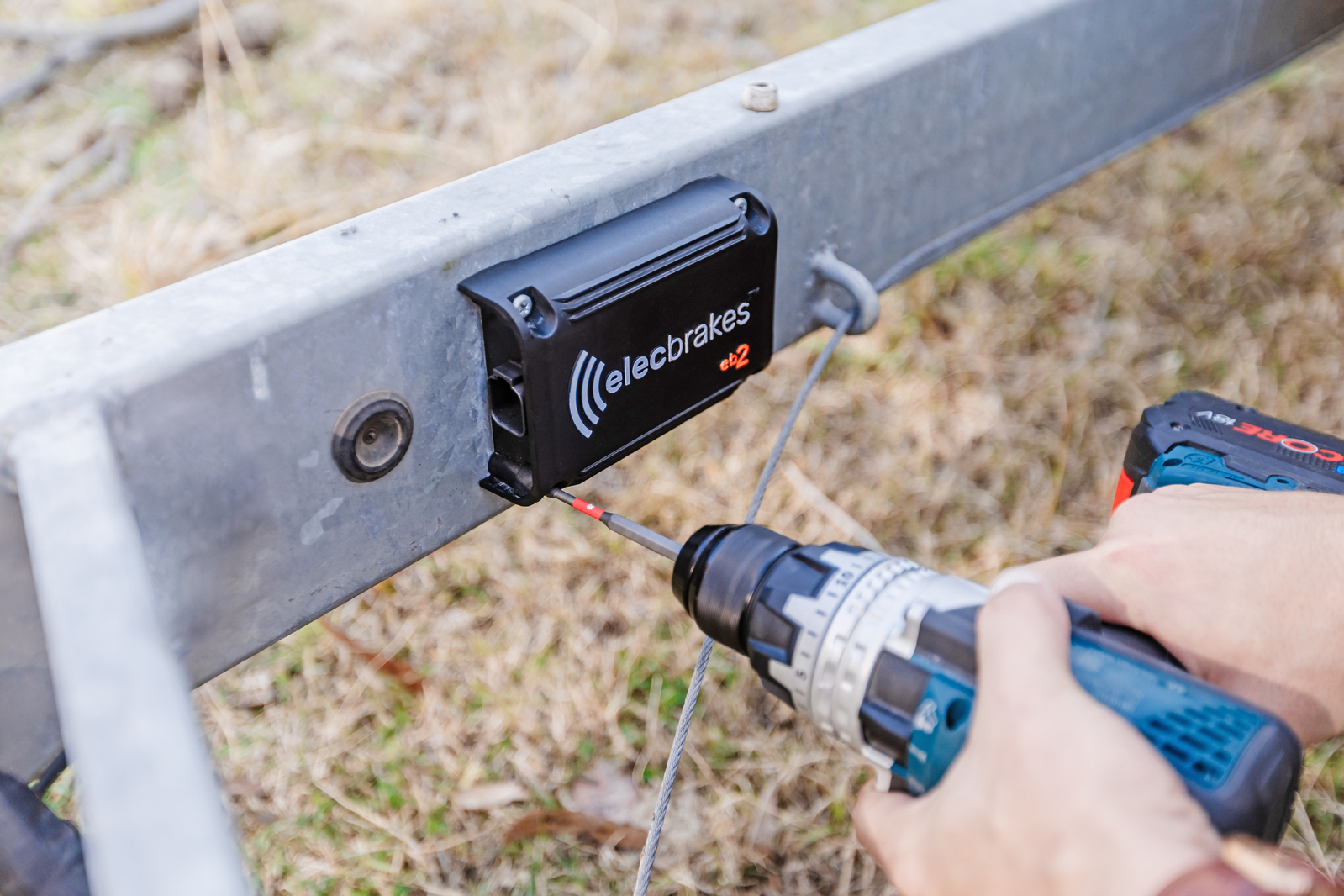

- Mount the unit parallel. To the ground on the drawbar, in any position (ie.along the top, inside,outside or bottom of the drawbar), with provided self tapping screws.

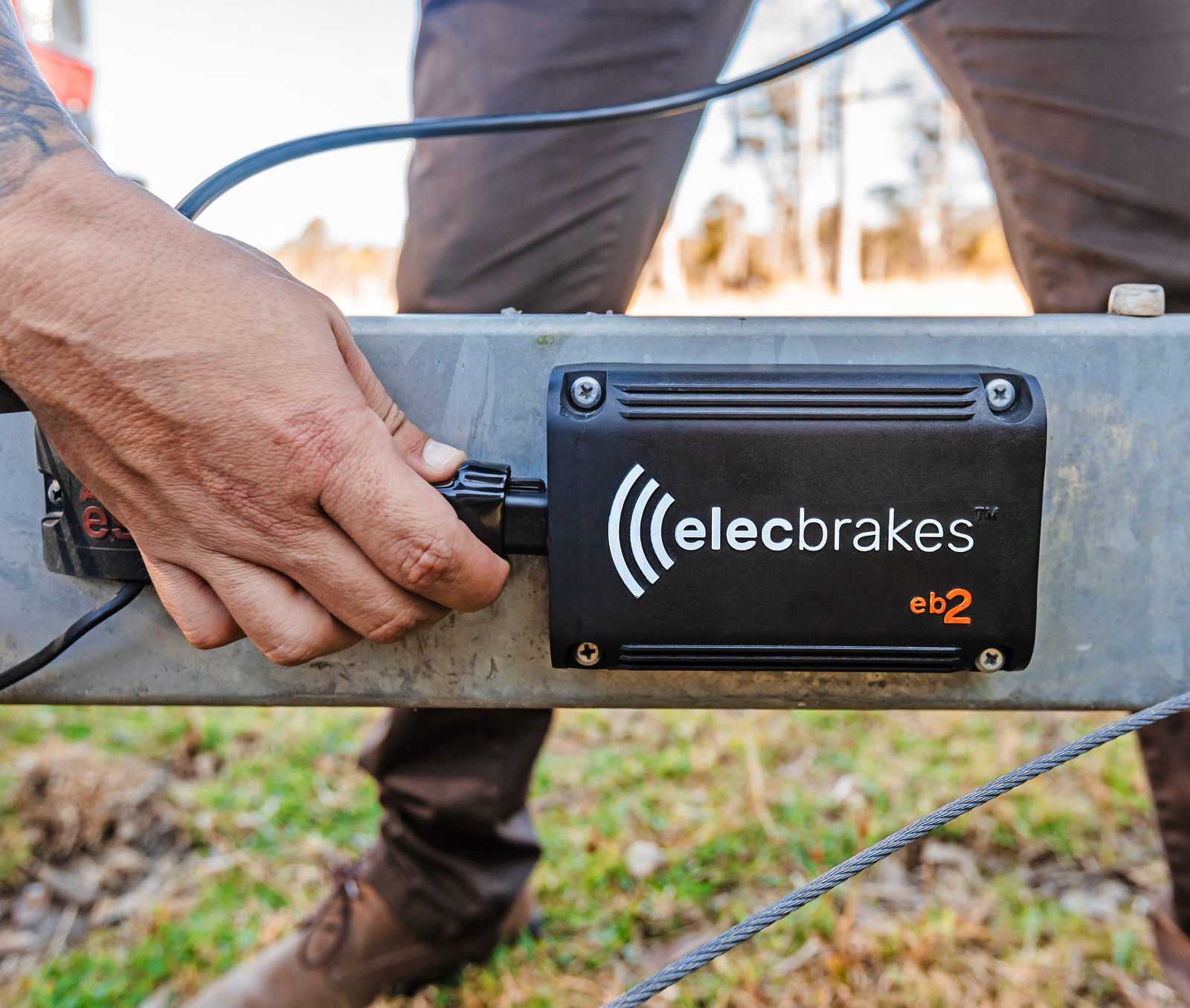

- Connect the adaptor to the unit.
- Plug the trailer plug into the adaptor.
- Plug adaptor into vehicle socket.
Product Category Trailer and Towing Equipment
Warranty Period: 2 Years
Elecbrakes Electric Brake Controller Review
Elecbrakes EB2 - How it works
Elecbrakes EB2 - How to install
The Best Electric Brake Controller For Caravans
How To Install Elecbrakes
Caravan Mounted Brake Controller: Elecbrakes
Elecbrakes installation: Easy 10 minute install with our 'Plug & Play' electric brake controller
My tow vehicle is 12 pin Flat and my trailer is 7 pin Flat. You don't have an adapter to suit that?
To solve this problem you just need to purchase the 12 pin to 12 pin Flat plug and play adapter. It will connect to your 7 pin on the trailer leaving extra sockets unused.
How Does Elecbrakes Work?
Elecbrakes is a trailer mounted brake controller that connects to the trailer’s existing electrical circuits. This can be wired in with a user who has electrical know-how or by an auto-electrician. The unit can also be connected very easily with our “Plug + Play” adaptor which requires no wiring knowledge. With either method,the unit is powered through both the tail light circuit and the brake light circuit.
The trailer brakes are activated by the Elecbrakes unit when the driver applies the brake pedal in the tow vehicle. The trailer brakes are applied with a proportional degree of force based on how hard the tow vehicle is braked.
What Trailers Can Elecbrakes Work With?
The brake controller will work on all trailers up to 4500kg ATM that have electric or electric over hydraulic braking systems. This includes but is not limited to caravans, camper trailers, toy haulers, tradie trailers, equipment hire trailers, agricultural trailers, car trailers, boat trailers and horse floats. Using the standard wiring setup Elecbrakes supports braking on two axles, with all wheels braked.
What Happens If The Bluetooth Connection Drops Out?
Elecbrakes searches at 2/100th of a second. The unit will reconnect, however the loss of Bluetooth connectivity does not impact the ability of the trailer to brake. Elecbrakes always brakes the trailer and will continue to work at the last settings set. The only functionality that would be hampered in this case would be the program change and manual override button from the remote. If the connection was to drop out the driver could pull over and reconnect. But it is very rare that this would happen.
Is it possible to use Elecbrakes with a 24v truck?
Absolutely. Elecbrakes is compatible with both 12-volt and 24-volt input systems. The system automatically adjusts its output to 12 volts, ensuring seamless operation with your trailer’s brake system even when used in conjunction with a 24-volt truck.
