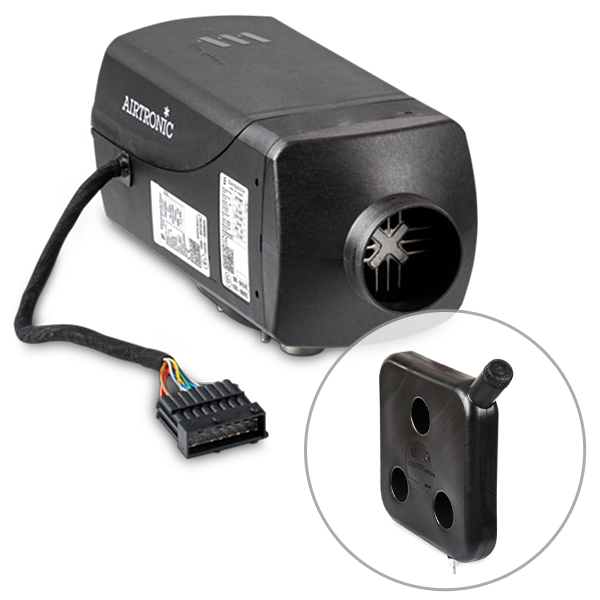

Eberspacher Airtronic AS3 D2L Diesel Air Heater Bundle with 10 L Diesel Fuel Tank

12Volt, Single Outlet with ePro

$2,539
Take an EXTRA $70 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Accessories

$195

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

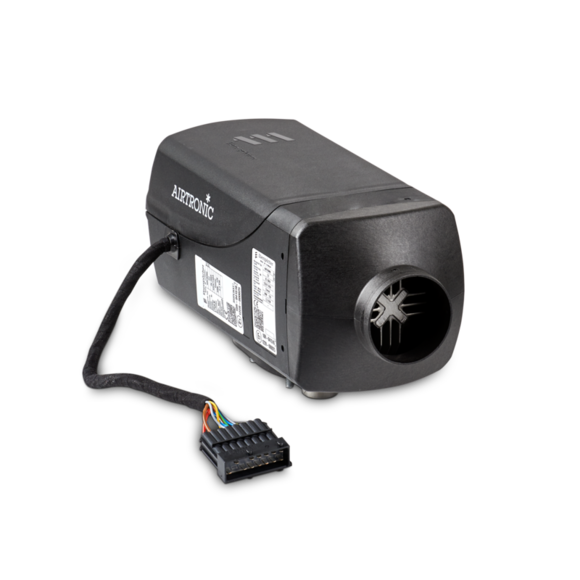

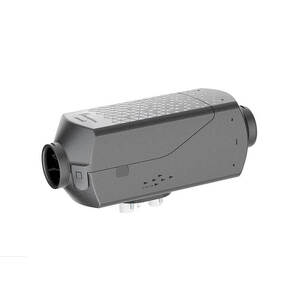

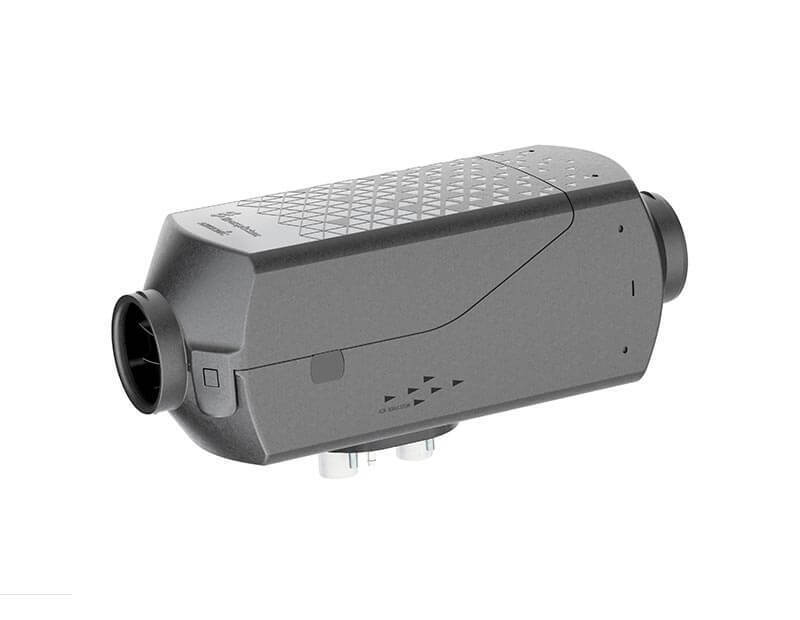

Eberspacher Airtronic AS3 D2L Diesel Air Heater Bundle with 10 L Diesel Fuel Tank, 2 Year Warranty. The Eberspächer Airtronic AS3 D2L offers cozy warmth in your RV during the day and night, at every stage of your journey. It provides optimized fuel efficiency, a range of operation modes and unsurpassed safety standards. You can easily program the heating to deliver hot blown air until the desired temperature is achieved. It can be installed in passenger areas and has quiet operation. Ideal for life on the road, this efficient diesel heater will save you power and money.

Eberspacher is a global climate control company founded in Germany in 1865. Dometic are the Australian distributors for the Eberspacher range and provide nationwide warranty and spare parts support..

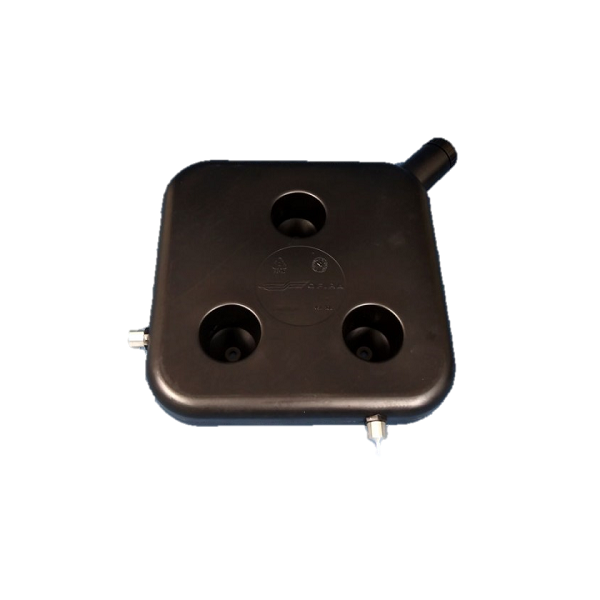

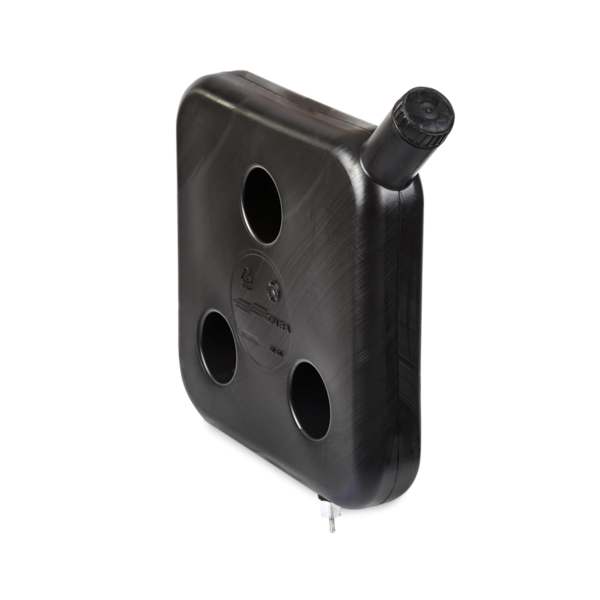

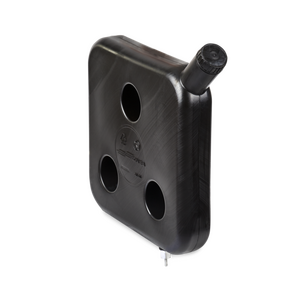

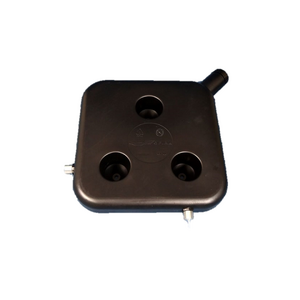

A slim line plastic fuel tank which can be used to provide a fuel source for the Diesel Air Heaters when used in Caravans, Camper Trailers and petrol powered campervans.

Additional tank for fuels or other liquids, robust and convenient; it is normally used to power diesel or petrol vehicle heating system independentyly of the vehicle engine supply line

The tank is attached to a vertical wall (typically the outer wall of a cabin or passenger compartment) via the three holes on the back. The installation can take place by protruding the loading nozzle to the right or left, indifferently; for this purpose, the tank is equipped with two interchangeable fittings. The tank is built of high-density polythylene (HDPE). The gasket on the fittings are made of Viton, the sealing gasket of the filling cap is made of NBR. In both versions, a nylon filter is installed on the liquid outlet fitting or faucet

A fuel filter is recommended to help with fuel supply.

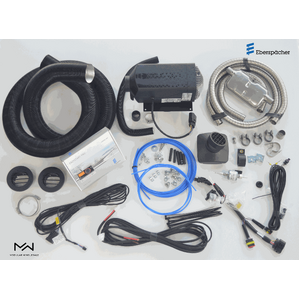

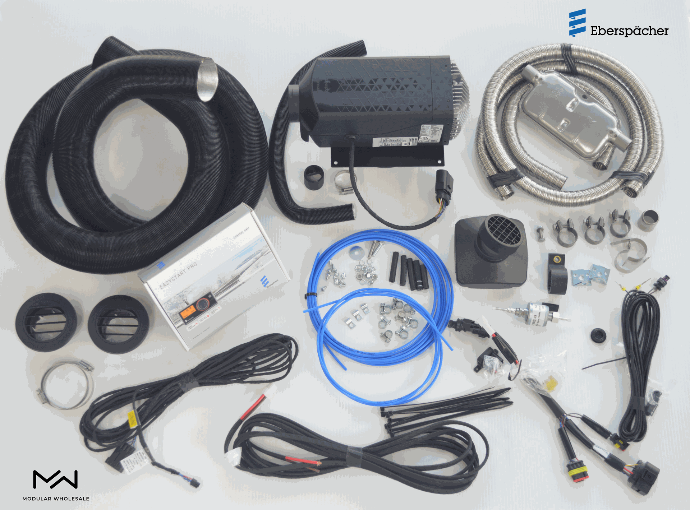

Diesel Heater Kit includes

  • 1 x Air Tronic D2L AS3 Diesel Heater & mounting plate
  • 1 x Eberspacher 10 L Diesel Fual Tank
  • 1 x Fuel metering pump including pump holder
  • 1 x 6 meters of fuel line
  • 1 x Easystart Pro Controller
  • 1 x wiring harness (plug & play) & 6m twin core power supply cable.
  • 1 x 2 meters stainless exhaust & exhaust silencer
  • 1 x 0.5 meter air intake tube
  • 2 x 60mm vent flange & flat vent cover
  • 1 x 2 meters 60mm ducting
  • 1 x miscellany, screws & washers,clamps,p-clips,zip ties, fuel line joiners, warranty card including, QR code for digital manual.

Features:

  • Fully electronic microprocessor control
  • Continuous monitoring
  • Power stage to cut heating times
  • Smooth automatic room temperature control with a temperature pre-set facility
  • Low fuel and power consumption, suitable for longer periods of operation
  • More comfort thanks to wide control range and quiet night-time operation
  • Diagnostic system
  • Brushless motor results in a long service life of 5,000 h
  • Optimised burner operation with integrated altitude sensor: Automatic altitude adjustment up to 3,000m and optimised combustion.
  • EasyStart Pro controller operating system enables up to two heater units to be controlled from a central point
  • Starting capability from – 46 °C
  • Stepless heating performance control
  • Acoustically improved metering pump

Advantages:

  • High heating power, yet compact design
  • Automatic altitude adjustment up to 5,500 m*
  • Flexible installation with 90° tilt possible to either
  • side
  • New S3 gasoline heater for camping vehicles
  • Stepless heating performance control ensures quiet
  • operation

Additional Features

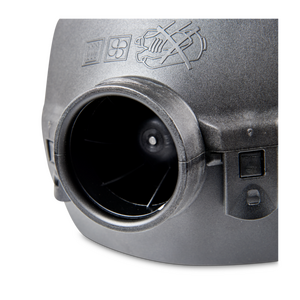

  • Patented housing design for improved plagiarism protection
  • Lifetime of up to 5,000 operating hours due to brushless motor
  • Backward compatibility through carry-over connections
  • Sensor-controlled, optimized start-up sequences through measurement of environmental parameters
  • Optimized heat air flow due to improved heat
  • exchanger
  • Maximum control with EasyStart Pro and EasyStart Web
  • Compatibility with all other control units
  • Diagnostics and parameter assignment via EasyScan
  • Can also be integrated into on-board systems via CAN
  • (12/24V), LIN (12V), S+(12/24V) interfaces

Its brushless motor means it offers a long service life of over 5,000 hours. That makes the second-generation Airtronic an even more reliable heating system for recreation vehicle trips.

The Airtronic ensures a pleasant, relaxing ambience. It warms the vehicle's interior to just the right levels of comfort and has now been made even quieter thanks to its infinitely variable heat output. The new metering pump has also been noise-optimised, so the air heater now has a quieter operation, which means better sleep.

This RV heater is supported by the Eberspacher EasyStart Pro, the intelligent control unit that makes controlling the heater remotely simple and convenient. For instance, the desired start time and heating duration can be pre-set with the timer function.

Specifications

SKU KIT-AS3-10LTRTB

Brand Eberspacher

Warranty Period: 2 Years

Product Category RV Heaters and Hot Water

Model AS3 D2L

Product Type Diesel Heater

Fuel Diesel – standard commercially available (EN 590)

Fuel Tank Capacity 10L

Heating Capacity (W) 2.2kW

Net Weight (kg) 2.5

Remote control Yes

Width (mm) 115

Fuel Consumption Max. 0.27 L/h | Min. 0.1 L/h

Heat Flow Max. 2200 Watts | Min. 850 Watts

Depth (mm) 310

Height (mm) 122

Included 1 x Air Tronic D2L AS3 Diesel Heater & mounting plate, 1 x Fuel metering pump including pump holder, 1 x 6 meters of fuel line, 1 x Easystart Pro Cont

Voltage 12V


Videos

DIY Diesel Heater Install In An Off-Road Caravan - Road Trip Australia



Caravan Diesel Heater Review: Eberspacher Airtronic AX2 D2L, Diesel Air Heater Kit



An Introduction to Eberspacher Airtronic Heaters



Product Q&A

Ask Us a Question
  • How does the size of the area to be heated affect which diesel heater to purchase?

    A larger area might require a twin outlet or a more powerful heater.

    • A 2kW diesel heater will be sufficient for a vehicle around 4-6 metres
    • If the layout affect the heat flow or the area is a bit larger, a twin outlet is recommended
    • With a large motorhome or fifth wheeler, it is best to opt for a 4kW diesel heater
  • Should I buy a gas or diesel heater?

    It depends on your personal requirements. Please see the pros and cons of both below:

    Gas

    • Pros
      • Most caravans already have gas appliances so adding a gas heater is relatively straightforward
      • Purchase cost is lower than a diesel heater
      • Noise is lower than diesel heater
    • Cons
      • A number of regulatory requirements apply for installation: a gas heater flue cannot be installed too close  a window, door or other gas appliance inlet or outlet, or under an enclosed annex A licensed gas fitter is required to connect the gas heater and provide a compliance certificate
      • In temperatures of two degrees and under, the heater won’t function
      • Produces a wet heat resulting in unwanted humidity and condensation

    Diesel

    • Pros
      • You don’t need a licence for installation
      • Superior heating performance compared to a gas heater
      • Produces a clean dry heat as opposed to the wet heat produced by a gas heater
    • Cons
      • More expensive to buy than a gas heater
      • Generally noisier than a gas heater
      • You need a clear space below the heater for the exhaust
      • Extra diesel tank needed
  • Does the diesel heater come with a fuel tank?

    No, a fuel tank is not included with the purchase of a diesel heater. You will need to add a fuel tank to your order. However, if the vehicle runs on diesel, you will be able to plumb into the vehicle's fuel tank.

  • Can I use biodiesel or kerosene to fuel the diesel heater?

    No, it is recommended that you only use high grade diesel, and not biodiesel or kerosene.

  • Can I install my diesel heater under the bed?

    Yes, you can. Just note that there will be some noise due to the intake of the heater as well as a ticking sound from the fuel pump. Therefore, it is probably best to install the heater away from the bedroom.

  • What is the difference between the rotary and digital controllers for diesel heaters?
    • Rotary controllers do not have a thermostat and consist of a dial that is based on feel and you will need to turn it up or down until you are satisfied with the temperature. The heat will remain constant once set to a specific dial position.
    • Digital controllers have a thermostat and you are able to digitally select a temperature. These controllers also have a timer that can be set if you only want to run the heater for a certain amount of time.
      • It is recommended the digital controller be installed at waist height as a result of heat rising. It will reach its temperature too soon if installed too high or will have to work too hard if the thermostat is too low.
