Baintech 12V 110Ah Slimline Lithium Battery with 40A DC-DC Battery Charger

Baintech 12V 110Ah Slimline Lithium Battery with 40A DC-DC Battery Charger

2 Reviews | Q&A

$1,889
Take an EXTRA $40 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Call 1300 400 122
Add To Wishlist
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews
Go to: Product Details
Go to: Specifications

Product Description

Baintech 12V 110Ah Slimline Lithium Battery with 40A DC-DC Battery Charger, 5 Year Warranty

Pack includes:

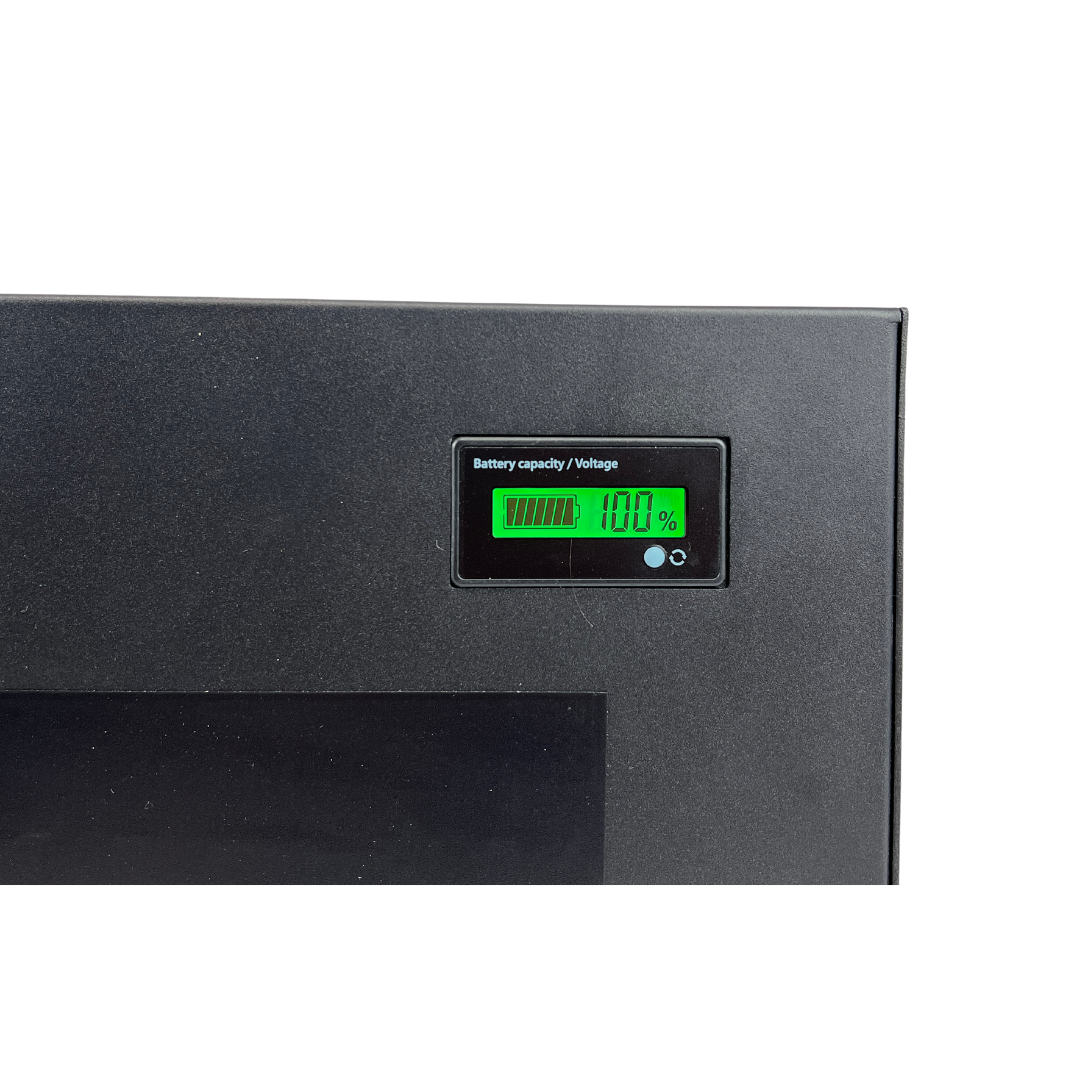

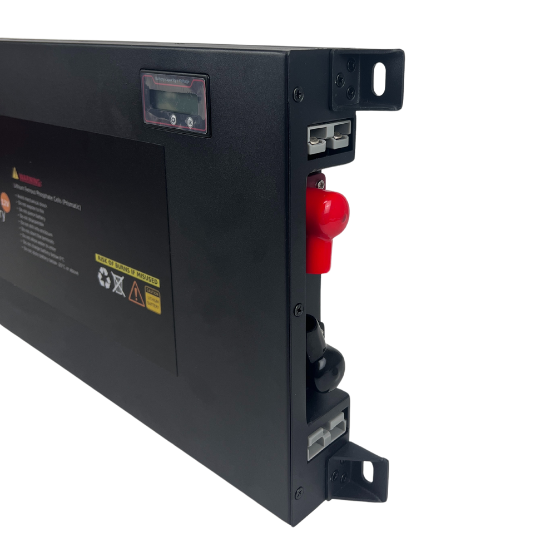

Baintech 12V 100Ah Slimline Lithium Battery: The 12V 110Ah Slimline Lithium Battery with 100ah BMS & digital display is perfect for powering your 12V set-up including upto 1000w inverter. This lithium battery is strong and safe due to its aluminium casing and built-in BMS that protects you from temperature, over-voltage, and short circuit. Our unique BMS will further increase safety and durability. Can be connected in parallel for increase capacity, and connected in series for increase voltage Max 48V.

Features:

  • Custom Built BMS
  • Up to 5000 Charging Cycles | Lifecycle at 50% DOD
  • Slimmest Design in the market
  • Almost 2x the Capacity of a Lead acid battery
  • Aluminum Powder Coated Enclosure
  • Australian Designed
  • Connect in Parallel: More capacity & Power
  • Lightweight: Only 15kg
  • 595mm L x 260mm W x 50mm D
  • With brackets attached 650mm L x 260mm W x 50mm D
  • Guaranteed 5 year warranty

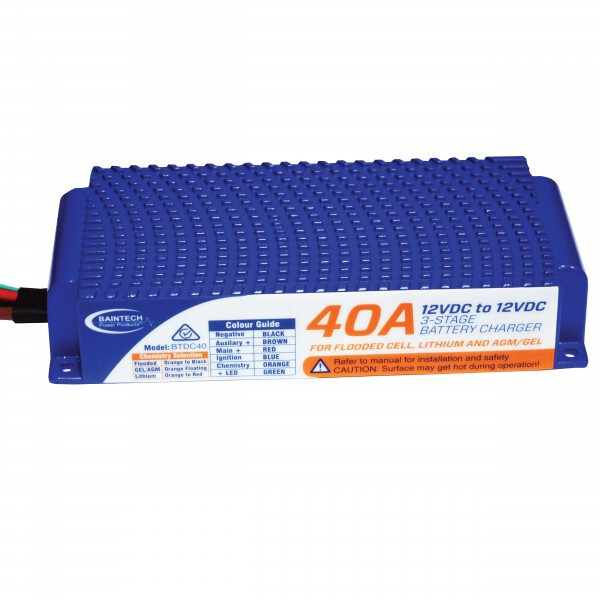

Baintech 12V 40A DC-DC Battery Charger:

New to the Baintech range, the 40A DC-DC 3-stage battery charger for Flooded cell, Lithium and AGM/GEL chemistries. The BTDC40 is a powerful 40A charger within a compact and rugged unit, able to withstand high temperatures (up to 70°C).

The BTDC40 is able to utilize up to 80A charging to the auxiliary battery using our new boost mode (Kit Sold Separately) and 40A when wired with a standard configuration. This is all still achieved in the same extremely compact package (373cm³) while still boasting all the features of a booster battery charger in a weather, dust, and vibration resistant package.

Features:

  • 3-stage 12V Booster Charger
  • 40A max output (standard wiring) 80A max. with optional kit
  • Selectable output voltages for lithium, sealed lead acid or vented lead acid
  • Over current and temperature protected
  • High efficiency (Typical >96%)
  • Precise under voltage protection (No external isolator required)
  • Remote charge status LED indicator
  • Very low standby current: <3mA
  • Optional start assist and boost charge features increase amperage output to 80A max (kit purchased separately)

 Yamaha EF1000iS Product Card

Baintech Product Manual

Go to: Product Details
Go to: Videos

Specifications

SKU MYG-BTLITH12110-SL-BTDC40

Brand Baintech

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (ah) 110

Product Type Lithium(Slimline) Battery | 12v 40Amp DC2DC Battery Charger

Nominal Voltage 12.8V (Battery)

Cycle Life (DOD – 80% under controlled conditions) 2000 cycles

Battery Charge Temperature 0 ℃ to 45 ℃ (Battery)

Maximum Charge Current 100A (Battery)

Charger Efficiency 96% (Battery Charger)

Weight (kg) 15

Voltage 14.6 max (Battery)

Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (Battery Charger)

Charging Control Three Stages (Battery Charger)

Input Voltage 11VDC to 16 VDC (Battery Charger)

Dimensions 635mm x 50mm x 265mm (Battery) | 162 x 71.5 x 32.2 (L x W x H) (Battery Charger)

Charge Voltage Float - Gel/AGM (25 degrees)** 14.3V (Battery Charger)

Selectable Battery Type Flooded cell, Lithium, AGM/GEL (Battery Charger)

Standby Current <3mA (Very low) (Battery Charger)

DC Output Single (Battery Charger)


Go to: Specifications
Go to: Reviews

Videos

Do You Need a Dedicated Lithium Battery Charger?



Why You Need a DC to DC Charger With Your Baintech Battery



AGM vs Lithium Batteries For Your 4WD



Why Lithium Batteries are Cheaper in the Long Run



Baintech's Guide To Choosing A Marine Battery: Lithium For Your Boat



AGM vs Lithium: Why Lithium Batteries Are The Better Option For Your 4WD



Why Weight Should Be Your Priority When Choosing A 4WD Battery



Introducing The New Australian Made Baintech Lithium Battery Range



Baintech's Lithium Dual Camping Battery Setup


Go to: Videos
Go to: Q & A

Customer Reviews

Awesome light and thin Review by
Great quality very light and fits perfectly behind my bt50 rear seat.
(Posted on 16 October 2021)

Write a product review

Go to: Reviews
Go to: Warranty

Product Q&A

Ask Us a Question
  • Will this charger charge without the ignition wire attached or is it voltage sensing Like most other chargers?

    Hi There,

    The charger requires the ignition wire to be connected for it to charge.

  • Hi Guys I have a agm 180 amp battery behind the back seat , iv added a canopy which I want to put this unit into . Can I plug a Anderson plug from the agm battery to the lithium input to charge the lithium? Cheers Steve

    Hi There,

    To charge this lithium battery you would need to connect up the DC DC charger from this kit.

    The DC DC charger has a built in lithium charging profile that is designed to charge the lithium battery safely, and correctly.

    We would not recommend trying to connect an Anderson plug from a second battery, directly to the lithium battery.

Go to: Q & A
Go to: Delivery

Warranty

For details relating to this product's warranty CLICK HERE

Go to: Warranty
Go to: Delivery

Delivery

    For details relating to our delivery process CLICK HERE
