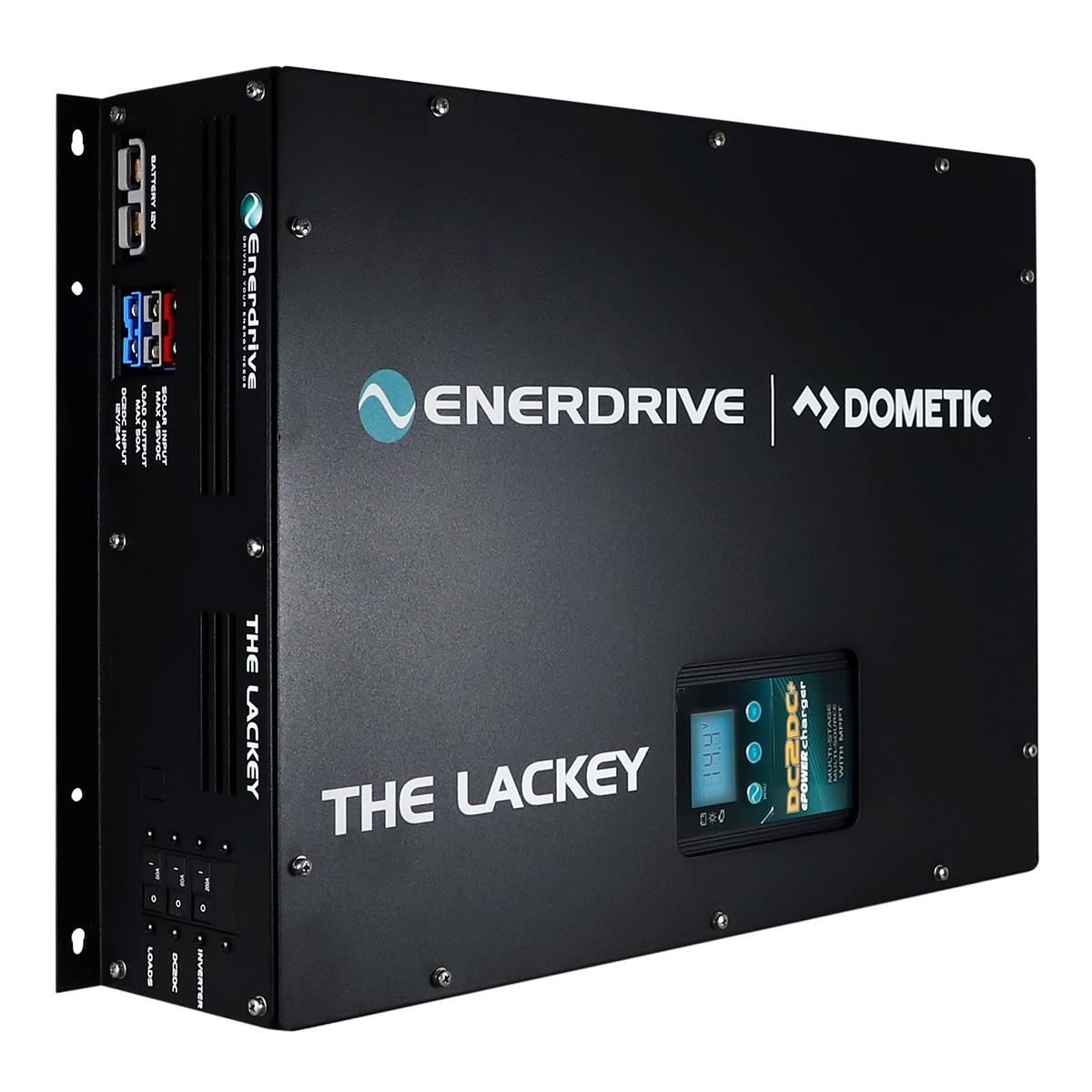

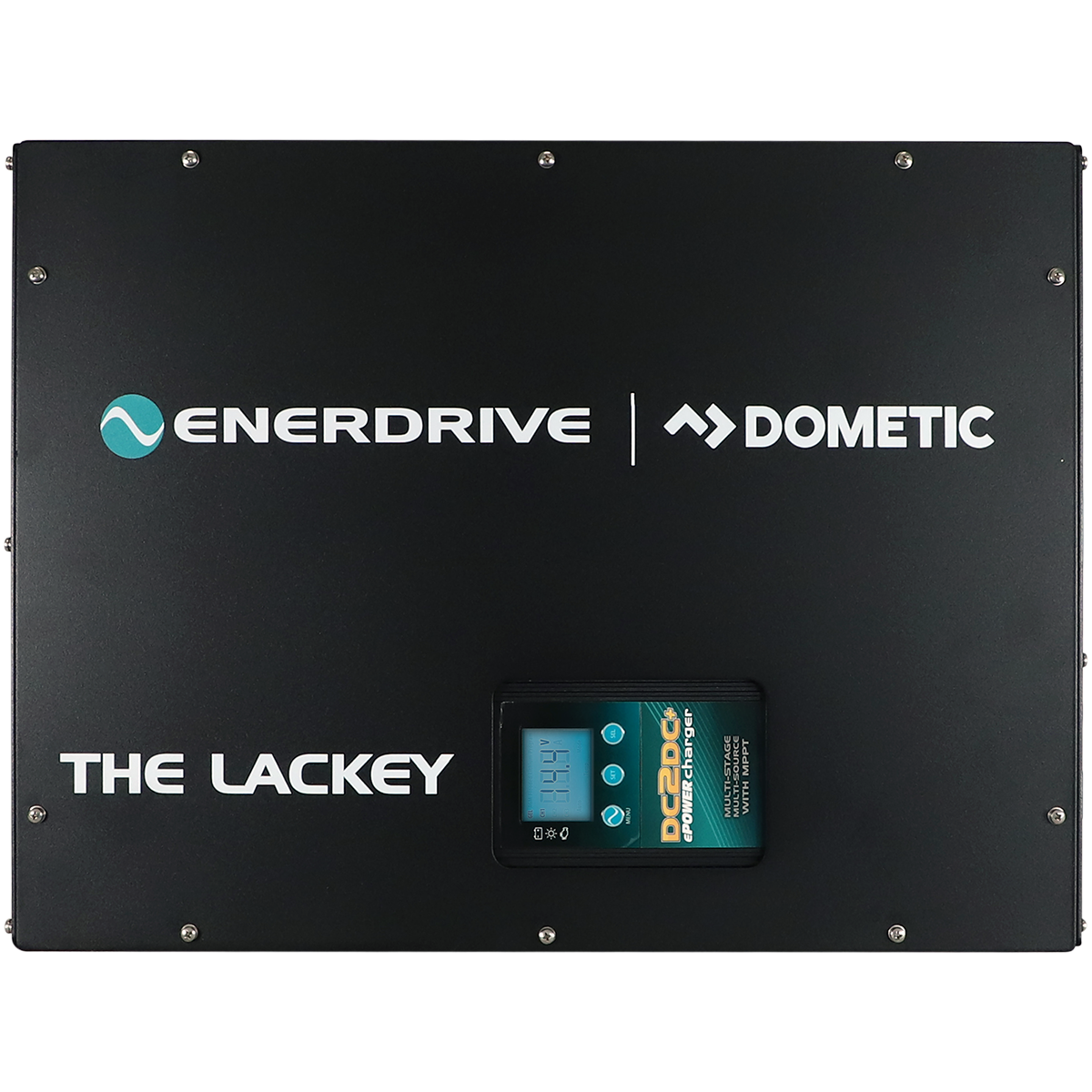

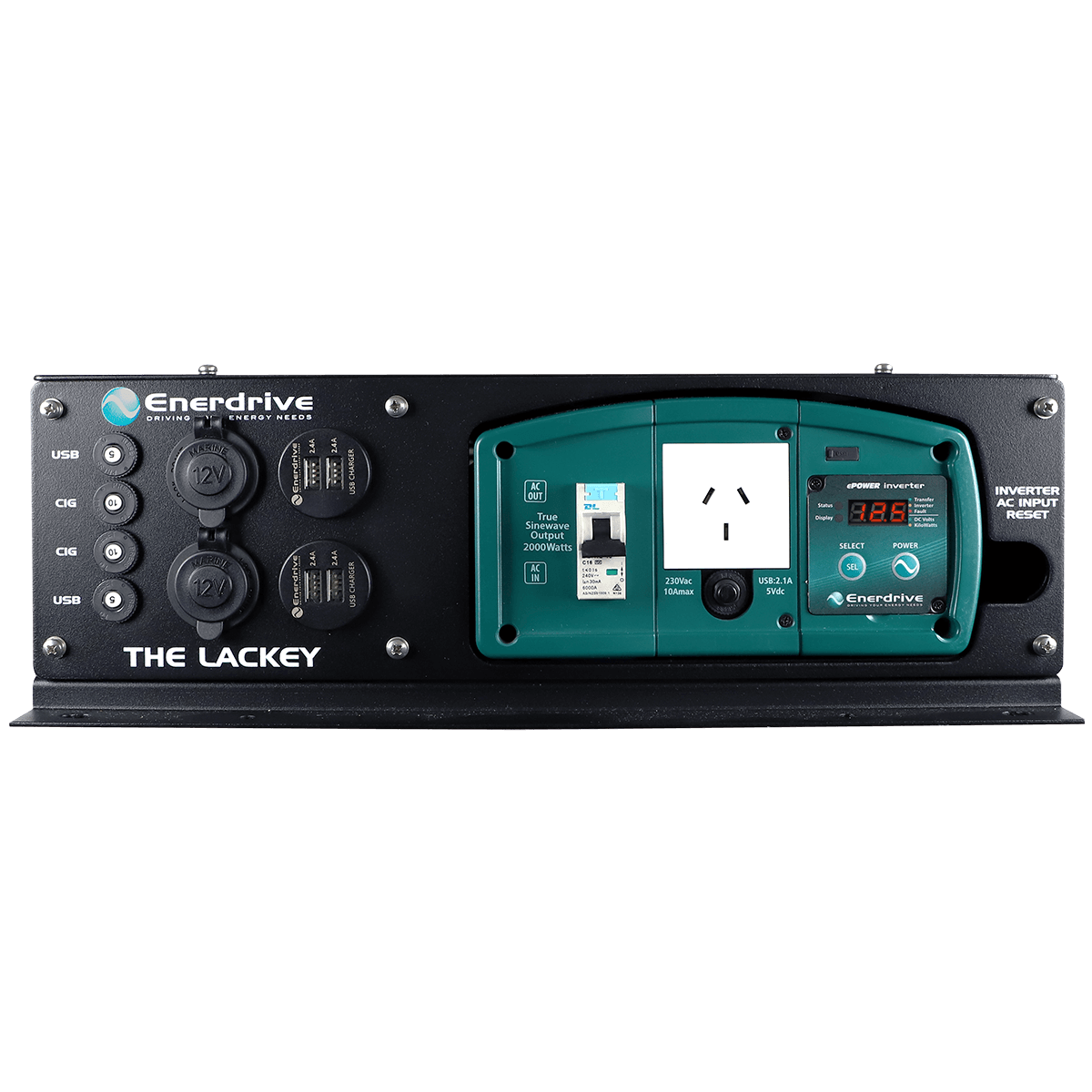

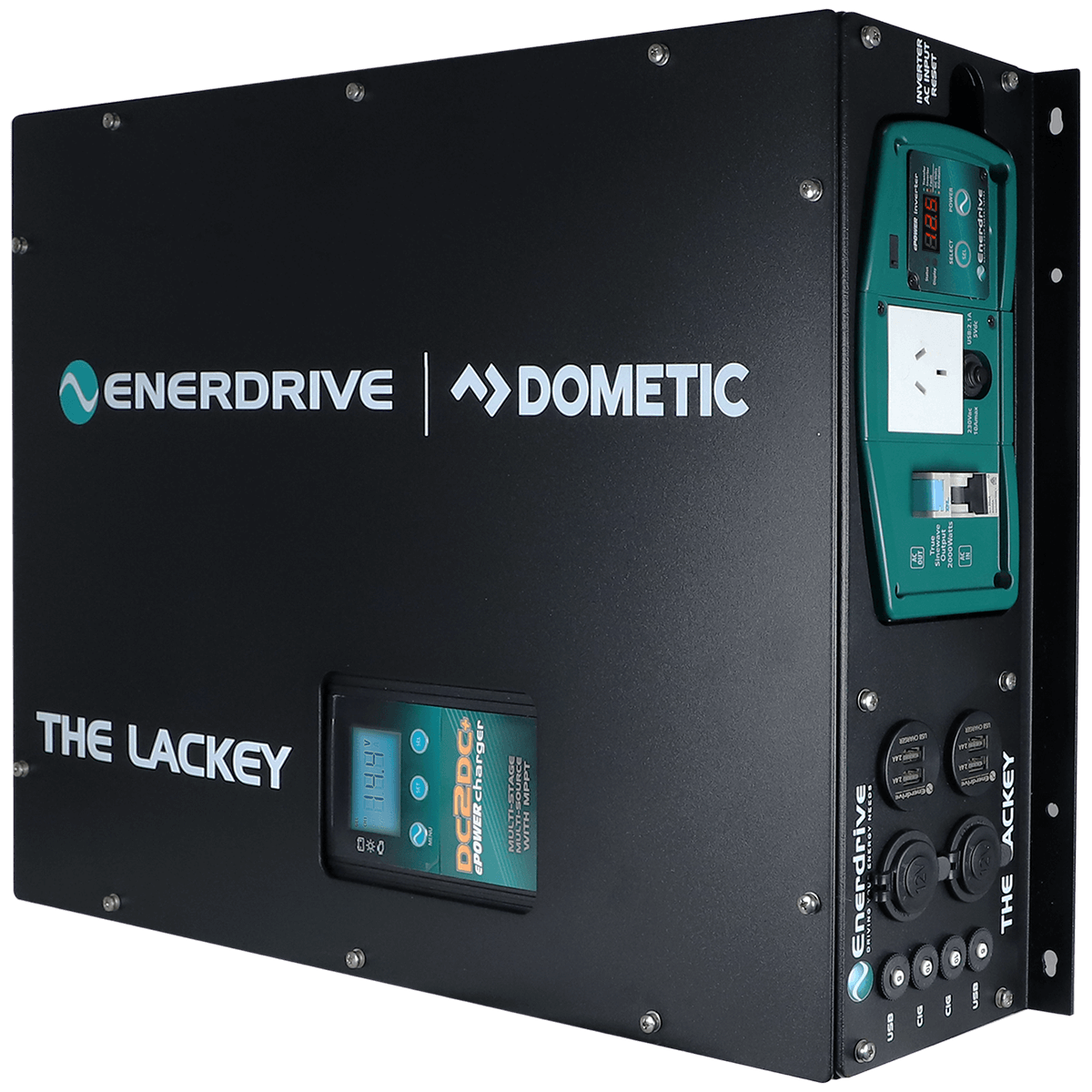

Enerdrive 2000W "The Lackey" Tradie Power System, Driver Side Installation

SKU: K-LACKEY-02 Learn More»
Enerdrive 2000W "The Lackey" Tradie Power System, Driver Side Installation
Free Shipping

K-LACKEY-02-DRIVER

$4,200
$4,595

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Learn More»
This product is built to order. Build time 4 weeks. Express Shipping Price Match Guarantee Customer Reviews

Product Description

Enerdrive 2000W "The Lackey" Tradie Power System, 2 Year Warranty. Need power onsite? Get The Lackey to do it. Designed around Enerdrive’s proven workhorses the DC2DC 40+ Charger and the 2000W AC Transfer Inverter, the Lackey is built into a super tough Aluminium and Powder Coated Box. Designed as a pure “Plug & Play” system for the Tradie wanting power wherever they are.

Simply bolt into place using the multiple mounting holes, which includes floor mounting plates. Then plug in your Battery, Solar Panels and Vehicle via the supplied Anderson plugs and it’s ready to go. Programming and monitoring  is done via the DC40+ screen, almost eliminating the need to access inside the box ever. All DC fusing is also taken care of by installed resettable Circuit breakers.

With an additional 12V Output Anderson plug which can be wired to an accessory panel for extra DC loads, every box has been ticked. There’s even an Ignition Sense Plug pre-wired for connection to vehicles with  smart alternators.

The Lackey is built into a unique compact box arrangement and designed to mount on either the front or rear bulkheads of the vehicles canopy or on the inside of the roof for that matter. The system is available in either passenger side or drivers side installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.

The Lackey is quite simply, a Super Tough, Super Compact and Super Simple  Solution with all the power you will ever need onsite, that weekend getaway or wherever the road takes you. All the power you need without any of the fuss put into a small package which will fit just about anywhere.

Need a power system that will work hard for you so you can about your business, then get the Lackey on the job.

Lackey System Battery and Charge Connections

Large Grey 175A Andersen Plug pre-fitted with 1m 70mm2 cable for battery connection. Red and Blue Anderson plugs pre fitted for Solar and Vehicle charge inputs. Spare Anderson plugs included for Battery, Vehicle and Solar connection.

 Compare the Enerdrive Power Systems below:

Items Included

K-Lackey-02

ePOWER DC2DC 40+ Charger (Vehicle/Solar)

*

Enerdrive 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch

*

2 x Cig Socket Outputs - User Selectable at time of order

*

2 x Dual USB 2.4A Output- User Selectable at time of order

*

Low Battery Cutout DC Loads 60A

*

Pre- Wired 175A Anderson Plug Battery Input with 1m of 70mm2 Battery Cable

*

ePOWER DC2DC Charger 60A Output Circuit Breaker

*

Enerdrive 2000W Inverter 200A Input Circuit Breaker

*

Load Output 50A Circuit Breaker

*

Push Button Circuit Breakers for DC Output Sockets/USB

*

Ignition Input for Smart Alternator Equipped Vehicles

*

3mm Aluminum Powder Coated Case Structure

*

Dimensions

590L x 415W x 135Dmm

Weight

Approx 15kg

(*) Indicates Standard Fitment



Wiring Diagram



Enerdrive ePOWER 12V 40A DC to DC Battery Charger:

Enerdrive ePOWER 12V 40A DC to DC Battery Charger designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

12V 40A DC2DC Battery Charger Features:

  • Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
  • DC M6 screw terminals that will allow for large battery cable connection between all sources
  • A dedicated Maximum Power Point (MPPT) solar regulator
  • The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
  • 40A output up to 40+°C with thermo controlled fan cooling
  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
  • Temperature sensor included in charger for more accurate battery charging

Enerdrive Product Brochure

Enerdrive Product Manual

For In Vehicle & Marine Wiring Diagram, click below:

Wiring Diagram

For Towed Vehicle Wiring Diagram, click below:

Wiring Diagram



Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch:

The Enerdrive ePOWER 2000W 12V Pure Sine Wave state of the art, easy to use inverter will offer you reliable service for providing AC power for your home, boat, 4WD, truck or Caravan.

The ePOWER 2000W Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. This inverter is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation.

Features

  • Seamless 16A AC Internal Transfer Switch
  • AC RCD/Safety Switch with test button
  • Removable LED Remote Control Display Panel
  • Regulated Pure Sine Wave Output
  • Silent Operation
  • Compact Size for Easy Installation
  • USB Port for charging USB devices
  • PS6 Mode
  • AC Transfer Cable
  • 5 year warranty
New PS Mode: ePOWER Enerdrive Inverters with AC Transfer Switch now include the new PS6 mode.

AC Transfer Cable Now Included as Standard: Now included with all AC Transfer Switch. Inverters is a 4 metre AC lead with molded Male/Female IEC Plugs fitted. This allows the installer to cut the lead and hardwire the IEC plugs directly. This will speed up installation time and eliminate any connection issues within the plug.

Enerdrive Product Brochure
Enerdrive Product Manual

Specifications

SKU K-LACKEY-02

Brand Enerdrive

GTIN 9342616000595

Warranty Period: 5 Years

Product Category Power Systems

Model EN3DC40+ (DC Battery Charger) | EN1120S-X (Inverter)

Wattage (W) 2000

Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger)

Under Voltage Shutdown 10.5 / 11.8 VDC (Inverter)

Charger Efficiency 95% (DC Battery Charger)

DC Output Single (DC Battery Charger)

Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations.

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC Battery Charger)

Over Voltage Shutdown 15.5 VDC (Inverter)

USB Socket Output 5V, 750 mA (Inverter)

Float 13.0V - 13.8V (DC Battery Charger)

Under Voltage Alarm Recovery 11.3 / 12.3 VDC (Inverter)

Equalize 15.5V (DC Battery Charger)

Under Voltage Shutdown Recovery 12.0 / 12.6 VDC (Inverter)

Under Voltage Alarm 11.0 / 12.1 VDC (Inverter)

Input Voltage 12.5 VDC (Inverter)

Dimensions 590 x 415 x 135 mm (L x W x D)

Net Weight (kg) 15

Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)


Videos

Enerdrive Canopy System Review: The Lackey



Guide to Choosing an Enerdrive Power System



Enerdrive Discusses Why Battery Cable Size Matters!



Introducing The Enerdrive Battery Charger Range



Product Q&A

Ask Us a Question
  • what size battery do you need for this kit to run the 2000w inverter?ThanksJason

    Hi Jason,

    You would require a minimum battery size of 200Ah to achieve the full 2000W from the inverter in this system.

  • With the lackey system you have advertised, does it come with an included battery and wiring harness or does it need to be purchased separately.
