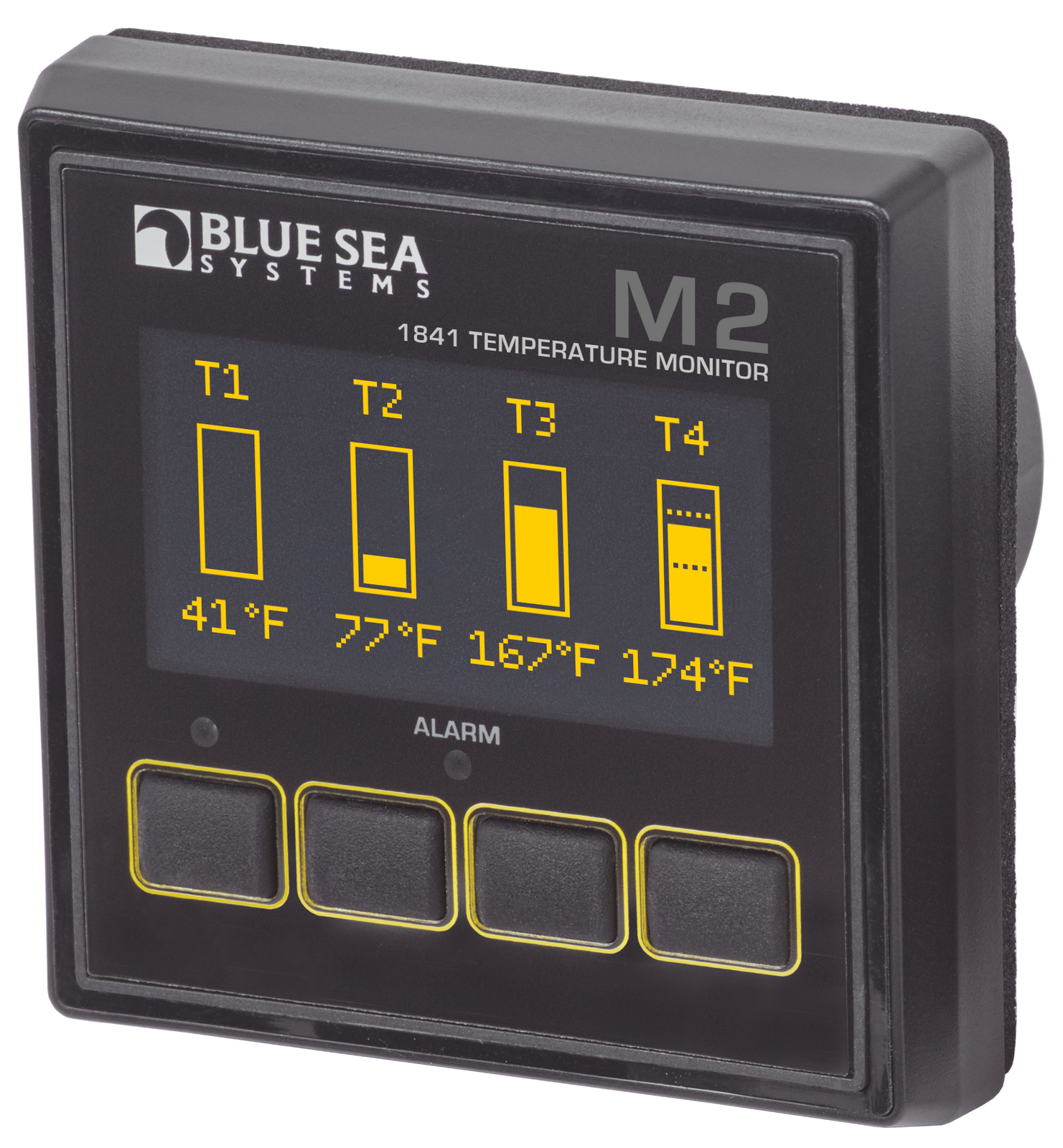

Blue Sea M2 OLED Temperature Monitor

Product Description

Blue Sea M2 OLED Temperature Monitor, 5 Year Warranty. The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

Features:

• Auto-dimming, bright Organic LED display is easy to read
• 80dB alarm on all models
• Isolated 500mA MOSFET relay
• Includes external DC Shunt or AC Current Transformer when required
• Versatile external temperature monitoring
• Monitor up to 4 temperature sensors
• Temperatures range from -40°C to 120°C (-40°F to 250°F)
• Measures in Fahrenheit or Celsius
• ABYC compliant for engine exhaust
• Waterproof temperature sensors included

Specifications:

• Meter: Temperature
• Function: Monitors Temperature
• Input Voltage: 7-70V DC
• Alarm/Relay Activation: High and Low Temperature
• Display Size: 55mm x 28mm
• Range: 0.3W-1.0W
• Sensor Locations: up to 4
• Temperature Range: -40°C – 120°C (-40°F – 250°F)
• Temp Sensor: 4 x PN 1821
• Weight: 1.81 kg

Drawing Dimension

Mounting Dimension
