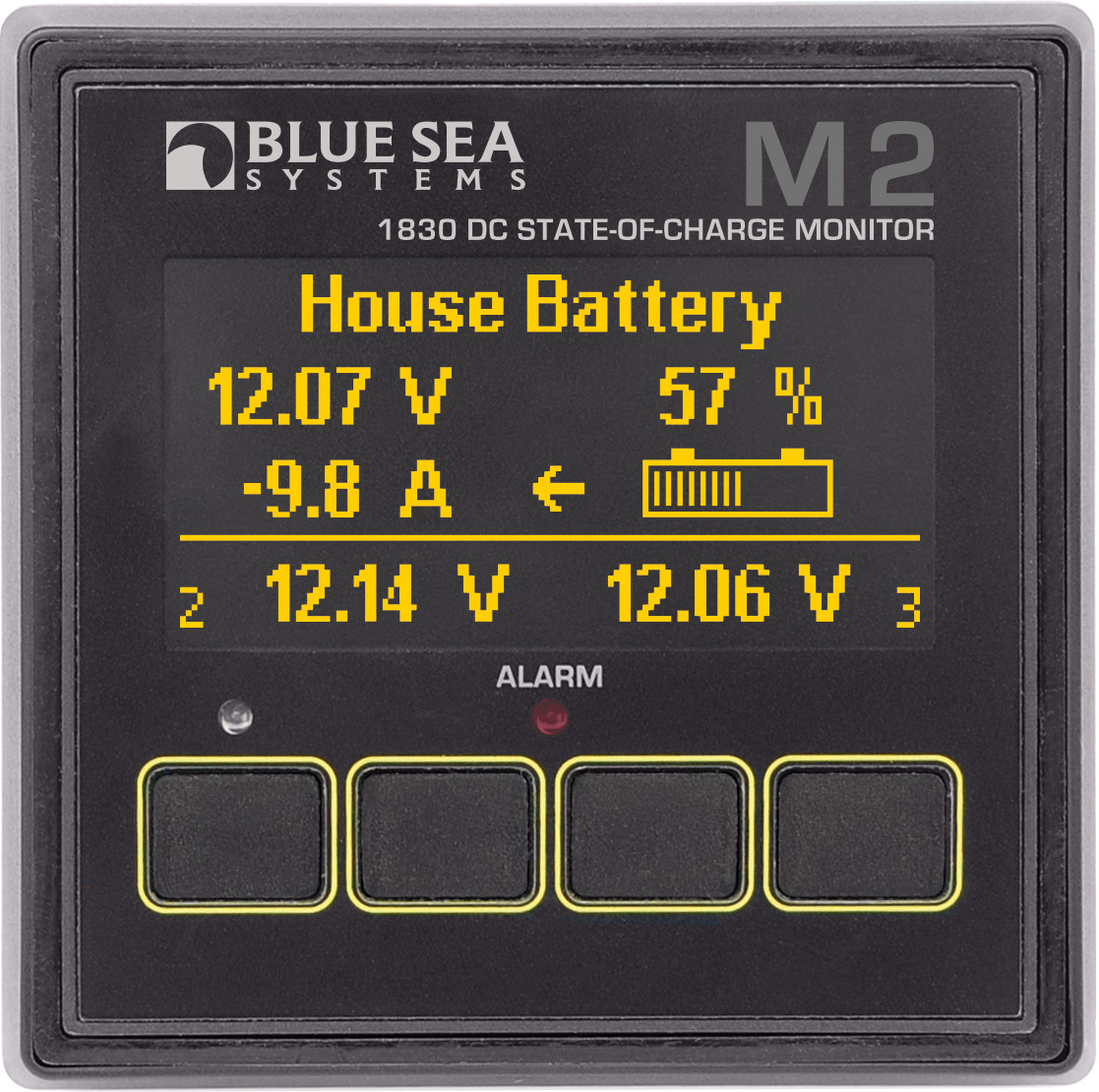

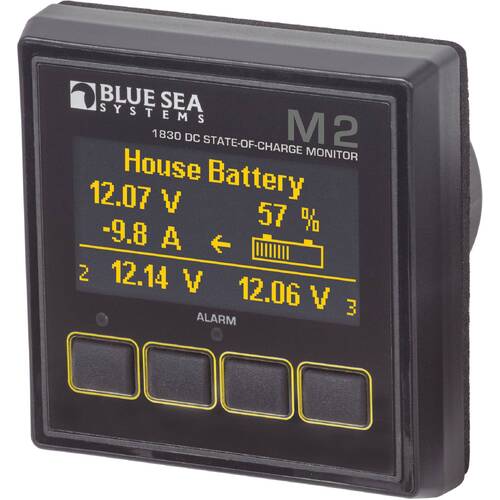

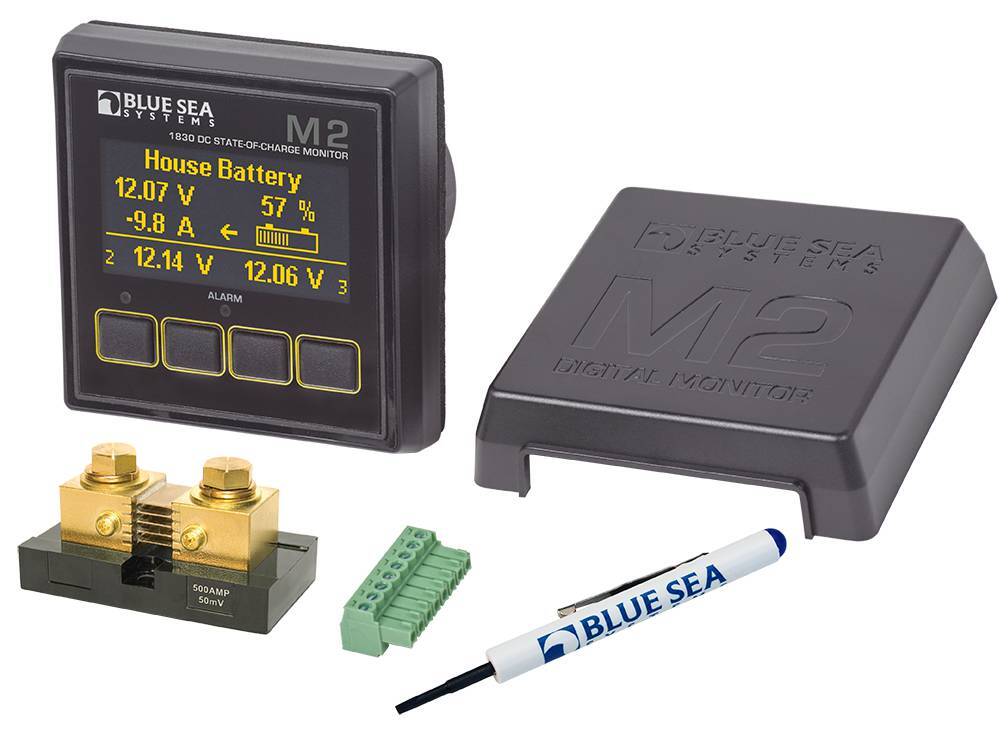

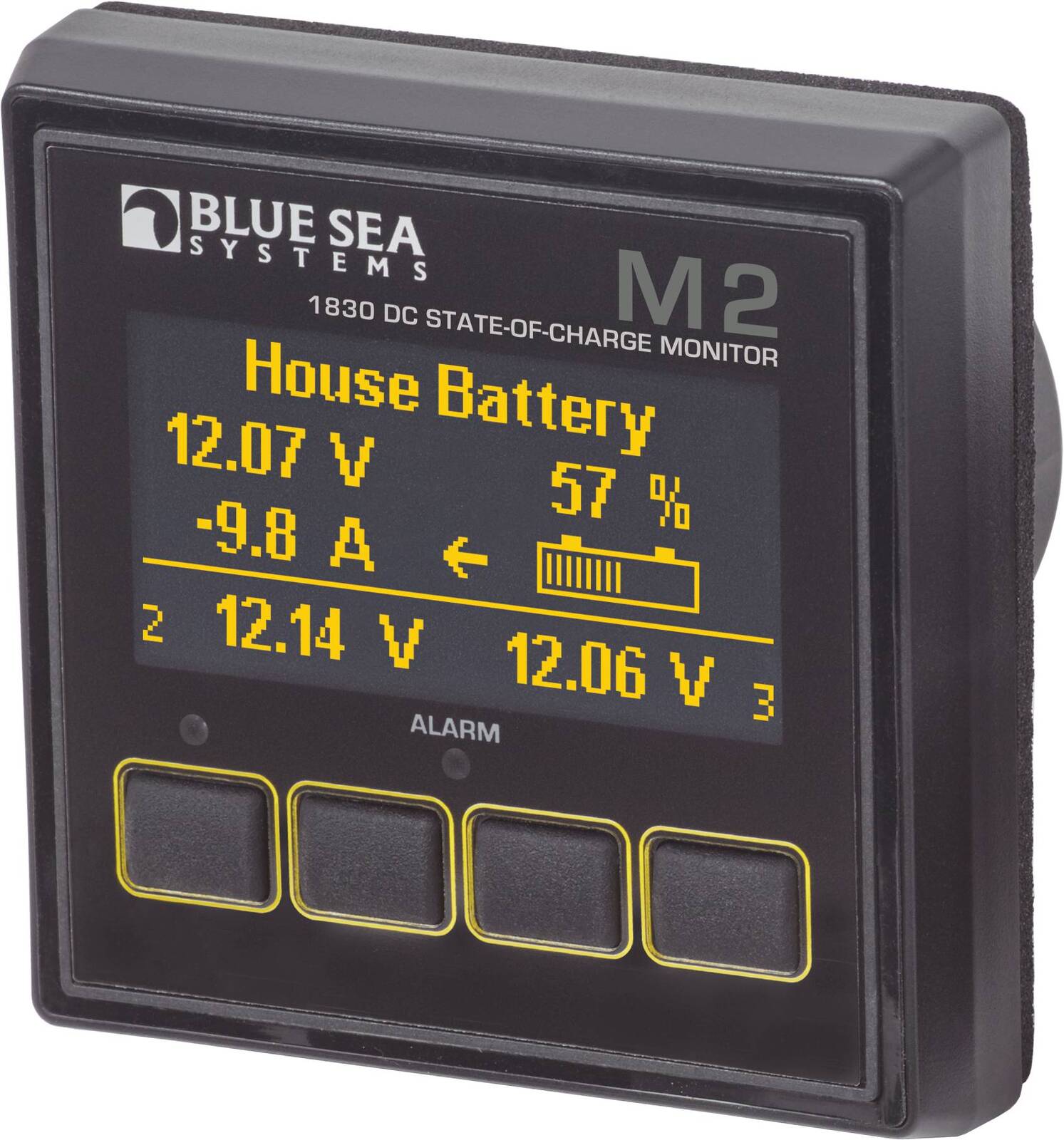

Blue Sea M2 DC OLED Multimeter Monitor with SoC

Product Description

Blue Sea M2 DC OLED Multimeter Monitor with SoC, 5 Year Warranty. Accurately measure and monitor the state-of-charge of your batteries. Supports programmable shunt ratios.

Features:

• Accurately measures and monitors State-of-Charge of 1 bank
• Measures 3 voltages and 1 current
• Supports programmable shunt ratios
• External relay activation

Specifications:

• Meter: Current, State-of-Charge,  Voltage
• Function: 8 to 70V to 5000A
• Maximum Voltage: 12V 24V 48V
• Resolution: 0.01V DC
• Input Voltage: 7-70V DC
• Alarms:High Current/ High/Low Voltage / Low Battery
• Current Range: -500 to 500A
• Display Size: 55mm x 28mm
• Maximum Power Consumption: 1.00 Watt
• Minimum Power Consumption: 0.3 Watt
• Voltage Accuracy: ± 1.0%
• Weight: 1.81 kg

Drawing Dimension

Mounting Dimension
