Vitrifrigo C75L 12/24V 75 Litre Fridge
SKU: 043562 Learn More»Product Description

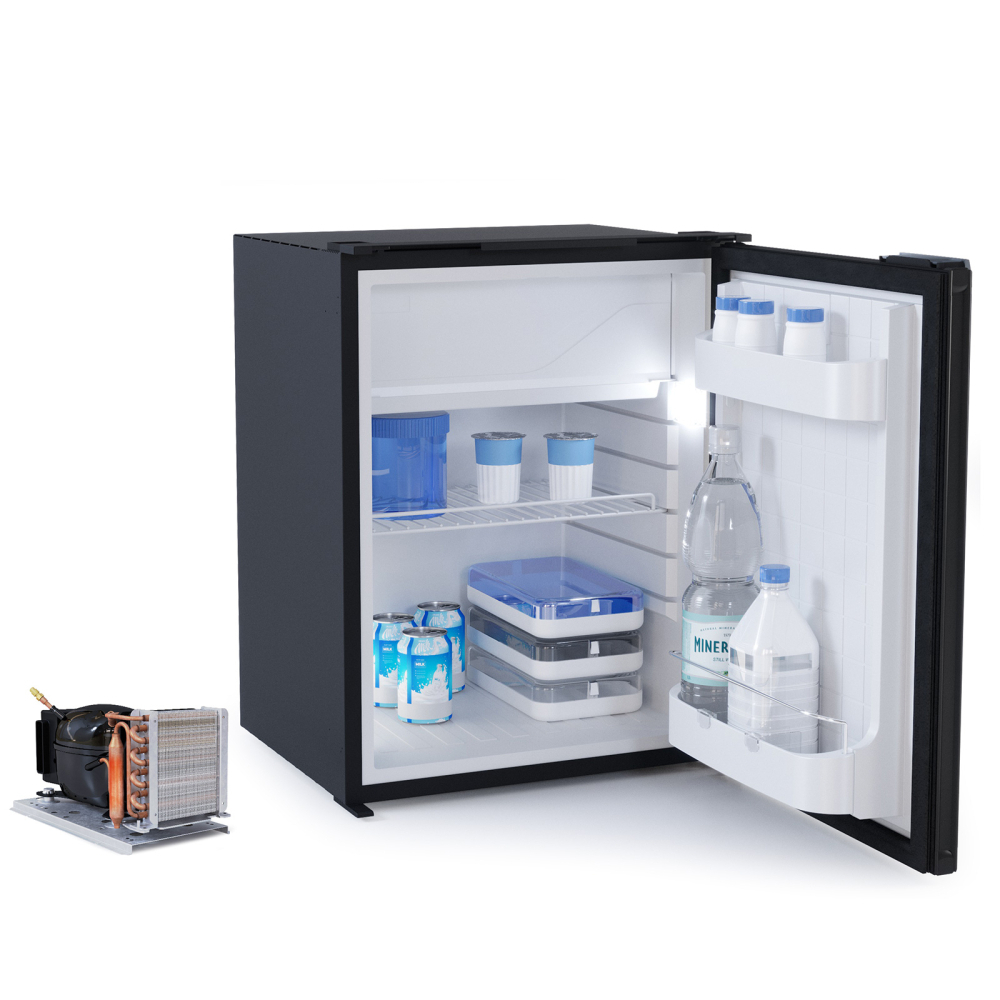

Vitrifrigo C75L 12/24V 75 Litre Fridge, 2 Year Warranty. Built in upright compressor driven fridge/freezer suitable for RV and marine use, complete with an air front operated lock so the door stays tightly sealed.

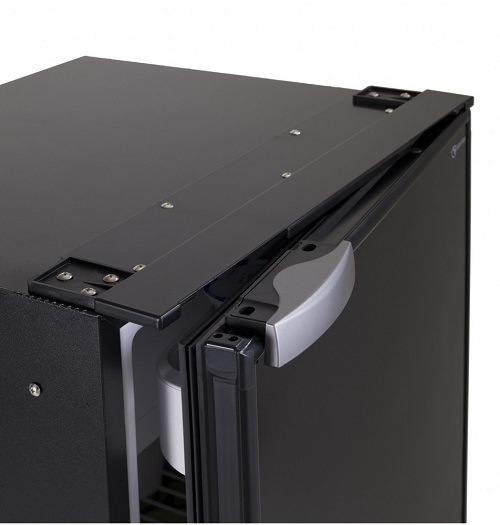

The new Airlock closure system has been designed to allow an easier access for the end user and integrate different features in order to offer an innovative product, extremely user-friendly.
4 Innovative Solutions:
- Positive door closure, to prevent unwanted openings;

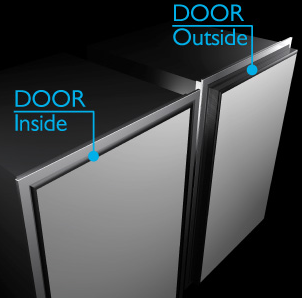

- Unique Double purpose mounting flange (optional), for both partial built-in (door outside) or total built-in (door inside);
- Fast reversible opening: thanks to its smart design, it's now extremely quick and easy to operate
- Integrated "vent position" system, to keep the fridge door ajar, preventing the formation of unpleasant odours and mould when not in use.
The new refrigerator/freezer series is available in two brand new colours,very popular and elegant at the same time.
Two available versions: Light bright tones of pearl grey, and Dark, with an emphasis on the contrasting colours. Two graphic interpretations that aim to enhance the design,shapes and textures of the materials used, to meet the different needs in terms of image and surroundings of the refrigerator.
Features:
- Airlock System. The optional flange can be added to the standard equipment
- Easy Custom. Panel customization is now easier with the new mounting flanges
- LED Light. High intensity new LED lighting system
Internal Freezer size: W370mm X D210mm X H110mm
Vitrifrigo Fridges are made in Italy and are backed by the Camec national service agent and spare parts network.
*Note: the compressor must be mounted horizontally.
Specifications
SKU 043562
Brand Vitrifrigo
GTIN 9339051008781
Warranty Period: 2 Years
Product Category Upright RV Compressor Fridges
Fridge Voltage 12 / 24 V
Product Type Compressor driven Built In Fridge-Freezer that operates on 12v DC or 24v DC power. Designed for Recreational Vehicles and Marine use.
Total Capacity (Litres) 75
Freezer Compartment (Litres) 10.2 Ltr

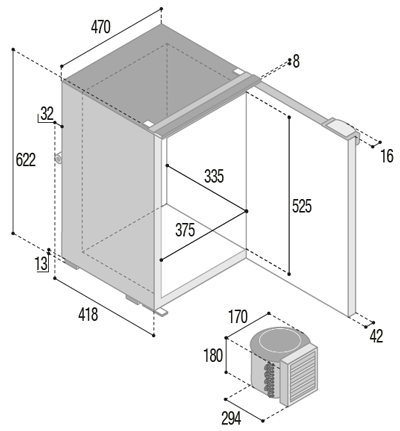

Fridge Depth (mm) 460
Fridge Width (mm) 470
Fridge Height (mm) 622
Cut Out Required Frame: 533 (w) x 659 (h) mm
Cut Out Required Door Inside (without frame): 485(w) x 623(h) x 456(d) mm
Cut Out Required Door Outside (without frame): 485(w) x 623(h) x 413(d) mm
Avg Power Consumption 40W
Voltage 12/24Vdc
Door Outside Dimensions 485(W) x 623(H) x 413(D)

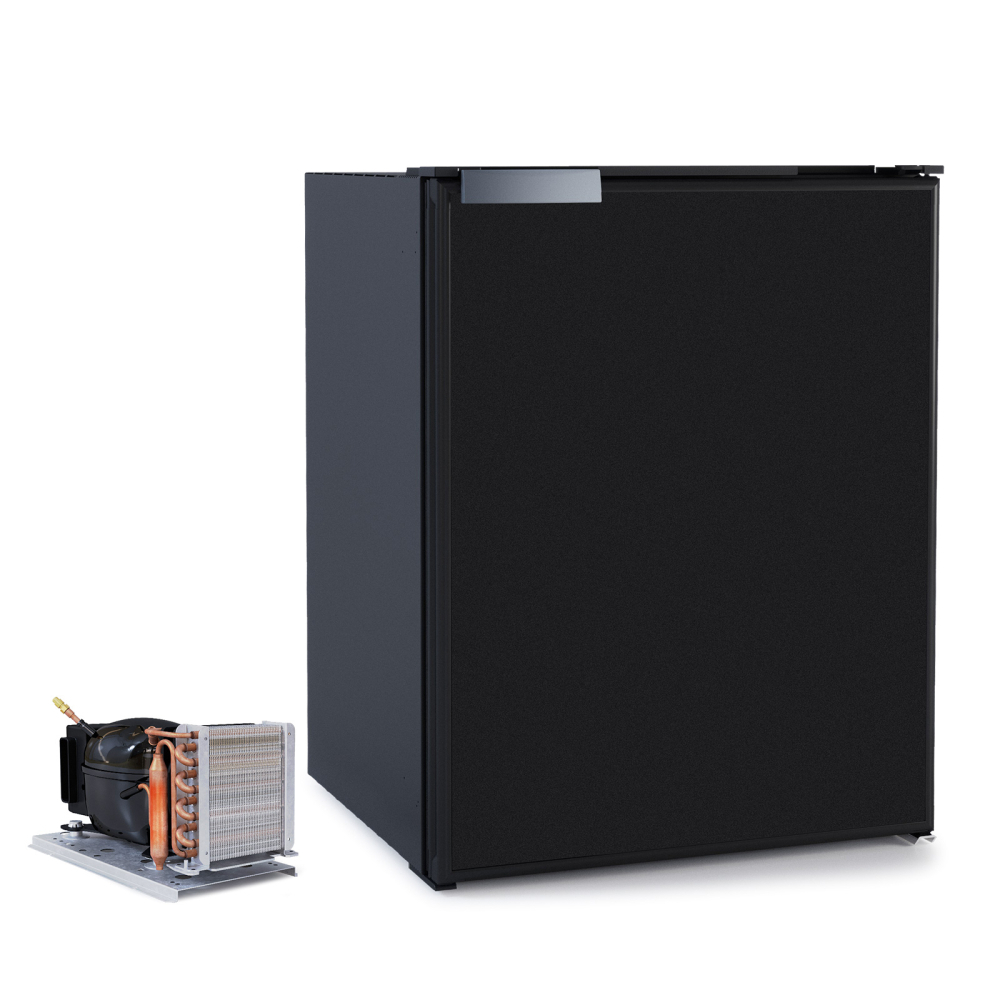

System External cooling unit which allow the compressor to be located in a cupboard or other spot to optimise use of space
Door Door Inside Dimensions: 485(W) x 623(H) x 456(D)
Installation Refer to the Product Manual / Installation Guide for installation instructions from the manufacturer. For optimal performance of RV compressor fridges
Power consumption (DC 12V) 2.8A
Popular Product Applications Caravan fridge, caravan fridge freezer, camper trailer fridge, upright compressor fridge, Vitrifrigo caravan fridge
Net Weight (kg) 20
Product Q&A
-
I'm down to a choice of 2 fridges - this being one of them.*How cold does the freezer go down too - is it a 'true' freezer?*Is the freezer removable?*Is the thermostat digital or mechanical?*Power usage is listed as 2.8A - i guess this is running 100%
Hi There,
These fridges come with a freezer compartment that is not removable. It should get down to about -16c.
These fridges have a mechnical thermostat.
The power consumption would be an average.
Airlock refers to the locking mechanism. This has been designed to make the fridge easier to open.
You cannot gain more space in the fridge when mounting it proud. This is just for how the fridge sits in the cabinetry. The door does not move.
Generally fitting a fridge in a 4WD should be okay. You need to make sure the fridge is mounted securely.
-
This question is about the external compressor unit.Can the unit be mounted in one place (say, to the left) and then change it to the right? I am worried about breaking the compressor line (made of copper, it seems). We need to use it provisionally unt
HI There,
You could do this if required.
These fridges are designed to allow the compressor to be mounted in a suitable location for your needs.
Any time the compressor is moved to a different location you need to take great care with the copper piping to prevent damage.
-
How can I assist with ventilation at the back of my Vitrifrigo?
Ventilation is the key to having a compressor fridge performing at it's best. Ensuring you have vents on the back outer wall of the caravan where the fridge is installed helps remove hot air produced from the compressor. Alternatively installing an extra 12v Fridge Fan near the compressor to push the hot air out the vents is also a great addition.
