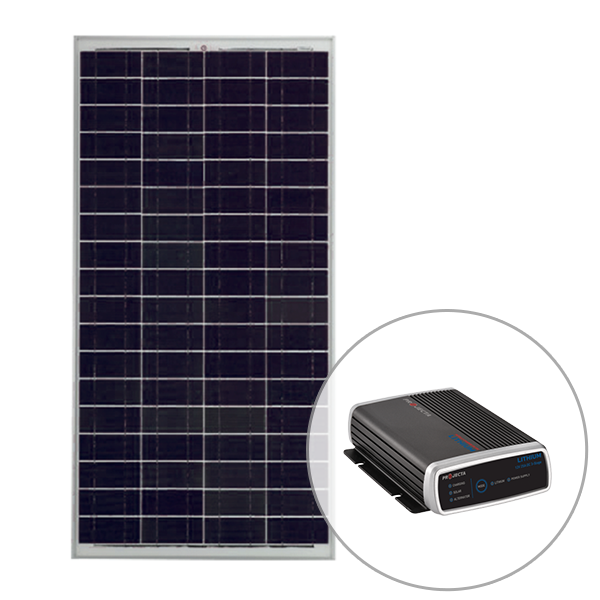

Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with 25Amp Lithium Charger

SPP160-MC4-IDC25L

$899

Save $599 (40%) off RRP of $1,498

FREE SHIPPING

Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

Projecta 12V 160W Polycrystalline Fixed Solar Panel with 25Amp Lithium Charger Pack, 1 Year Warranty.

Bundle Includes:

  • 1- 2 x Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with 25Amp Lithium Charger
  • 1 x Projecta 25A 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger

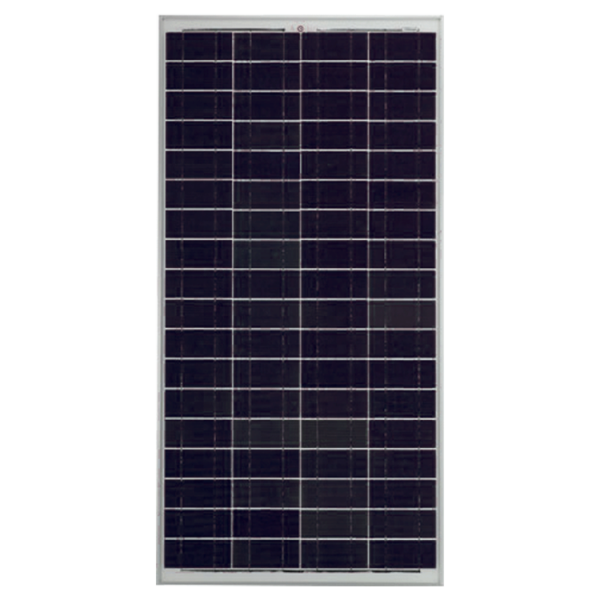

Projecta Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector.

Made for permanent mounting these panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances.

Features:

  • MC4 connector: Standardised MC4 connector fitted for ease of installation where MC4 connectors are used
  • Tempered low iron glass: Provides better impact resistance and improved light transmission
  • Heavy duty frame: Superior strength and durability



Projecta Product Manual

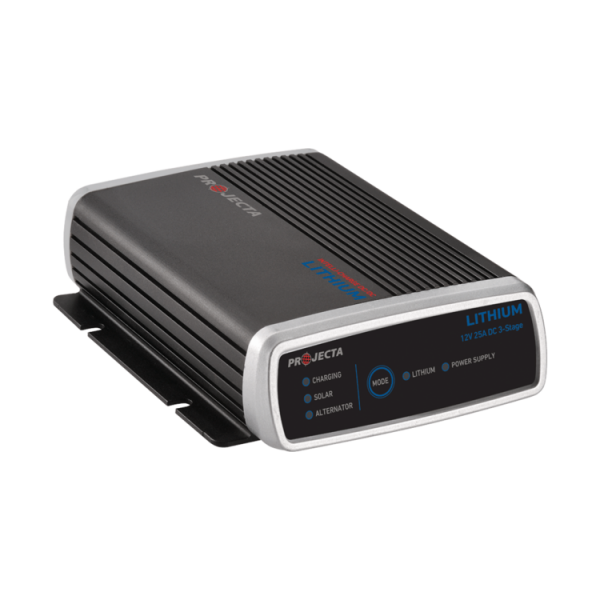

Projecta 25A 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger.

An advanced DC/solar battery charger engineered for todays sophisticated lithium iron phosphate batteries.

Features:
  • Lithium charging technology:

    Engineered for use with todays advanced lithium battery technology
  • Engine bay installation: Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
  • Dual charging modes: Engineered to work with both smart and conventional alternators
  • Dual input operation: Simultaneous dual battery charging from both solar and alternator inputs
  • Total safeguard protection: Over temperature, reverse connection, over/under and spark free protection

Dual input operation:

Simultaneous dual battery charging from both solar and alternator inputs (9–32V) with no manual switching required. The unit prioritises solar charging as its default and automatically adjusts to the alternator if sunlight is insufficient, reducing the power usage placed on the vehicle’s electrical system.

Dual charging modes:

Engineered to work with both smart and conventional alternators. The introduction of smart alternators has resulted in many conventional dual battery systems being ineffective. The advanced switch-mode technology of the IDC range enables greater efficiency, exceeding 94% at typical full load conditions, converting your vehicles alternator power to a more complete charge.

25A solar MPPT:

Using sophisticated Maximum Power Point Tracking (MPPT) solar regulator technology, the IDC range of chargers operate as advanced solar controllers, maximising the power generated from the panels to provide a comprehensive and total charge to your auxiliary battery.

Multi-chemistry charging:

The IDC range of chargers suit todays different battery technologies, including everyday automotive batteries and the newer Lithium battery technology. For automotive batteries, multi-chemistry technology enables the user to tailor the charging profile to suit the battery type: Lithium Iron Phosphate batteries only.

Multi-stage charging:

Utilising sophisticated electronics, the IDC range of DC/SOLAR chargers provide an advanced multi-stage charging process to produce a safe and comprehensive charge, a must for deep cycle and lithium batteries.


Projecta Manual

Specifications

SKU IDC25L-Solar

Brand Projecta

Warranty Period: 1 Year

Product Category Solar Packs

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Polycrystalline (Solar Panel)

Wattage (W) 160

Temperature range -10°C to +80°C (Battery Charger)

Back Current Drain 9.5-10.5mA (on AUX Battery)

Charger Type 5 Stage (Battery Charger)

Input Voltage 9-32VDC (Battery Charger)

Voltage 12V DC

Output System Voltage 9-32V (Battery Charger)

Popular Product Applications Caravan solar panels, caravan solar panel kit, RV solar panels, campervan solar panel kit, 4WD solar panels

Dimensions 1490mm x 665mm x 35mm (Solar Panel) | 149 x 122 x 42 mm (L x W x H) (Battery Charger)

Battery Capacity 75-300Ah (Battery Charger)

Note Supported: Lithium Iron Phosphate (LiFePO4)
