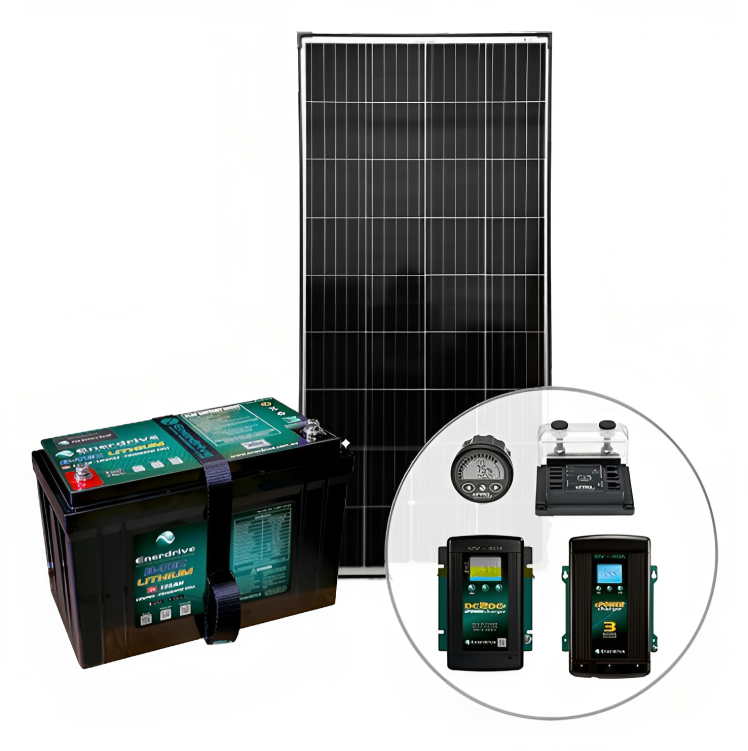

Enerdrive 125Ah Canopy Solar Bundle with 1 x 190W Solar Panel

Enerdrive 125Ah Canopy Solar Bundle with 1 x 190W Solar Panel

Canopy-Solar1

Q&A

$3,079

Save $898 (23%) off RRP of $3,977

FREE SHIPPING

Call 1300 400 122
Add To Wishlist
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews
Go to: Product Details
Go to: Specifications

Product Description

Enerdrive 125Ah Canopy Solar Bundle with 190W Solar Panel, 5 Year Warranty.  Introducing the ultimate power solution tailored for 4x4 canopy builds and off-grid touring adventures in your trusty 4x4. The Enerdrive 125Ah Canopy Solar Bundle is meticulously crafted to meet the rugged demands of off-road exploration while providing reliable, efficient power wherever your journey takes you.

Bundle Includes:

  • EPL-125BT-12V - Enerdrive B-TEC 125Ah Lithium Battery
  • EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
  • EN55050 - Enerdrive ePRO PLUS Battery Monitor
  • EN31240 - Enerdrive 40A AC Battery Charger

Optional Solar Panels:

  • 1 x SP-EN190W-B - Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black
  • 2 x SP-EN190W-B - Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black

Enerdrive B-TEC 125Ah Lithium Battery (with 5-Year Warranty)

At the core of this bundle lies the Enerdrive B-TEC 125Ah Lithium Battery, engineered to deliver unmatched performance in challenging environments. With smart monitoring technology accessible via your smartphone or tablet, you can effortlessly keep track of vital battery metrics on the go. The compact and lightweight design of the B-TEC battery ensures maximum power in minimal space, perfect for canopy builds where every inch counts.

Enerdrive 40A DC to DC Battery Charger

Designed for the rigors of off-road travel, the Enerdrive 40A DC to DC Battery Charger provides versatile charging options to keep your power system running smoothly. Whether you're navigating rough terrain or soaking up the sun at camp, this charger seamlessly adapts to charge your battery bank from your vehicle's alternator or solar panels. With customizable features and smart load-based regulation, you can tailor your charging preferences for optimal performance during your off-grid adventures

Enerdrive ePRO PLUS Battery Monitor (with 5-Year Warranty)

Stay in complete control of your power system with the Enerdrive ePRO PLUS Battery Monitor. Offering real-time data on battery status, this advanced monitor ensures you're always informed and empowered to make the most of your power resources. With support for multiple battery banks and compatibility with both lead-acid and lithium batteries, the ePRO PLUS is the ideal companion for off-road enthusiasts seeking reliability and convenience.

Enerdrive 190W Mono Crystalline Fixed Solar Panel

Maximize your solar input with the Enerdrive 190W Mono Crystalline Fixed Solar Panel. Available in single or dual configurations, these panels offer high conversion efficiency and reliable performance even in harsh outdoor conditions. Choosing two panels doubles your solar input, ensuring ample power for extended off-grid excursions and keeping your adventures going strong.

Experience the freedom of off-grid touring with the Enerdrive 125Ah Canopy Solar Bundle. Engineered for 4x4 canopy builds and tailored to the demands of off-road exploration, this bundle delivers the power, reliability, and flexibility you need to conquer any terrain and embrace the thrill of adventure.

Bundles Canopy-Solar1 Canopy-Solar2
EPL-125BT-12V * *
EN3DC40+ * *
EN55050 * *
EN31240 * *
SP-EN190W-B 1 x Panel 2 x Panels

Battery Information:

Enerdrive Product Manual

DC Charger Information:

Enerdrive Product Manual

AC Charger Information:

Enerdrive Product Manual

Monitor Information:

Enerdrive EN55050 EPRO Plus Product Manual
Solar Panel Information:
Enerdrive Product Card
Go to: Product Details
Go to: Videos

Specifications

SKU Canopy-Solar

Brand Enerdrive

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (ah) 125

Battery Length (mm) 318

Battery Width (mm) 165

Battery Height (mm) 232

Battery Weight (kg) 15.5

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 190

Watts (W) 380

DC Charger Output Current Rating (Amps) 40

AC Charger Output Current Rating (Amps) 40

Nominal Voltage 12.8V (Battery)

Nominal Capacity 125Ah (Battery)

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)

Battery Charge Temperature 0 ̴ 45°C (Battery)

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)

Maximum Charge Current 60A @ 25°C for 30mins (Battery)

Recommended Charge Current for Maximum Life 20~60A

Battery Discharge Temperature -20 ̴ 60°C (Battery)

Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)

Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (Battery)

Pulse Discharge Current 450A for 1.0s (Battery)

Discharge Cut-off Voltage ≤11.20V (Battery)

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Battery Manual Reset Button Yes

Discharge Over Current 110A for 30s – 450A for 1s

Protection Reset Time Approx 10s Auto Release

Over Current Release Method Disconnect Load

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH


Go to: Specifications
Go to: Reviews

Videos

Enerdrive B-TEC Lithium Batteries - Part 1 - Application



Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications



Enerdrive B-TEC Lithium Batteries - Part 3 - Installation



Enerdrive B-TEC Lithium Batteries - Part 4 - Settings



Enerdrive B-TEC Lithium Batteries - Part 5 - Operation



Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding



Enerdrive DC2DC Chargers - Part 1 - Overview



Enerdrive DC2DC Chargers - Part 2 - Specifications



Enerdrive DC2DC Chargers - Part 3 - How to Install



Enerdrive DC2DC Chargers - Part 4 - How to Install (Smart Alternator)



Enerdrive DC2DC Chargers - Part 5 - How to Program Settings



Enerdrive DC2DC Chargers - Part 6 - How to Operate Your Charger



Customer Review Of The Enerdrive 180W Solar Panel



The Best Caravan Battery?



What Will My Camping Battery Run?



Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel



How To: Resetting A Flat Enerdrive BTEC or eLITE Battery



Enerdrive 125Ah Lithium Battery Customer Review



Must Know Features of the Enerdrive ePRO Plus Battery Monitor



Aussie Van Adventures Review Caravan Solar Panels by Enerdrive


Go to: Reviews
Go to: Warranty

Product Q&A

Ask Us a Question
Go to: Q & A
Go to: Delivery

Warranty

For details relating to this product's warranty CLICK HERE

Go to: Warranty
Go to: Delivery

Delivery

    For details relating to our delivery process CLICK HERE
