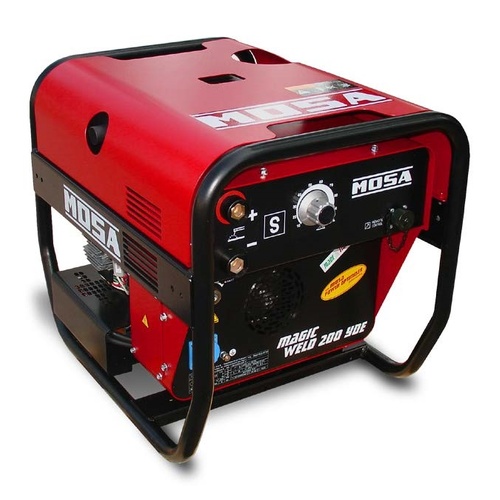

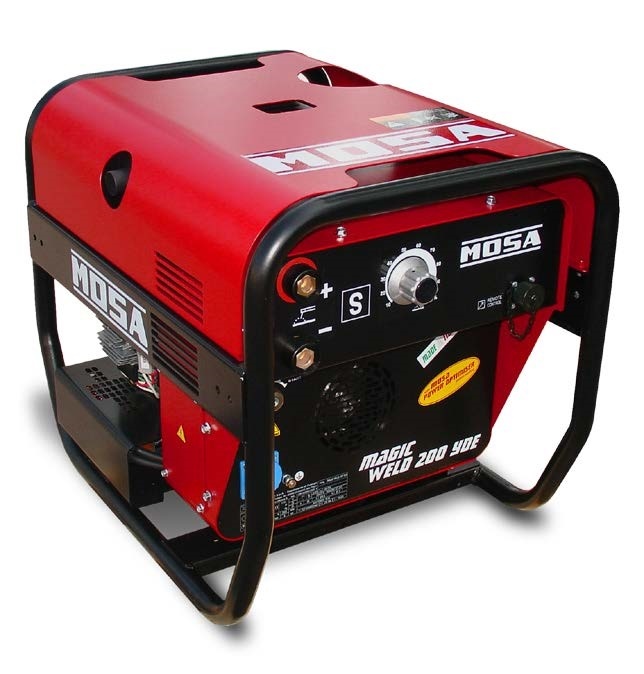

Mosa 3.3kva Yanmar Diesel 200A DC Welder Generator MAGIC WELD 200
Product Description
Mosa 3.3kva Yanmar Diesel 200A DC Welder Generator, 2 year warranty
Attributes:
- Fuel: Diesel
- Phase: 1 Phase
- Engine Speed: 3600 RPM
- Welding Current: 200 Amps
- Prime Kva: 3.3
- Process: Conventional (Stick)
- Fuel Tank: 3.1L
Features:
- Arc welding source in D.C. welding
- Welds any type of electrode, including cellulosic
- High frequency control of welding current and voltage
- Single-Phase, 50Hz aux current, inverter generated
- Electric starter
- Low oil pressure automatic engine shut down
- MOSA Power optimiser (patent pending)
- Auto Idle
- Protective frame
- Meets EC directives
Specifications
SKU C0EF6000
Brand Mosa
Warranty Period: 2 Years
Product Category Portable Generators
kVA 3.3
Max Output (kW) 3
Continuous Output (kW) 2.7
Max Output (Watts) 3000
Continuous Output (Watts) 2700
Model MAGIC WELD 200 YDE 230AC (Elec. Start)
Phase Single
Fuel Diesel
Fuel Tank Capacity 3.3 L
Starting Method Recoil
Displacement 320 cm3
Alternator Type permanent magnet, self-excited, brushless
Product Dimensions (mm) LxWxH 630 x 480 x 540
Engine Yanmar L70N
Cylinders (q.ty) 1
Engine Horsepower 3600 rpm
Engine Type 4-Stroke
Fuel Consumption 1.0 l/h (Welding 60%)
Frequency 50Hz
Voltage 70 V
Net Weight (kg) 72
Running Time (Rated Output) 3.3 h (Welding 60%)
NOTE Product specifications provided by Manufacturer. This is a portable air-cooled diesel generator designed for short term/standby applications - for pri
Outlets 1 x 15A 1Ph
Duty Cycle 170 A - 60%
Engine Features direct injection, air cooled
