Product Description

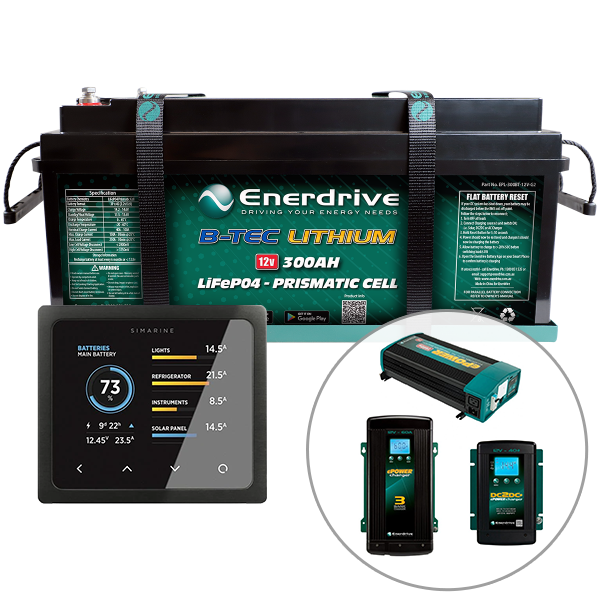

Enerdrive ePOWER B-TEC 300Ah Lithium Battery, 40A DC2DC + 60A AC + Inverter & Simarine Monitor, 5 Year Warranty.
Pack Includes:
- Enerdrive ePOWER B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2
- Enerdrive DC2DC Battery Charger - 12V 40A, EN3DC40
- Enerdrive, ePOWER 12V 60A AC Fully Automatic Multistage Battery Charger, EN31260
- Simarine Pico+ Display Panel Mount Black, SI-PICO-3
- Simarine Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp, SI-SC303
- Simarine by Enerdrive Quad Shunt Mod 4 x 50A Input Current & 1 x Relay Output 1A, SI-SCQ50
- Option of Inverter: EN1120S-X - ePOWER 2000W Inverter with RCD & AC Transfer Switch - This unit is on backorder and will ship separately in early December; or EN1226S-X - ePOWER 2600W Sine Wave Inverter with RCD & AC Transfer Switch
Enerdrive ePOWER B-TEC 300Ah Lithium Battery.
Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
Key Features:
- New design BMS
- Max discharge current 250A (15mins) - 200A continuous
- Max charge current 190A (30mins)
- Can be connected in parallel (up to 4 batteries)
- Built in flat battery reset button
- Includes mounting tray and 2 straps
- Communication ports (RS485) for future integration
- 5 year warranty & lifetime tech support
Smart Phone Monitoring System
The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities:
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium G2 = 320Ah AGM
- 300Ah Lithium G2 = 480Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
The New Generation 2 B-TEC
So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.
Dimension Original Generation 2
Length | 519mm | 521mm |
Width | 273mm | 280mm |
Height | 222mm | 253mm |
Also included for free is a metal battery tray and hold down strap to complete the installation process.
The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.
The New Enerdrive Generation 2 (G2) B-TEC 300Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.
With over 8 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
Please Note; The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.
Enerdrive ePOWER 12V 40A DC to DC Battery Charger.
It designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.
During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.
12V 40A DC2DC Battery Charger Features
- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in Enerdrives AC mains ePOWER battery charger including a specific lithium charging profile
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included in charger for more accurate battery charging
PRO TIPS:
- Common accessories to go with this DC to DC charger are the 60Amp & 70Amp breakers, also the 3 pre-wired & fused charging cables. These are available in the Accessory List above to add as optional extras, please see the product manual & drawings for the connection.
- You will require a ratchet crimping tool for this cable kit. PLEASE CLICK HERE to find our tool range.
Multistage Charging Process
The ePOWER DC2DC+ Battery Charger is a fully automatic, set and forget charger. It is designed to quickly and accurately recharge your deep cycle batteries utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.
The ePOWER DC2DC+ Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery bank permanently. With the input of multiple sources, you can be assured of charging your batteries whenever underway; or when the sun is shining on your solar array.
As dictated by battery manufacturer’s recommendations, deep cycle batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive ePOWER DC2DC+ smart charger delivers three primary charge stages.
Stage 1 – Bulk or Boost charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery is recovered as fast as possible.
Stage 2 – Absorption Charge; With the charger voltage held steady, the remaining 20% is replaced with the charger allowing the current to taper off as the battery approaches full charge.
Stage 3 – Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged, yet allows the charger to supply enough current to make up for the self-discharge losses of the battery, while supporting any additional loads connected to the battery (such as DC lighting and refrigerators). This stage allows for the charger to be used as a DC power supply.
Smart Charging Feature
The ePOWER DC2DC+ Battery Charger will regulate its output based on the loads connected to your battery bank. This function is important to maintain the life of your battery bank as some battery chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption stage for extended periods of time, which will damage the battery bank. The ePOWER DC2DC+ Battery Charger has two methods of load based regulation to ensure your battery charger transitions to float when it should do so.
Maximising your Solar Harvest using the DC2DC+
The Solar Input on the DC2DC+ unit has a maximum rated INPUT current of 30amps. This means it is optimised for using higher voltage ‘grid’ type modules for best output performance. The maximum achievable output using standard 20Voc solar modules will be approx 35amps @ 14.4Vdc.
Panel Array | Rated Wattage & Volts | Open Circuit Rating | Estimated DC Amps Output (## See Below) |
1 | 150watt @ 20Voc | 150watts | 10 |
1 | 200watt @ 43Voc | 200watts | 13 |
2 | 150watt @ 20Voc | 300watts | 21 |
2 | 200watt @ 43Voc | 400watts | 27 |
3 | 150watt @ 20Voc | 450watts | 31 |
3 | 200watt @ 43Voc | 600watts | 42 |
4 | 150watt @ 20Voc | 600watts | 35* |
4 | 200watt @ 43Voc | 800watts | 47** |
5 | 150watt @ 20Voc | 1000watts | Not Recommend |
5 | 200watt @ 43Voc | 1000watts | Not Recommend |
* Maximum achievable output on the DC2DC+ unit when using 20Voc Solar Panels will be the approx 35amps. ** Maximum achievable output on the DC2DC+ unit when using 43Voc Solar Panels will be the approx 47amps.
## IMPORTANT NOTE: Estimated Amps Output is quoted based upon PERFECT Solar conditions including Sun Angle, Panel Mounting angle and Orientation to the sun. It needs to be noted that panel performance alters dramatically between Summer and Winter periods and actual performance may be impossible to predict.
Click here for this DC to DC Charger with a full wiring kit, including resettable circuit breakers!
For In Vehicle & Marine Wiring Diagram, click below:
For Towed Vehicle Wiring Diagram, click below:
Enerdrive ePOWER 12V 60A AC Fully Automatic Multistage Battery Charger.
It is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.
As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.
The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).
60A Battery Charger Features:
- Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 60A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 3 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support.
Enerdrive ePOWER 2000W 12V Pure Sine Wave
It is astate of the art, easy to use inverter will offer you reliable service for providing AC power for your home, boat, 4WD, truck or Caravan.
The ePOWER 2000W Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. This inverter is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation.
Features
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
- 5 Year warranty
AC Transfer Cable Now Included as Standard: Now included with all AC Transfer Switch. Inverters is a 4 metre AC lead with molded Male/Female IEC Plugs fitted. This allows the installer to cut the lead and hardwire the IEC plugs directly. This will speed up installation time and eliminate any connection issues within the plug.
Enerdrive ePOWER 2600W 12V Pure Sine Wave
It is a state of the art, easy to use inverter will offer you reliable service for providing AC power for your home, boat, 4WD, truck or Caravan.
The ePOWER 2600W Enerdrive Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. This Enerdrive inverter is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation.
Features
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
New PS Mode: ePOWER Enerdrive Inverters with AC Transfer Switch now include the new PS6 mode.
AC Transfer Cable Now Included as Standard: Now included with all AC Transfer Switch. Inverters is a 4 metre AC lead with molded Male/Female IEC Plugs fitted. This allows the installer to cut the lead and hardwire the IEC plugs directly. This will speed up installation time and eliminate any connection issues within the plug.

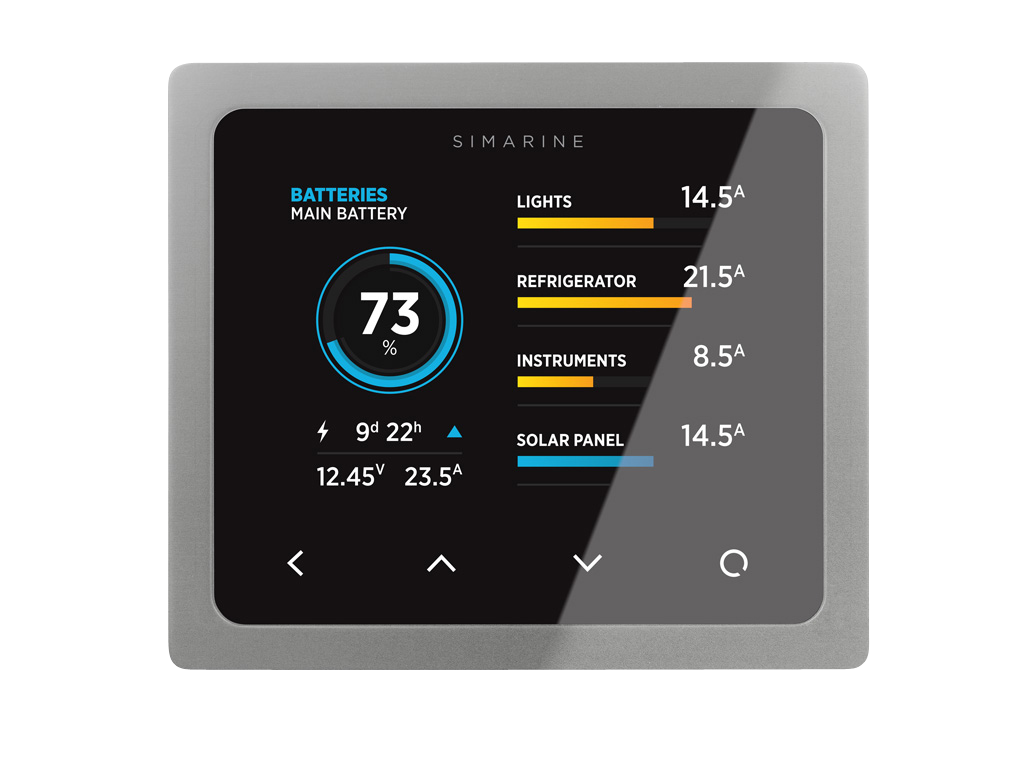

Simarine Pico+ Display Panel Mount Black.
SIMARINE PICO sets new standards for marine battery and tank monitors in fields of design, functionality, connectivity and ease of use.
PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons.
The Pico system provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also tank level and temperature indications.

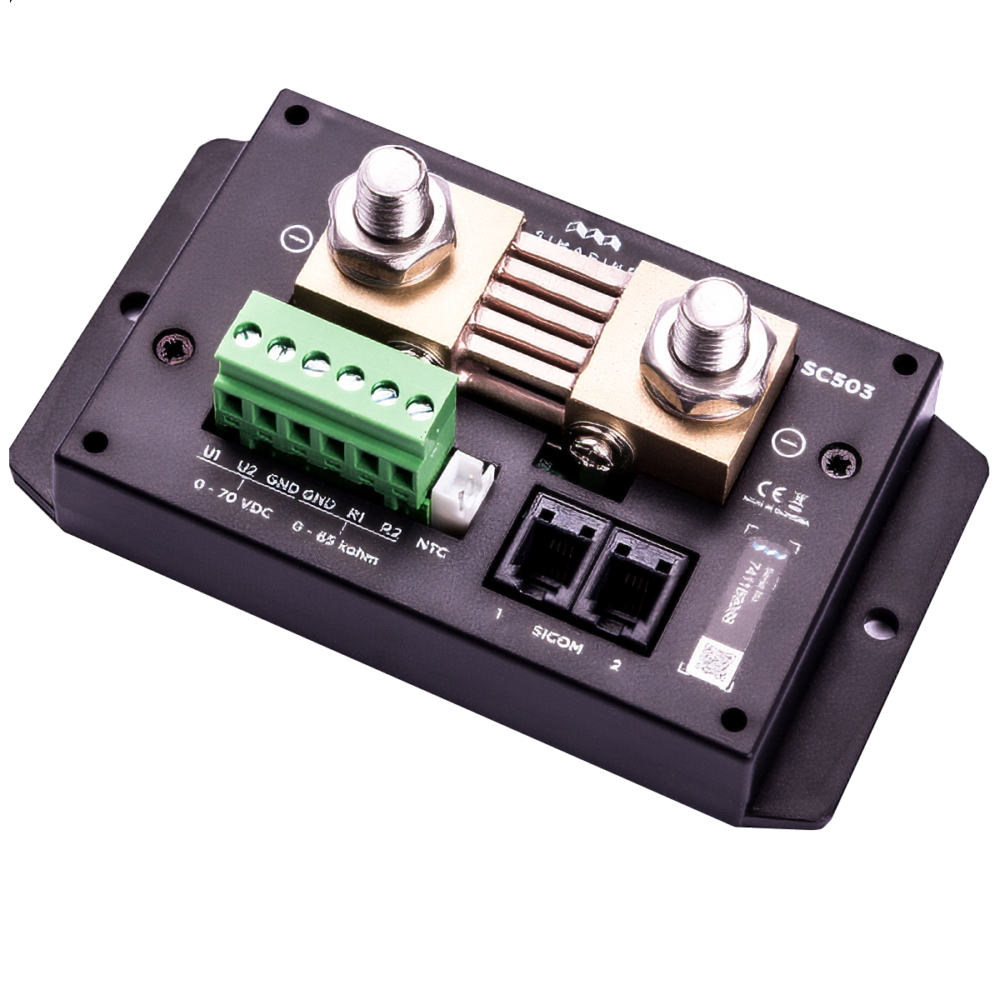

Simarine Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp.
Innovative combination of Shunt and Tank/Temp level module. The SC303 & SC503 are an active combo shunt for PICO battery monitor with;
- 2 x Voltage Inputs
- 2 x Tank Level or Temperature Inputs
- 1 x Socket for Temperature Sensor with JST connector
- 1 x Current Sensor up to 300A (SC303) or 500A (SC503) for up to 75V systems.
It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.
Simarine by Enerdrive Quad Shunt Mod 4 x 50A Input Current & 1 x Relay Output 1A.
SCQ50 is an innovative shunt module for monitoring individual consumers and generators with;
- 4 x 50A Current Sensors
- For 12v and 24v Systems
Connection Possibilities:
- Up To 4 x Consumer Devices
- Up To 4 x Generators
- Combination of 4 of both
- 1 x Relay Input
Specifications
SKU K-300-07-09
Brand Enerdrive
Product Category Batteries
Warranty Period: 5 Years
Battery Voltage 12V
Amp Hours (ah) 300
Battery Weight (kg) 38.2
Wattage (W) 2000W & 26000W (Inverter)
Discharge Cut-off Voltage ≤ 11.20V (Battery)
Battery Charge Temperature 0 ̴ 45°C (Battery)
Maximum Charge Current 190A @ 25°C for 30mins (Battery)
Equalize 15.5V (DCDC Battery Charger) | 16.0 V (FAM Battery Charger)
Nominal Voltage 12.8V (Battery)
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC (Inverter)
Humidity 5-95%, relative humidity non-condensing (FAM Battery Charger) | 5-90% noncondensing (Inverter)
Operating Altitude Up to 3000 meters above sea level (Inverter)
DC Output Single (DCDC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (FAM Battery Charger)
Optional Accessories Remote Digital Display / Enerdrive Part Number EN3REM (FAM Battery Charger)
Charger Efficiency 95% (DCDC Battery Charger) |> 82% (FAM Battery Charger)
Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)
Cooling Forced air ventilation (thermo controlled fan) (FAM Battery Charger)
DC Output Ground Single Heavy Duty Common Ground Stud (FAM Battery Charger)
Max. Continuous Discharge 200A Continous @ 25°C ± 5°C (Battery)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (FAM Battery Charger)
Ingress Protection IP32 (Basic drip proof in vertical orientation) (FAM Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (FAM Battery Charger)
Float 13.50 - 13.80V (Battery) | 13.0V - 13.8V (DCDC Battery Charger) | 13.4 – 13.8 V (FAM Battery Charger)
Over Temperature Protection Yes, unit de-rated and shutdown (FAM Battery Charger)
AC Input Voltage 90 to 265 VAC (FAM Battery Charger)
Total Charge Current Max 190A @ 25°C for 30mins (Battery)
Pulse Discharge Current 450A for 1.0s (Battery)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DCDC Battery Charger) | Hot, Normal, Cold (no sensor connected) (FAM Battery Charger)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Charger Mode Output Voltage 13.8V - 15.5V (DCDC Battery Charger) | 14.2 – 15.5 V (FAM Battery Charger)
Operating Range (temp) -20° to 60° C (FAM Battery Charger)
Under Voltage Shutdown 10.5 / 11.8 VDC (Inverter)
Dimensions 519 x 273 x 222 mm (L x W x H) (Battery) | 242 x 172 x 74mm (L x W x H) (Battery Charger) | 356 x 206 x 99 mm (L x W x H) (FAM Battery Charger) | 230
Under Voltage Alarm 11.0 / 12.1 VDC (Inverter)
Storage Range (temp) -40° to 70° C (FAM Battery Charger) | -20°C to 60°C (Inverter)
Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V (Battery)
Power consumption (DC 12V) 1050W (Full Load) (FAM Battery Charger)
DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (FAM Battery Charger)
Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins (Battery)
Output Short Circuit Yes, (with user replaceable fuse/s) (FAM Battery Charger)
Charging Control Three Stages (DCDC Battery Charger) | Four stages (Bulk/Absorption/Float/Maintenance) Two stages (Bulk/Absorption), Constant Power Supply (Program set
Power Factor Correction Yes (FAM Battery Charger)
Output System Voltage 12V (Battery Charger)
Short circuit protection Auto release after 5s (Battery)
Battery Discharge Temperature -20 ̴ 60°C (Battery)
Recommended Charge Current for Maximum Life 80 ~ 120A (Battery)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
Nominal Capacity 300Ah (Battery)
Over Voltage Shutdown 15.5 VD (Inverter)
Input Voltage 12.5 VDC (2000W Inverter) | 10.5 – 15.5 VDC (2600W Inverter)
USB Socket Output 5V, 750 mA (Inverter)
NOTE For further specifications and performance details, please download the PRODUCT BROCHURE under our Product Details tab.
No Load Battery Draw < 1.2 ADC (2000W Inverter) | < 1.5 ADC (2600W Inverter)
AC Output 2000W, 8.7A (2000W Inverter) | 2600W, 11.3A (2600W Inverter)
Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)
Temperature range ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH (Battery)
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations. (FAM Battery Charger)
AC Input Operating Range 207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max) (FAM Battery Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (FAM Battery Charger)
Output Voltage and Frequency 230 Vac / 50 Hz (Inverter)
Over Charge Yes, unit shutdown (FAM Battery Charger)
Standby Current < 2 mA (FAM Battery Charger)
AC Input Frequency Range 47 – 63 Hz (FAM Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (FAM Battery Charger)
Under Voltage Alarm Recovery 11.3 / 12.3 VDC (Inverter)
Videos
Pro Series to B-TEC - The Next Step for Enerdrive
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Connecting Your Enerdrive Lithium Battery to a Simarine Monitor
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Enerdrive DC2DC Chargers - Part 1 - Overview
Enerdrive DC2DC Chargers - Part 2 - Specifications
Enerdrive DC2DC Chargers - Part 3 - How to Install
Enerdrive DC2DC Chargers - Part 4 - How to Install (Smart Alternator)
Enerdrive DC2DC Chargers - Part 5 - How to Program Settings
Enerdrive DC2DC Chargers - Part 6 - How to Operate Your Charger
Enerdrive DC2DC Chargers - Part 7 - Fault Finding
Enerdrive DC2DC 40A Battery Charger Honest Review
Camper Trailer Battery Charger Review: Enerdrive 40A DC to DC Charger
Customer Review: Using The Enerdrive DC To DC Charger To Run A Portable Fridge
Enerdrive DC to DC Charger Review: EN3DC40+
Enerdrive Discusses Why Battery Cable Size Matters!
Introducing The Enerdrive Battery Charger Range
EN3DC40+ Enerdrive Battery Charger Run Through
Enerdrive eTIPS - How to Program Your Enerdrive 12V 40+ DC2DC Charger
Introducing The Enerdrive Battery Charger Range
Using The Enerdrive 1000W Inverter & ePOWER 12V 60A Battery Charger To Power An Off-Grid Home
Enerdrive Inverters (Transfer Models) - Part 1 - Application
Enerdrive Inverters (Transfer Models) - Part 2 - Specifications
Enerdrive Inverters (Transfer Models) - Part 3 - How to Install
Enerdrive Inverters (Transfer Models) - Part 4 - How to Program Settings
Enerdrive Inverters (Transfer Models) - Part 5 - How to Operate
Enerdrive Inverters (Transfer Models) - Part 6 - Fault Finding
Indepth Review of the Enerdrive 2000W 12V to 240V Inverter with RCD & AC Transfer Switch
Enerdrive 2000W Inverter with AC Transfer Switch Product Features
Customer Reviews
Product Q&A
-
Do lithium batteries need to be ventilated? Any other install tips for my Enerdrive lithium battery?The batteries do not vent, so no need to be concerned about installing your Enerdrive Battery in a highly ventilated space.It is recommended to keep them in a cool dry area to increase longevity.Do not mount the battery on its side - it needs to be keep upright. Thanks.
-
Can I connect the Enerdrive B-tec Lithium Batteries in Parallel or in series?
Hi there,
You cannot connect any of the EnerdriveB-TEC batteries in series. You can however connect up to two only of the same size (ah) B-TEC batteries in Parallel. Enerdrive recommend that you only do this if you don't over load the max current of the internal BMS board from ONE OF THE BATTERIES.
Example. If you connect 2 x 200Ah B-TEC batteries then do not draw more than 200A of DC current from that battery bank, as one (1) single 200Ah B-TEC battery is only capable of handling 200A DC.
The main aim of connecting two (2) of the Enerdrive B-TEC batteries is not to increase your maximum DC current output, but to double your storage capacity.
Double the storage equals double the time you can stay powered up and off the grid.
Be sure to always consult the Enerdrive user manuals for correct cable sizing, fuse sizing and wiring diagrams.
We now sell an Enerdrive battery bundle with a parallel kit - please CLICK HERE to find it.
-
With charge capabilities of 0°-45° does the btec battery have built in protection to stay within these perameters? Or does the Enerdrive dcdc40 charger have these protections built in to safeguard the battery?
Hi There,
The BMS built in to the battery has over temperature protection.
It would be up to the user to make sure the battery is installed in an area where it should not be subject to temepratures under 0C and over 45C when being charged.
-
When putting Battery in its holding place, can i turn it on its side to slide it and then stand it upright
Hi There,
The Enerdrive Lithium Batteries are required to be stood upright. Enerdrive do not recommend placing them on their side at all, sorry.
Warranty
For details relating to this product's warranty CLICK HERE
Delivery
For details relating to our delivery process CLICK HERE
Best Sellers From This Category:
Take $30 OFF Your Order*
Enter your details below to subscribe to the My Generator newsletter and get your unique promo code.
*$300 minimum spend, single use promo code.
