Enerdrive 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch

SKU: EN1120S-X Learn More»
Enerdrive 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch
Free Shipping
$1,225
$1,544
EXTRA $40 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$309

$2,243

In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

"Excellent"

Read more
Purchased the enerdrive ePOWER 2000W inverter to add to my lithium conversion in my jayco caravan. With included fuse and ability to mount the switch anywhere with in the van made installation straight forward. Plus with the built in ac transfer switch means all my vans factory fitted 240v gpo's
(Posted on 18 August 2022)

"Fit for purpose "

Read more
Products design and specifications are an exact match for our requirements.
(Posted on 13 August 2021)

"Good product and excellent service"

Read more
Bought to service coffee addiction when off grid in our Jayco campervan. Not installed yet but bench test with a 200ah lithium was satisfactory. A quality product. Pity they have just sold out to Dometic.
(Posted on 23 May 2021)

"Excellent service & product "

Read more
Installed in caravan runs microwave, 2000w hairdryer and all other small appliances we want to run. The wife loves it.
(Posted on 3 March 2021)

"Excellent service & product "

Read more
Installed in caravan runs microwave, 2000w hairdryer and all other small appliances we want to run.The wife loves it.
(Posted on 3 March 2021)

Product Description

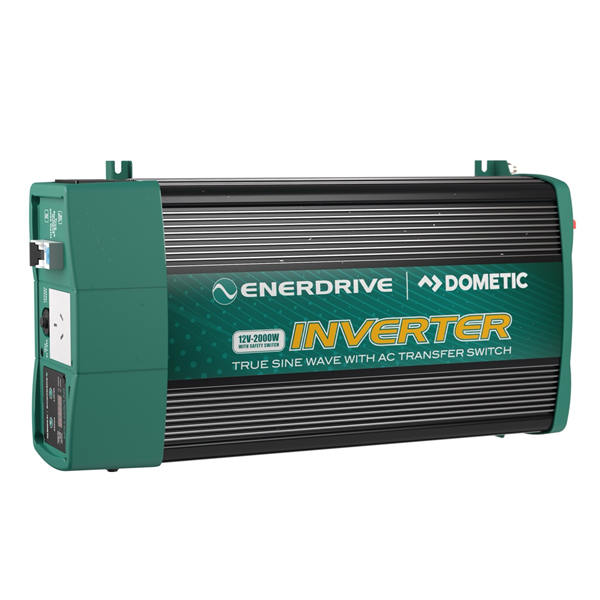

The Enerdrive 2000W 12V Pure Sine Wave state of the art, easy to use inverter will offer you reliable service for providing AC power for your home, boat, 4WD, truck or Caravan.

The ePOWER 2000W Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. This inverter is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation.

Features

  • Seamless 16A AC Internal Transfer Switch
  • AC RCD/Safety Switch with test button
  • Removable LED Remote Control Display Panel
  • Regulated Pure Sine Wave Output
  • Silent Operation
  • Compact Size for Easy Installation
  • USB Port for charging USB devices
  • PS6 Mode
  • AC Transfer Cable
  • 5 Year warranty
New PS Mode

ePOWER Enerdrive Inverters with AC Transfer Switch now include the new PS6 mode.

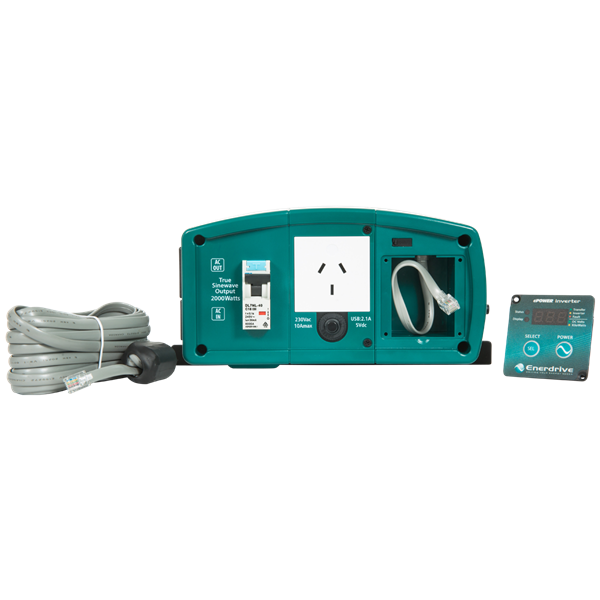

AC Transfer Cable Now Included as Standard

Now included with all AC Transfer Switch. Inverters is a 4 metre AC lead with molded Male/Female IEC Plugs fitted. This allows the installer to cut the lead and hardwire the IEC plugs directly. This will speed up installation time and eliminate any connection issues within the plug.





Specifications

SKU EN1120S-X

Brand Enerdrive

GTIN 9342616000298

Warranty Period: 5 Years

Product Category Power Inverters

Wattage (W) 2000

No Load Battery Draw < 1.2 ADC

Net Weight (kg) 5.9

Under Voltage Alarm Recovery 11.3 / 12.3 VDC

Over Voltage Shutdown 15.5 VDC

Under Voltage Shutdown Recovery 12.0 / 12.6 VDC

Under Voltage Shutdown 10.5 / 11.8 VDC

USB Socket Output 5V, 750 mA

Operating Altitude Up to 3000 meters above sea level

Under Voltage Alarm 11.0 / 12.1 VDC

Product Dimensions (mm) LxWxH 230 x 435 x 115 mm

Storage Range (temp) -20°C to 60°C

Output wave form True Sinewave

AC Output 2000W, 8.7A

Output Voltage and Frequency 230 Vac / 50 Hz

Input Voltage 12.5 VDC

Operating temperature range 0°C to 40°C

Humidity 5-90% noncondensing

NOTE For further specifications and performance details, please download the PRODUCT BROCHURE under our Product Details tab.


Videos

Enerdrive Inverters (Transfer Models) - Part 1 - Application



Enerdrive Inverters (Transfer Models) - Part 2 - Specifications



Enerdrive Inverters (Transfer Models) - Part 3 - How to Install



Enerdrive Inverters (Transfer Models) - Part 4 - How to Program Settings



Enerdrive Inverters (Transfer Models) - Part 5 - How to Operate



Enerdrive Inverters (Transfer Models) - Part 6 - Fault Finding



Indepth Review of the Enerdrive 2000W 12V to 240V Inverter with RCD & AC Transfer Switch



Enerdrive 2000W Inverter with AC Transfer Switch Product Features



Product Q&A

Ask Us a Question
  • Can I run an inverter from AGM or Gel batteries?

    The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.

    Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.

    For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.

    You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).

    A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.

    Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.

  • What is the new PS Mode?

    Hi there,

    The PS6 (new default setting) allows the Inverter to remain OFF when connected to Mains Power but still allow Mains power to pass through to Circuits/Power points on the Output side of the Inverter. At any time the inverter can be turned ON or OFF via the Power Button.

    The reason for the New PS Mode:

    In the past, units would be set to PS1 mode (default) which would automatically turn the Inverter ON when AC was introduced to the Input and while plugged in, it could not be turned OFF. If the user was unaware that Mains power was unplugged or a power outage or just forgot about it when they unplugged the system, then the Inverter would stay on putting unnecessary load on the battery.

    Program PS6, AC Transfer Switch is active with the inverter switched ON or OFF.

    If the inverter is switched off, with AC input present, the inverter will pass the AC through to the inverter output side. If the AC input is removed, the inverter will stay in the off position.

    If the inverter is switched on, with AC input present, the inverter will pass the AC through to the inverter output side. If the AC input is removed, the inverter will stay in the on position supplying the inverter output side from the battery input.

  • Hi does the en1120sx. 2000 w 12 volt inverter come with a remote .

    Hi There

    The inverter does come with a wired remote built in.

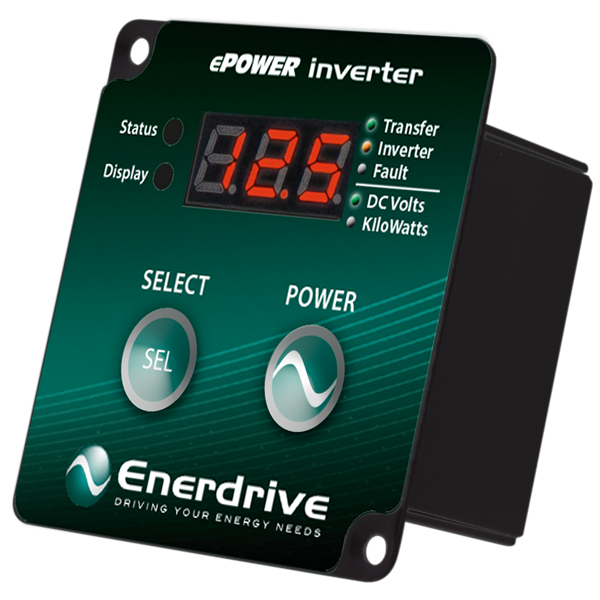

    The LCD panel on the front of the inverter can be mounted remotely to allow you to turn the inverter on and off.

Customer Reviews

Write a product review

Excellent Review by
Purchased the enerdrive ePOWER 2000W inverter to add to my lithium conversion in my jayco caravan. With included fuse and ability to mount the switch anywhere with in the van made installation straight forward. Plus with the built in ac transfer switch means all my vans factory fitted 240v gpo's are powered as per normal on shore power and off the inverter when off grid.
(Posted on 18 August 2022)
Fit for purpose Review by
Products design and specifications are an exact match for our requirements.
(Posted on 13 August 2021)
Good product and excellent service Review by
Bought to service coffee addiction when off grid in our Jayco campervan. Not installed yet but bench test with a 200ah lithium was satisfactory. A quality product. Pity they have just sold out to Dometic.
(Posted on 23 May 2021)
Excellent service & product Review by
Installed in caravan runs microwave, 2000w hairdryer and all other small appliances we want to run. The wife loves it.
(Posted on 3 March 2021)

View All Reviews

Excellent service & product Review by
Installed in caravan runs microwave, 2000w hairdryer and all other small appliances we want to run.The wife loves it.
(Posted on 3 March 2021)
Enerdrive ePower 2000w. 12v PureSine Wave Inverter Review by
Excellent well made product that works extremely well.
(Posted on 15 February 2020)
Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter Review by
I purchased the Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch for my caravan...primarily is was used to run a 1350w coffee machine and 350w milk frother, but it was also used to power a rice cooker and toaster. It worked very well and I'm extremely happy with the inverter. Definitely recommend it.
(Posted on 15 March 2019)
