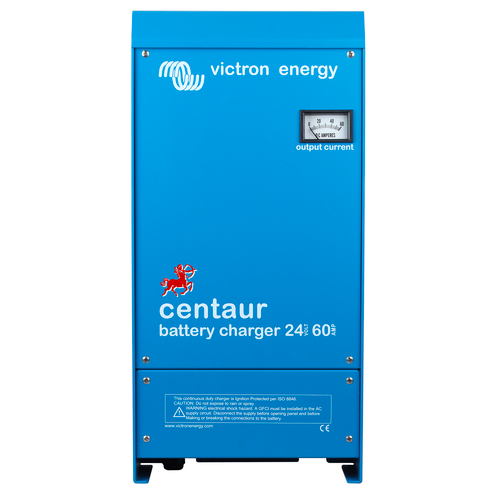

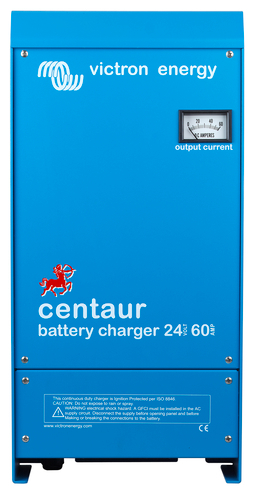

Victron Centaur 24/60 (3) Battery Charger

4 Reviews | Q&A

$1,507

Save $167 (10%) off RRP of $1,674

Take an EXTRA $40 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Learn More»
Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Centaur 24/60 (3) Battery Charger, 5 Year Warranty. The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.

Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three-stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.

The range spans 12V and 24V models from 16A through to 100A.

Quality without compromise:

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity, and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits if needed by automatic reduction of output current under extreme environmental conditions.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation):

All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.

Three outputs that each can supply the full output current:

Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.

Three-stage charging, with temperature compensation:

The Centaur charges at a bulk rate until the output has reduced to 70% of the rated Amps, at which a 4-hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate for the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.



Victron BPU12/25 Product Card

Victron BPU12/25 Manual

Specifications

SKU CCH024060000

Brand Victron

GTIN 8719076021575

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 60

Model CCH024060000

Charge voltage 'absorption' 14.3 / 28.5 (V DC)

Charge current 60A

Input Voltage 90 – 265 (V AC)

Battery-connection M8 studs

Dimensions 135 x 255 x 505 mm

Charge Voltage Float - Wet (25 degrees)** 13.5 / 27.0 (V DC)

Output System Voltage 24V

Operating temperature range - 20 to 60°C (0 - 140°F)

Protection Output short circuit, over temperature

Charger Voltage 24V

Net Weight (kg) 12

Protection category IP 20

Battery Capacity 240 - 600 Ah

Humidity Max 95%
