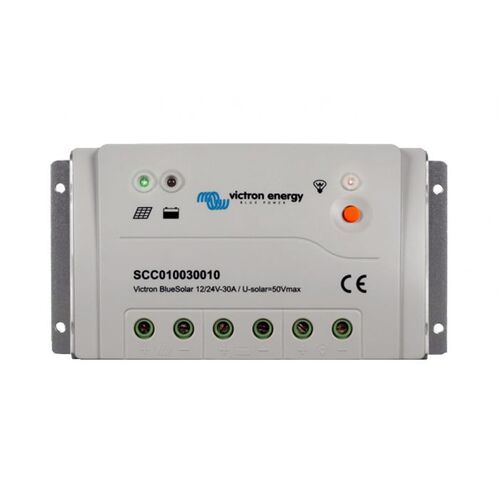

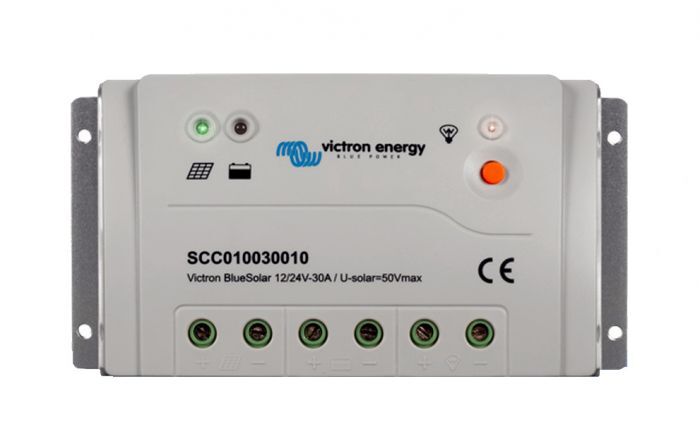

Victron BlueSolar PWM-Pro Charge Controller 12/24V-30A

$174

FREE SHIPPING

Accessories

$99

$26

$26

$55

Click '+' to show more accessories
Learn More»
Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron BlueSolar PWM-Pro Charge Controller 12/24V-30A, 5 Years Warranty.

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.

  • Lighting control function, fully programmable.
  • Three stage battery charging (bulk, absorption, float), fully programmable.
  • Integrated battery monitor function (Remote Panel needed to display state of charge).
  • Load output with low voltage disconnect and manual control (default setting).
  • Optional external temperature sensor.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar panels and/or battery.
  • Day/night timing options: see manual Remote Panel for details.

Programmable
The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable:

  • With help of a computer and software (available free of charge from our website)
  • With the dedicated BlueSolar Pro Remote Panel (see features below).

Features:

  • Lighting control function, fully programmable.
  • Three stage battery charging (bulk, absorption, float), fully programmable.
  • Integrated battery monitor function (Remote Panel needed to display state of charge).
  • Load output with low voltage disconnect and manual control (default setting).
  • Optional external temperature sensor.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery

Victron PI12/2000 Product Card

Product Manual

Specifications

SKU SCC010030010

Brand Victron

GTIN 8719076025399

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 30

Charge voltage 'absorption' 14.4V / 28.8V

Humidity Max 98%

Voltage 12 / 24V with automatic system voltage detection

Operating temperature range -20 to +50°C (full load)

Amps 30

Net Weight (kg) 0.5

Protection Battery reverse polarity (fuse), Output short circuit, and Over temperature

Dimensions 57 x 100 x 200 (D x W x H)
