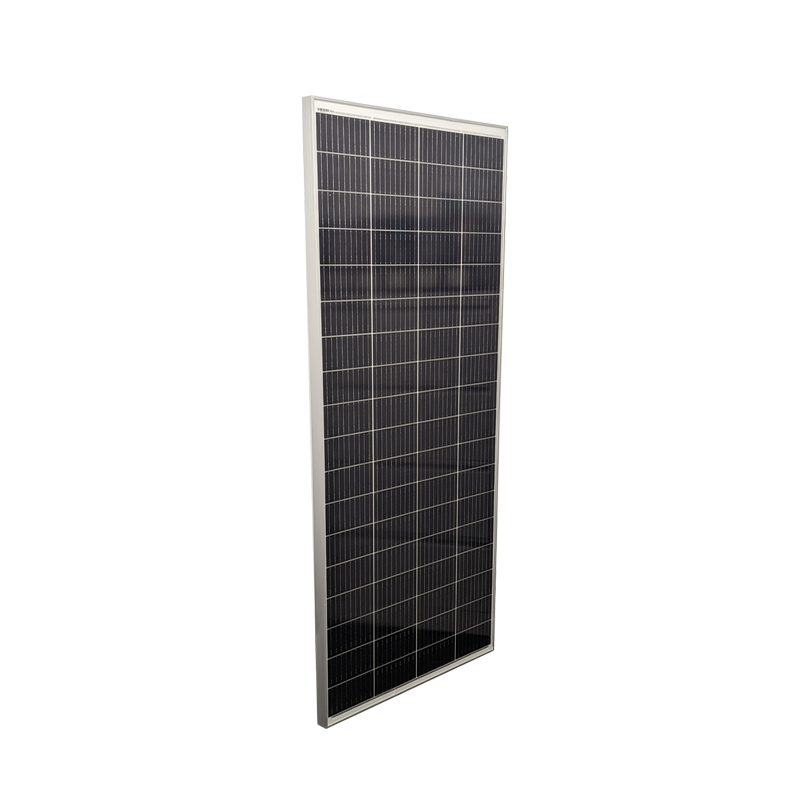

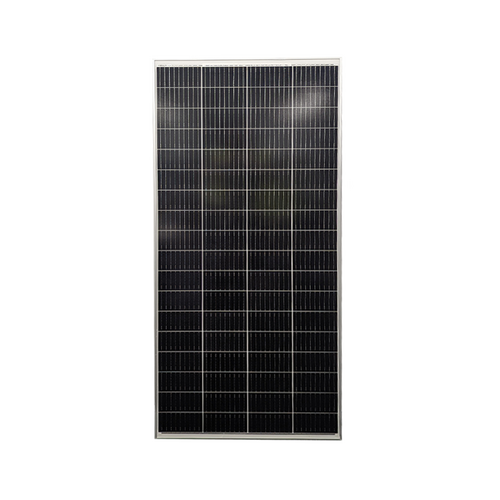

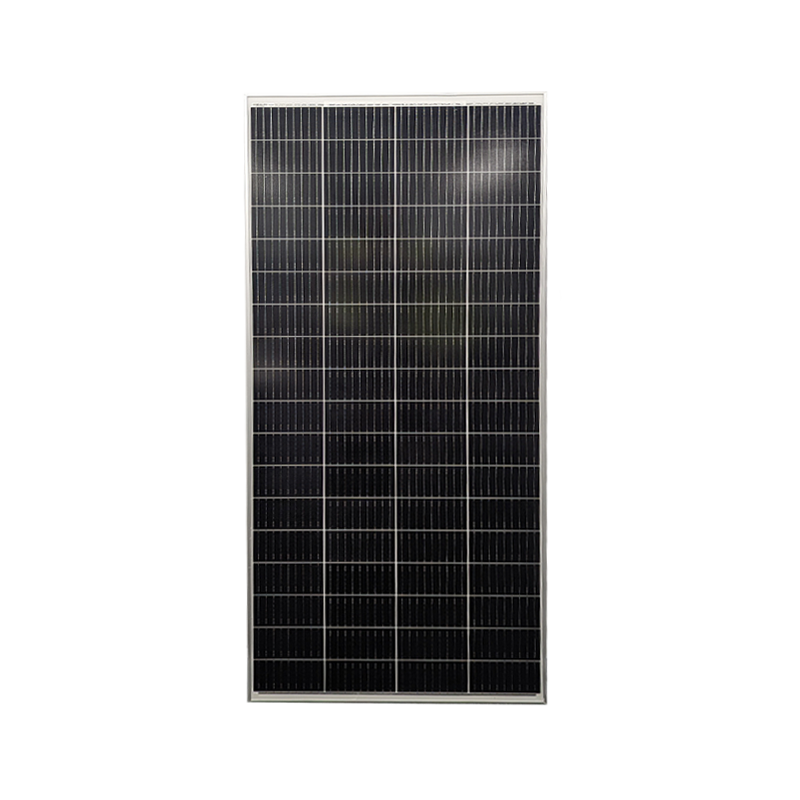

Sphere 200W Monocrystalline Solar Panel with Twin Cell Technology
SKU: 500-06250 Learn More»
Product Description
Sphere 200W Monocrystalline Solar Panel with Twin Cell Technology, 5 Year Warranty. Partial shading caused by rooftop-mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.
Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.
Features:
- Sphere Twin Cell Solar Technology for improved performance in partial shade.
- Improved cell efficiency enabling 200W from a 180W footprint.
- By-passed diodes to improve reliability and further minimize power drops caused by shade.
- An anodized aluminium frame to withstand rust with pre-drilled mounting holes for a versatile range of applications.
- Antireflective, high transparency tempered glass for durability
- IP65-rated junction box provides complete protection against dust and water.
Specfications:
| Electricity Performance | Standard Test Conditions | 1000W/M2,1.5AM,25 |
| Peak Power Output (W) | 200 W | |
| Power Output Tolerance（％） | 3% | |
| Maximum Power Voltage (V) | 20.6 | |
| Maximum Power Current (A) | 9.71 | |
| Short Circuit Current（A） | 9.85 | |
| Open Circuit Voltage(V) | 24.1 | |
| Maximum System Voltage | 1000V/DC | |
| Mechanical Performance | Junction Box Type | 0.9 m 4mm 2 solar cable fitted with MC 4 IP65 |
| Number of Cells | 4*18 72 72pcs | |
| Module Size (mm) | 670 x 1480 x 35 x 30 x1.2 | |
| Module Net Weight | 11 KG | |
| Temperature Coefficient | ||
| Working Temperature | ﹣40 ～85 ℃ | |
| Power TK | ﹣0.45%/℃ | |
| Open Circuit Voltage T | ﹣0.3 3%/ ℃ | |
| Short Circuit Current T | 0.045%/ | |
| Test temperature | 25±2 ℃ | |
| Guarantee of power output | ≦10 Years | ≧90% |
| ≦25 Years | ≧80% | |
| Material Warranty | 12 Months |
Specifications
SKU 500-06250
Brand Sphere
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Dimensions 35mm x 1480mm x 670mm
Weight (kg) 11.0000
Open Circuit Voltage Voc(V) 24.1
Max System Voltage (VDC) 1000V/DC
Junction Box 0.9 m 4mm 2 solar cable fitted with MC 4 IP65
Wattage Option 1131
Product Q&A
Customer Reviews
Great product. Works as expected and a very reason Review by Michael BirdGreat product. Works as expected and a very reasonable price.(Posted on 5 December 2022)
