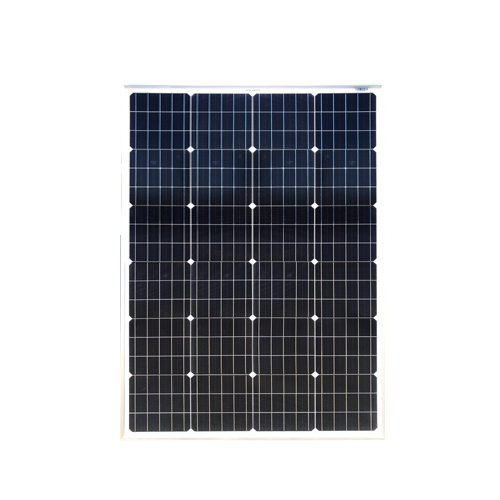

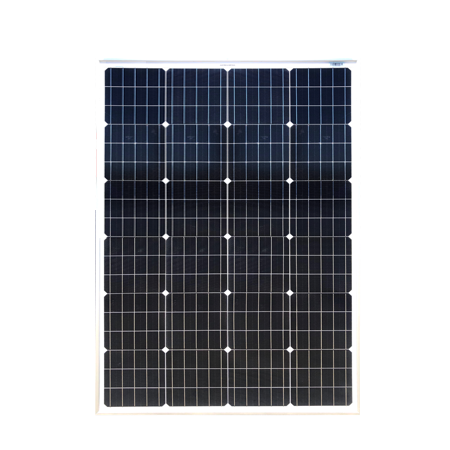

Enerdrive 150W Squat Mono Crystalline Fixed Solar Panel

$249

Save $21 (8%) off RRP of $270

FREE SHIPPING

Accessories

Enerdrive Set of Quick Connect Solar Panels

$39

Enerdrive 10m 6mm² Twin Solar Cable with EN4 Plugs

$158

Enerdrive 5m 6mm² Twin Solar Cable with EN4 Plugs

$110

Click '+' to show more accessories

Call 1300 400 122

Add To Wishlist

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Enerdrive 150W Squat Mono Crystalline Fixed Solar Panel, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.

Features:

High Conversion Efficiency. Module efficiency up to 15.34% achieved through advanced cell technology and manufacturing capabilities
Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability
High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
Extended Wind and Snow. Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors

Go to: Product Details

Go to: Reviews

Specifications

SKU SP-EN150SQ

Brand Enerdrive

GTIN 9342616026151

Warranty Period: 5 Years

Product Category Portable Solar Panels

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 150

Max System Voltage (VDC) 1000

Max Power Voltage Vm(V) 18.5

Short Circuit Current Isc(A) 8.8

Test Conditions 1000W/m² , AM1.5 , 25°C

Open Circuit Voltage Voc(V) 22.5

Weight (kg) 11.5

Max Power Current Im(A) 8.11

Popular Product Applications Caravan solar panels, 12V solar panel, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels

Dimensions 1210 mm x 808 mm x 35 mm

Go to: Specifications

Go to: Q & A

Customer Reviews

Solar panel Review by Steven Fischer

Purchased the 150 watt solar panel with the 20 amp Solar controller to top up my lithium battery which powers all my low voltage lights, sirocco fans and water pump in my bus ( converted to a motor home) Works a treat Watched an Enerdrive video of how to set up the controller which made it very easy to power up Never had any issues and has maintained the battery at full charge on average of cloudy and full sun days very happy with these products from Enerdrive
(Posted on 22 August 2023)
