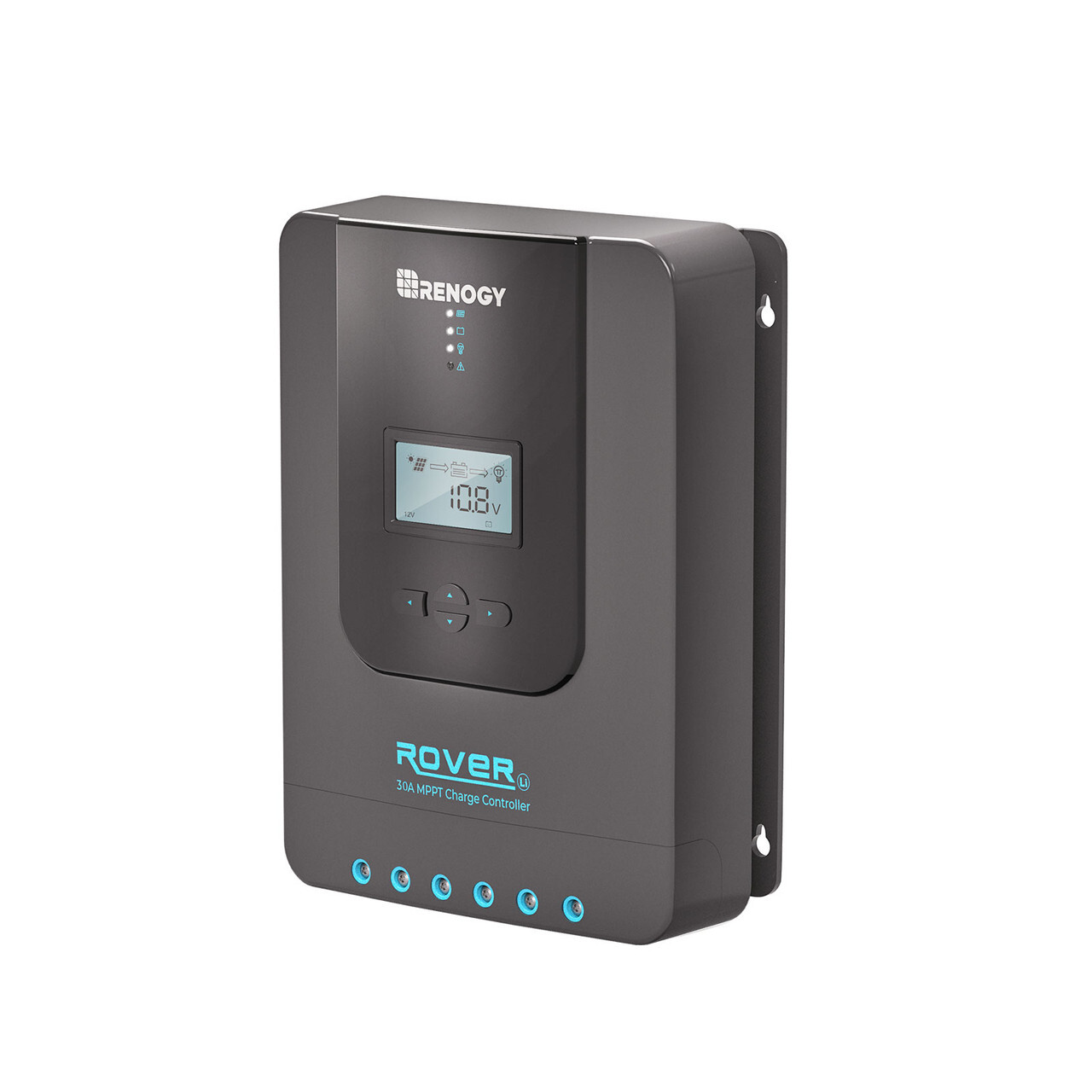

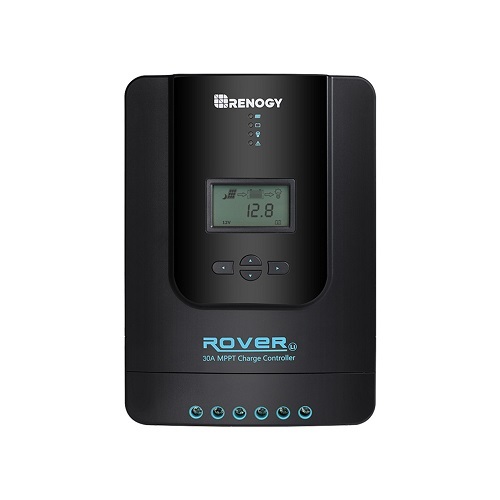

Renogy Rover Li 12/24V 30A MPPT Solar Charge Controller

SKU: RNG-CTRL-RVR30 Learn More»
$197

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$45

$20

$20

$32

$44

Click '+' to show more accessories
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Renogy Rover Li 12/24V 30A MPPT Solar Charge Controller, 2 Year Warranty.

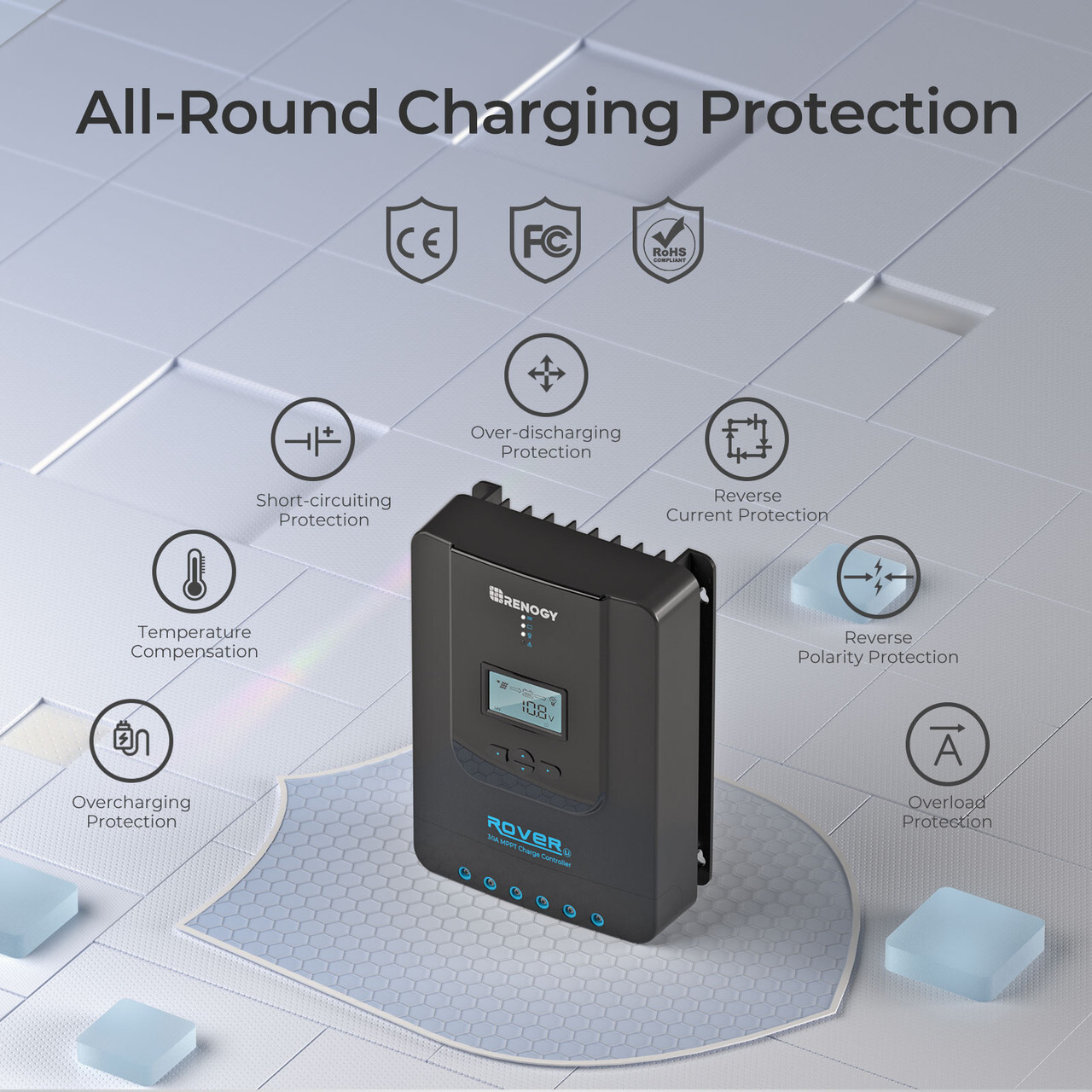

Certified Protections

  • The Renogy Rover 30A Solar Charge Controller features 8 electronic protections to actively monitor changes in voltage, current, and load for efficient and safe battery charging.

Bring Dead Batteries to Life

  • Activates dead batteries with a small current to get them out of protection mode triggered by the battery management system (BMS).

Stay Cool, Stay Empowered

  • Made of robust die-cast aluminum, the heat sink that comes with the Rover 30A Solar Charge Controller allows the heat flow away through tubes to ensure maximum charging efficiency and safety of critical components.

Charging with Precision

  • The included external temperature sensor helps Rover 30A Solar Charge Controller track the battery's temperature all year round, avoiding under-charging in cold climates down to -40°F, and overcharging in blazing weather up to 149°F.

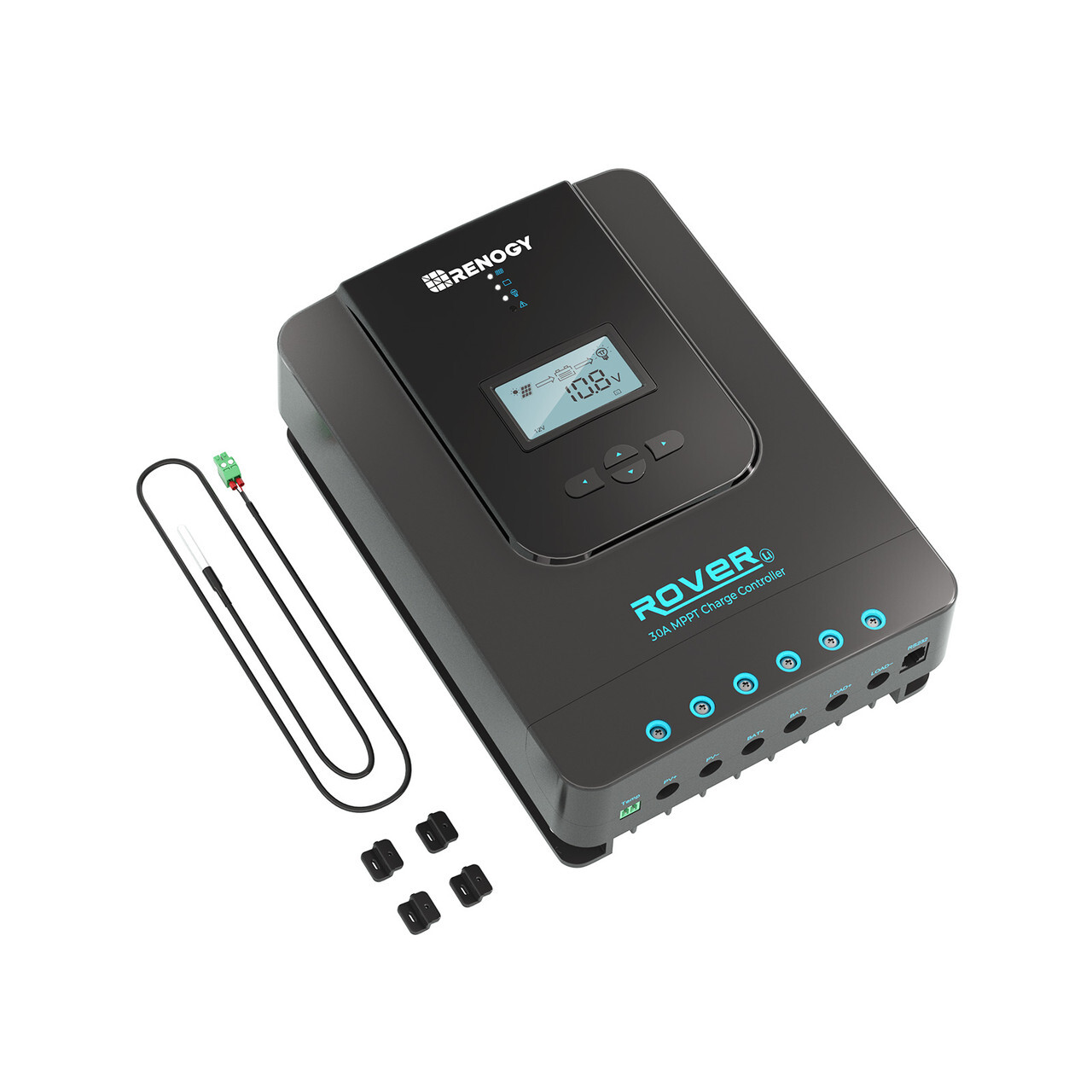

Included:

  • 1 x Rover Li 30 Amp MPPT Solar Charge Controller
  • 1 x Remote Temperature Sensor
  • 4 x Mounting Brackets

Specifications

SKU RNG-CTRL-RVR30

Brand Renogy

GTIN 00810009717201

Warranty Period: 2 Years

Product Category Solar Charge Controllers

Charge Current (A) 30

Voltage 12/24V

Dimensions 238 x 172 x 77 mm

Amps 30

Weight (kg) 2

Operating temperature range -35°C to 45°C


Videos

Rover LI MPPT Charge Controller



Troubleshooting Solar Charge Controller Rover series Part 1



Troubleshooting Solar Charge Controller Rover series Part 2



Product Q&A

Ask Us a Question
  • What kind of safety features is the Rover MPPT Charge Controller equipped with?

    The Rover MPPT Charge Controller is meant to safeguard your system, and the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery overdischarging, overload, short-circuiting, and reverse current.

  • Is there a 20A fuse included into the Rover 20A MPPT charge controller for the rated 20A load output?

    You will need to add an external fuse between the charge controller and the batteries. In Australia for new installations you need to have a breaker/fuse

    between each panel and the controller.

  • Which of these MPPT charge controllers would be best if I had two 200W panels? 20A, 30A, etc.

    The 20A type is suitable if you link these panels in series with a 24V system. However, if you were to connect these two solar panels in parallel to create a 12V system, you would want a 30A controller.

  • How much power can be handled by the Renogy Rover 20 amp charging controller?

    Rover MPPT charge controllers are compatible with numerous solar panels with voltages up to 100V or conventional off-grid 12/24V solar panels with high voltage. The maximum combined solar power input for a system using 12V batteries is 260W, and for a system using 24V batteries, it is 520W. Specifically, this controller will boost a solar system's efficiency considerably when the voltage of the solar panels is substantially higher than the voltage of the battery.

  • What is MPPT and what is a solar charge controller?

    MPPT stands for Maximum Power Point Tracking and it optimizes solar panel output by finding the point where current and voltage result in maximum power. Especially useful in low light. A charge controller takes the power made from the solar panels and transforms it into a form of power that the batteries can use.

  • What does the charge controller's 20A indicate on MPPT?

    The maximum amps that the controller can output into the batteries is 20A.

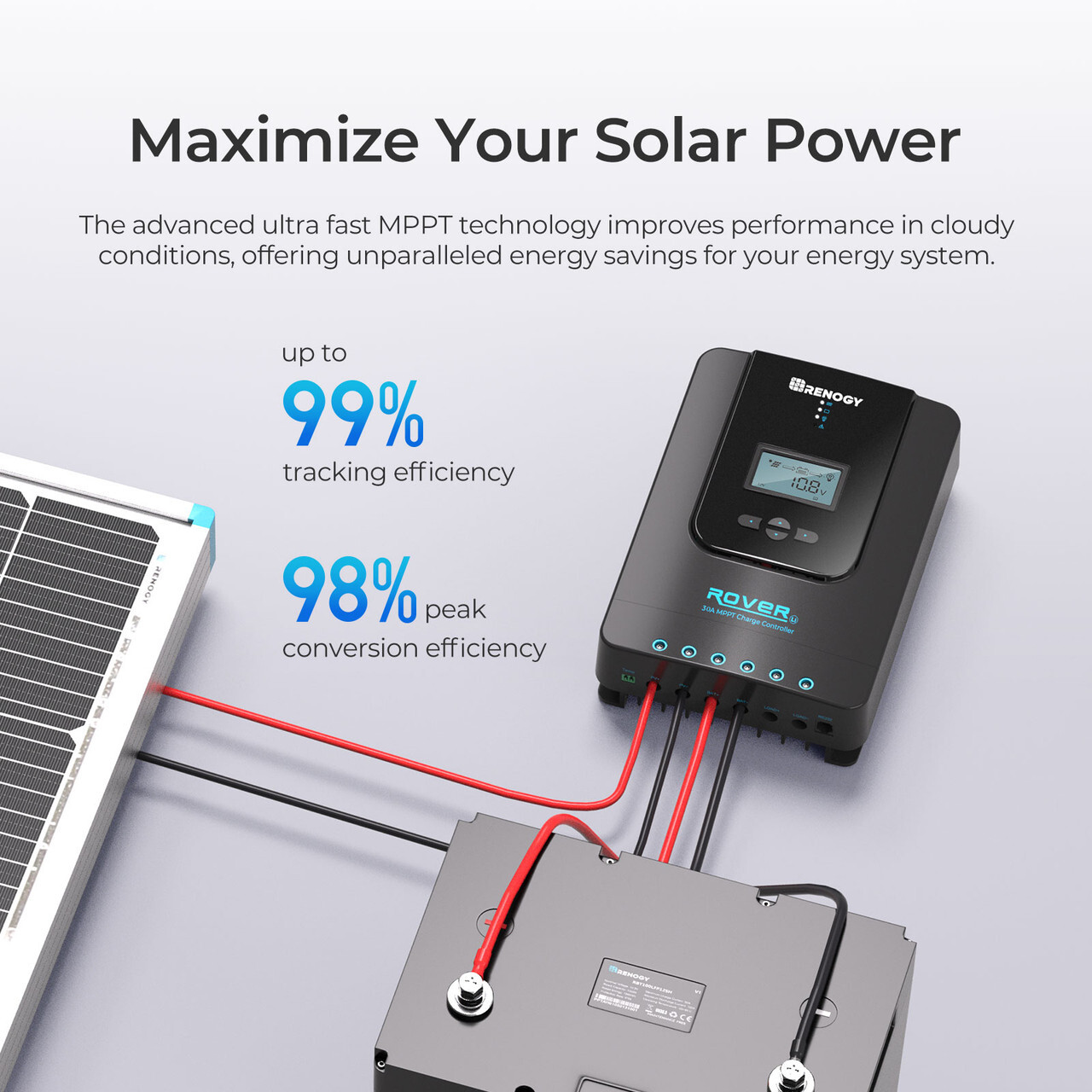

  • What benefits can Renogy MPPT technology offer?

    The most sophisticated Maximum Power Point Tracking (MPPT) technology is used by Renogy Rover series solar charge controllers to follow the maximum power voltage point of solar panels as it varies with temperature and sunlight exposure. This technique greatly exceeds conventional PWM solar controllers and guarantees your solar system's maximum efficiency. The broad solar input voltage range of MPPT technology is an additional advantage. Standard off-grid 12 or 24 volt solar panels, as well as high voltage or multiple panels with a voltage of up to 100 volts, can be operated by this controller.
