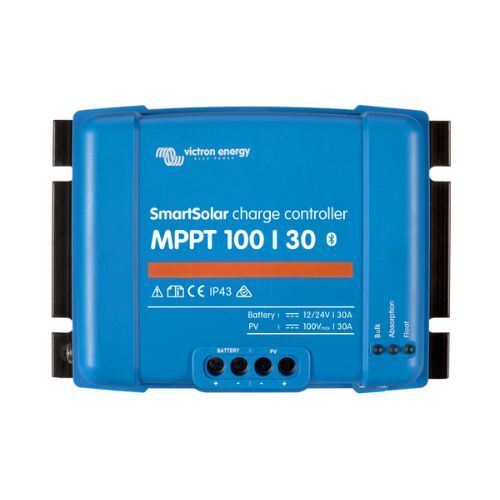

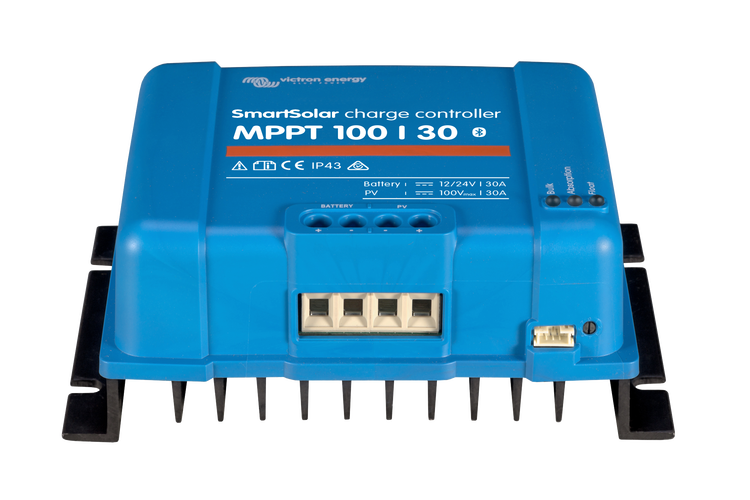

Victron SmartSolar MPPT 100/30 Charge Controller

SKU: SCC110030210 Learn More»
$211
$243

CALCULATE SHIPPING:

Accessories

$67

$74

$24

$35

$55

Click '+' to show more accessories
Dispatch 5 to 7 days Express Shipping Price Match Guarantee Customer Reviews

"Great Product "

Read more
I am very happy with this product, I purchased this with the Smart Battery Sense and it is was easy to install and setup and is working without any problems.
(Posted on 14 October 2022)

"Excellent product"

Read more
I purchased this product as an upgrade from a previous Victron solar charger. Having upgraded to a 400 watt panel. This unit like all Victron products did the job perfectly. The build quality is amazing and it just worked streight out of the box. The phone app works well and charges my 130 amp lithi
(Posted on 30 November 2021)

Product Description

Victron SmartSolar MPPT 100 VOC / 30A Charge Controller, 5 year warranty. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

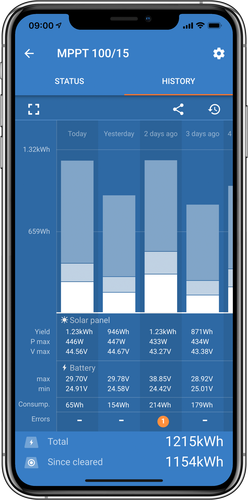

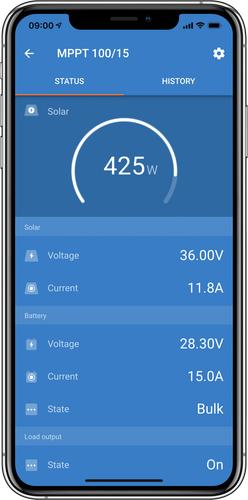

Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Bluetooth Smart built-in: dongle not needed:

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct:

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT):

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions:

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency:

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm:

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection:

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor:

Compensates absorption and float charge voltage for temperature.

Real-time data display options:

  • Apple and Android smartphones, tablets and other devices.
  • Color Control GX and other GX products.



Victron PI12/2000 Product Card

Product Manual

Specifications

SKU SCC110030210

Brand Victron

GTIN 8719076040170

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 30

Nominal PV Power 12V - 440W | 24V - 880W

Operating temperature range -30 to +60°C (full rated output up to 40°C)

Amps 30

Voltage 12/24V Auto Select

Charge voltage 'absorption' Defult setting: 14.4V / 28.8V (Adjustable)

Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature

Dimensions 70 x 186 x 130 (D x W x H)

Net Weight (kg) 1.3

Efficiency 98% (Max)

Humidity 95%, non-condensing

NOTE * iPhone is not included.


Videos

Change MPPT settings using Bluetooth



Updating a Victron SmartSolar MPPT Charge Controller



How to Size a Solar Charge Controller for a DIY Camper Van Solar System



Product Q&A

Ask Us a Question

Customer Reviews

Write a product review

Great Product Review by
I am very happy with this product, I purchased this with the Smart Battery Sense and it is was easy to install and setup and is working without any problems.
(Posted on 14 October 2022)
Excellent product Review by
I purchased this product as an upgrade from a previous Victron solar charger. Having upgraded to a 400 watt panel. This unit like all Victron products did the job perfectly. The build quality is amazing and it just worked streight out of the box. The phone app works well and charges my 130 amp lithium battery extremely well.
(Posted on 30 November 2021)

Warranty

For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
