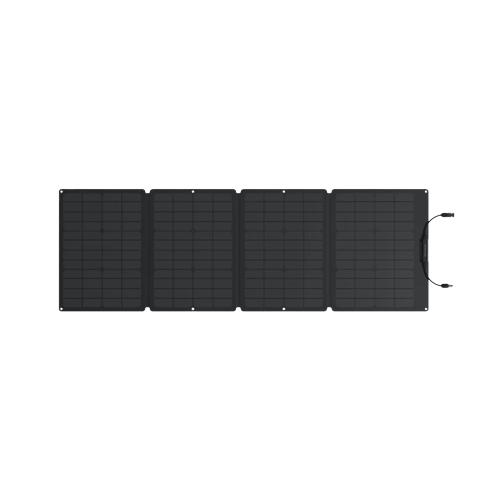

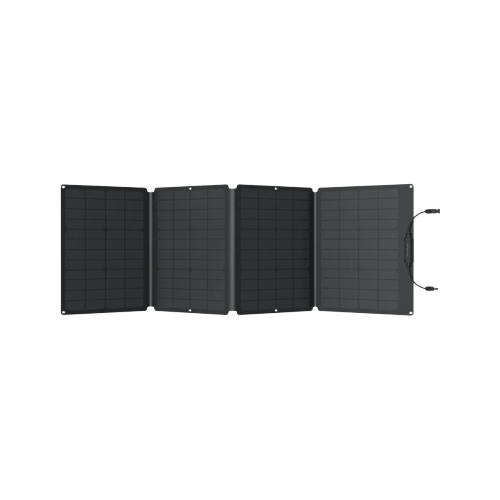

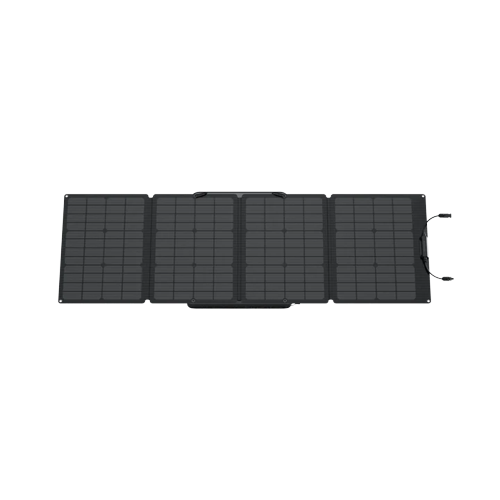

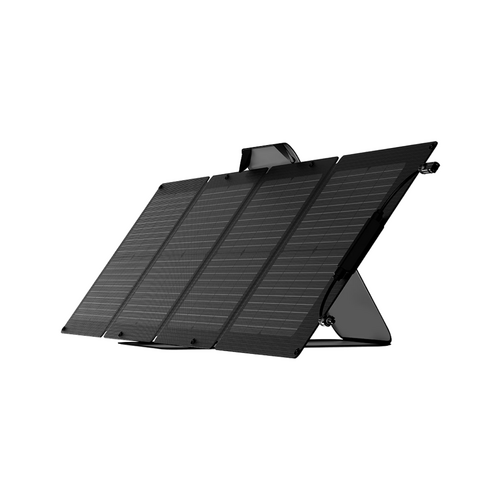

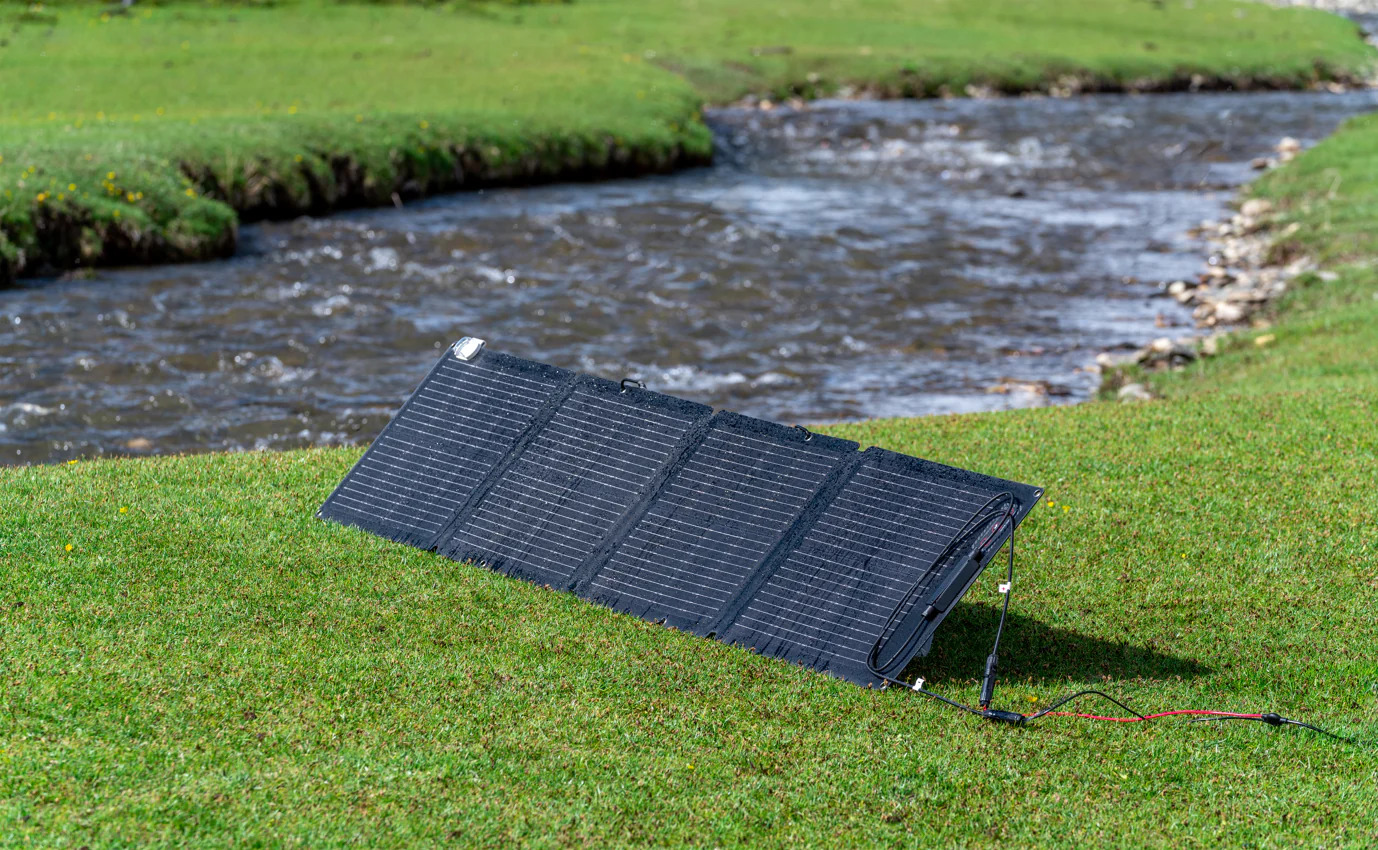

EcoFlow 110W Monocrystalline Folding Solar Panel

Specifications

SKU EFSOLAR110N

Brand EcoFlow

GTIN 4897082661023

Warranty Period: 1 Year

Product Category Portable Solar Panels

Solar Panel Type Folding Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 110

Operating temperature range -20°C to 85°C

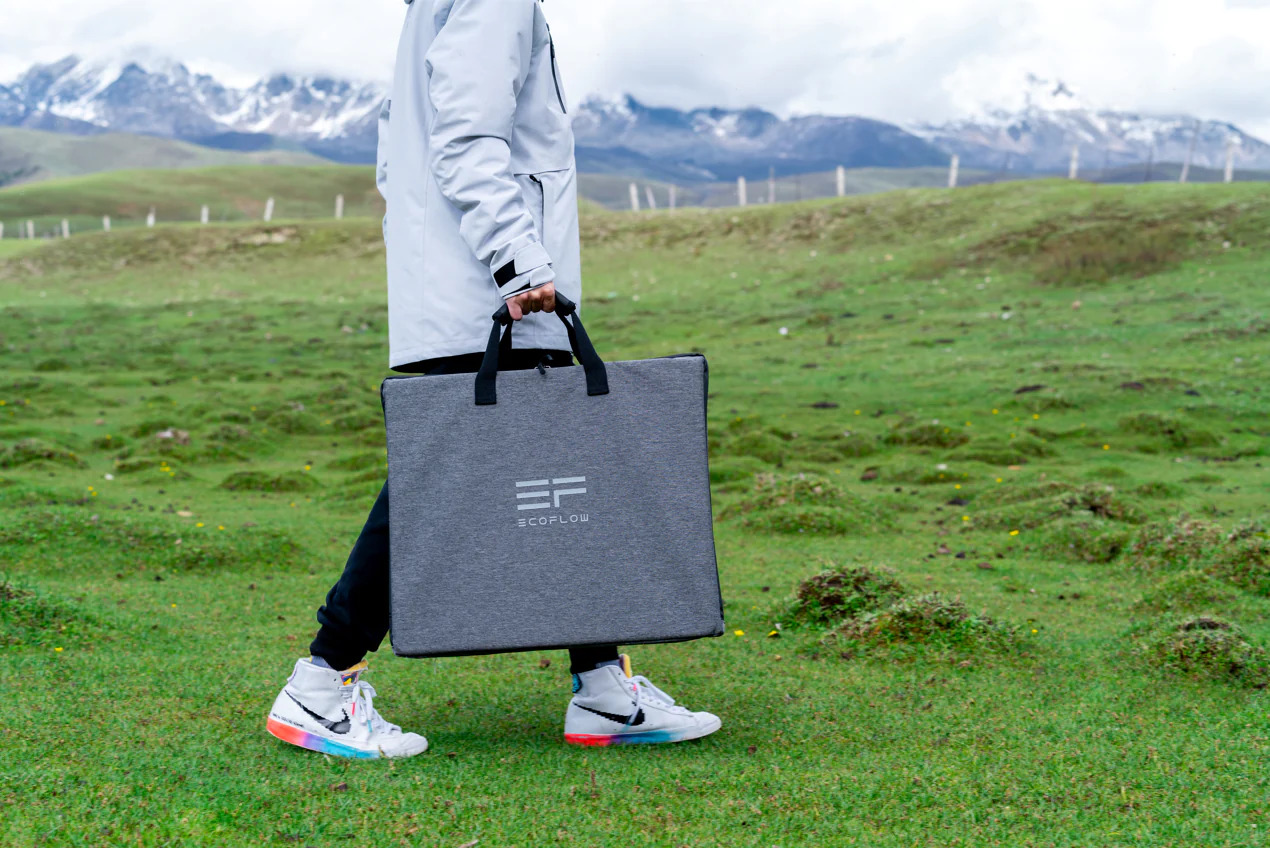

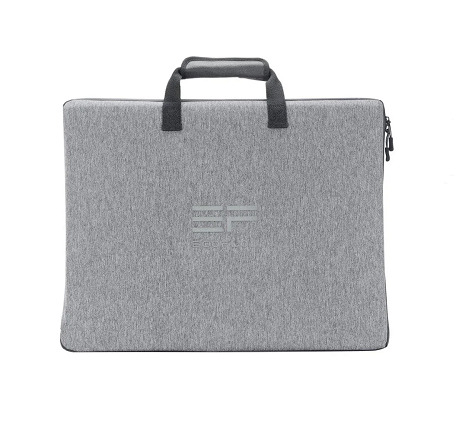

Included 110W Solar Panel Bag

Short Circuit Current Isc(A) 6.3

NOTE The open circuit voltage (VOC) for this panel is 21.7V. If you are planning on connecting this solar panel to a standard battery via a regulator, plea

Dimensions Closed (LxWxH) 514mm x 420mm x 24mm

Weight (kg) 6

Open Circuit Voltage Voc(V) 21.7V

Dimensions Open (LxWxH) 514mm x 1580mm x 24mm

Videos

How To Use EcoFlow Portable Solar Panels

How To Connect Portable Solar Panels to an EcoFlow Portable Power Station

The solar panel output is a SCAM? | there's more to the story

3 Ways to Wire Solar Panels | Series vs Parallel vs Hybrid

Customer Reviews

Product Q&A

• Can I use the EcoFlow 110W solar blanket to charge my standard deep cycle battery?

  This 110W panel is designed to be connected with compatible EcoFlow Power Stations:

  • EcoFlow DELTA
  • EcoFlow River
  • EcoFlow River Pro
  • EcoFlow River Max
  • EcoFllow Delta Mini

  Please note that the open circuit voltage (VOC) for this panel is 21.7. If you are planning on connecting this solar panel to a standard battery via a regulator, please take the high voltage into consideration.

• What should I do if my solar panel isn't charging my portable power station?

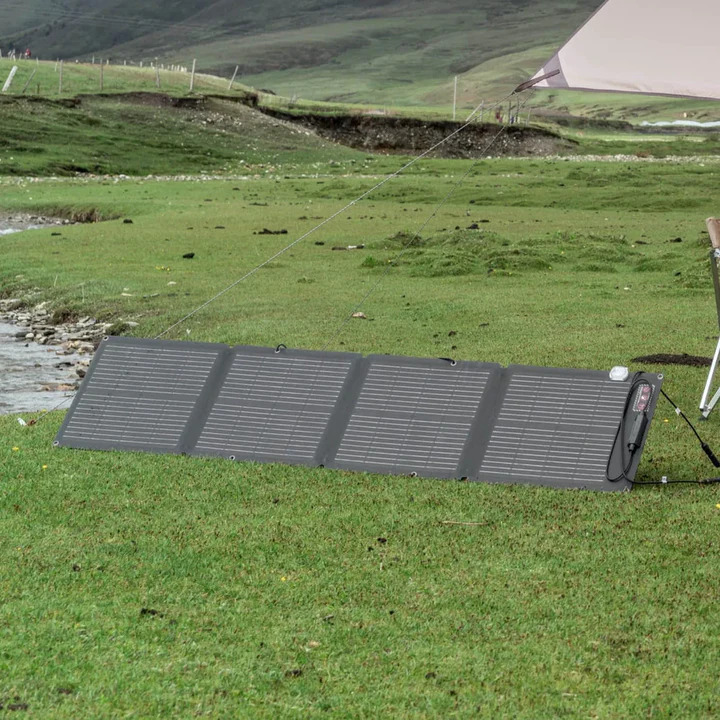

  1. Please note that portable solar panels must be placed outdoors. They cannot charge a power station if placed indoors without exposure to sunlight.
  2. Check whether there is a connection issue and then try again.
  3. Confirm whether the input voltage and amperage match the specification of the portable power station. Also, check whether the positive and negative terminals are connected in reverse.
  4. Check the display for error prompts and resolve the issue accordingly.
  5. Third-party cables longer than 3 meters should have a wiring harness with a diameter of 6.5 mm and a wire diameter of 4 mm2, otherwise there will be no input power on the display screen.
  6. If the portable solar panel still does not work properly after trying the above steps, connect the portable power station to a car outlet using the XT60 port. Contact after-sales for help and send a video of the steps you have carried out.
• What are the solar panels made from? What is their waterproof rating?

  They're made from monocrystalline silicon which is more efficient than polycrystalline. New materials like EVA and ETFE protect against high temperatures, corrosion, sunlight, as well as damage, which ensures that they can be used outdoors for long periods. They have a waterproof rating of IP67 and are also resistant to dust and UV rays.

• What is the Portable Solar Panels Output Power
  1. The portable solar panel's output power is about 80% of the rated power in strong, vertical sunlight. For example, a 110W portable solar panel has an output power of around 90W.
  2. In partially cloudy weather, approximately 20-30W.
  3. 5-10W in cloudy weather.
  4. Raining/evening: 0W

  When the current input power of the portable solar panel is very low, charging with solar power is not recommended. The standby power consumption may be higher than the input power, causing the battery voltage to leak and damage the battery.

• Is it compatible with any portable power station?

  It's compatible with all EcoFlow portable power stations, and any other portable power station that can connect with solar cables.
