Dometic RUA 6408X 3 Way UES Fridge & Freezer 188L

4 Reviews | Q&A

$2,930

Save $625 (18%) off RRP of $3,555

CALCULATE SHIPPING:

Accessories

$73

$75

$99

$99

Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

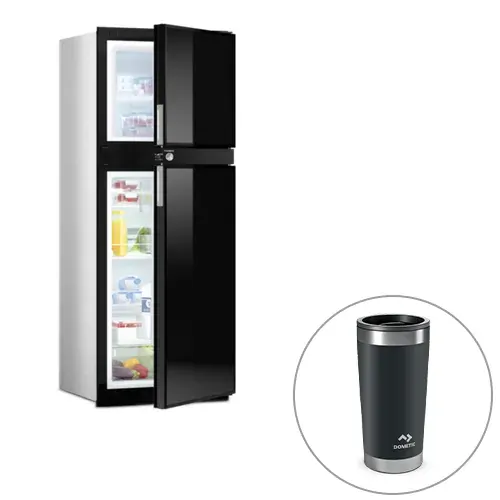

Currently FREE with the Dometic RUA 6408X 3 Way UES Fridge & Freezer 188L is:

Product Description

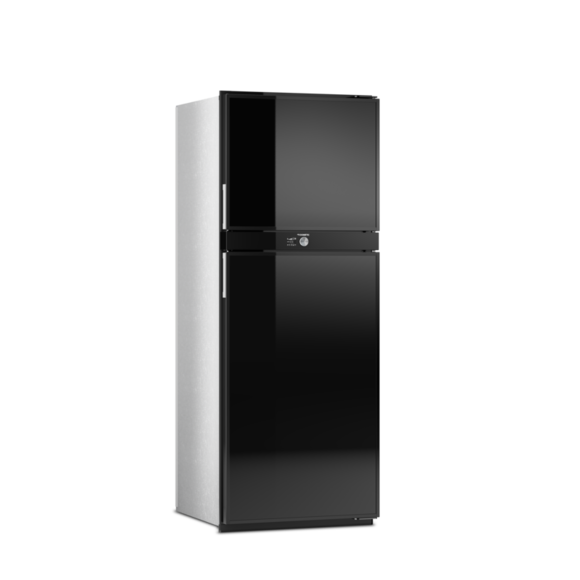

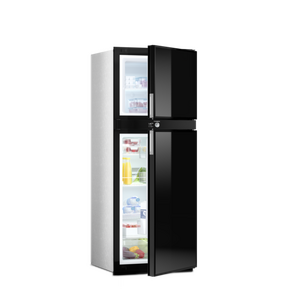

Dometic RUA 6408X 3 Way UES Fridge & Freezer 188L, 3 year warranty. The Dometic RUA 6408X model is an upright absorption refrigerator that features a narrow cabinet design that allows for greater flexibility in the kitchen area of recreational vehicles without compromising on storage volume.

The Dometic RUA 6408X refrigerator has undergone extensive research and development with the result being the most refined RV refrigerator on the market. At the centre of the Dometic RUA 6408X’s design is its tall and narrow cabinet, which allows for greater flexibility in the kitchen area without compromising on storage volume. Due to the smaller footprint, the Dometic RUA 6408X refrigerator reduces the dominance of the refrigerator in the kitchen area. The service process for the Dometic RUA 6408X refrigerator has also been streamlined by the narrow design. Rather than removing windows to access the refrigerator, the RUA 6408X refrigerator can be easily removed through the entrance door if required.

Features:

  • Generous gross capacity of 188 l
  • Dimensions: 550 x 1447 x 677 mm
  • Recess Dimension: (d) min. 621mm x (h) 1437-1442mm x (w) 530-535mm
  • Narrow cabinet design with slim footprint
  • T-rated cooling system ensures excellent cooling performance in all conditions
  • Can switch between manual (MES) and automatic (AES) energy select
  • Easy-to-use control panel with colour TFT display

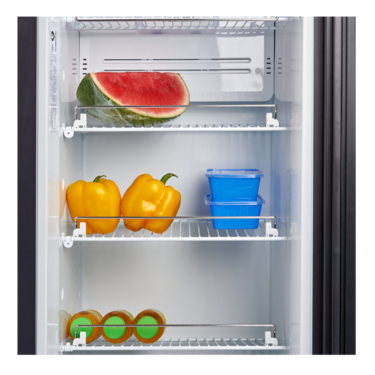

  • Adjustable shelves and wire doors
  • Full-width crisper with humidity control

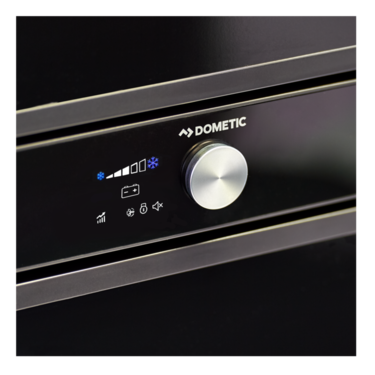

The stylish control panel is intuitive and easy to use. The control panel allows users to select the interior compartment temperature, power source, and a variety of pre-set modes; including performance, silent and power-save. Users can simply click and turn the selection wheel to navigate through the settings on the TFT colour display. The control panel also features a built-in service mode that creates simple diagnostics if required.
  • Reliable refrigeration performance

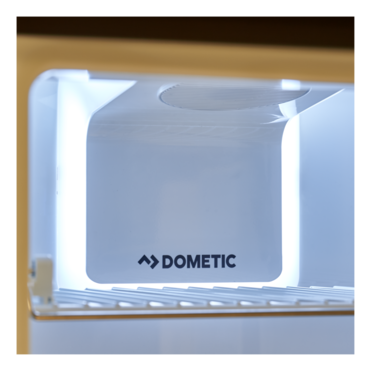

  • Built-in circulation fans ensure that food and beverages are cooled quickly

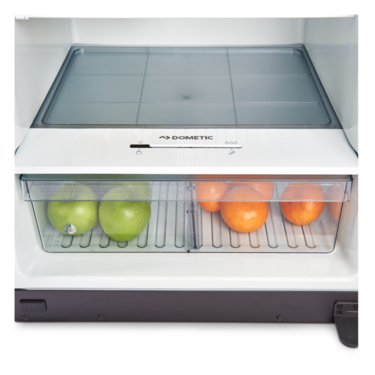

  • Full-width crisper with humidity control for fruit and vegetables

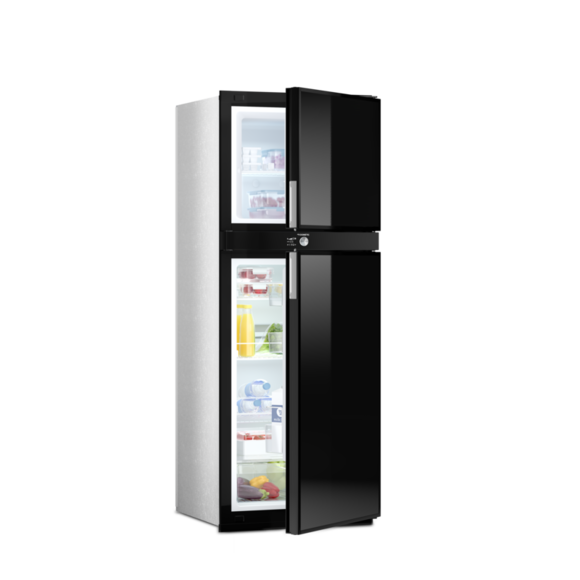

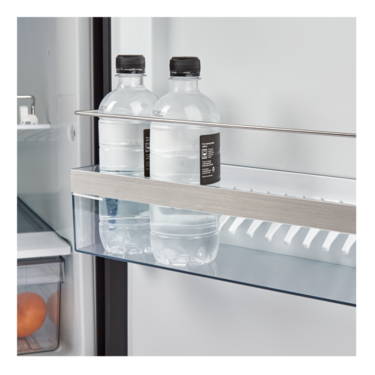

  • Freezer and refrigerator doors include shelving

The Dometic RUA refrigerators provide the reliable refrigeration performance that the RV market has come to expect from Dometic refrigerators. The T-rated cooling system ensures excellent performance in both high and low ambient temperatures, making the RUA refrigerator an excellent choice for all conditions.

The built-in control panel is intuitive and easy to use, allowing users to select a temperature range and a variety of pre-set modes. The control panel also features a built-in service mode that creates simple diagnostics if required. Coloured error messages are displayed alongside an audible alarm if errors occur.


Notes:

  • For recommendations on appropriate accessories to go with the refrigerator (and advice on optimal ventilation set-up), please click on the below INSTALLATION GUIDE.

  • Absorption 3 way refrigerators need to be installed and certified by a qualified and licensed gas-fitter, as improperly or illegally installed products will void the manufacturer’s warranty, and could pose a safety risk.

  • While 3 way absorption fridges have the ability to run off 3 different power sources (12V / 240V / Gas), they are primarily designed with gas operation in mind; they provide exceptional efficiency when running on gas. However for 12 Volt operation, this is only recommended with absorption fridges when the vehicle is running, otherwise it can exhaust your 12 volt power source (battery) very quickly.



Note: This product is a gas appliance that must be installed by a qualified and licenced gas fitter to the current Australian Standard. Failure to do so will void the warranty and may pose a health and safety risk.



Product Manual

Installation Guide

Specifications

SKU RUA6408X-A2

Brand Dometic

GTIN 6951218417217

Warranty Period: 3 Years

Product Category Upright RV Absorption Fridges

Model RUA6408X

Certified By IAPMO

Gas Certification Number GMK10711

Product Type Dometic RU series absorption driven refrigerator can be powered by Gas (LPG), 230 - 240 V AC and 12 V DC, designed for recreational vehicles

Total Capacity (Litres) 188

Freezer Compartment (Litres) 46

Fridge Depth (mm) 677

Fridge Width (mm) 550

Fridge Height (mm) 1447

Door Hinge Position Right Hinged

Voltage 12 Volts DC and 230 to 240 Volts AC

Net Weight (kg) 60

Cut Out Required 530 – 535(w) x 1647 – 1652(h) x min. 621(d) mm (the fridge must be installed in a recess so that it stands secure when the vehicle is in motion).

Consumption 5.8 kWh/24 h (240V) | 420 Ah/24 h (12V)

Note The fridge must be installed in a recess so that it stands secure when the vehicle is in motion. Testing/Certificates: IAPMO


Videos

3 Way Caravan Fridge: Dometic RUA Series Review



2 Way Fridges vs. 3 Way Fridges for Recreational Vehicles



Dometic 3 Way Fridges for Recreational Vehicles



Customer Reviews

Good product, great service Review by
Had my last Dometic 3way fridge for 11 years. If I can get the same with my new one I will be very happy. Love the new design.
(Posted on 24 March 2021)
Excellent Review by
Very happy with product, just now waiting on return call call from Dometic re recall.
(Posted on 5 November 2020)

Write a product review

Product Q&A

Ask Us a Question
  • How often do I need to service my Dometic RV/Caravan appliances?

    Dometic recommend servicing their gas appliances on a yearly basis, even if the vehicle has not been used. Additionally, bear in mind that insects can built nests in the gas appliances which will cause the appliances to stop working. It can also cause potentially dangerous scenarios.

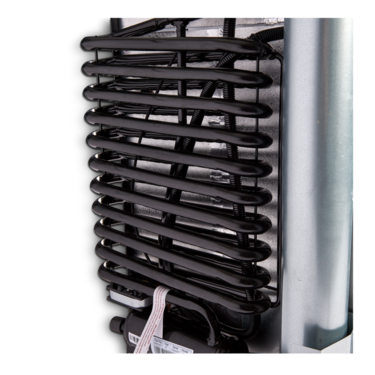

    For other appliances, such as refrigerators and air conditioners, to ensure the appliances to work efficiently and last longer it is recommended to clean the condenser.

  • Does the RUA model only work on gas mode?

    The battery save mode available on the RUA models will allow the refrigerator to operate in gas mode only if activated. The exterior fan and frame heater will also be deactivated in this mode. Consideration of the ambient temperature needs to be made if this setting is to be selected.

  • How do I deactivate the child-lock in my RUA/RUC model refrigerator?

    These models have a great lock for children to prevent any accidental adjustments. You know that you have activated the child-lock if you are unable to change the temperature or the power source. You can either permanently deactivate or temporarily override the lock - please see below:

    • Temporarily Override the Child-lock:
    • Push the control knob 3 times within 1.5 seconds
    • The lock will be reactive again after 10 seconds without touching the control knob
    • Permanently Deactivate the Child-lock:
    • Start with doing a temporarily override, after that simply turn off the child lock in the settings menu
  • Do you require a 12v DC power supply to operate fridge on gas or 240v mains power?

    Not all Dometic 3-Way Absorption Fridge models. Models such as the RM2350, RM2453, RM2553, RM4601, RUA6408X and RUA8408X are manually selected to gas and have a push button ignition which means they do not need a 12v electrical connection ie they are manual ignition. They reduce gas flame to a pilot flame when not needing to cool further/cycle off and increase flame when they do.

    On the other hand all MES - Manual Energy Selection , AES - Automatic Energy Selection  & UES (Selectable AES & MES modes) all require a 12v feed to give basic function even on AC power.  One of the things this enables is the engaging of the gas supply and the ignition of the gas.

    The MES/AES/UES models disengage gas supply when cycling. When cycling back on the gas supply is engaged and the ignition automatically & electronically engaged.
