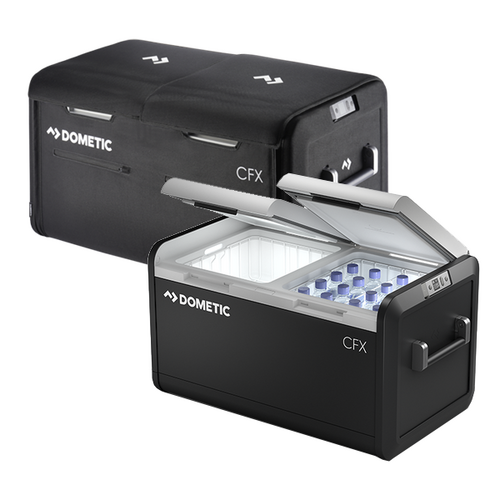

Dometic CFX3 75DZ Portable Dual Zone Fridge & Freezer 75 Litre, 5 Year Warranty. The robust design is built for tough outdoor use, while a convenient mobile app puts the control of your Dometic CFX3 at your fingertips. Dual zone storage compartments have independent temperature control which enables simultaneous cooling and freezing.
With the Dometic CFX3, you have control of your outdoor experiences like never before. The CFX3 gives you the power to change your state of mind and put your well-being first. On-road, off-road, outback or in the backyard, your ordinary and extraordinary adventures will be fuelled by fresher, safer food, less waste and more confidence, giving you the power to be present in any moment.
This is the brand new version of the Dometic Waeco CFX75 Dual Zone Portable Fridge - now upgraded to the CFX3 version, with all new market leading features and benefits.
The CFX3 is the third generation of Dometic Waeco portable camping fridges. All CFX3’s have the same footprint as the old CFX’s but with added capacity. To optimise space the compressor has been moved to the back of the fridge. This also improves the weight distribution on a fridge slide as the majority of the fridges weight is at the back of the slide.
The entire CFX3 range feature easy to remove lids. The larger models (CFX355, CFX355IM, CFX375DZ & CFX395DZ) have a reversable lid while the smaller models (CFX335 & CFX345) open from the front.
What Are The Main Differences Between The Old CFX Models and The New CFX3 Range?
The CFX3 range introduces a new rugged design including an XOS frame for protection, aluminium handles and Al alloy hinges, making most of the range lighter than their counterparts. These models also have a new high-resolution colour display panel with soft touch controls and faster USB charging, are Bluetooth enabled and feature powerful VMSO3 compressor cooling technology, which optimises performance vs energy consumption.
CFX3 Standout Features:
Capacity
The fridge stores an incredible amount of fresh food and drinks. The CFX3 eliminates the dairy compartment, which means more room for all your favorite foods. Choose how you organize the space with a removable wire divider and enjoy a more even distribution of cool air with the extended evaporator, now on all inner walls of the unit. This takes the load off the compressor to save power.
CFX3 App
Download the CFX3 app for free in the App Store or Google Play Store, and connect to your powered cooler via your smartphone. Control and monitor the temperature of the cooler remotely, whether it’s from the front seat of your vehicle or in bed after a long day of exploring. Thanks to our user-friendly interface, it’s easier than ever to track the cooling status of your CFX3. If you happen to leave the lid of your CFX3 open, the app will send you a notification telling you to close the lid. While powered, the app keeps detailed records of the temperature and power consumption history, so you know your limits on your next journey.
Digital Display
The CFX3 series features an easy to read high-resolution color display panel with characters which states the temperature and status of the cooler. Several protection systems are built into the display, including a scratch-resistant cover and IP65 rated housing to protect against dust and water splashes, so you can feel confident wherever you go. The upgraded USB port is now located in the display panel for a faster and more ergonomic way to charge your portable devices. The intuitive user-interface displays the voltage, Bluetooth/WiFi connection status and temperature in colorful graphics. The operating settings of your cooler can be adjusted at the press of a button with a simple menu.
Optimised VMSO3 Compressor
All CFX3’s feature a genuine Waeco VMS03 compressor. The VMS03 compressor has motor speed optimization that has the ability to change speed in order to adapt to the environment. This allows you to save power especially in hot climates. The compressor also features a softer start up with a higher maximum power draw to increase the longevity of the fridge/freezer.
All Features:
| Short Description | Dometic CFX3 75DZ Portable Dual Zone Fridge & Freezer 75 Litre, 5 Year Warranty |
|---|---|
| SKU | CFX375DZ |
| GTIN (Global Trade Item Number) | 9331391009039 |
| Brands | Dometic |
| Product Category | Portable Camping Fridges |
| Product Type | Portable fridge freezer |
| Model | CFX375DZ |
| Total Capacity (Litres) | 75 Litres |
| Fridge Cabinet Material | Polypropylene - Plastic |
| Length (mm) | 892 mm |
| Width (mm) | 495 mm |
| Height (mm) | 472 mm |
| Net Weight (kg) | 27.8 Kg |
| Voltage | Input voltage (AC) 100-240V / Input voltage (DC) 12/24V |
| Energy consumption 12V/240V | Average current draw x running time. Average 3.04 Ah/h (@12 V, 4˚C (large), -15˚C (small), 32˚C ambient, Bluetooth on, WiFi off) |
| Colour | Smokey Gray |
| Manufacturers Warranty | 3 Year Manufacturer + 2 Year Compressor Warranty |
| Quality | |
|---|---|
| Value | |
| Price |
| Quality | |
|---|---|
| Value | |
| Price |
| Quality | |
|---|---|
| Value | |
| Price |
| Quality | |
|---|---|
| Value | |
| Price |
| Quality | |
|---|---|
| Value | |
| Price |
Great question - Waeco and Engel are the premium brands for portable fridges. Waeco has the CFX3 range and Engel has their Platinum series - these two ranges of fridges are generally considered the leading portable camping fridges in the market...its a bit of a classic Ford vs Holden debate situation. Both ranges have:
You really can't go wrong with either...however a couple of differences to help you make your decision:
If you're still in two mind between the two brands, then perhaps look at the pricing and see which model is cheaper in the size you need. Thanks!
Any compressor fridge will draw more power when first starting up, compared to when its running stable on the thermostat. The average power draw (from both 240V AC and 12/24V DC) is listed in the specifications for each model.
If you are concerned about conserving power when starting up, a good tip (if possible) is to put your fridge on 240V power for 24 hours before leaving on your trip. That way when you put your fridge in your vehicle to run on your battery source, the fridge is already cooled to your desired temperature for your food and drinks.
There are three set-able battery protection levels; "Hi" equates to 11.8 volts (High cut-out), "Ned" equates to 11.2 volts (Medium cut-out), "Lo" equates to 10.1 volts (Low cut-out). These are the voltages sensed at the refrigerator under load at which the compressor will shut down to protect your vehicle battery. If you have a small battery in a smaller vehicle, you should select high so that you are able to restart your vehicle easily. If you have a larger vehicle and larger battery capacity you should select the medium setting. If you have a dual battery set up and the secondary battery is able to be isolated from the starter battery you should select the Low setting.
You need to ascertain how much power your refrigerator will consume on average per hour under certain ambient conditions; we provide this information under the Specifications section of the product. You also need to know the size of your battery in amp-hours. Once you know these figures, you can divide the size of the battery by that average consumption figure (multiplied by 24 hours) to give you approximate run time. e.g. If the stated consumption is 1 amp per hour average, multiply that by 24 hours. (equals 24 Amp hours per day). You should understand that you never get the full amount of amp-hours from a battery however. You should use 80% as a good rule of thumb. So if you have a 100 Amp hour deep cycle battery, you can assume 80 amp-hours of usable power. So if a refrigerator consumes on average 1 amp per hour, and is the only appliance running from a 100 amp-hour battery, you should be able to have the refrigerator run for around 80 hours before recharging becomes necessary.
It is not recommended to run refrigerators on their side or end. 30 degrees angle is the steepest recommended angle to leave the refrigerator running at.
Yes you can. If both power sources are available to your WAECO CFX fridge, it will automatically select 240 volts AC as the priority so that you are not consuming battery power.
Typically your home refrigerator would be running at between 2 and 4 °Celsius which is optimum for good food preservation. With camping refrigerators, some campers choose a temperature a little higher than that to conserve battery power. With Dometic WAECO CFX3 portable refrigerators you are able to select a temperature to suit your needs in 1°C increments. For freezing, your home deep freezer would operate somewhere between minus 18 and minus 20 °Celsius. For camping applications however, minus 15 ° Celsius would be more than adequate and also conserve battery power.
The panel should be of a suitable size to meet requirements of the refrigerator and any other appliance running from the battery. Its best to use the solar panel to charge a battery, as opposed to running the fridge directly from the solar panel as voltage will drop if clouds come overhead for instance. The battery means your refrigerator keeps running even if the voltage output of the solar panel drops severely due to cloud cover. A good rule of thumb to prevent inadequacies with power supply is to have a solar panel large enough to provide enough daily power to run your refrigerator, and have battery storage of an extra 2/3 on hand. So, if your refrigerator (or any other appliance) will consume 30 amp-hours per day, you should have battery storage of 90 amp-hours capacity and a solar panel of around 80 watts or greater capacity to ensure you won't have problems. It is advised to go a little higher in specification than your needs, however. A popular solar panel size to charge your batteries to run camping fridges is around 120 - 160 watts.
HI There,
The measurements will include the handles.
Yes, you can switch either compartment off independently whilst running the other compartment. The default setting is to run the small compartment as a freezer and the large compartment as a fridge.
Dometic recommends setting them at -15C and 4C respectively, for normal use, in order to optimise the performance and energy consumption.
The main differences are:
The CFX3 range introduces a new rugged design including an XOS frame for protection, aluminium handles and Al alloy hinges, making most of the range lighter than their counterparts.
These models also have a new high-resolution colour display panel with soft touch controls and faster USB charging, are Bluetooth enabled and feature powerful VMSO3 compressor cooling technology, which optimises performance vs energy consumption.
The CFX355IM model also features an icemaker which is an industry first!
Other differences include:
Hi there,
Yes - the PLB40 lithium battery has been designed to be able to charge and power a CFX3 portable fridge freezer at the same time.
Regards, Steve.
The entire CFX3 range features a genuine Waeco VMS03 compressor. The VMS03 compressor has motor speed optimization that has the ability to change speed in order to adapt to the environment. This allows you to save power especially in hot climates. The compressor also features a softer start up with a higher maximum power draw to increase the longevity of the fridge/freezer.
The evaporator plate in the CFX3’s are installation around the entirety of the fridge for an even cooling distribution and temperature throughout the fridge/freezer.
Hi there,
When a portable fridge/freezer is not properly ventilated, the unit can overheat and result in high power consumption leading to poor performance and efficiency.
It's also recommended to regularly clean the air inlet and outlet vents so that it is free from dust to prevent blockages.
Thanks for your question.
Hi Greg, great question. It is good that you will use the solar panel to charge the battery, as opposed to running the fridge directly from the solar panel, as voltage will drop if clouds come overhead for instance. You can run the fridge direct from your solar panels if you wish, but using the battery means your refrigerator keeps running even if the voltage output of the solar panel drops severely due to cloud cover.
Presumably your 90amp hour battery is an AGM / GEL / Lead Acid type, meaning they have an approximate 'Depth of Discharge' of around 50% - so you can only use around half the capacity of the battery before you need to recharge. For Lithium batteries, you can get down to around 20% of capacity (sometimes more), however lithium batteries are more expensive. So, your battery model has around 45 hours capacity before you need to recharge. A portable camping fridge of say around 40-50 litres in size will draw approximately 0.75 amps/hr*. Meaning you will get approximately 60 hours of total run time from your battery before needing to re-charge, assuming you are running just your fridge and nothing else. Obviously different brands and models have different power draw ratings and a larger portable fridge will draw more power than a smaller model - best to check each fridge model's specifications for precise power draw data.
Now looking at solar panels and the fact you may also want some other small camping appliances as well as the fridge: A good rule of thumb to prevent inadequacies with power supply is to have a solar panel large enough to provide enough daily power to run your appliances, and have battery storage of an extra 2/3 on hand. So, if your portable fridge plus some other small camping appliances consume a total of say 30 amp-hours per day, you should have battery storage of 90 amp-hours capacity (like your battery does) and a solar panel of at least 80-100 watts or greater capacity to ensure you won't have problems. It is advised to go a little higher in specification than your needs, however. A popular solar panel size to charge your batteries to run camping fridges is around 100 to 160 watts… a quality 160 watt portable solar panel should give you around 60 amps per day of charging, assuming around 7 hours of decent sunlight.
So based on the above, a 160 watt sized panel could be a good option for your sized battery - this should give you enough daily power to comfortably run a standard sized portable fridge and some other small appliances if required. Thanks.
*Note that average power consumption data depends on things such as ambient temp, compressor speed (fridge setting), temp of contents in fridge, etc. So treat this numbers as approximation to give you a 'thereabouts' guide.
Hi there,
Unfortunately no, a battery must always be used to provide a continuous power supply. You must plug the portable fridge/freezer into the battery and then plug the battery into the solar panel/blanket.
The solar panel/blanket on its own is unable to provide stable and constatnt power to your portable fridge/freezer, which is required to mantain your pre-set temperature.
Thanks for your question.
Dometic portable fridge/freezers comes in a wide range of sizes. When deciding on a portable fridge/freezer, it is important to remember that the larger size will require more power, it is also heavier and will take up more space.
While if you choose a smaller more compact fridge/freezer, it may be hard to fit your required food for your family during your days away.
We recommend to to choose the size that matches your required storage capacity for food, your travel habits, and weight requirements.
