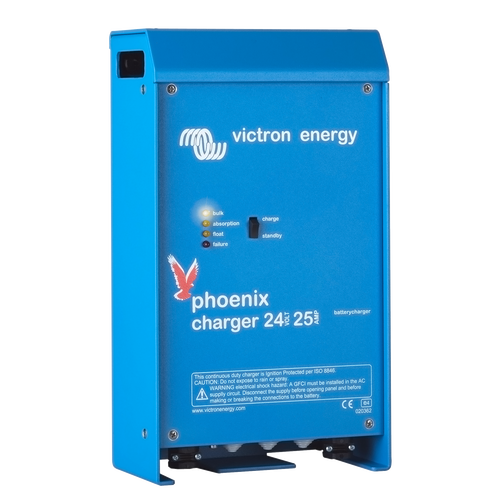

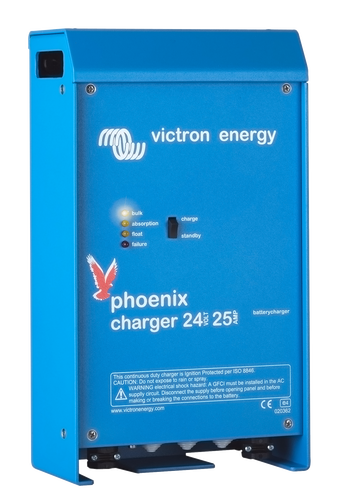

Victron Phoenix Charger 24/25 (2+1) 120-240V

SKU: PCH024025001 Learn More»
Victron Phoenix Charger 24/25 (2+1) 120-240V
Free Shipping
$1,002
$1,171

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Phoenix Charger 24/25 (2+1) 120-240V, 5 Year Warranty. Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.

The right amount of charge: variable absorption time:

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

Preventing damage due to excessive gassing: the BatterySafe mode:

If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.

Less maintenance and aging when the battery is not in use: the Storage mode:

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This
feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

To increase battery life: temperature compensation:

Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense:

In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Universal 90-265 V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation):

The chargers will accept a 90-400 V DC supply.

Computer interface:

Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Together with our VEConfigure software, which can be downloaded free of charge from our website www.victronenergy.com and the data link MK2-USB (see accessories), all parameters of the chargers can be customised.


Victron Product Card

Victron Product Manual

Specifications

SKU PCH024025001

Brand Victron

GTIN 8719076023289

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 25

Dimensions 350 x 200 x 108 mm (L x W x H)

Humidity Max 95%

Battery-connection M6 studs

Operating temperature range -20 to 60°C (0 - 140°F)

Input Voltage 90-265 (VAC)

Output System Voltage 24V

Charge current 25A

Protection category IP 21

Charge Voltage Float - Wet (25 degrees)** 27,6

Charge voltage 'absorption' 28,8

AC Input Connection Screw-clamp 4 mm2 (AWG 11)

Net Weight (kg) 3.8

Charger Voltage 24V
