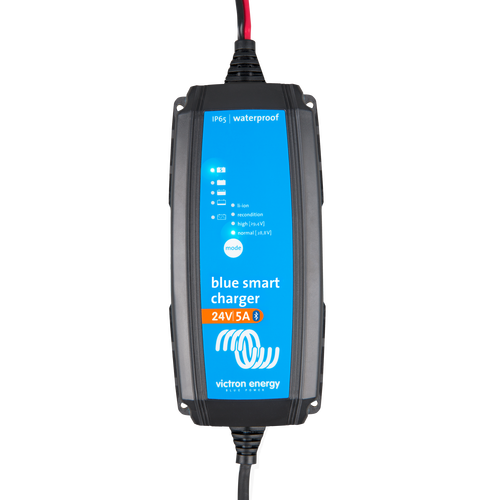

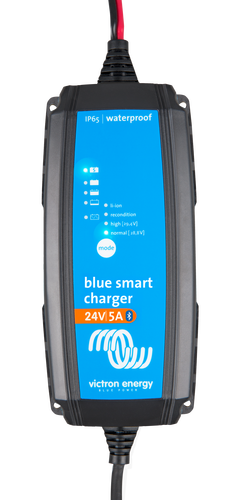

Victron Blue IP65 Smart Charger 24/5 + DC connector

$209

FREE SHIPPING

Accessories

$20

$20

$24

$29

$28

$40

$29

$20

$15

$55

Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Blue IP65 Smart Charger 24/5 + DC connector, 5 year warranty. The Blue Smart IP65 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Benefits:

  • Water, dust and chemical resistant
  • Seven step smart charge algorithm
  • Recovery of fully discharged ‘dead’ batteries
  • Automatic power supply function
  • Severe cold performance: down to -30°C
  • Several other battery life enhancing features
  • Low power mode to charge smaller batteries
  • Li-ion battery mode
  • Setup and configure, readout of voltage and current by Bluetooth Smart

The battery is charged, smartly... to perfect condition:

The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.

Recovery of deeply-discharged 'dead' batteries:

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Connect the battery with ease:

The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.

Check the status of your battery remotely:

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.

Victron Product Card

Victron BPC120531064R Product Manual

Product Drawing



Victron IP65 Charger Guide

Specifications

SKU BPC240531014R

Brand Victron

GTIN 8719076018049

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 5

Model BPC240531014R

Charge voltage 'absorption' Normal: 28.8 V | High: 29.4 V | Li-ion: 28.4 V

Efficiency 95%

Input Voltage 230 VAC

Battery-connection Black and red cable of 1,5 meter

Dimensions 95 x 190 x 47 mm (L x W x H)

Standby power consumption 0,5 W

Can be used as power supply Yes

Charge Voltage Float - Wet (25 degrees)** Normal: 27.6 V | High: 27.6 V | Li-ion: 27.0 V

Charge current 5A

Operating temperature range -30 to +50°C (full rated output up to 30°C) (cables retain flexibility at low temperature)

Protection Reverse polarity, Output short circuit, and Over temperature

Charge current in low current mode 2A

Charge voltage 'storage' Normal: 26.4 V | High: 26.4 V | Li-ion: 27.0 V

Protection category IP65 (splash and dust proof)

Output System Voltage 24V

Humidity Max 95%

Charger Voltage 24V

Net Weight (kg) 0.9

Back Current Drain 0,7 Ah/month (1 mA)


Videos

Blue Smart IP65 Charger - Professional battery charger | Victron Energy



Product Q&A

Ask Us a Question
  • What size battery charger do I need for my lead acid battery I have in my camper?

    A good battery charger rule of thumb for charging a lead acid battery, is using a charger with output current (amps) of 10-20% of the battery total stored capacity (Ah).

    So, for example if the battery is 12V 100Ah, the charger need to be minimum of 10A and maximum of 20A.  Often splitting the difference at 15% (so a 12V ~15A charger) is a good option. Happy charging!

  • Does the charger on normal charging change to a float charge automatically and the charger be left on if the car is not in use for days.

    Hi There,

    As this charger is a smart charger, it will swicth to float mode automatically. This will allow the charger to be permanently mounted if required.

  • I have a 100ah lithium. I've heard i need a charger with higher amps output than for a agm battery? What charger do you recommend for my litium battery?

    Hi There,

    We would recommend a charger with no larger than a 30A output.

    A good example would be: https://www.mygenerator.com.au/victron-blue-ip22-smart-charger-12-30.html

  • I am wondering if I can use this charger to charge and permanently connected - whilst running a generator?

    Hi There,

    Yes this battery charger can be connected permanently, and can also be used with a generator.

Warranty

    For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
