Sunman eArc 235W Portable Solar Blanket

SKU: eAPSMF235M Learn More»
$879
$999
In Stock1-2 Days Dispatch

EXTRA $20 OFF! Add to cart to get an instant discount
SALE ENDS:

CALCULATE SHIPPING:

Learn More»

Description

Sunman eArc 235W Portable Solar Blanket, 5 Year Warranty. Designed by Sunman, using their lightweight robust eArc monocrystalline solar panels, this premium 235w portable solar panel is made with a Patented composite material similar to those used in airplane windows. As this material is much more durable than standard ETFE and PET panels, a thick fibreglass sheet behind the panel is not necessary and the weight can be kept to a minimum. eArc solar panels are are about 75 percent lighter than conventional photovoltaic panels.lightweight and easy  to carry portable solar panel with 5 year warranty


Features:

  • Easy to carry - lightweight (7kg) with built-in handle loops on lightweight portable solar panel for hanging in sun

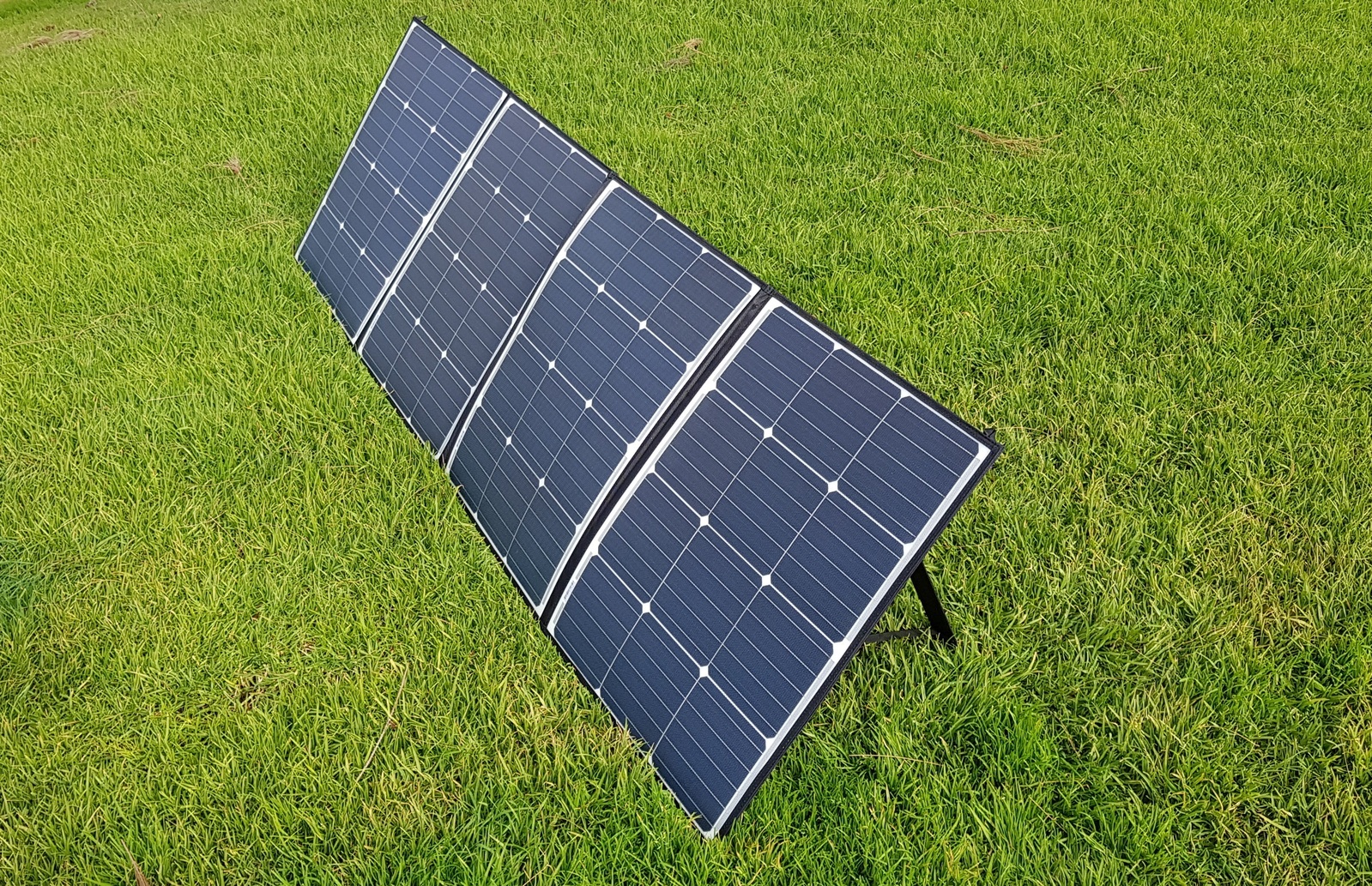

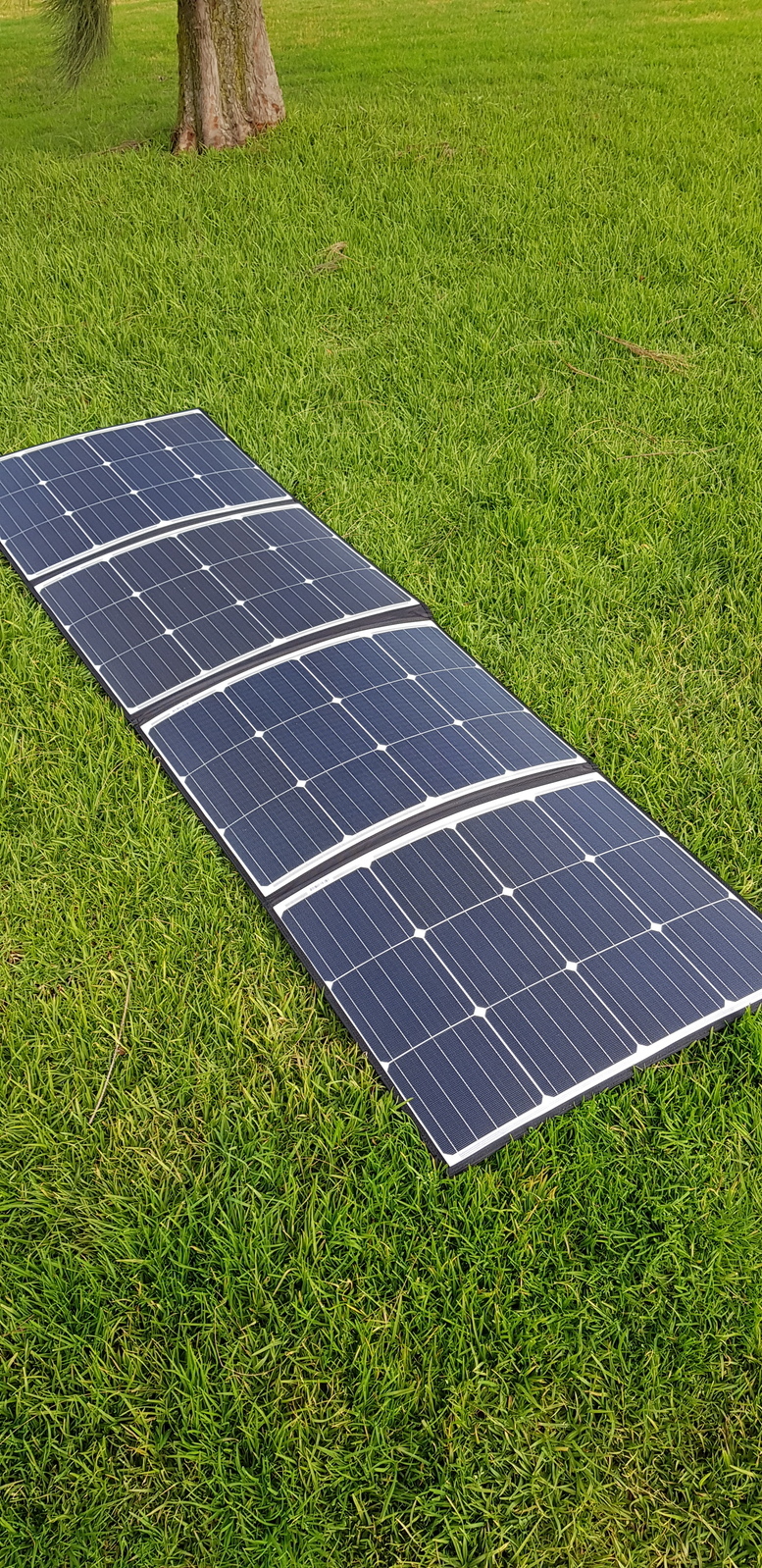

  • Easy to use - folds out in 4 sections.  Loops for easy hanging or lay flat
  • Easy to store - thin profile (comes with bubble wrap bag in cardboard box for storage)

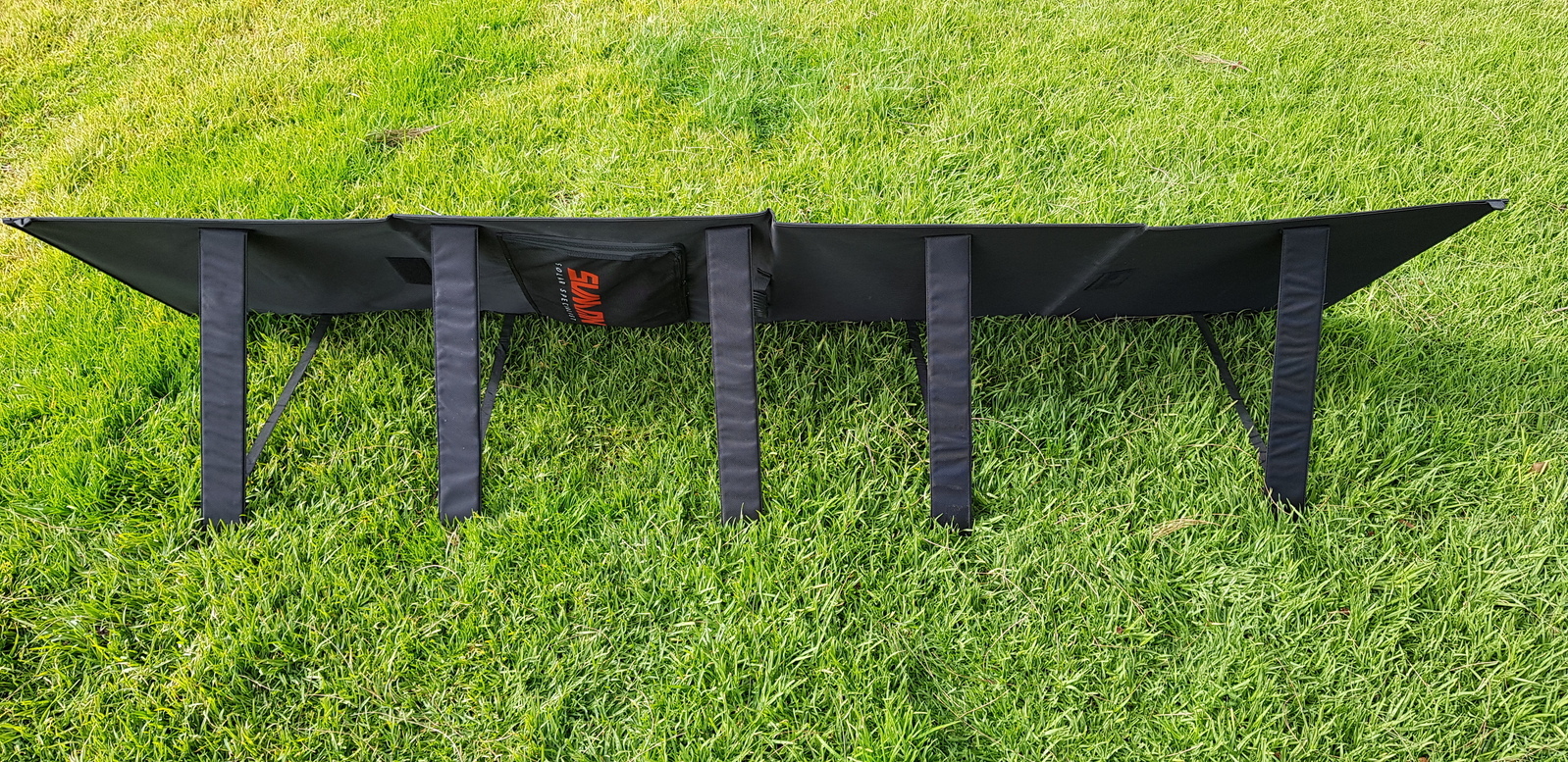

  • Easy fold-out legs

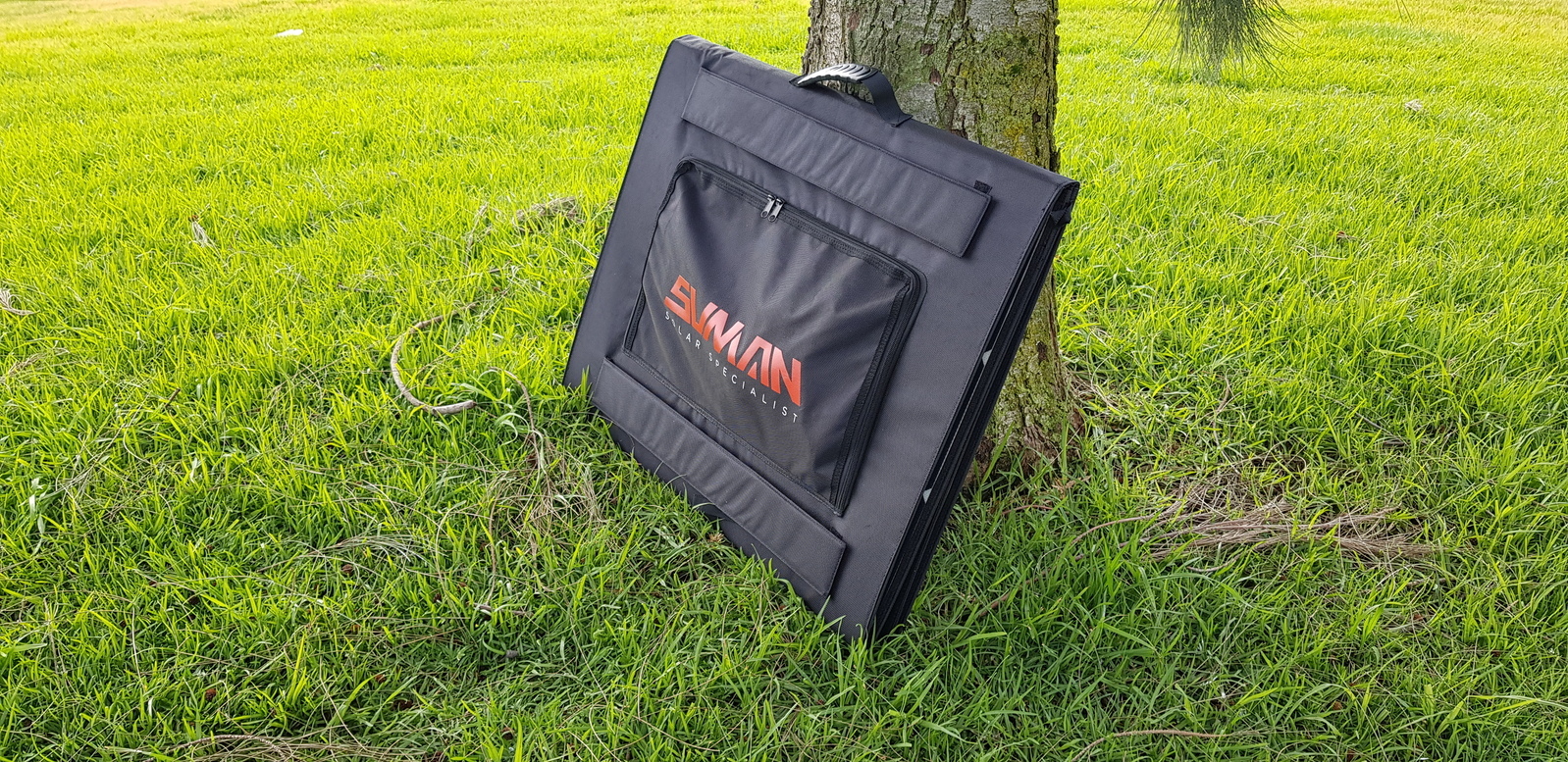

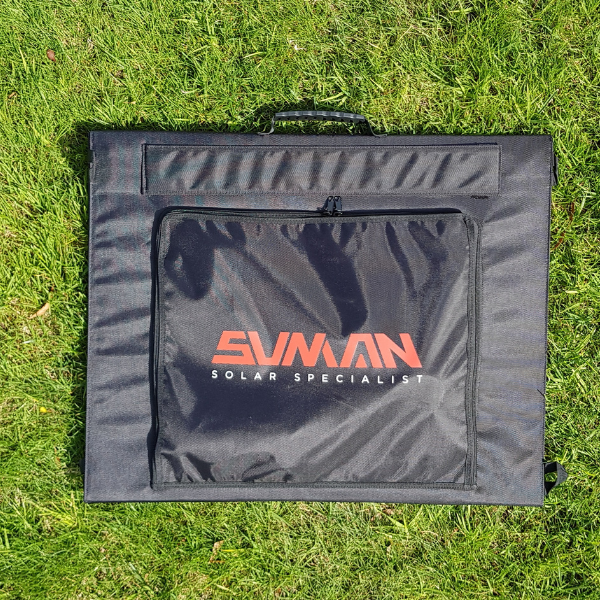

Lightweight and compact

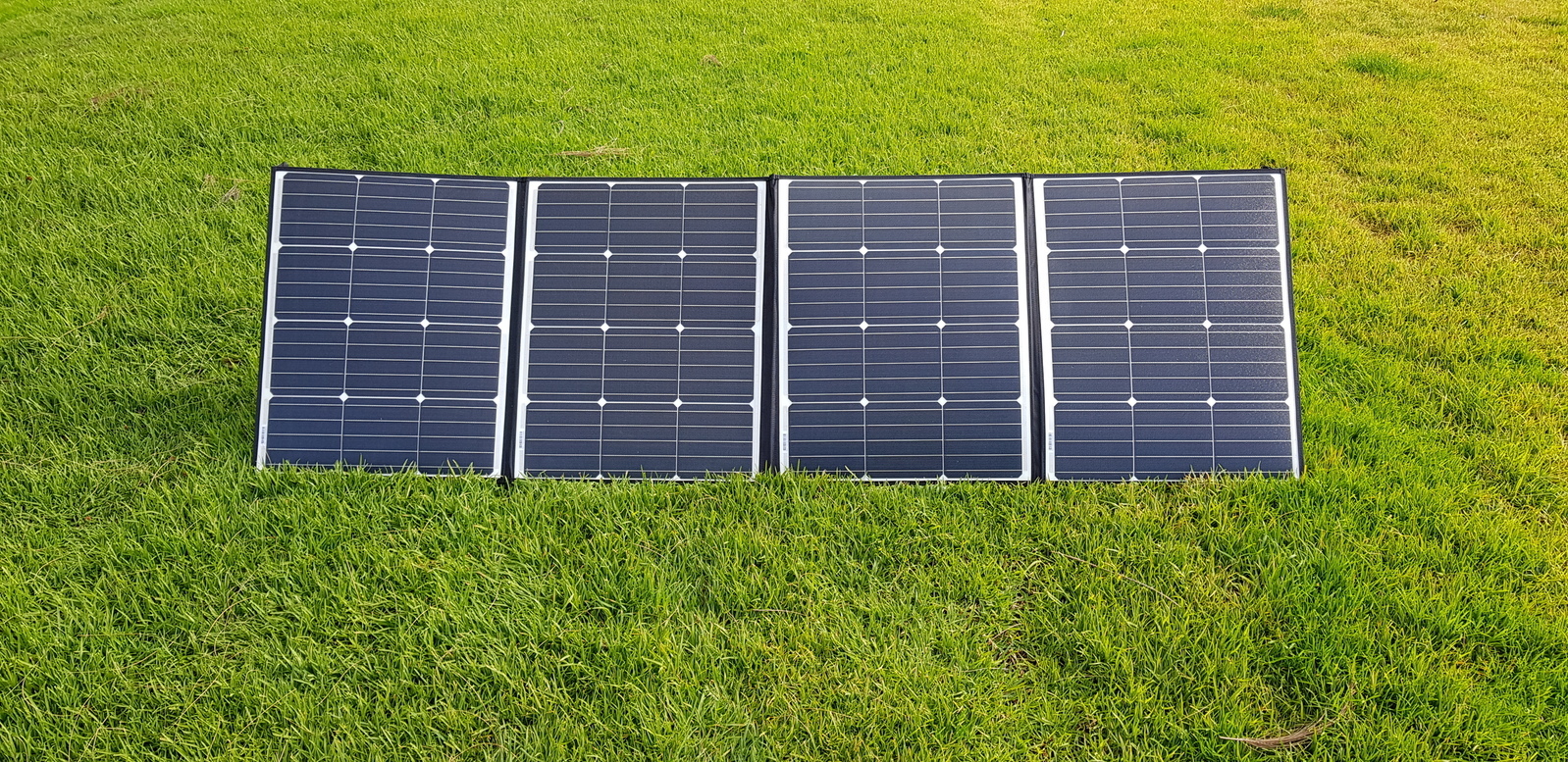

Made with 48 solar cells in four sections of 12 solar cells each fold into a compact carry bag with handle that is easy to carry and store and weighs only 7kg!

  • Dimensions folded  - 670 x 540 x 24 mm
  • Dimensions un-folded  - 670 x 2600 x 5 mmt

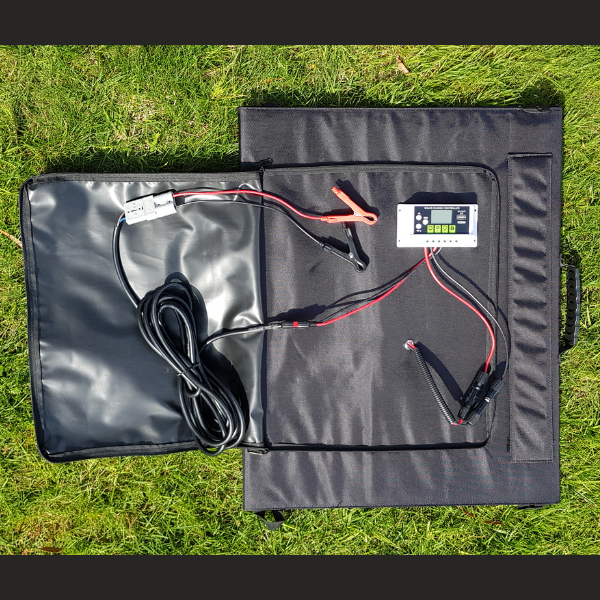

The functional storage pouch keeps the cables and solar charge controller neatly protected and stored when not in use.

High Efficiency

The output warranty is the same as high grade rigid solar panels used on buildings: above 80% of the original power by the 25th year. Unfolded, without shade this panel can produce more than 500wh per day in most areas.

Durable

The top encapsulation layer is a high-strength fluorine polymer that is corrosion and stain resistant, non-stick self cleaning, and retains its clarity (and therefore light transmittance) ensuring long service life for solar panels.  It will not discolour or degrade from exposure to environmental pollution, UV light, harsh chemicals or extreme temperature variations. The surface is textured for extra robustness.

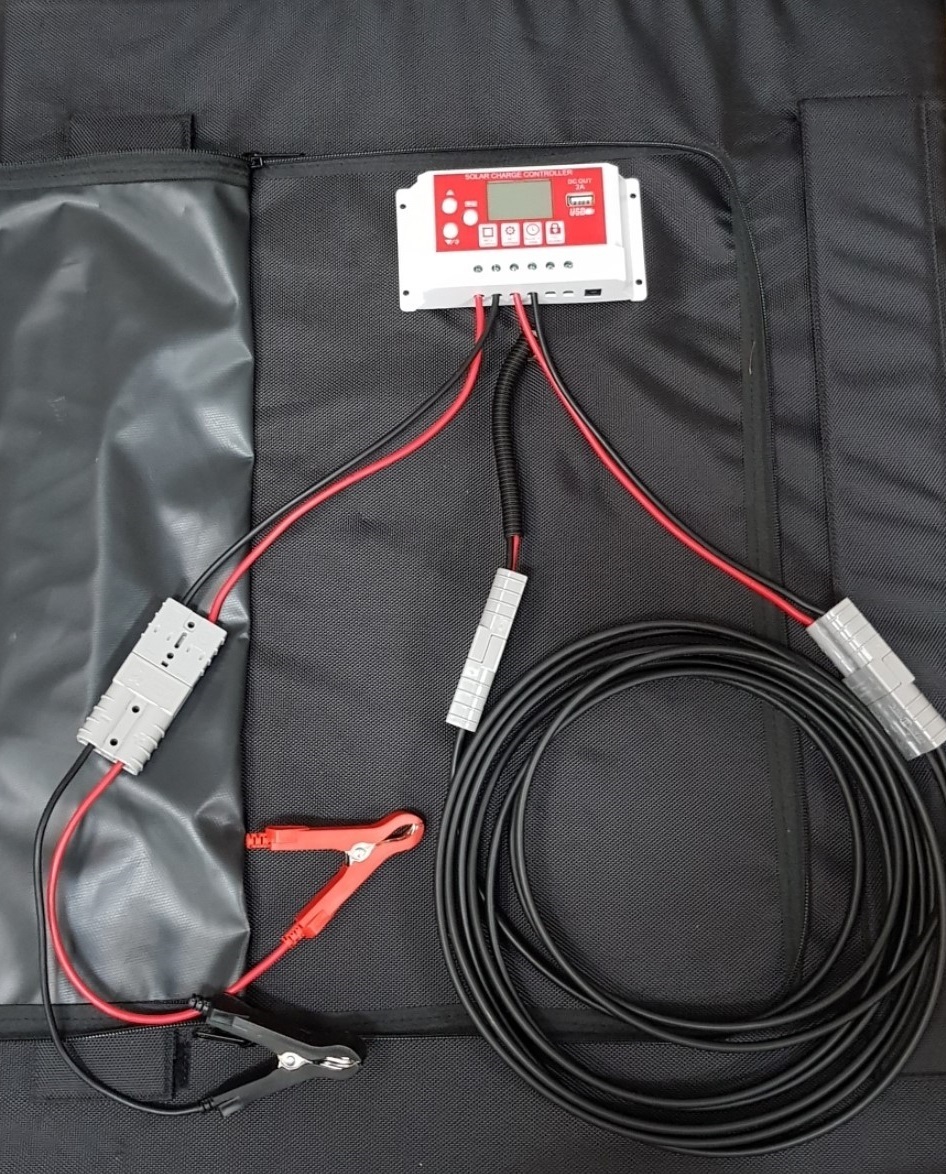

Included Accessories:

  • PWM charge controller with LCD display (lithium compatible)
  • 5m 4mm² PV1-F extension cable with Anderson Plugs.
  • Alligator clips for easy battery connection

Brochure

Show More

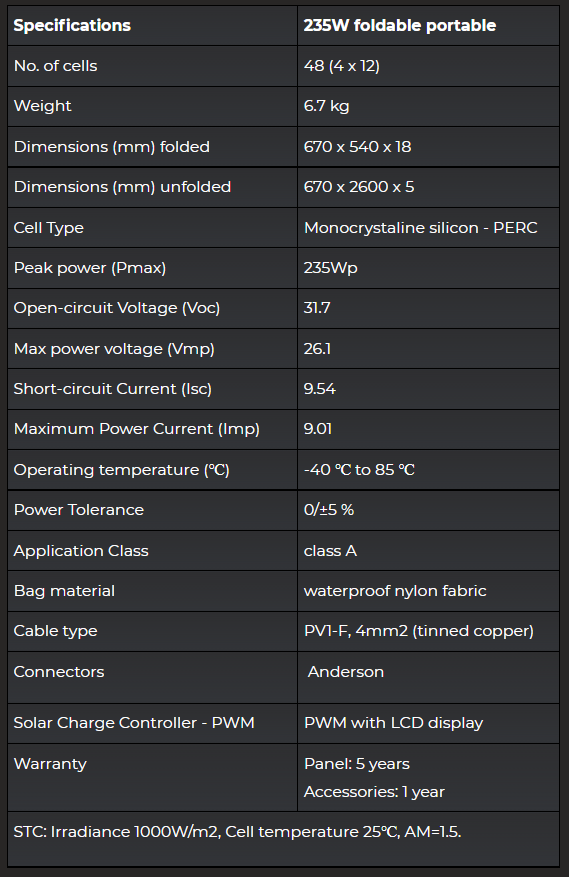

Specifications

SKU eAPSMF235M

Brand Sunman

Product Category Portable Solar Blankets

Solar Panel Type Folding Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 235

Open Circuit Voltage Voc(V) 31.7

Dimensions Open (LxWxH) 670 x 2600 x 5mm

Operating temperature range -40 ℃ to 85 ℃

Max Power Current Im(A) 9.01

Short Circuit Current Isc(A) 9.54

Net Weight (kg) 6.7

Dimensions Closed (LxWxH) 670 x 540 x 18mm

Max Power Voltage Vm(V) 26.1
