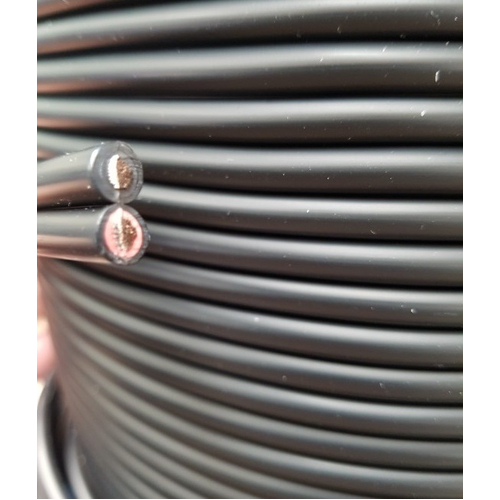

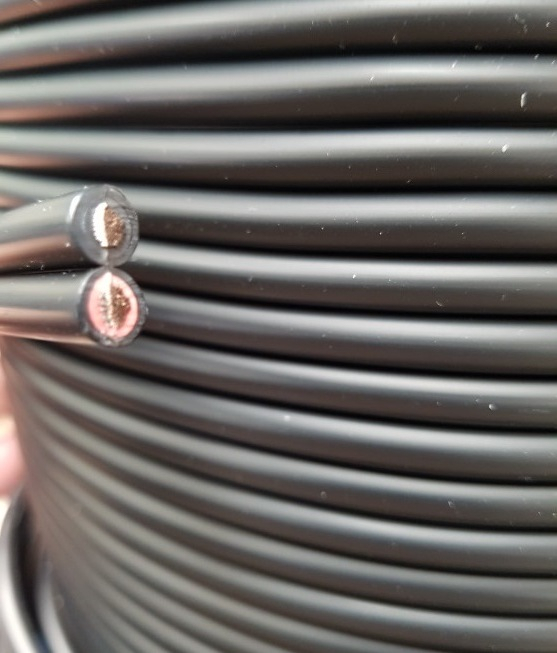

Solar Cable PV1-F 6mm2 twin, thin sheath

$5

CALCULATE SHIPPING:

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Solar Cable PV1-F 6mm2 twin, thin sheath, 1 Year Warranty.These cables are developed according to PV1-F requirements and designed to meet the rigours of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation.

  • Outside diameter of each core 6mm
  • Inner insulation: XLPE (Black, Red)
  • Sheath insulation: XLPE (Crosslinked Polyethylene)
  • Nominal voltage: U0 / U: 0,6 / 1 kV AC / max. 1.5 kV DC
  • Test voltage according to EN 50395-6: 6,5 kV AC / 15 kV DC (5 min.)
  • Rated current: 55 A (4.0 mm²), 70 A (6.0 mm²)
  • Insulation resistance of the complete cable: ≥ 1000 MΩkm in accordance to EN 50395-8.2
  • Ambient temperature:  –40°C ...+90°C
  • Bending radius: Dynamic: >4 × OD
  • Cut to length  - 1 metre increments

Constructed using fine stranded tinned copper conductors insulated with a temperatureresistant, halogen-free cross-linked copolymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer.

  • Rated voltage AC 1000V, DC 1500V (max)
  • Temperature range Ambient –40°C ...+90°C
  • Approvals EN 50618 H1Z2Z2-K IEC 62930
  • Minimum bending radius Flexing: 5 x cable diameter
  • Fixed: 4 x cable diameter
  • Marking Meter marked

Specifications

SKU PV1-F2x6MMTHIN

Brand Solar 4 RVs

Warranty Period: 1 Year

Product Category Accessories
