Runva EWX9500-Q 12V Winch with Synthetic Rope

Specifications

SKU EWX9500Q-VD

Brand Runva

Warranty Period: Limited Lifetime

Product Category 4WD Parts and Extras

Net Weight (kg) 31

Brake Automatic Load Holding Screw Cone

Synthetic Rope / Steel Cable 10mm X 26.5m (12V model)

Gear Ratio 80:1 – Extra Low for Extra Speed

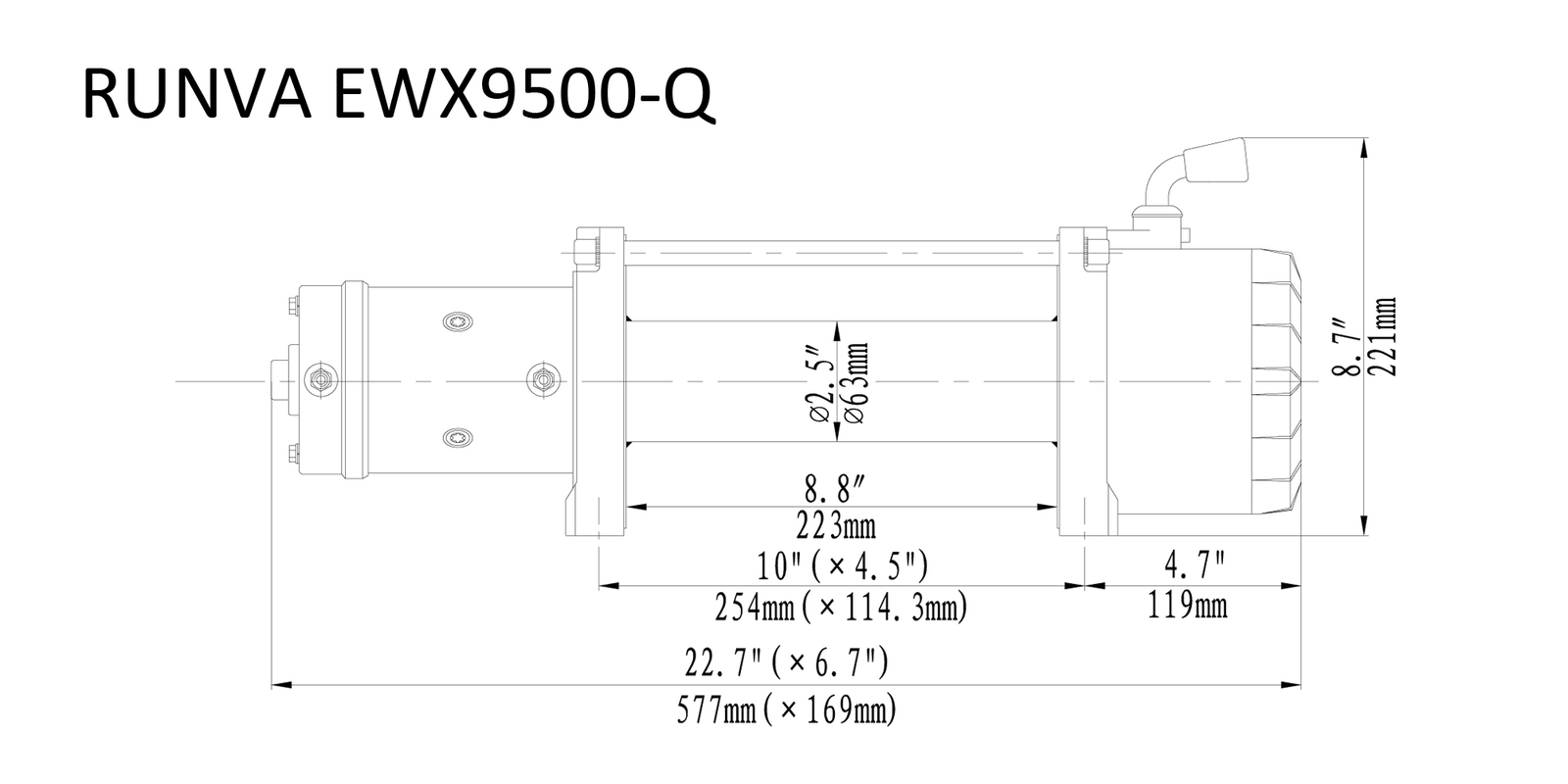

Dimensions 577MM X 163MM X 217MM

Winch Capacity (Kg) 4309

Battery Leads 2 X 1.8M Heavy Duty Leads

Gear Train Full Steel 3 Stage Planetary

Remote control 3.7M Handheld Remote/ Wireless Remote

Motor Permanent Magnet (12V) 6.4kW/8.6HP (12V model)

Rated Line Pull 9500lb (4309kg)

Mounting Options Mounting Bolt Pattern - 254mm X 114.3mm

Finish Grey Powder Coat

Customer Reviews

Product Q&A

• What size battery should I use with the Runva winches?

  Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

  The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

  The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.

• Which Runva Winch should I choose?

  It depends on your individual needs. Some factors to consider are:

  • Which features you are looking for in a winch
  • The rating of the winch bar or plate you are planning to use it on
  • The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
• Are the Runva Winches all IP67 Ingress Tested?

  No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
