Runva EWS10000 Premium Winch with Synthetic Rope

Runva EWS10000 Premium 12V Winch with Synthetic Rope

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Runva EWS10000 Premium Winch with Synthetic Rope, Limited Lifetime Warranty. The Runva Lifting Series have been designed for applications requiring a winch that is rated for lifting purposes. There are many applications and industries that require winches used for lifting. Winches designed for pulling applications are generally not suitable for lifting due to many design and safety factors.

The Runva EWS10000 Premium Winch is a twin motor low mount winch and IP67 ingress protected. It has a fast line speed and low gear ratio with ratchet style brake in gearbox and air freespool clutch. This product comes with a steel cable you have the option of either 12V or 24V.

Winch Voltage Options:

Runva EWS10000 Premium 12V with Synthetic Rope - EWS1000012VD
Runva EWS10000 Premium 24V with Synthetic Rope - EWS1000024VD

Included:

Winch with steel cable
2x Solenoid Pre-fitted to winch
Handheld remote
Large Recovery hook
Aluminum Hawse Fairlead
Remote Extension Plug with Bracket
Mounting bolts

Go to: Product Details

Go to: Reviews

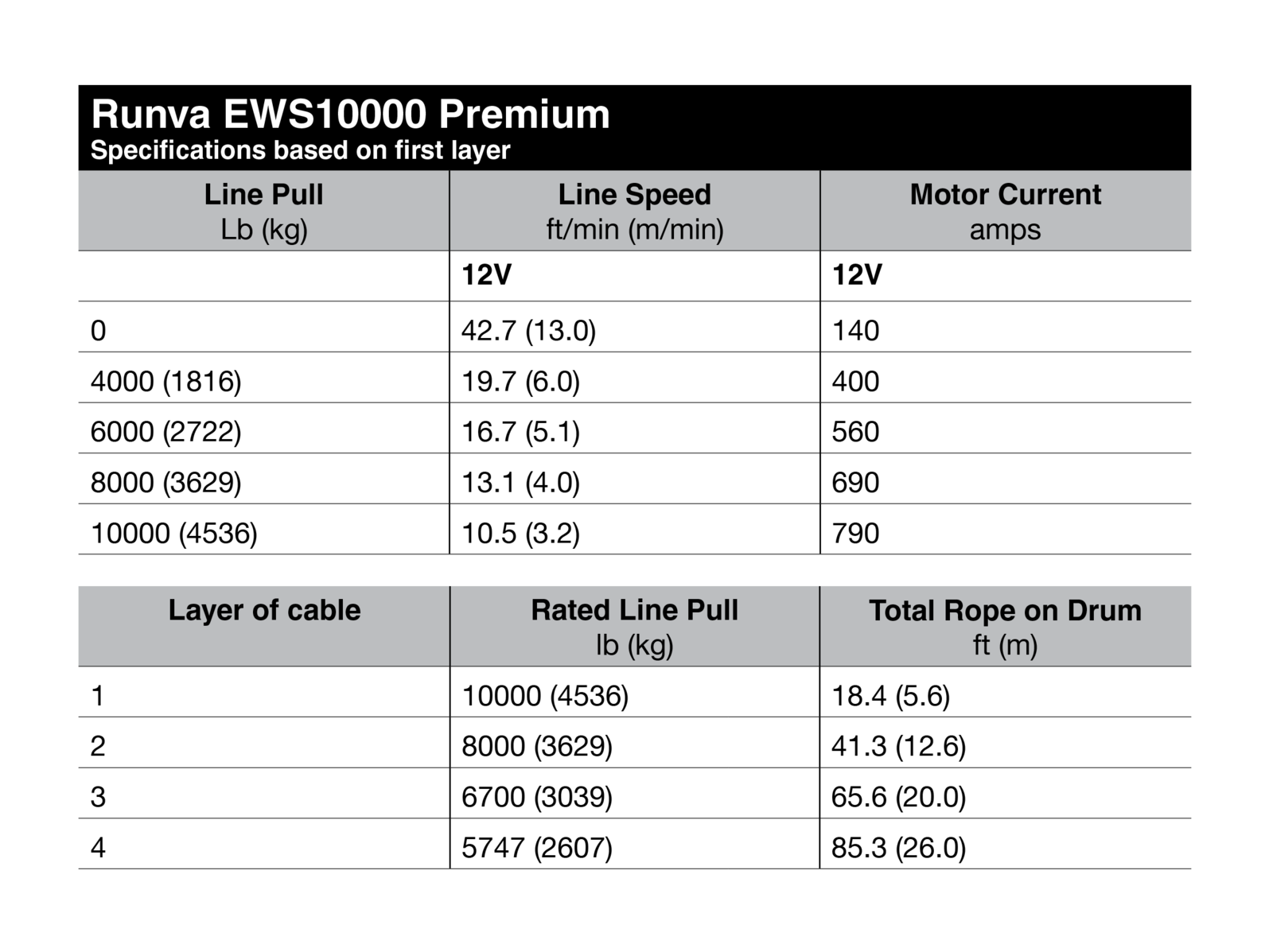

Specifications

SKU EWS10000-VD

Brand Runva

Warranty Period: Limited Lifetime

Product Category 4WD Parts and Extras

Net Weight (kg) 31

Brake Automatic Load Holding Screw Cone

Synthetic Rope / Steel Cable 10mm X 26.5m (12V model) | 10mm X 26.5m (24V model)

Gear Ratio 110:1 – Extra Low for Extra Speed

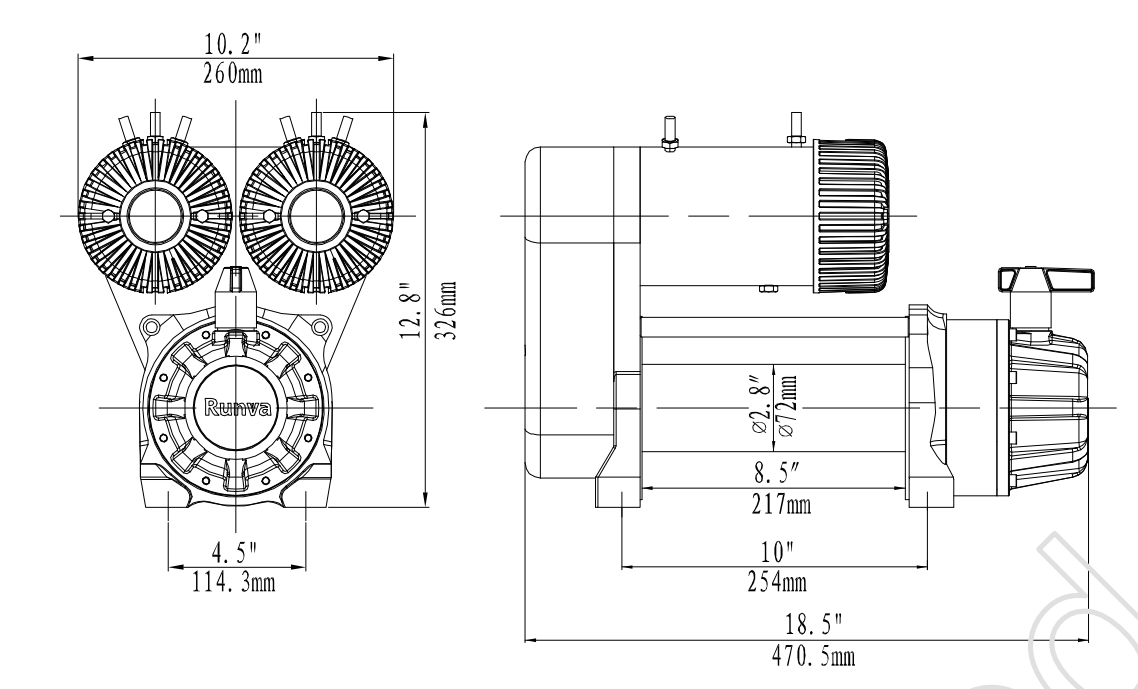

Dimensions 577MM X 163MM X 217MM

Winch Capacity (Kg) 4536

Battery Leads 2 X 1.8M Heavy Duty Leads

Gear Train Full Steel 2 Stage Planetary

Remote control 3.7M Handheld Remote/ Wireless Remote

Motor Permanent Magnet (12V) 6.4kW/8.6HP (12V model) | Permanent Magnet (24V) 2.9kW/3.9HP (24V model)

Rated Line Pull 9500lb (4309kg)

Mounting Options Mounting Bolt Pattern - 254mm X 114.3mm

Finish Grey Powder Coat

Go to: Specifications

Go to: Q & A

Customer Reviews

Write a product review

Go to: Reviews

Go to: Warranty

Product Q&A

Ask Us a Question

What size battery should I use with the Runva winches?

Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
Are the Runva Winches all IP67 Ingress Tested?

No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
