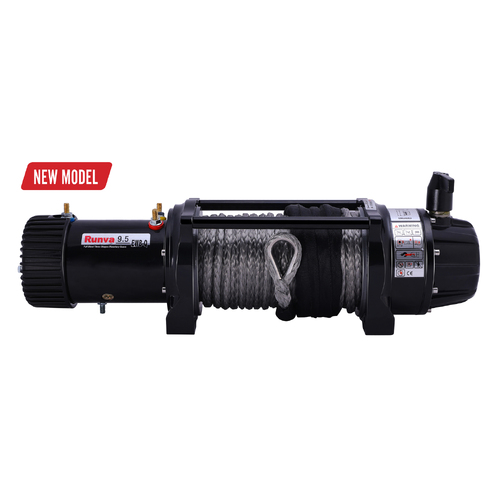

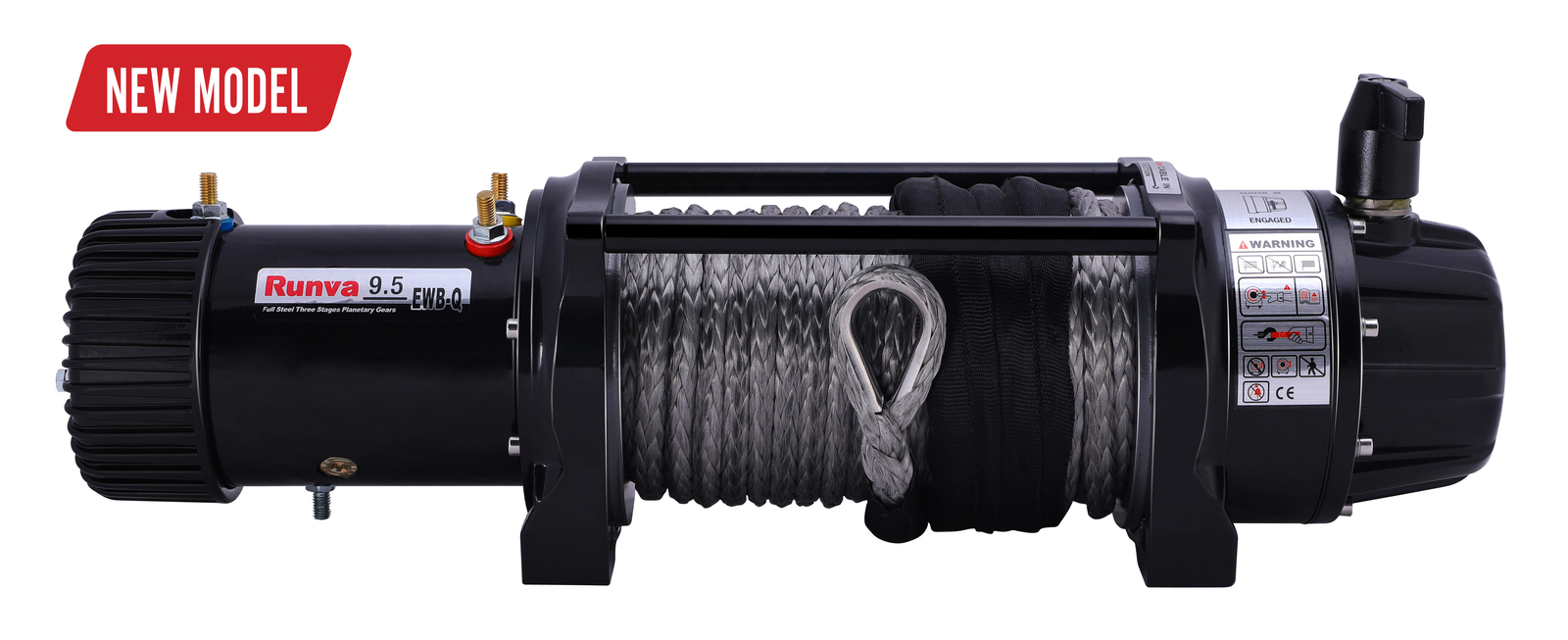

Runva EWB9500-Q Premium 12V Winch with Synthetic Rope

SKU: EWB9500Q-VD Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Runva EWB9500-Q Premium Winch with Synthetic Rope, Limited Lifetime Warranty. The Runva 4X4 Electric Series offers a very extensive range of products. Runva have solutions for every application and every vehicle.

The Runva EWB9500-Q Premium is IP67 ingress protected and has a fast line speed with ratchet stype brake in gearbox and air freespool clutch. This product comes with a synthetic rope and you have the option of either 12V or 24V.

Winch Voltage Options:

Runva EWB9500-Q Premium 12V with Synthetic Rope - EWB9500Q12VD
Runva EWB9500-Q Premium 24V with Synthetic Rope - EWB9500Q24VD

Included:

Winch with steel synthetic rope
Control box with power cabled plus multiple brackets for easy fitting
Handheld remote & wireless remote
Large Recovery hook
2in1 Hawse Fairlead (offset + standard)
Mounting bolts

Go to: Product Details

Go to: Reviews

Specifications

SKU EWB9500Q-VD

Brand Runva

Warranty Period: Limited Lifetime

Product Category Winches

Winch Capacity (Kg) 4309

Battery Leads 2 X 1.8M Heavy Duty Leads

Gear Train Full Steel 3 Stage Planetary

Gear Ratio 108:1

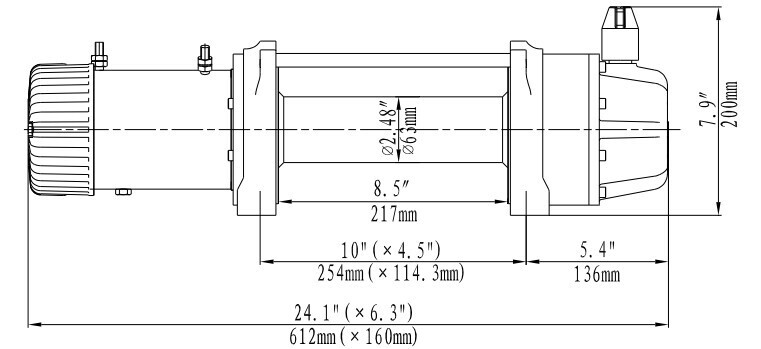

Dimensions 612mm X 160mm X 200mm

Motor Series Wound (12V) 5.4Kw/7.2Hp - Ip67 Rated | Series Wound (24V) 5.3Kw/7.1Hp - Ip67 Rated

Rated Line Pull 9500lb (4309kg)

Drum Diameter (mm) 63mm X 217mm

Remote control 3.7M Handheld Remote/ Wireless Remote

Net Weight (kg) 31.4

Brake Automatic Load Holding Screw Cone

Synthetic Rope / Steel Cable 11mm X 25m (12V model) | 11mm X 25m (24V model)

Mounting Options Mounting Bolt Pattern - 254mm X 114.3mm

Finish Black Powder Coat

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

What size battery should I use with the Runva winches?

Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
Are the Runva Winches all IP67 Ingress Tested?

No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
