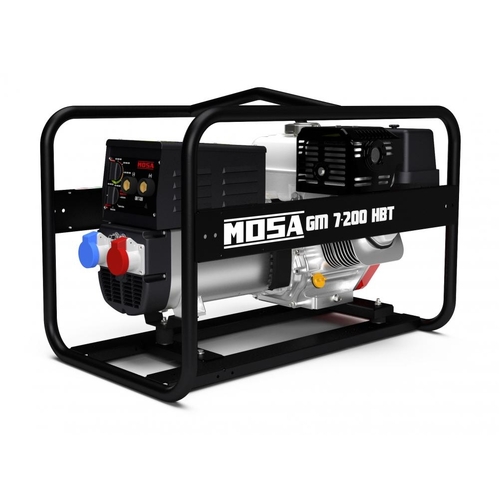

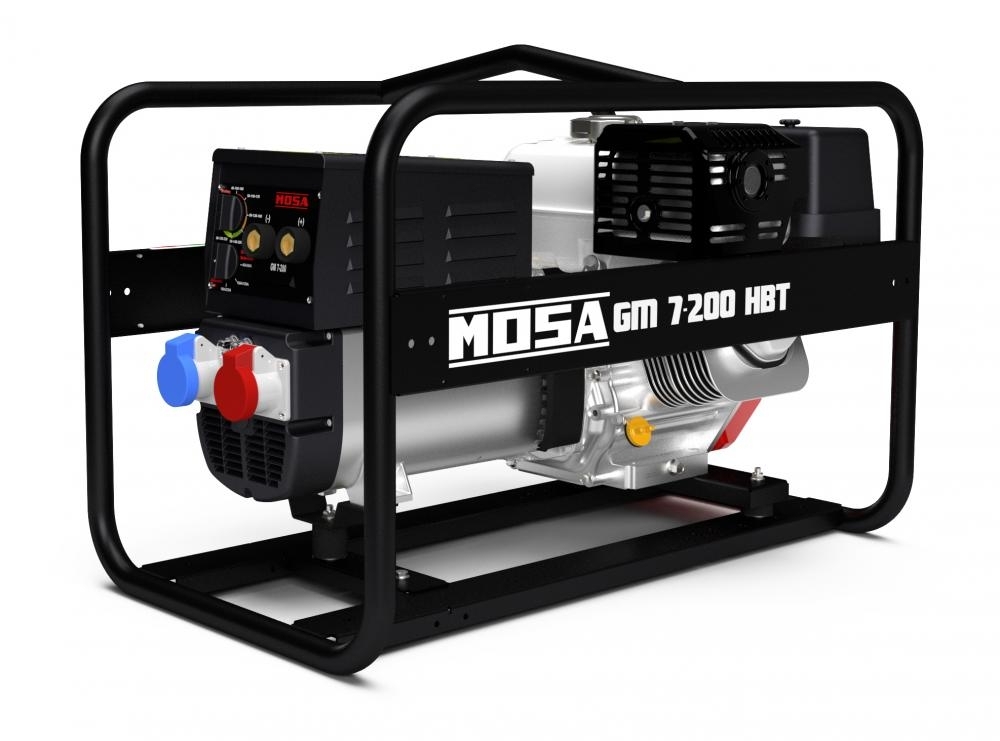

Mosa 7 kVA Honda Three Phase DC Arc Welder Generator GM 7-200 HBT
SKU: C1TN7040R Learn More»
Product Description
Mosa 7 kVA Honda Three Phase DC Arc Welder Generator, 2 Year Warranty.
Attributes:
- Fuel: Petrol
- Phase: 3 Phase
- Engine Speed: 3000 RPM
- Welding Current: 200 Amps
- Prime Kva: 7 (10.1A)
- Process: Conventional (Stick)
- Fuel Tank: 6.1L
Features:
- Arc welding source in D.C. welding
- A.C. generator, single-phase
- Protective frame with central lifting eye
- Engine shut down for low oil level (oil alert)
- Thermal protection for welding circuit
- Thermal protection for generator sockets
- Differential protection (on request)
- Compliant with EC / EU Directives
Specifications
SKU C1TN7040R
Brand Mosa
Warranty Period: 2 Years
Product Category Portable Generators
kVA 7
Max Output (kW) 5.6
Continuous Output (kW) 5.2
Model GM 7-200 HBT
Continuous Output 6.5kVA
Phase Three-phase
Fuel Petrol
Fuel Tank Capacity 6.1 L
Starting Method Recoil / Electric
Engine HONDA - GX 390
Voltage 400
Engine Type 4-TEMP
Running Time (Rated Output) 2.9 h (Welding 60%)
Engine Horsepower 3000 RPM
Duty Cycle 160A / 26.4V - 60% | 120A / 24.8 - 100%
Fuel Consumption 3.5 lt/h @110% (stand-by power) | 3.2 lt/h @100% of PRP | 2.4 lt/h @ 75% of PRP | 1.6 lt/h @ 50% of PRP
Cylinders (q.ty) 1
Product Dimensions (mm) LxWxH 870 x 529 x 612 mm
Net Weight (kg) 100
Displacement 389 cm3
Frequency 50Hz
