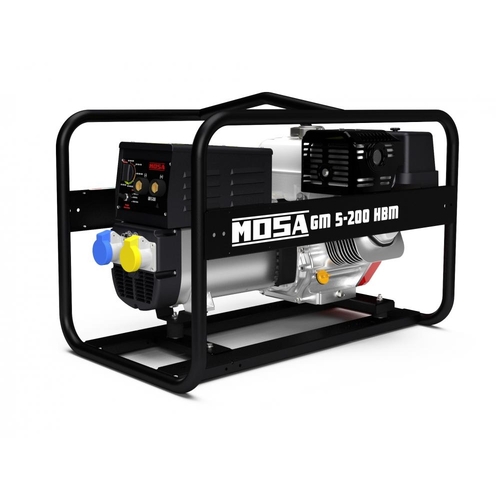

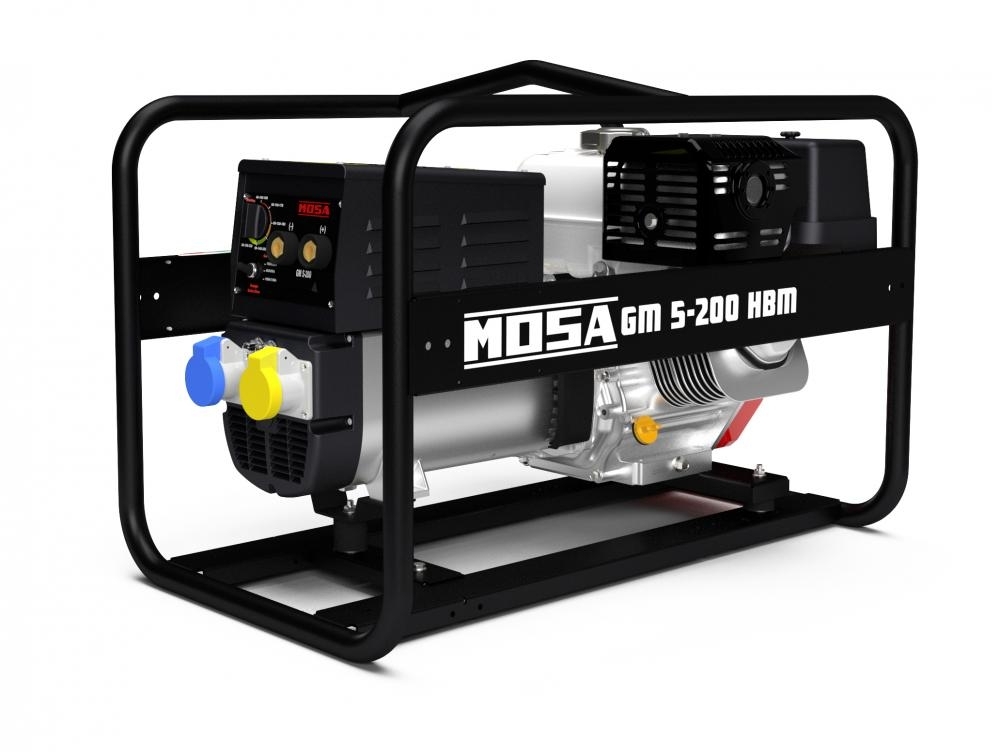

Mosa 5 kVA Honda Petrol DC Arc Welder Generator GM 5-200 HBM
SKU: C1UN7040R Learn More»
Product Description
Mosa 5 kVA Honda Petrol DC Arc Welder Generator, 2 Year Warranty.
Attributes:
- Fuel: Petrol
- Phase: 1 Phase
- Engine Speed: 3000 RPM
- Welding Current: 200 Amps
- Prime Kva: 5 (21.7A)
- Process: Conventional (Stick)
- Fuel Tank: 6.1L
Features:
- Arc welding source in D.C. welding
- A.C. generator, single-phase
- Protective frame with central lifting eye
- Engine shut down for low oil level (oil alert)
- Thermal protection for welding circuit
- Thermal protection for generator sockets
- Differential protection (on request)
- Compliant with EC / EU Directives
Specifications
SKU C1UN7040R
Brand Mosa
Warranty Period: 2 Years
Product Category Portable Generators
kVA 5
Max Output (kW) 5
Continuous Output (kW) 4
Model GM 5-200 HBM
Phase Single
Fuel Petrol
Fuel Tank Capacity 6.1 L
Starting Method Recoil
Engine Horsepower 3000 RPM
Net Weight (kg) 97
Product Dimensions (mm) LxWxH 870 x 529 x 612 mm
Max Output 4kVA
Cylinders (q.ty) 1
Duty Cycle 160A / 26.4V - 60% | 120A / 24.8 - 100%
Alternator Type Self-excited, self-regulated
Running Time (Rated Output) 2.9 h (Welding 60%)
Engine HONDA GX 390
Voltage 230V | 115V
Fuel Consumption 3.5 lt/h @ 110% (stand-by power) | 3.2 lt/h @ 100% | 2.4 lt/h @ 75% | 1.6 lt/h @ 50%
Displacement 389 cm3
Frequency 50Hz
