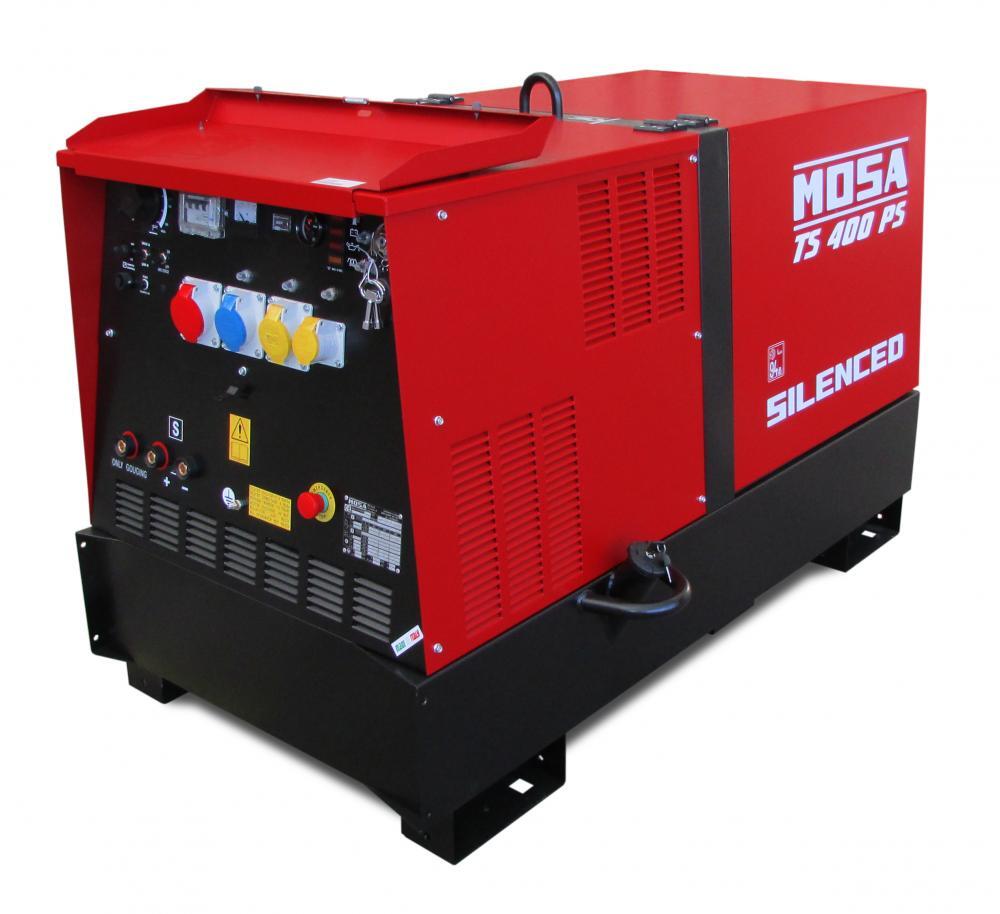

Mosa 16kva Three Phase Diesel DC Arc Welder Generator TS 400

SKU: C1BC1029BCKNP Learn More»
POA
In StockBuilt to Order Approx. 10-12 week build time

Description

Mosa 16kva Three Phase Diesel DC Arc Welder Generator, 2 Year Warranty.

Attributes:

  • Fuel: Diesel
  • Phase: 3 Phase
  • Engine Speed: 1500 RPM
  • Welding Current: 400 Amps
  • Prime Kva: 16 (23.1A)
  • Process: Conventional (Stick)
  • Fuel Tank: 60L

Features:

  • PS-BC-PL: Perkins Silenced Base Current Polarity Reversable
  • Arc welding source in D.C. welding
  • Electronic regulation of welding current
  • Welds any type of electrode, including cellulosic
  • Special BC (Base Current) circuit for pipes descending welding
  • Double welding range (20A-200A / 20A-400A)
  • Arc Gouging dedicated socket
  • A.C. generator also available while welding
  • Aux power also available while welding
  • Ground fault interruptor
  • Super silenced
  • Meets EC directives for noise and security


Mosa Product Card

Mosa Product Manual

Show More

Specifications

SKU C1BC1029BCKNP

Brand Mosa

Product Category Portable Generators

kVA 16

Max Output (kW) 12.8

Max Output (Watts) 12800

Model TS 400 PS-BC

Phase Three Phase

Fuel Diesel

Fuel Tank Capacity 23 L

Starting Method Electric

NOTE Product specifications provided by Manufacturer. This is a portable air-cooled diesel generator designed for short term/standby applications - for pri

Displacement 2216 cm3

Alternator Type Three-phase asyncronous alternator, self-regulated, self-excited, brushless

Product Dimensions (mm) LxWxH 1720 x 980 x 1110

Engine Perkins 404A-22G1

Frame Protective frame

Running Time (Rated Output) 16 h (Welding 60%)

Fuel Consumption 3.8 l/h (Welding 60%)

Frequency 50Hz

Voltage 70 V

Cylinders (q.ty) 2

Duty Cycle 400 A 60% - 350 A 100%

Engine Features indirect injection, water cooled

Outlets 3 x 15A 1Ph, 1 x 32A 3Ph 5 Pin

Net Weight (kg) 780

Engine Horsepower 1500

Engine Type 4-Stroke


NOTE: see full product specifications & further product info in the section on this page.
