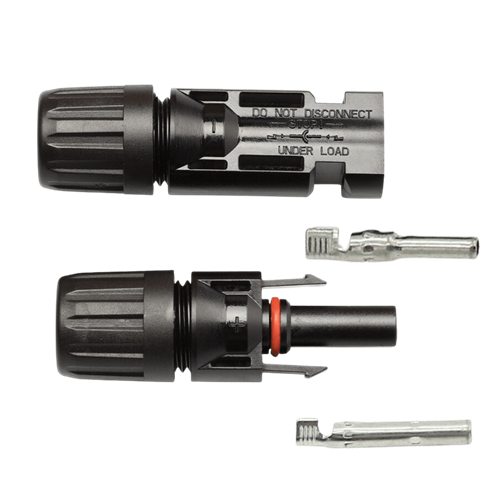

MC4 Compatible Solar Connector Pair

MC4 Compatible Solar Connector Pair

Q&A

$4

FREE SHIPPING

Call 1300 400 122
Add To Wishlist
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews
Go to: Product Details
Go to: Specifications

Product Description

MC4 Compatible Solar Connector Pair, 1 Year Warranty

Features:

  • Waterproof and dustproof IP67
  • Withstand voltage: DC1000V
  • Contact material: tinned copper
  • Insulation Material - PPO
  • Contact Material - Copper Alloy, Tin plated
  • Temperaturer Range - –40°C ...+105°C
  • Degree Protection Mated - IP67
  • Unmated - IP2X
  • Flame Class - UL94-V0
  • Locking System - Snap-in
  • Contact Resistance of Plug Connectors - 0.5mΩ
  • Safety Class - II
  • Test Voltage - 6kV(50HZ,1min)
  • Salt Mist Spray Test, Degree of Severity - 5 IEC 60068-2-52
  • Rated Current - 17A(1.5mm²),
  • 22A (2,5 mm²; 14AWG),
  • 30A (4 mm², 6 mm²; 12AWG, 10AWG)
  • Connector System - Ø 4 mm
  • Rated Voltage - 1000V DC(IEC)
Go to: Product Details
Go to: Reviews

Specifications

SKU MC4

Brand Solar 4 RVs

Warranty Period: 1 Year

Product Category Accessories
