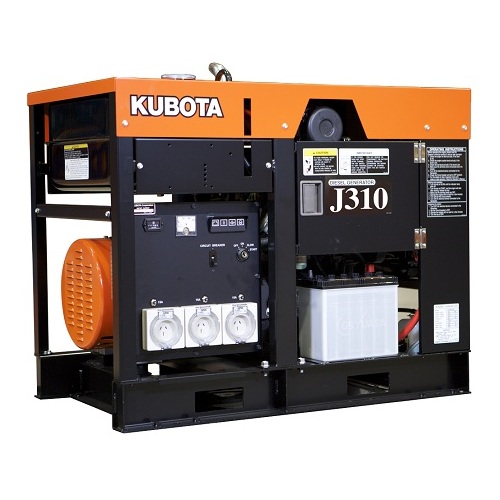

Kubota 10kva Three Phase Diesel Generator J310

SKU: J310 Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

The Kubota J310, 10 kVA Diesel Generator has advanced design and superior engineering minimise both space and weight to ensure that it will fit in most any place you wish to put it.

High Output: The Vertical Diesel Engines directly coupled to a two pole generator ensures high output at minimal size and weight.

Skewed Rotor: The wave form deformation is kept to a minimum with the development of a skewed rotor while damper windings protect the generator during a short circuit.

Large Fuel Tank: The larger capacity fuel tank enables longer periods of operation on a single tank of fuel.

Enhanced Transportability: A single point lifting eyelet and fork lift openings enhance the series transportability.

Access Terminals for AMF: New access terminals are provided for easy wiring with the auto start / stop systems.

Easy Maintenance: Oil, water and filters are located on one side for ease of maintenance and a double air cleaner element adds extra piece of mind.

Kubota Product Brochure

Product Manual


SKU J310

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 11

Phase Three

Fuel Diesel

Fuel litres per hour (75% load) 2.4

Tank Litres 37

Weight (wet) 255 kg

Prime Output 10 kVA / 8 kW

Engine Kubota D722, 3 cylinder water cooled

Sound Levels 75 dB (A)

Dimensions (LxWxH mm) 995x593x860

Outlets 3 x 10A (240V) , 1 x 20A (415V)

Fuel litres per hour (100% load) 3.1

Standby Output 11 kVA / 8.8 kW

Alternator Type Revolving field


Genelite KTA Kubota - SQ & J Series - Generator Range


Product Q&A

Ask Us a Question
  • What type of battery is used in the Kubota J301 generator

    Hi There,

    The battery used in the Kubot J310 is a 55B24R (12V x 36Ah).
